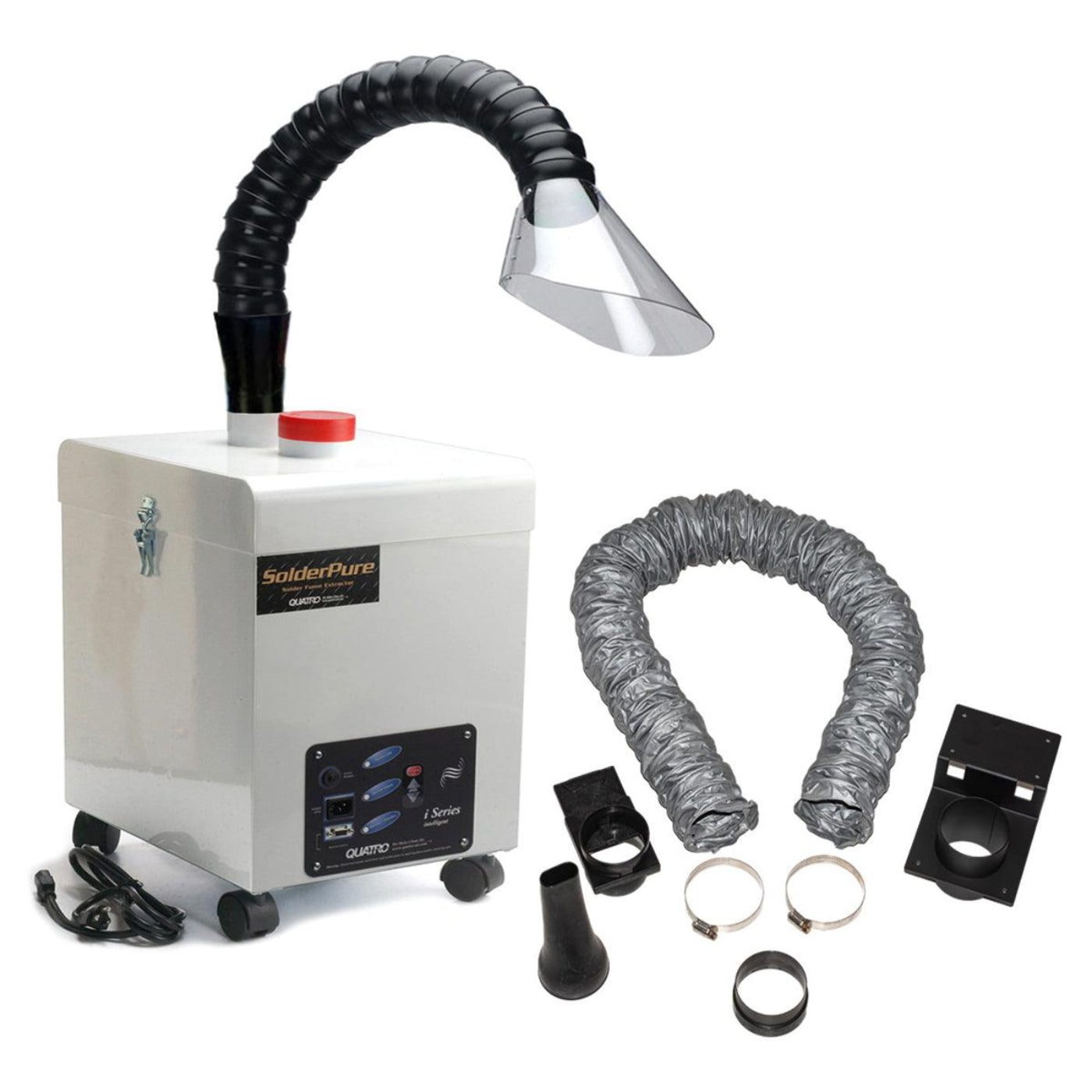

Quatro SPB-560-1BK SolderPure Solder/Waxing/Smoke Fume Extractor - 147.628
The Quatro SolderPure SWS Fume Extractor (SPB-560-1BK) is engineered to capture soldering and waxing smoke directly at the source—before it spreads throughout your workspace. The SolderPure's three-stage filtration system with a 2" thick charcoal stage achieves 99.9% fume removal without requiring external venting. Compact, quiet, and mobile on casters, this unit delivers 170 CFM of airflow at approximately 52 dBA—making it well-suited for professional jewelry and repair workshops where efficiency and safety are priorities.
Features
- Designed specifically for soldering and waxing fume extraction
- Three-stage filtration: Dust Pre-filter → HEPA → 2" Charcoal final stage
- 99.9% fume removal efficiency — no external venting required
- Quiet operation at approximately 52 dBA
- Mobile design on casters for flexible workshop placement
- Two top inlets support dual-station fume extraction setup
- Charcoal filter is refillable using Quatro NC-GPC Charcoal Refill Material (Part #147.628D)
Specifications
| Part # |
147.628 |
| Model |
SPB-560-1BK (SWS) |
| Application |
Soldering, waxing smoke and odors |
| Airflow |
170 CFM |
| Noise Level |
~52 dBA |
| Filtration Stages |
3 (Dust → HEPA → Charcoal) |
| Dimensions (H × W × D) |
20" × 12-3/4" × 15-3/4" (508 × 324 × 400 mm) |
What our Experts Think
-
Dedicated solder & fume control system: The SPB-560-1BK SolderPure is widely regarded as a purpose-built unit for soldering, waxing, and smoke extraction, delivering targeted source-capture performance for jewelry and repair benches.
-
High-efficiency 3-stage filtration: Experts highlight the combination of dust pre-filter, HEPA, and activated carbon as highly effective for removing both fine particulates and toxic soldering fumes (up to ~99.9% efficiency).
-
Strong 170 CFM airflow performance: Considered optimal for single to dual bench stations, maintaining consistent suction at the source without significant drop-off during continuous use.
-
Ultra-quiet studio operation: Running at approximately 52 dBA, it is frequently praised for maintaining a comfortable working environment in enclosed workshops.
-
Dual inlet flexibility: The two top ports allow connection of multiple stations, making it efficient for small studios handling multiple soldering tasks.
-
Compact mobile design: Built on casters with a small footprint, making it easy to position directly beside bench work areas without disrupting workflow.
-
Low-maintenance filtration system: Replaceable HEPA and refillable carbon stages reduce long-term operating cost while maintaining stable performance when filters are serviced regularly.
-
Best suited for jewelry professionals: Especially recommended for bench jewelers, metalsmiths, and repair technicians needing reliable fume removal without full industrial ventilation systems.
Q&A
Q: What is the Quatro SPB-560-1BK SolderPure Solder/Waxing/Smoke Fume Extractor used for?
A: It is a professional-grade fume extraction system designed to capture solder smoke, waxing fumes, and light chemical odors directly at the source in jewelry, dental, and precision workshop environments.
Q: What makes this SolderPure system effective?
A: It uses a 3-stage filtration system (dust pre-filter, HEPA, and activated carbon) that captures fine particles and neutralizes odors for high-efficiency air purification at the workstation.
Q: Does it require external venting?
A: No, it is designed as a self-contained unit with multi-stage filtration that allows safe indoor operation without external ducting.
Q: What airflow performance does it offer?
A: It provides approximately 170 CFM of airflow, strong enough for source-capture extraction at a bench or workstation.
Q: Is it suitable for professional use?
A: Yes, it is built for continuous use in professional environments such as jewelry repair, soldering stations, and wax working setups.
Q: How noisy is it during operation?
A: It operates at around 52 dBA, making it relatively quiet and suitable for studio or workshop environments.
Q: Can it support more than one workstation?
A: Yes, it features dual top inlets that can be configured for single or dual-station extraction setups.
Q: What type of maintenance does it require?
A: Routine replacement or servicing of the dust, HEPA, and carbon filters is required to maintain optimal suction and filtration performance.
Maintenance Tips
-
Replace filters on schedule: Change pre-filter and HEPA/activated carbon filters regularly to maintain strong fume capture.
-
Check airflow performance: Reduced suction usually indicates clogged filters or restricted airflow.
-
Keep intake area clear: Ensure soldering/waxing fumes are not blocked from reaching the extraction hood.
-
Clean exterior safely: Wipe with a dry cloth; avoid moisture near electrical components.
-
Inspect hose/arm (if used): Ensure proper positioning and no cracks or air leaks.
-
Avoid heavy buildup: Do not allow solder dust, wax residue, or smoke particles to saturate filters.
-
Run efficiency checks: Verify odor/smoke removal effectiveness during operation.
-
Do not overuse beyond capacity: Prevent continuous overload to protect motor life.
-
Routine servicing: Periodically inspect internal fan and sealing components for dust accumulation.
