Raimondi Only-One Large Format Tile Handling Device - TCLFWKEM

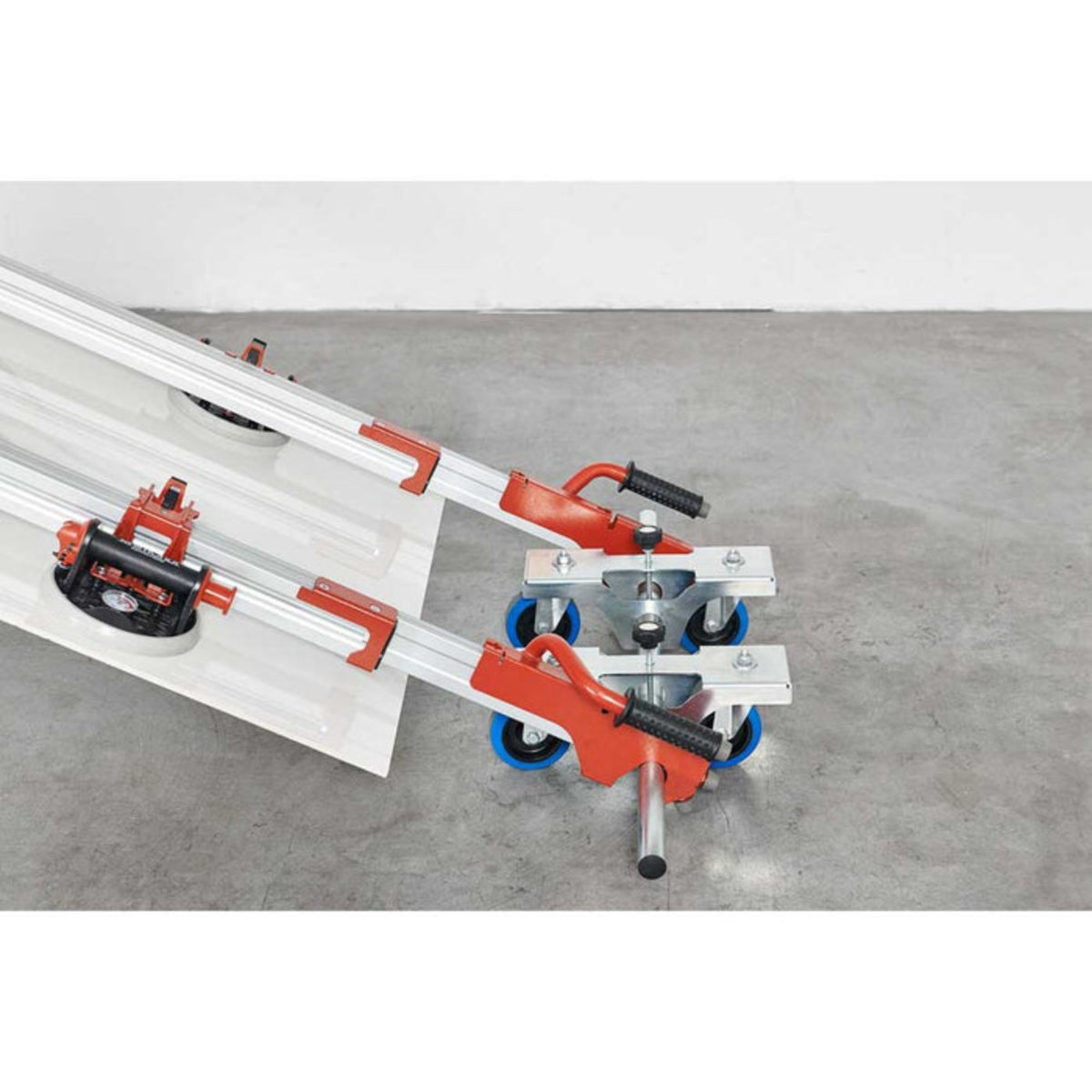

The Raimondi ONLY-ONE Large Format Tile Handling Device is a game-changer for efficiently handling and installing large format tiles. Designed to facilitate the entire process from transport to installation, this device enables a single operator to manage large tiles with ease. Its versatile functionality allows you to collect, back-butter, and lay down tiles effortlessly, making it an indispensable tool for professionals working with large-format materials.
Featuring four adjustable swiveling wheels, the Raimondi ONLY-ONE ensures precise handling of tiles of various sizes. The ergonomic handles, equipped with a quick coupling system and anti-slip rubber pads, provide comfortable and secure control during use. Suitable for tile thicknesses ranging from 3mm to 20mm (⅛" to ¾"), this device is compatible with the EASY-MOVE full frame, EASY-MOVE bars, and EASY-MOVE 150, making it a versatile addition to your tile installation toolkit.
Features
-
Device to assist installation of large format tiles
-
Allows for single-operator to collect large format tile
-

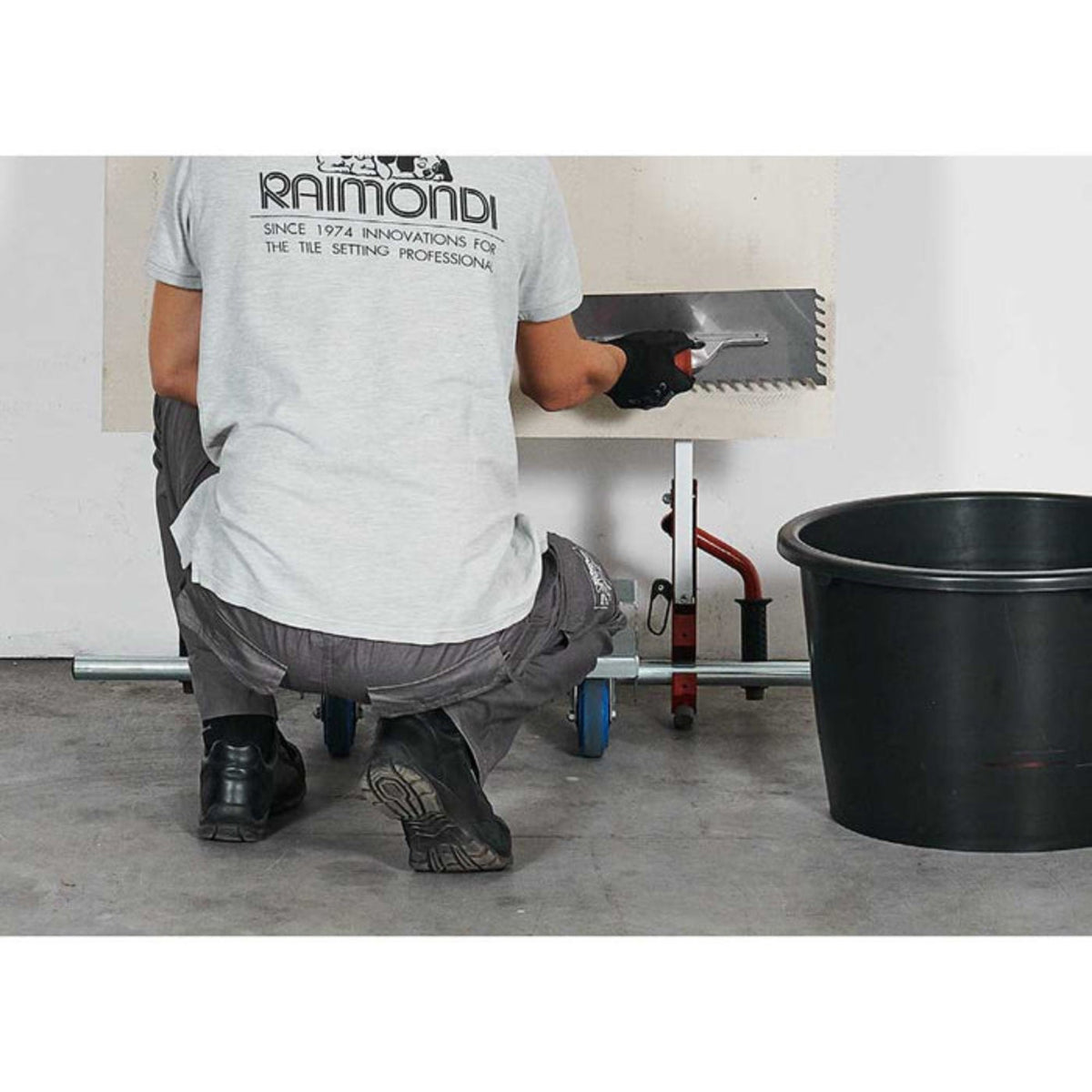

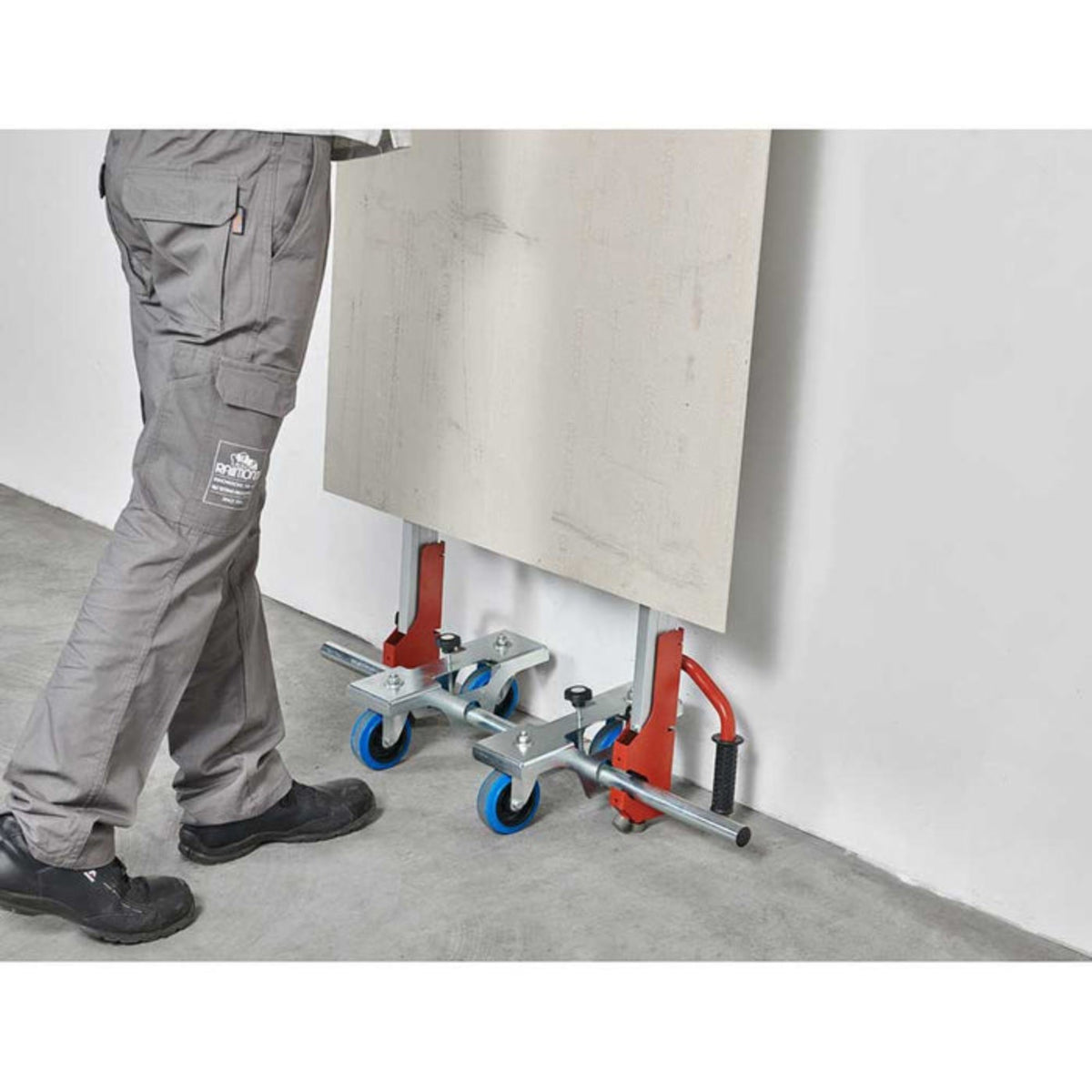

Transport large format tiles, back-butter and lay down to install using this assist device
-

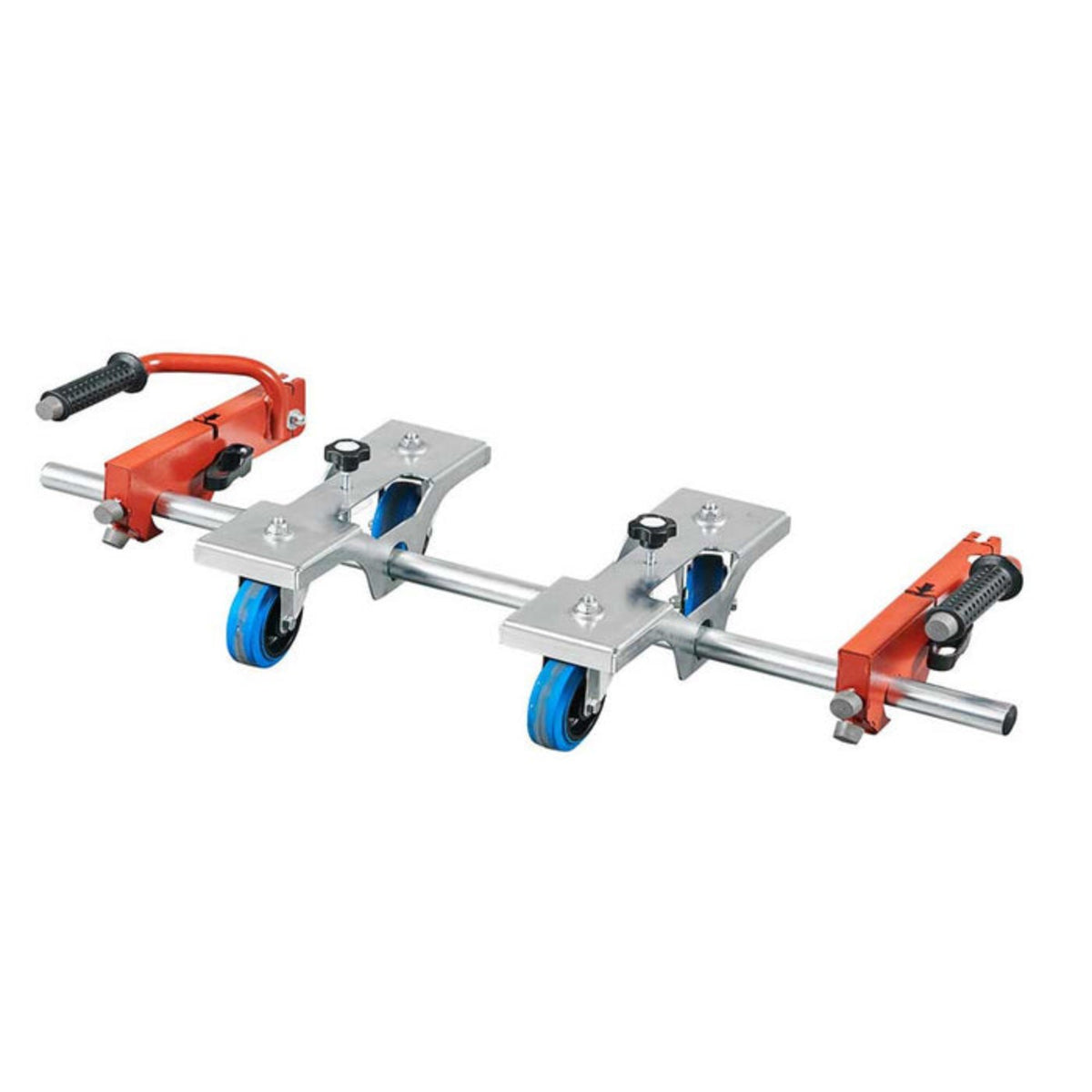

Four (4) swiveling wheels which can be adjusted to adjust large format tile size
-

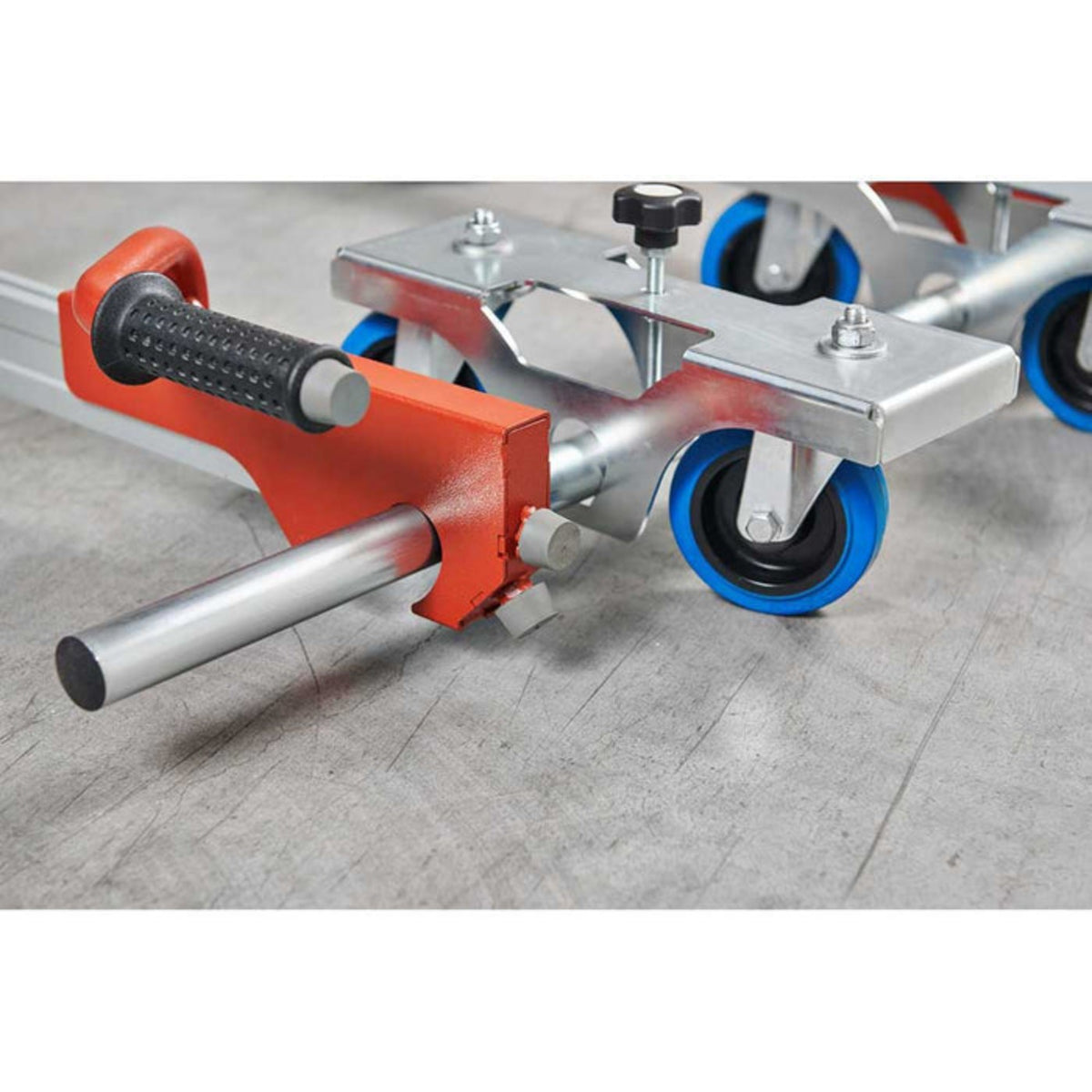

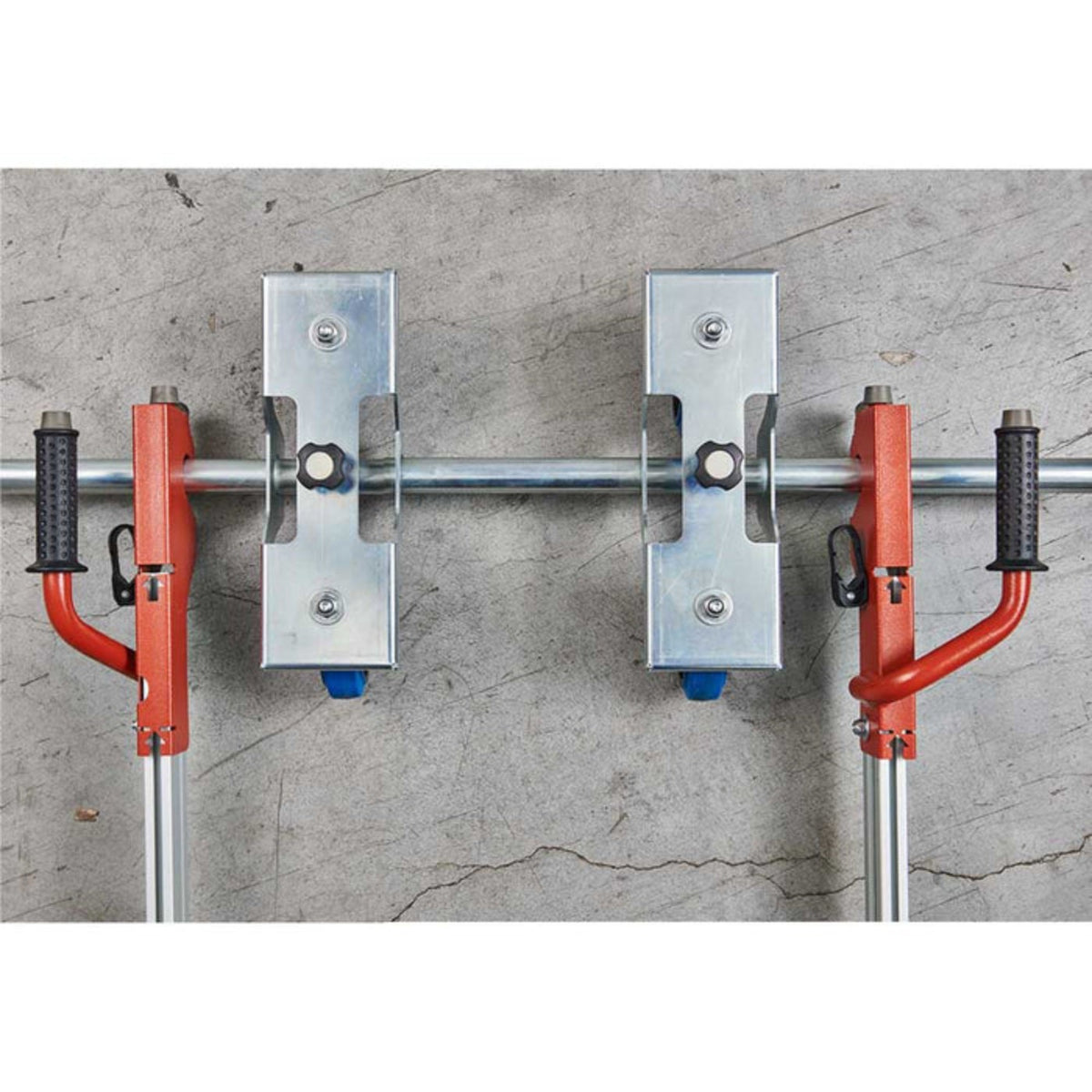

Two (2) ergonomic handles with quick coupling system to the cart and anti-slip rubber pads
-
Suitable for tile thickness from 3mm up to 20mm (⅛" - ¾")
-
Use with the EASY-MOVE full frame, EASY-MOVE bars and EASY-MOVE 150
Specification
| Device Type: |
Tile Handling Device |
| Tile Thickness Range: |
3mm to 20mm (⅛" to ¾") |
| Number of Wheels: |
4 (Swiveling and adjustable) |
| Number of Handles: |
2 (Ergonomic with anti-slip rubber pads) |
| Compatibility: |
EASY-MOVE full frame, EASY-MOVE bars, EASY-MOVE 150 |
What Our Experts Think
-
Designed for Oversized Tiles: Specially engineered for handling large-format tiles with ease and precision.
-
Integrated Suction System: Equipped with strong vacuum suction cups to securely grip and transport tiles.
-
Fully Adjustable Frame: Customizable rails and supports to accommodate a variety of tile sizes and thicknesses.
-
Ergonomic & Lightweight: Easy to maneuver, with comfortable grips for reduced strain during operation.
-
Durable Construction: Built with heavy-duty materials to ensure long-lasting performance under professional use.
-
Enhanced Safety: Minimizes the risk of tile breakage and operator fatigue, ensuring smooth installations.
Q&A
Q: What is the Raimondi Only-One Handling Device used for?
A: It is designed for lifting, transporting, and positioning large-format tiles and thin porcelain panels safely and efficiently during installation.
Q: What are its key features?
A: The device includes a lightweight aluminum frame, adjustable telescopic arms, four vacuum suction cups for secure gripping, and ergonomic handles for comfortable operation.
Q: What tile sizes can it handle?
A: It is ideal for handling large and oversized tiles, including ultra-thin porcelain panels, ensuring versatility for modern tile installations.
Q: How does it improve workflow?
A: The device simplifies the handling of large tiles, reduces manual labor, and minimizes the risk of tile breakage, making installation faster and safer.
Q: Is it easy to operate?
A: Yes, the suction cups provide a strong, secure grip, and the adjustable frame allows for quick setup and adaptability to different tile sizes.
Q: Is it durable for professional use?
A: Absolutely. Constructed with high-quality materials, it is designed for long-term, heavy-duty performance in demanding job site conditions.
Maintenance Tips
-
Post-Use Cleaning: Clean all components, including suction cups and the frame, after each use to remove dust, adhesive, or tile residue.
-
Suction Cup Care: Inspect suction cups for cracks, wear, or deformation. Clean with mild soap and water for optimal adhesion, and replace them when necessary.
-
Frame Inspection: Regularly check the aluminum frame and joints for any signs of damage or looseness. Tighten bolts and screws to ensure stability.
-
Lubrication: Apply lubricant to adjustable parts and moving mechanisms to maintain smooth operation.
-
Pre-Use Checks: Ensure all components, including locking mechanisms and adjustable arms, are secure and properly aligned before each use.
-
Weight Compliance: Adhere strictly to the device's weight capacity to prevent overloading and potential structural damage.
-
Storage: Store the device in a clean, dry area, preferably in its protective case, to safeguard against moisture, dust, and impact damage.
-
Vacuum System Maintenance: If equipped with a vacuum pump, inspect hoses and seals for leaks and test the pump regularly to ensure it functions correctly.
