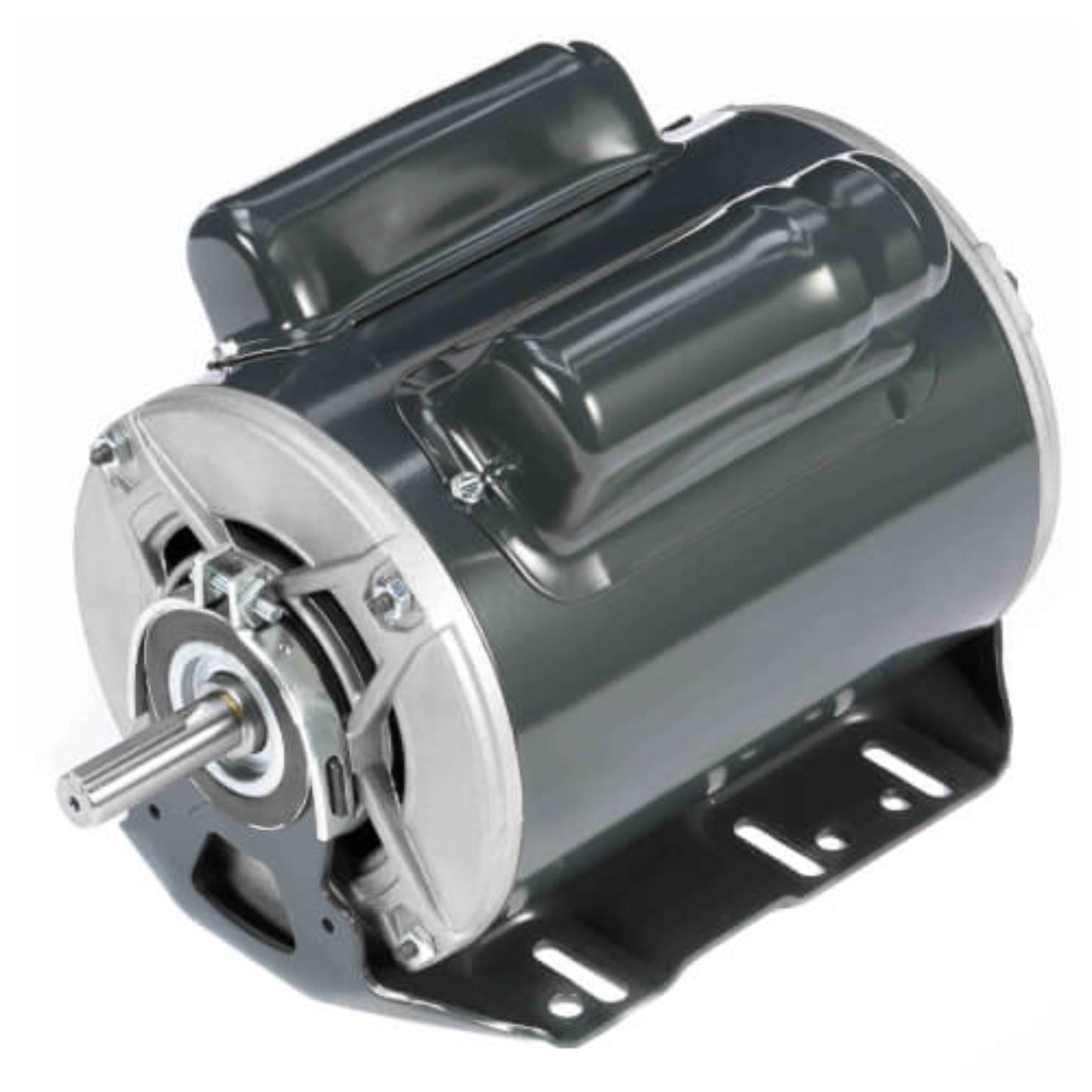

Marathon Motors C1160 General Purpose Motor 1.5 HP 1725 RPM 1 PH 115/208-230V - C1160
The Marathon Motors C1160 general purpose motor offers a robust power solution for a wide range of industrial applications. It features a 1.5 horsepower, single-phase motor, suitable for voltages between 115 and 230 volts and operates at 1725 revolutions per minute. This product is expertly designed for continuous duty and showcases a resilient base mounting type.
- Ideal for use in HVAC systems, pumps, fans, and machinery
- High-quality ball bearings ensure long-lasting performance
- The motor supports both clockwise and counterclockwise rotational direction
Constructed with a drip-proof enclosure, this motor ensures reliable operation in diverse environments. Its insulation is classified under Class B, with performance up to 104 degrees Fahrenheit. With NEMA standards compliance, the Marathon Motors C1160 motor is engineered for industrial reliance and efficiency.
Specifications
-
Frame Size: 56H
-
Voltage: 115/208-230V
-
Phase: 1
-
Power: 1.5 HP
-
Speed: 1725 RPM
-
Rotation: CW/CCW
-
Enclosure Type: Drip Proof
-
Max Ambient Temperature: 104°F
-
Insulation Class: B
-
Mounting Type: Resilient Base
What Our Experts Think
-
1.5 HP, 1725 RPM motor ideal for a wide range of general-purpose applications.
-
Single-phase, 115/208-230V design allows flexible installation.
-
Manufactured by Marathon Motors, known for durability and performance.
-
Open drip-proof (ODP) enclosure provides reliable cooling and operation.
-
Commonly used in pumps, fans, blowers, and light machinery.
Q&A
Q: What are the specs of this motor?
A: 1.5 HP, 1725 RPM, single-phase, 115/208-230V.
Q: What type of enclosure does it have?
A: ODP (Open Drip Proof), designed for effective cooling.
Q: What equipment is it suited for?
A: Pumps, compressors, fans, blowers, and other general-purpose uses.
Maintenance Tips
-
Keep ventilation clear to ensure proper cooling.
-
Wipe down motor housing regularly to remove dust and debris.
-
Lubricate bearings per manufacturer’s schedule.
-
Check electrical connections periodically for safe operation.
