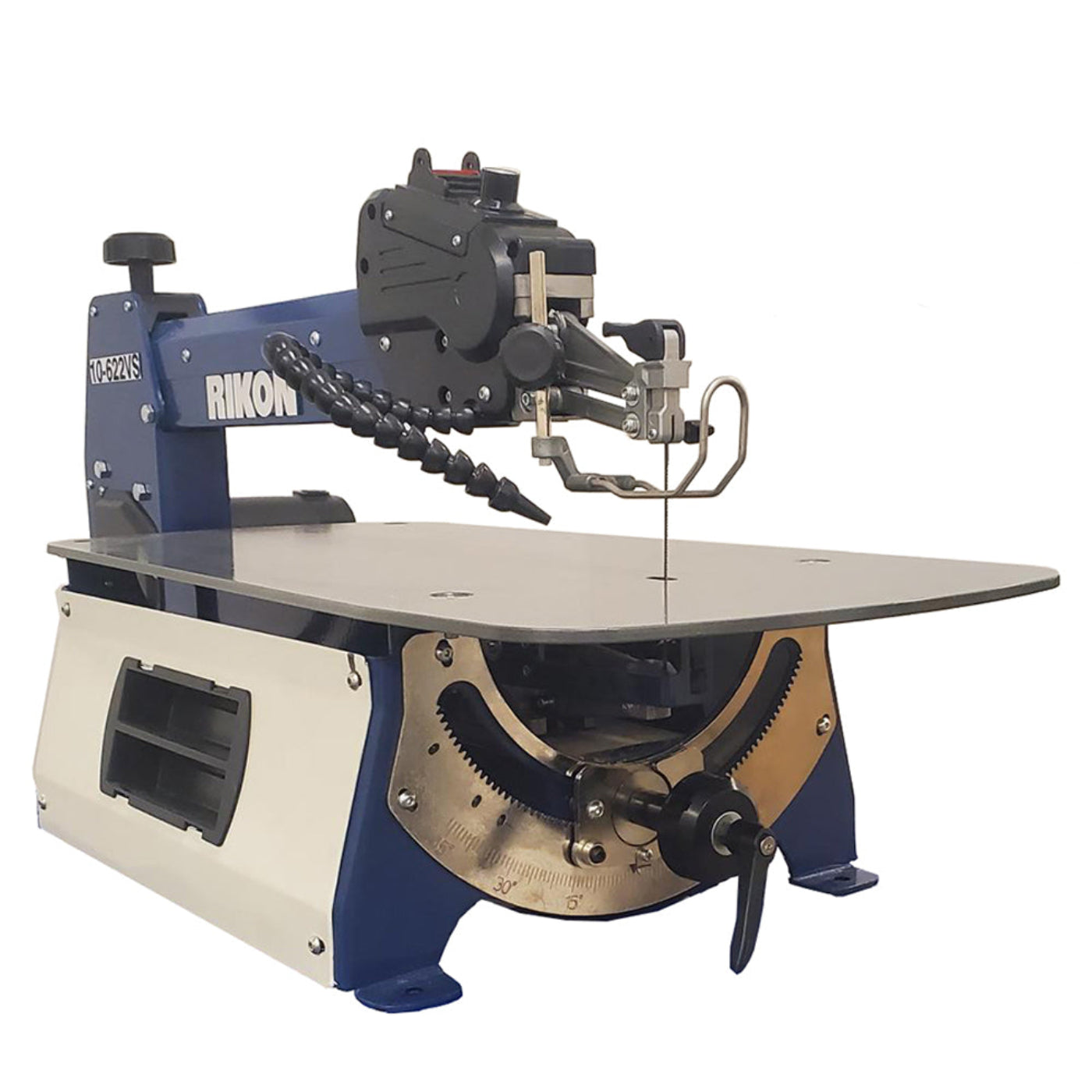

RIKON 22″ Variable Speed Scroll Saw - 10-622VS

The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s extra deep 22” throat and large steel table give extra access and stability when sawing large projects. Table also tilts left and right for making angled cuts. Machine uses 5” long plain end (pinless) blades. Includes sturdy, all-metal base, adjustable built-in dust blower nozzle, lower dust port with vacuum attachment and blade/tool storage in the base.

Features

• Extra large finished steel table measures 25-5/8″ long x 13-3/4″ wide and tilts -30° Left to 45° Right for angled cutting. 36 holes surrounding the main hole for the blade aids in dust removal when the saw is used with a vacuum.
• Reliable 1.6A, 120V, 60Hz motor with Electronic Variable Speeds allows speeds from 550 to 1550 strokes per minute (SPM).
• Ideal for setting the best cutting speeds for working a variety of materials – woods, plastics, soft metals etc.
• Maximum cutting height is 2″. Saw’s cutting up/down stroke is 3/4″.
• Dust port diameter is 1-3/8″ (35mm) O.D. and includes a 90° Dust Hose fitting attachment.
• Base to table height is 7-9/16″ (192mm).
• Optional Stand 13-622
• Optional Foot Switch 99-600

Specifications

Motor Volts	120V, 60Hz
Motor Amps	1.6
Electronic Variable Speed (SPM)	550 - 1,550
Pinless Blade Length	5” / 130mm
Maximum Cutting Height	2“ / 50mm
Stroke	3/4” / 20mm
Throat Depth	22” / 560mm
Table Size (LxW)	.25-5/8” x 13-3/4” / 650 x 350mm
Table Tilting	30° Left, 0°, 45° Right
Base to Table Height	7-9/16“ / 192mm
Dust Port Diameter (O.D.)	1-3/8” / 35mm
Maximum Sound Level (at 0.3m / 11.8“)	<80dB
Overall Size (LxWxH)	34"x14-1/8"x16-9/16" / 865x360x420mm
Base Size (approx. LxW)	18-5/8” x 13-1/4” / 475 x 335mm
Net Weight	68 lbs.

What our Experts Think

• Large work area with precision control: The RIKON 22″ Variable Speed Scroll Saw – 10‑622VS offers a spacious 22″ throat, giving users plenty of room for larger patterns and extended cuts while maintaining fine control.

• Variable speed for better cuts: Adjustable blade speed ensures clean results across a wide range of materials—from softwoods and hardwoods to plastics—letting you dial in the best speed for intricate curves and delicate work.

• Smooth, low‑vibration performance: A robust frame and balanced mechanics reduce vibration, helping improve cut accuracy and reduce fatigue during long scroll cutting sessions.

• Easy blade changes & tilting table: Quick blade tensioning and a bevel‑tilting table up to 45° make angled cuts and pattern work more versatile and user‑friendly.

• LED work light & clear visibility: Built‑in lighting and a large table surface enhance visibility right at the cut line, helping with precision and detailed scroll work.

• Durable for frequent use: Designed with quality components and thoughtful engineering, this saw fits well in serious hobbyist and small shop environments.

Q&A

Q: What materials can this scroll saw cut?
A: Designed for woods, plastics, and soft metals, it excels at intricate curved cuts, decorative scrollwork, puzzles, and inlays thanks to its variable speed control.

Q: What size throat and cutting capacity does it offer?
A: With a 22″ throat depth, you get extra clearance for larger workpieces, and it handles up to 2″ cutting height at 90°.

Q: How is the speed controlled?
A: It features electronic variable speed (550–1,550 SPM), letting you dial in the best cutting speed for different materials and blade types.

Q: What kind of table and tilting options are included?
A: The saw has a large finished steel table (approx. 25‑5/8″ × 13‑3/4″) that tilts 30° left and 45° right for angled cuts.

Q: Does this model support dust management?
A: Yes — it includes a built‑in dust blower with adjustable nozzle and a 1‑3/8″ dust port with 90° fitting for vacuum hookup.

Q: What blade type and change features does it use?
A: Accepts 5″ pinless blades and offers tool‑less blade changing for fast setup.

Q: Are there convenience storage features?
A: Yes — it includes integrated blade/tool storage in the base for organized accessories.

Q: Is it suitable for hobbyists and craft woodworking?
A: Absolutely — its variable speed control, large tilt table, and deep throat make it ideal for detailed scroll work in hobby, craft, and woodshop settings

Maintenance Tips

• Disconnect Power Before Maintenance: Always unplug the saw before cleaning, adjusting, or changing blades.

• Clean Blade & Table: Remove sawdust and debris from the blade, table, and lower housing after each use to maintain smooth operation.

• Check Blade Tension & Tracking: Adjust blade tension and tracking before every cut for accurate and safe cutting.

• Inspect Blades for Wear: Replace dull or damaged blades promptly to prevent rough cuts and motor strain.

• Lubricate Moving Parts: Lightly oil the arm pivots and tension mechanisms to ensure smooth movement.

• Check Drive Belt & Hardware: Ensure the motor belt is in good condition and all fasteners, knobs, and guards are secure.

• Protect Metal Surfaces: Wipe exposed metal parts with a cloth and apply a thin layer of light oil to prevent rust.
