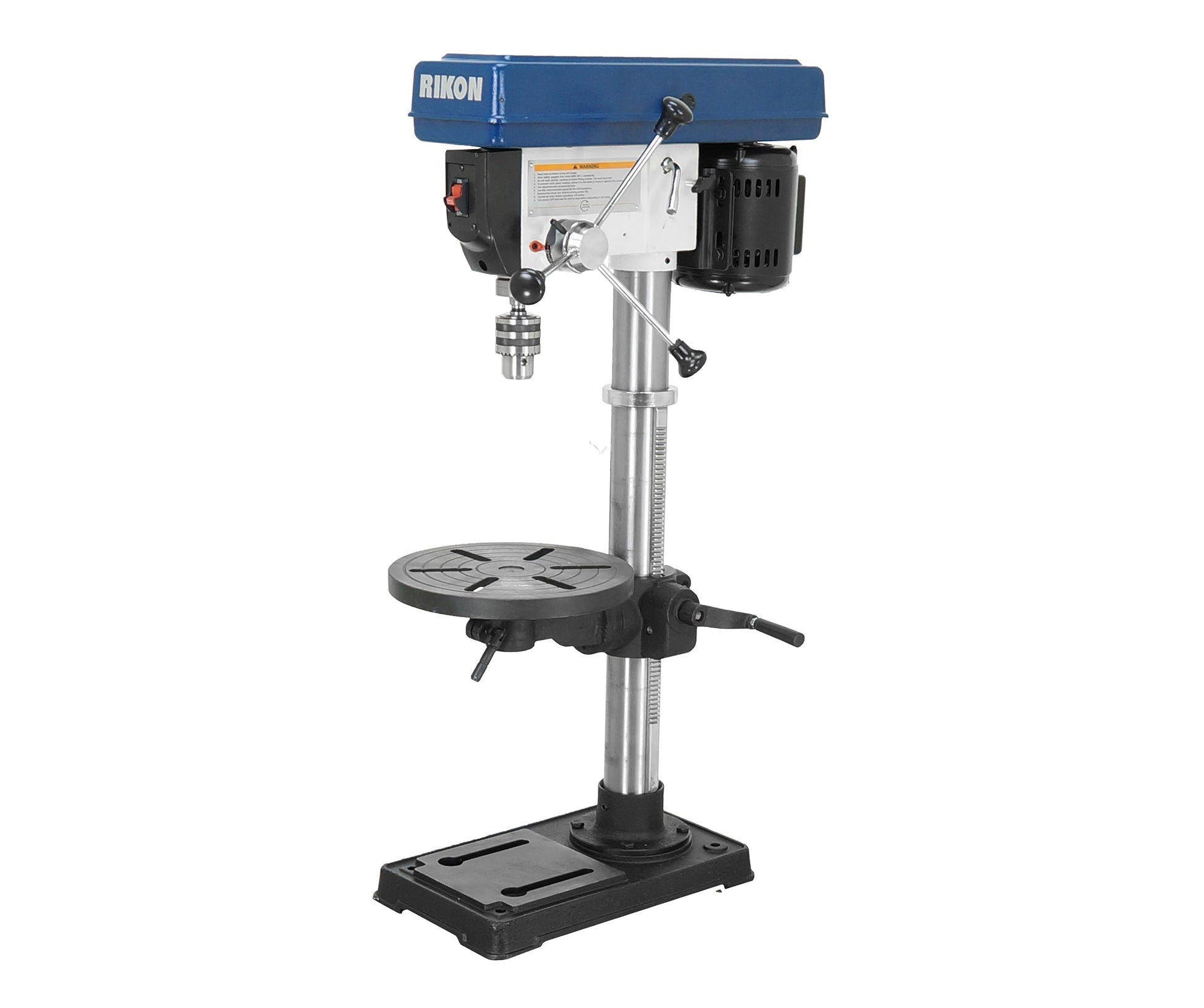

RIKON 13″ Bench Top Drill Press - 30-120
13” Benchtop Drill Press #30-120 is a larger model for a more serious woodworker, that requires a benchtop design. It features greater drilling capacity, more spindle speed settings, a larger keyed chuck for bigger diameter drills, and a round table that swivels as well as tilts.
Features
- Powerful 1/2 HP Motor
- 16 Spindle Speeds
- Clutch Depth Stop
- Cast Iron Table (Round)
Specifications
| Motor Horsepower |
1/2 HP |
| Motor Amps |
7.5 |
| Motor Volts |
120V, 60Hz |
| Motor RPM |
1,720 |
| Swing |
13” |
| Chuck Size |
5/8” |
| Chuck Taper |
JT3 |
| Drilling Capacity |
5/8” |
| Spindle Travel |
3-1/8” |
| Spindle Taper |
MT2 |
| Head Rotates |
360° |
| Head Tilts |
- |
| Speeds |
16 |
| Speed Range (RPM) |
220 – 3,600 |
| Quill Diameter |
2-3/16” |
| Table Dimensions |
11-3/16” (Round) |
| Table Tilts |
90° |
| Table Rotates |
360° |
| Maximum Chuck to Table |
16-1/4” |
| Maximum Chuck to Base |
24-5/8” |
| Column Diameter |
2-7/8” |
| Overall Height |
42” |
| Overall Base Size |
17-3/4” x 10-1/2” |
| Overall Net Weight |
102 lbs. |
What our Experts Think
-
Solid Entry‑Level Performance – The RIKON 13″ Bench Top Drill Press (30‑120) offers dependable drilling power with a compact footprint, making it ideal for small shops, hobbyists, and precision woodworking tasks.
-
Good Speed Range for Materials – With multiple spindle speeds, users can match drilling speed to material type and bit size, helping reduce tear‑out and improve hole accuracy.
-
Stable Work Support – A cast‑iron table that tilts and rotates provides solid support and flexibility for angled drilling and repeatable setups.
-
Easy Adjustments – The depth stop and quick table height adjustment make consistent drilling faster and help achieve uniform hole depths with less effort.
-
Space‑Saving Design – Compact bench‑top size saves valuable workshop space while still handling up to ½″–⅝″ drilling capacity (depending on chuck), suitable for wood, plastics, and light metal work.
-
Cleaner Operation – Built‑in dust port helps connect to a vacuum or small collector, keeping drill debris under control.
-
Expert Verdict – A reliable and versatile benchtop drill press that blends precision, ease of use, and compact design — a great choice for hobbyists and small‑scale projects.
Q&A
Q: What is the RIKON 30‑120 Bench Top Drill Press designed for?
A: A compact 13″ bench drill press ideal for drilling precise holes in wood, plastic, and light metals in small shops, hobby work, and DIY projects.
Q: What motor power does it have?
A: It features a 3/4 HP induction motor for smooth, reliable drilling performance.
Q: How many speeds does it offer?
A: It includes 5 spindle speeds (typically ~570–3,125 RPM) so you can match speed to material and bit size.
Q: What is the chuck size and capacity?
A: The drill press comes with a 5/8″ keyed chuck (JT3) that accepts bits from small sizes up to 5/8″ diameter.
Q: How adjustable is the work table?
A: The 11″ × 11″ cast‑iron table tilts up to 45°, rotates 360°, and adjusts height on the column for versatile drilling angles and positions.
Q: What is the drilling depth and travel?
A: Offers a 3″ spindle travel and enough depth for most bench drilling tasks in wood and light metal.
Q: Does the unit include a laser or guide?
A: It includes a laser drilling guide to help align holes precisely (feature may vary by seller).
Q: Who is this drill press best for?
A: Ideal for woodworkers, hobbyists, and small shop users needing accurate, space‑efficient drilling without a floor‑standing machine.
Maintenance Tips
-
Clean After Each Use: Remove dust, metal shavings, and debris from the table, spindle, base, and belt/pulley covers to prevent buildup that affects precision.
-
Inspect Belts and Pulleys: Check drive belts for wear, cracking, or slack; adjust or replace as needed to maintain proper speed and performance.
-
Lubricate Moving Parts: Lightly oil the quill, spindle shaft, table adjustment mechanisms, and column rack to ensure smooth movement and accurate positioning.
-
Protect Cast‑Iron Surfaces: Apply a thin coat of paste wax to the table and column to prevent rust and allow workpieces to slide easily.
-
Check Motor Ventilation: Keep motor vents clear of dust to prevent overheating and maintain optimal motor life.
-
Disconnect Power Before Maintenance: Always unplug the drill press before cleaning, adjusting speeds, or changing parts to avoid accidental startup.
