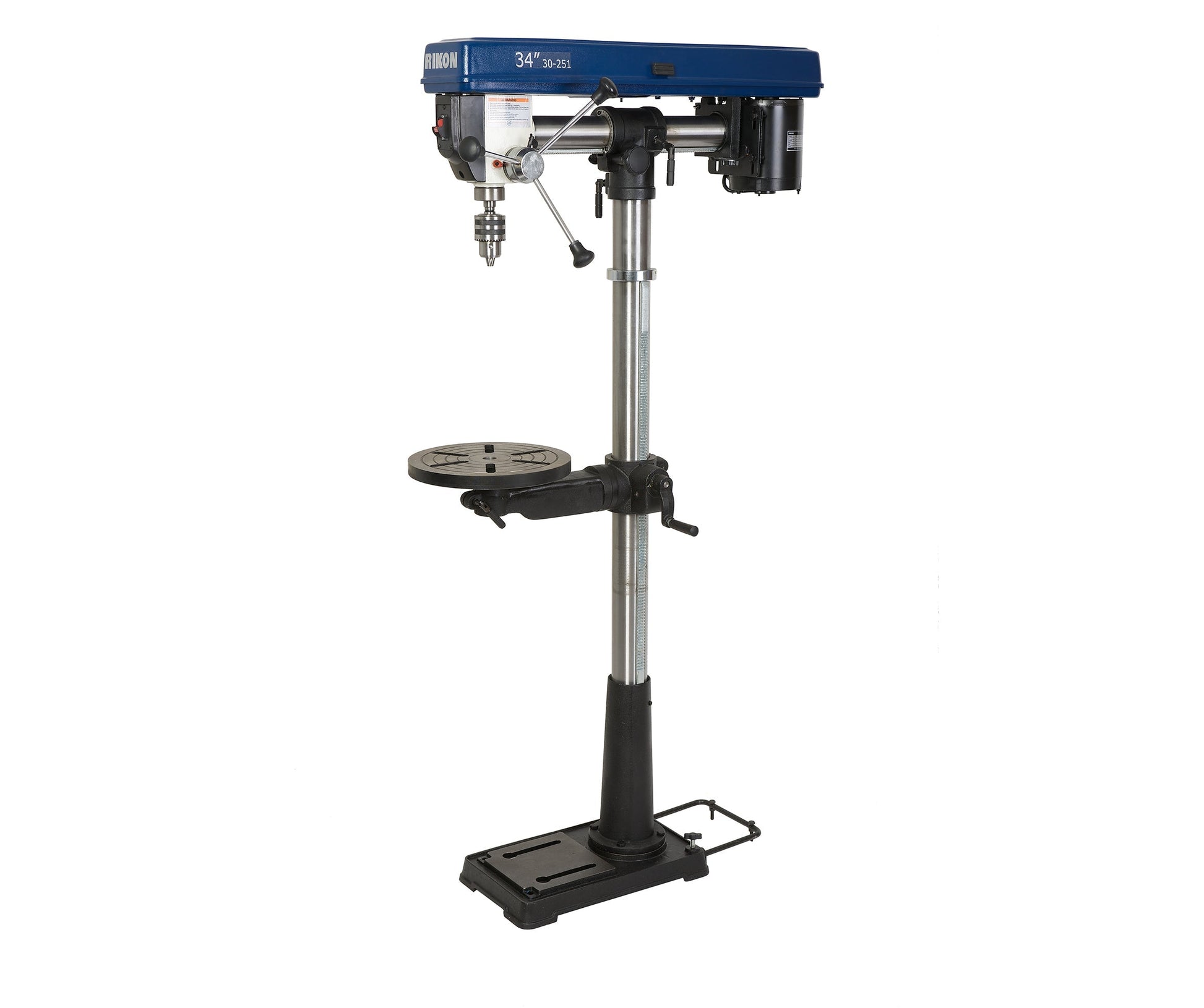

RIKON 34″ Radial Floor Drill Press - 30-251
34” Floor Radial Drill Press #30-251 has the same great features as the bench model, but has larger components in proportion with the added height and capacities of this floor model – larger base, column, and table assemblies. The work table on this model is round shape, and will turn 360° as well as tilt 45° in left and right.
Features
- Powerful 1/3 HP Motor
- 5 Spindle Speeds
- Clutch Depth Stop
- Cast Iron Table (Round)
Specifications
| Motor Horsepower |
1/3 HP TEFC |
| Motor Amps |
5.5 |
| Motor Volts |
120V, 60Hz |
| Motor RPM |
1,720 |
| Swing |
34” |
| Chuck Size |
5/8” |
| Chuck Taper |
JT3 |
| Drilling Capacity |
5/8” |
| Spindle Travel |
3-1/8” |
| Spindle Taper |
MT2 |
| Head Rotates |
360° |
| Head Tilts |
45° Right, 90° Left |
| Speeds |
5 |
| Speed Range (RPM) |
620 – 3,100 |
| Quill Diameter |
2-3/16” |
| Table Dimensions |
11-3/16” Round |
| Table Tilts |
90° |
| Table Rotates |
360° |
| Maximum Chuck to Table |
28-3/8” |
| Maximum Chuck to Base |
47-3/4” |
| Column Diameter |
2-7/8” |
| Overall Height |
64” |
| Overall Base Size |
18” x 10-1/2” |
| Overall Net Weight |
120 lbs. |
What our Experts Think
-
Big drilling capacity with radial reach: The RIKON 34″ Radial Floor Drill Press – 30‑251 offers an extended 34″ swing and radial head movement, letting you drill large panels, beams, and oversized workpieces with flexibility and precision.
-
Smooth, versatile speed range: With 5 spindle speeds from ~620 to 3,100 RPM, this drill press adapts well to wood, plastics, and metal drilling tasks with better control over feed rate and bit cutting performance.
-
360° rotation & tilting head/table: The head rotates fully and tilts 45° right/90° left while the round cast‑iron table also rotates and tilts, giving you excellent alignment options for angled or awkward drilling.
-
Solid construction for stability: A cast‑iron base, heavy column, and rack‑and‑pinion adjustments ensure rigidity, reducing vibration and improving hole accuracy — especially useful when drilling larger or deeper holes.
-
Convenient user features: Includes a clutch depth stop for repeatable hole depths, large feed handles for better control, and a keyed 5/8″ chuck with MT2 spindle taper for wide bit compatibility.
-
Good balance of power and value: The 1/3 HP TEFC motor provides reliable torque for everyday workshop drilling without excessive power draw — a sensible choice for both hobbyists and light professional use.
Q&A
Q: What kind of drilling machine is the RIKON 30‑251?
A: It’s a 34″ radial floor drill press with a radial head design — the drill head can rotate 360° and tilt 45° right or 90° left for versatile angled drilling.
Q: What motor powers this drill press?
A: It runs on a 1/3 HP TEFC induction motor (120 V, 60 Hz), providing reliable torque for wood and light‑to‑medium metal drilling tasks.
Q: What are the spindle and speed specifications?
A: It offers 5 spindle speeds from approximately 620 to 3,100 RPM, letting you match speed to material and bit size.
Q: What drilling capacity does it have?
A: Swing capacity is 34″, and it supports a 5/8″ chuck (JT3 taper) with up to 3‑1/8″ spindle travel.
Q: Can the table be adjusted for positioning?
A: Yes — the round cast iron table tilts and rotates 360° and moves up/down the column via a rack‑and‑pinion mechanism for precise setup.
Q: What features help with repeat drilling?
A: The drill press includes a clutch depth stop for consistent hole depths and large feed handles for ergonomic control.
Q: What are its overall size and build?
A: The machine stands around 64″ tall, with a sturdy cast iron base and column for vibration‑reducing stability; net weight is about 120 lbs.
Q: Who is this drill press best suited for?
A: Ideal for workshops, hobbyists, and DIY woodworkers needing versatile capacity, angled drilling, and strong table/drill support for larger workpieces.
Maintenance Tips
-
Disconnect Power Before Maintenance: Always unplug the drill press before cleaning, adjusting, or changing bits.
-
Clean Table, Base & Spindle Area: Remove metal shavings, dust, and debris after each use to maintain precision and prevent wear.
-
Lubricate Moving Parts: Lightly oil the spindle, quill, radial arm slides, and pivot points to ensure smooth operation.
-
Inspect Chuck & Spindle: Check the chuck, spindle, and key for wear or damage; ensure proper tightening before drilling.
-
Check Drive Belts & Pulleys: Inspect belts for wear and proper tension; replace if frayed or cracked.
-
Verify Alignment & Squareness: Periodically check table, quill, and radial arm alignment for accurate drilling.
-
Inspect Hardware & Power Cord: Ensure all bolts, fasteners, and the power cord are secure and undamaged.
-
Protect Metal Surfaces: Wipe exposed metal parts with a clean cloth and apply light machine oil to prevent rust.
