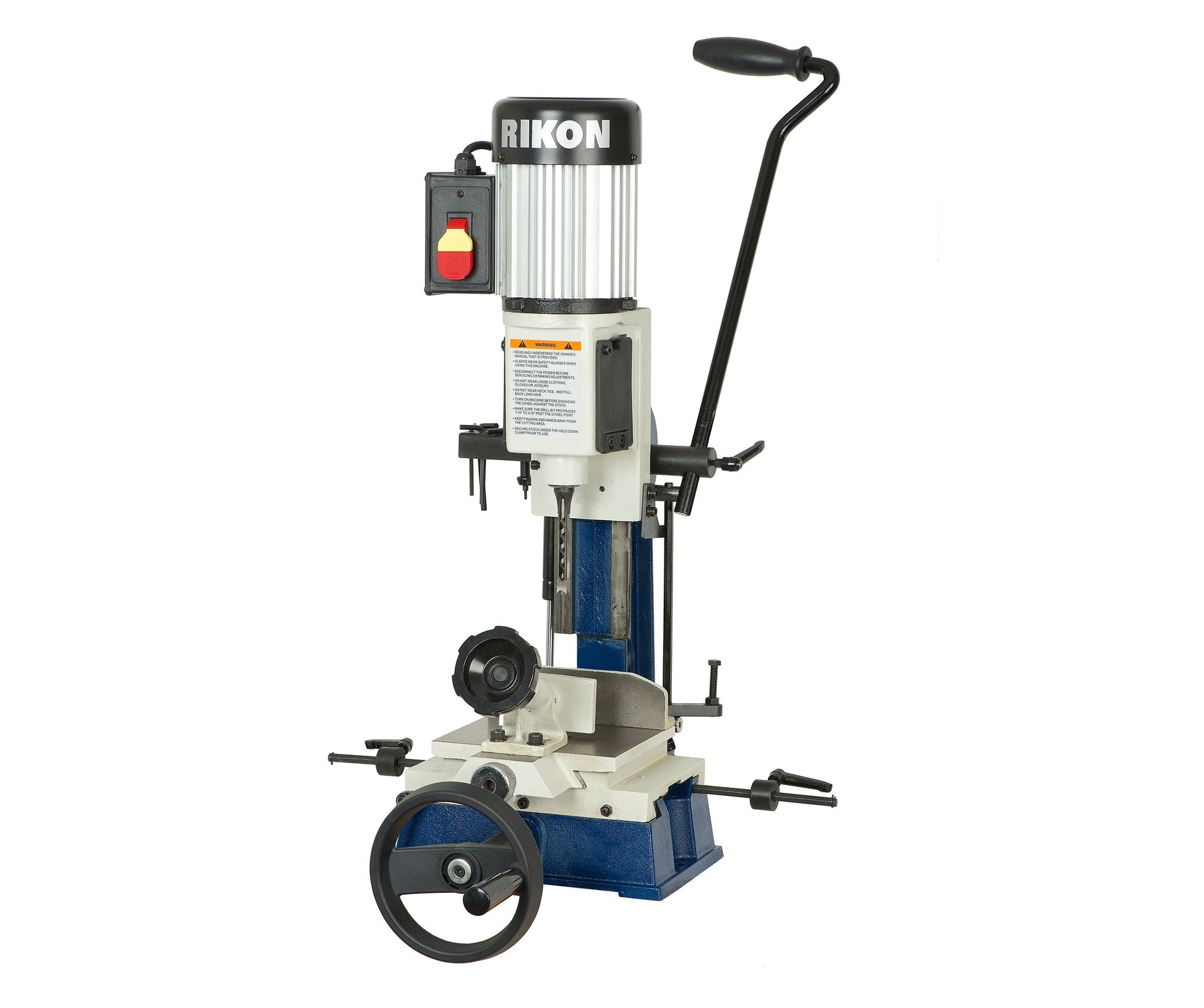

RIKON Bench Top X – Y Mortiser - 34-260
Benchtop X-Y Mortising Machine #34-260 gives precision positioning of your work for boring mortises because of the sliding, X-Y axis table. Front controls move the table either forward-and-back, or side-to-side along the dual dovetail ways. The front clamp pushes work against the cast iron rear fence, as well as acting as a hold down.
Features
- 1/2 HP 120 Volt TEFC Motor
- Dovetail Column Ways with Adjustable Stop
- Gas Filled Stabilizer
- Includes 2 Extensions
- 5/8″ & 3/4″ Chisel Bushings
- INCLUDES: Fence, Hold Down, Tool Holder and 4 Chisels
Specifications
| Motor Horsepower |
1/2 HP TEFC |
| Motor Amps |
3.6 |
| Motor Volts |
120V, 60Hz |
| Motor RPM |
1,700 |
| Type |
Benchtop |
| Chisel Shank Diameter |
1”(with 5/8“ & 3/4” Bushings) |
| Chisel Stroke |
4-3/4” |
| Chisel Range |
1/4“ – 5/8” |
| Chisel Sizes Included |
1/4”, 5/16”, 3/8”, 1/2” |
| Hold Down Length From Fence |
- |
| Maximum Hold Down Stock Height* |
4-11/16" |
| Roller Clamps Diameter (2) |
- |
| Maximum Stock Width |
3-7/8" |
| Chuck Type |
Keyed |
| Chuck Capacity |
1/2” |
| Table Size |
7” x 5-1/8” |
| Side Extension Size (2) |
- |
| Table Width With Extensions |
- |
| Table Movement Side-to-Side |
6-1/2” |
| Table Movement Front-to-Back |
3-7/8” |
| Fence Size |
2” x 7” |
| Overall Height |
32-1/2” |
| Overall Width |
21-3/4” |
| Overall Depth |
22-1/2” |
| Overall Base Size |
10-3/4” x 12-1/2” |
| Overall Net Weight |
86 lbs. |
What our Experts Think
-
Precision mortising in a compact package: The RIKON Bench Top X–Y Mortiser – 34‑260 delivers accurate, square mortises thanks to its X‑Y table feed system, making it easier to produce tight‑fitting joints than with hand tools or standard drill presses.
-
Smooth, controllable cuts: The X–Y sliding worktable allows fine adjustments for width and depth, helping ensure repeatable mortises without constant repositioning — a big workflow saver for repetitive joinery.
-
Heavy‑duty build where it counts: A cast‑iron base and table reduce vibration and improve stability during cuts, resulting in cleaner edges and less tear‑out.
-
Easy to set up and use: Clear markings, simple fence adjustments, and smooth feed handles make it easy to dial in layouts and maintain consistent results — even for beginners stepping up to machine joinery.
-
Space‑saving without sacrificing capability: The bench‑top footprint fits small shops or crowded workspaces while still handling typical mortising tasks for furniture, frames, and cabinetry.
-
Good bit and chisel support: Compatible with a range of mortise chisels and bits, giving flexibility for different joint sizes without complex setups.
Q&A
Q: What is the main purpose of this RIKON mortiser?
A: It’s a bench top X–Y mortising machine designed to drill precise square mortises — essential for furniture, cabinetry, doors, shutters, and joinery work.
Q: What motor powers the 34‑260 mortiser?
A: It features a 1/2 HP TEFC motor (120 V, 3.6 A, ~1,700 RPM) that handles tough hardwoods and repeated mortising tasks.
Q: How does the X–Y table improve performance?
A: The sliding X–Y axis table lets you position stock side‑to‑side and front‑to‑back with precision along dovetail ways — for accurate mortise placement across workpieces.
Q: What chisel sizes and range are included?
A: It includes 1/4″, 5/16″, 3/8″, and 1/2″ chisels and supports chisel sizes from 1/4″ to 5/8″ using bushings.
Q: What is the maximum mortising capacity?
A: Maximum mortising depth is about 3″, and it can handle stock up to roughly 3‑1/2″ wide and 6‑5/8″ thick.
Q: What accessories and features come with the machine?
A: The mortiser includes a fence, hold‑down clamp, tool holder, two extensions, 5/8″ & 3/4″ bushings, and four chisels, plus a gas‑filled stabilizer and dovetail column ways for smooth travel.
Q: Is this machine stable and durable?
A: Yes — it has a heavy cast‑iron base, column, and fence for vibration reduction and reliable alignment during cuts.
Q: Who is this mortiser best suited for?
A: Ideal for woodworkers, cabinetmakers, and hobbyists needing precise, repetitive mortising capability in a benchtop format.
Maintenance Tips
-
Disconnect Power Before Maintenance: Always unplug the mortiser before cleaning, adjusting, or changing bits.
-
Clean Work Area & Chip Ejection: Remove wood chips and dust from the table, bit, and chisel after each use to prevent buildup and maintain accuracy.
-
Inspect & Sharpen Chisels & Bits: Keep mortising bits and chisels sharp for clean cuts; replace or sharpen when worn.
-
Lubricate Moving Parts: Lightly oil the X‑Y slide mechanisms, quill, and pivot points to ensure smooth movement.
-
Check Table & Fence Alignment: Periodically verify that the table and fences are square for precise mortises.
-
Inspect Drive Belt & Hardware: Ensure the motor belt has proper tension and all fasteners are tight before operation.
-
Protect Metal Surfaces: Wipe exposed cast iron and steel parts with a clean cloth and apply a thin coat of rust-preventive oil.
