Rubi Tools ERGO TILE TRANS Thin Panel Transport Kit - 28906

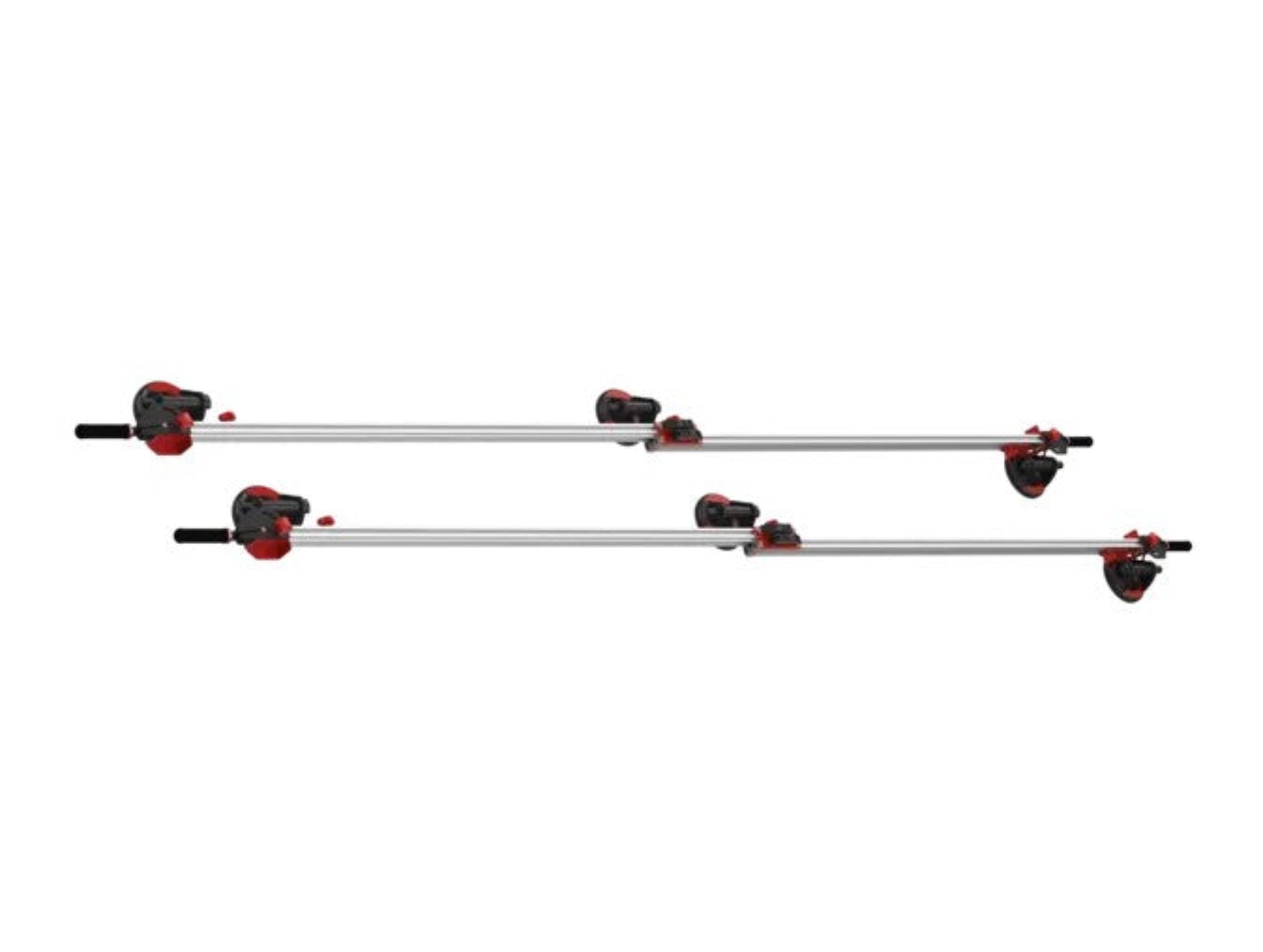

ERGO TILE TRANS has been designed for the transport and handling of large formats of thin thicknesses (SLIM) or any large format with a maximum weight of 80 kg. These are two retractable aluminum profiles that will allow you to handle pieces up to 320 cm long. The distance between the profiles can be adapted according to the user's needs, with 700 mm being the recommended measurement for greater stability. Each of these profiles has 3 vacuum suction cups with a diameter of 160 mm and a high load capacity. This will provide us with greater safety, reliability and stability during transport. The ERGO TILE TRANS incorporates two Soft-grip controls for comfortable and safe handling. These handles can rotate to reveal the two rubber stops where we will rest the tool to proceed with the installation operation. The FAST FIX system guarantees very fast and comfortable assembly and adjustment. The maximum load weight of the ERGO TILE TRANS is 80 kg, however, if we add the set of crossbars (Ref. 28907) apart from providing greater stability, we will also increase the maximum load up to 120 kg.
Features
- Used to transport of large thin panel porcelain sheets up to 10.5 ft (3.2 m) long
- Incorporates two Soft-grip controls for comfortable and safe handling
- Handles can rotate to reveal the two rubber stops where to rest the tool to proceed with the installation operation
- Includes two retractable and adjustable guides from 5.25 to 10.5 ft (1.6 to 3.2 m) and 6 vacuum suction cups
- Maximum weight capacity: 176 lbs (80 kg)
-
Add the crossbar set (ref. 18819) to provide greater stability, and increase the maximum load up to 264.5 lbs (120 kg)
What our Experts Think
-
Professional large-format transport system - Designed for safe handling of thin porcelain slabs and XXL tiles up to 3.2 m, ensuring controlled movement with minimal breakage risk.
-
Dual retractable aluminum guide system - Adjustable profiles (approx. 1.6 m to 3.2 m) allow flexible setup based on tile size and jobsite needs.
-
High-capacity suction grip stability - Equipped with 6 vacuum suction cups (Ø160 mm) for strong, secure grip and improved load safety during transport.
-
Ergonomic soft-grip handling - Reinforced, adjustable handles provide better control, comfort, and reduced operator fatigue during lifting and positioning.
-
Modular, adaptable design - Each guide can be used independently for greater versatility on different slab sizes and handling situations.
-
Enhanced load capacity option - Compatible with crossbar system to increase rigidity and boost maximum load capacity up to 120 kg.
-
Professional jobsite safety focus - Built to reduce stress cracks, slipping, and handling errors when working with delicate large-format panels.
Q&A
Q: What is the Rubi ERGO TILE TRANS used for?
A: It is a professional transport system designed for handling and moving large-format porcelain slabs and thin panels safely on job sites.
Q: What tile size can it handle?
A: It supports slabs up to 320 cm (≈10.5 ft) in length, ideal for large-format tile installations.
Q: What is the maximum weight capacity?
A: Up to 80 kg (176 lbs) in standard use. It can be increased to 120 kg with optional crossbars (ref. 18819).
Q: How does it grip the tile?
A: It uses 6 adjustable vacuum suction cups (160 mm diameter) for strong, secure, and stable handling.
Q: Is it adjustable for different slab sizes?
A: Yes, the two aluminum rails are telescopic (1.6 m to 3.2 m) and can be positioned based on slab size for better stability.
Q: What makes it safe to use?
A: It includes soft-grip ergonomic handles, suction safety indicators, and anti-slip controls to reduce breakage risk and improve handling control.
Q: Can the system be used in parts?
A: Yes, each rail can be used independently for smaller or lighter slabs when needed.
Q: Is it compatible with other Rubi systems?
A: Yes, it integrates with accessories like SLAB trolleys and crossbar kits to expand functionality.
Q: Why choose the ERGO TILE TRANS?
A: It improves safety, reduces tile breakage, and provides controlled handling of large fragile slabs during transport and installation.
Maintenance Tips
-
Clean after every use: Remove dust, adhesive, and tile slurry from aluminum profiles and suction cups to maintain grip strength and smooth sliding operation.
-
Maintain suction cups: Keep rubber pads clean and undamaged; replace if hardened or cracked to ensure safe slab holding.
-
Inspect guide rails: Ensure telescopic aluminum profiles (up to 320 cm) move freely and stay aligned to prevent instability during transport.
-
Tighten handles & fast fix system: Regularly check soft-grip rotating handles and locking mechanisms for secure positioning under load.
-
Avoid overloading: Respect the 80 kg max load (or up to 120 kg only when using crossbar set 18819) to prevent structural stress.
-
Protect aluminum surfaces: Wipe dry after wet-site use to prevent oxidation and maintain rigidity.
-
Store properly: Retract guides fully and store in a dry, protected area to avoid bending or impact damage
