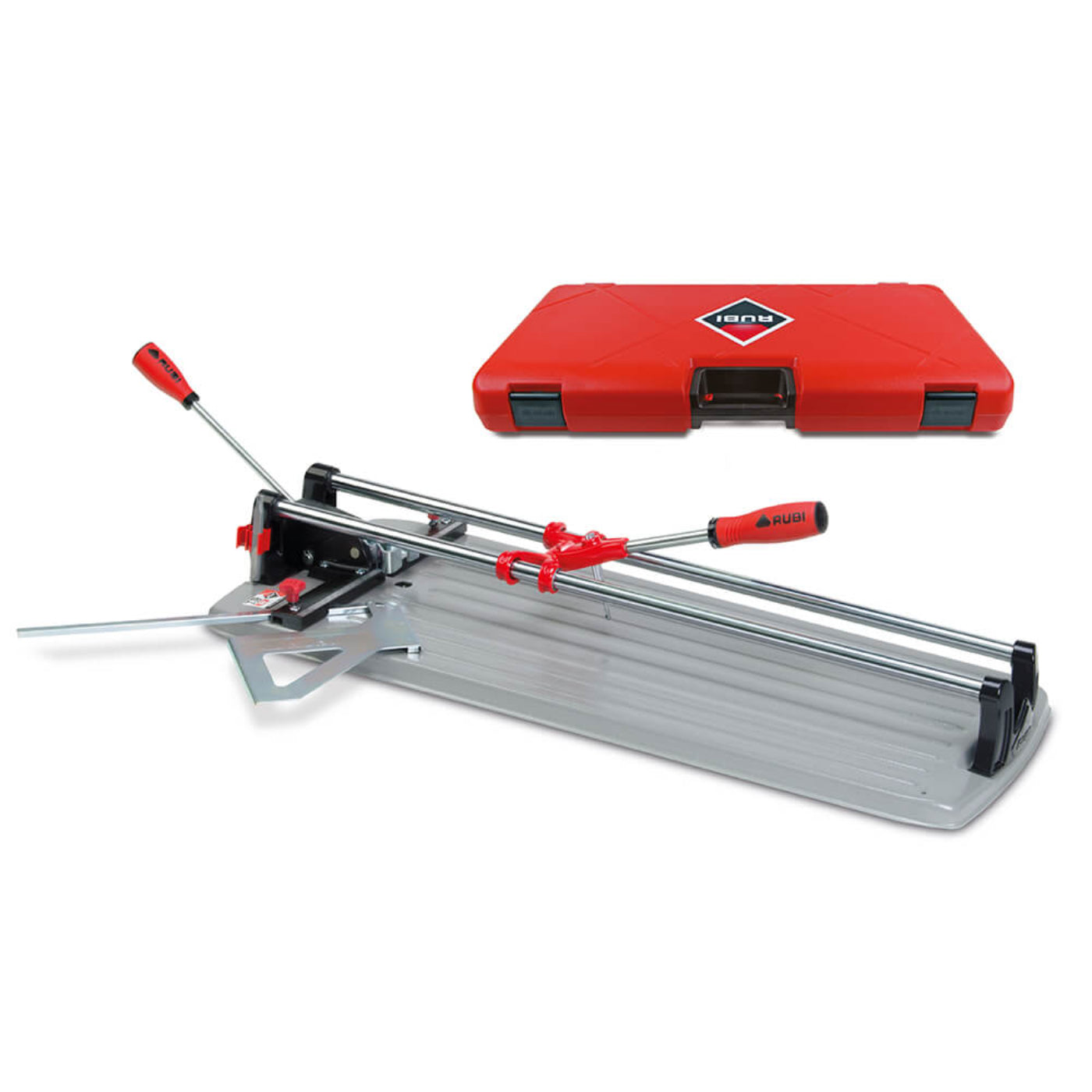

Rubi Tools TS-MAX Heavy Duty Tile Cutters - 18972

Rubi Tools TS-MAX Heavy Duty Tile Cutters - 18972

Rubi TS-MAX tile cutters are made for intensive cutting ceramic tiles, especially hard porcelain tile with, due to it's high performance single point breaking power of up to 1,764 lb. This dual rail system allows the user to see the tile being scored and is perfect for repeat cuts in porcelain and ceramic tile. With interchangeable scoring wheels, the Rubi TS-MAX cutter can be used to score and snap a variety of porcelain and ceramic tiles.

Features

• Available in 4 sizes - TS-43 MAX (17" rip cut), TS-66 MAX (26" rip cut) and TS-75 (29-1/2" rip cut)
• For cutting 1/4" - 5/8" thick porcelain or ceramic tile
• 1,764 lb of single point breaking power
• Ergonomic scoring and breaking handles for increased comfort
• Wide base for increased stability and quality of cut
• Lateral stop equipped for straight and 45° repetitive cuts
• Includes carrying case, 6 mm and 10 mm scoring wheels

What our Experts Think

• Lightweight but built for real job-site use
  The TS-MAX series strikes a strong balance between portability and professional performance, making it ideal for installers who need a reliable cutter without extra bulk.
• Strong breaking power for porcelain work
  With up to 800 kg (~1760 lbs) breaking force, it handles most ceramic and porcelain tiles efficiently—perfect for daily tiling tasks.
• Excellent for repetitive, precise cuts
  Features like lateral stop and 45° angle capability make it highly effective for consistent, repeat cuts—saving time on large installations.
• Smooth scoring with single-point breaker
  The high-performance single-point separator ensures clean scoring and snapping, reducing chipping on standard materials.
• Optimized for common tile thicknesses
  Designed for tiles up to 15 mm thick, covering the majority of residential and commercial applications.
• User-friendly transport & setup
  Comes with a carry case and secure locking system, making it easy to move between job sites and store safely.
• Expert insight
  This is a mid-to-high tier professional cutter—great for speed and reliability, but not intended for extremely thick or ultra-dense tiles where heavier-duty models (like TZ/TX series) perform better.

Q&A

Q1: What is the Rubi TS-MAX 18972 tile cutter used for?
A: The TS-MAX 18972 is a professional manual tile cutter designed for intensive cutting of ceramic and porcelain tiles, making it ideal for installers and contractors.

Q2: What cutting capacity does the TS-MAX 18972 offer?
A: It provides up to 43 cm (17") straight cuts and 30×30 cm diagonal cuts, suitable for standard tile sizes.

Q3: How powerful is the breaking system?
A: It features a high-performance single-point breaker with up to 800 kg (1764 lbs) of force, enabling clean cuts on hard materials.

Q4: What tile thickness can it cut?
A: The TS-MAX 18972 can handle tiles from approximately 6 mm to 15 mm thick, ideal for most wall and floor tiles.

Q5: Is it suitable for porcelain tiles?
A: Yes, it is specifically designed for frequent cutting of porcelain (BIa) and ceramic tiles, delivering precise scoring and snapping.

Q6: What makes this tile cutter accurate?
A: It includes a double guide rail system and lateral stop, ensuring better visibility and precise straight or angled cuts.

Q7: Can it perform angled or repetitive cuts?
A: Yes, the cutter supports 45° angle cuts and repetitive cutting tasks, improving efficiency on large jobs.

Q8: Is the Rubi TS-MAX 18972 easy to transport?
A: Yes, it comes with a durable carrying case, making it convenient for transport between job sites.

Maintenance Tips

• Keep dual guides clean: Remove ceramic and porcelain dust after each use to maintain smooth sliding and cutting precision—essential for intensive use.
• Avoid over-lubrication: TS-MAX cutters are designed for dry operation; excess oil attracts abrasive debris and reduces accuracy.
• Check scoring wheel condition: Replace worn wheels (6mm–18mm options) to ensure clean scoring on hard porcelain tiles.
• Maintain breaker mechanism: The single-point breaker (≈800 kg / 1764 lb force) must stay aligned for consistent, chip-free snapping.
• Wipe rails after light oiling (if needed): Apply minimal oil, move carriage, then wipe completely dry—no residue should remain.
• Inspect lateral stop & guides: Ensure accurate straight and 45° repetitive cuts by tightening components regularly.
• Store in carrying case: Protect the guide system and frame from impacts during transport to preserve calibration.
• Routine weekly maintenance: Regular cleaning and inspection extend tool life and maintain precision, smooth operation, and cutting efficiency.
