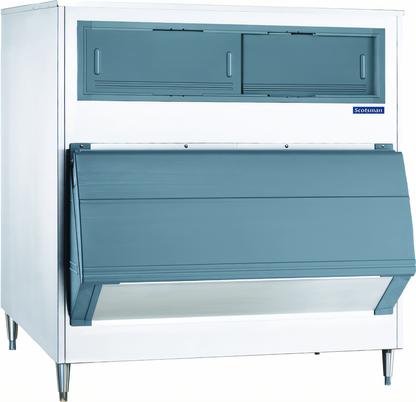

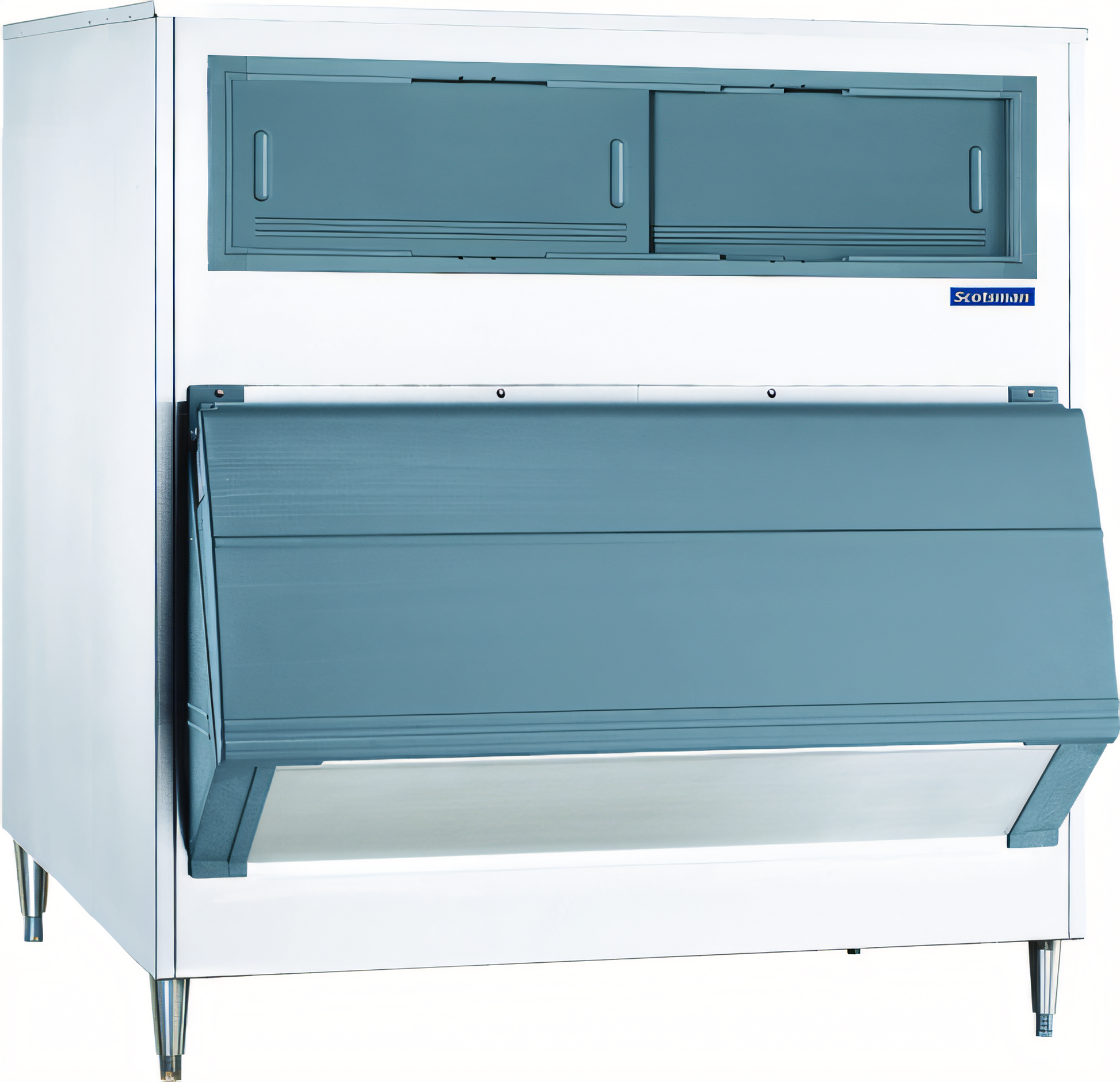

Scotsman BL1660S Ice Machine Bins - BL1660S
Upright Ice Storage Bin, with top-hinged spring loaded front opening door, 1660 lb application capacity, for top mounted ice makers, 60" width, stainless steel exterior, polyurethane insulation, corrosion resistant bin liner, first ice in first ice out design, 6" adjustable legs, includes 82 oz. plastic ice scoop, includes stainless steel universal adapter plate for most ice maker configurations, NSF, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF |
| Height |
63.4 in |
| Width |
60.0 in |
| Depth |
39.0 in |
| Shipping Weight |
340.0 lbs |
| Style |
Top-hinged front door(s) |
| Capacity |
1300 - 3255 lb |
| Exterior Finish |
All stainless steel exterior |
| Interior Finish |
Plastic |
| Width (side-to-side) |
60" - 69" wide |
| Specifications |
Upright Ice Storage Bin, with top-hinged spring-loaded front opening door, 1660 lb application capacity, for top-mounted ice makers, 60" width, stainless steel exterior, polyurethane insulation, corrosion-resistant bin liner, first ice in, first ice out design, 6" adjustable legs, includes 82 oz. plastic ice scoop, includes stainless steel universal adapter plate for most ice maker configurations, NSF, engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
Massive Capacity: With a 1,660 lb storage capacity, the BL1660S is perfect for high-volume commercial environments, ensuring an ample ice supply during peak hours.
-
Durable Construction: The bin is built with a stainless steel exterior and a corrosion-resistant polyethylene liner, ensuring long-lasting durability even in demanding settings.
-
Efficient Insulation: Featuring foamed-in-place polyurethane insulation, the bin preserves ice for extended periods, reducing the frequency of ice replenishment.
-
User-Friendly Design: The spring-loaded, top-hinged front-opening door allows for easy, one-handed access to ice, while the included ice shield controls ice flow and minimizes spills.
-
First-In, First-Out (FIFO) System: The design ensures that the first ice placed in the bin is the first to be used, maintaining ice freshness and quality.
-
Adjustable Legs: The 6-inch adjustable legs provide stability and allow for easy leveling on uneven floors.
-
Compatibility: The bin comes with a universal adapter plate, ensuring compatibility with most top-mounted ice machines for seamless integration.
-
NSF Certified: The BL1660S meets rigorous public health and safety standards, ensuring reliability and safety for commercial use.
Q&A
Q: What is the storage capacity of the Scotsman BL1660S ice bin?
A: The Scotsman BL1660S ice bin has a storage capacity of 1,660 pounds of ice.
Q: What are the dimensions of the BL1660S ice bin?
A: The bin measures 60" in width, 31" in depth, and 63 3/8" in height, including 6" adjustable legs.
Q: Is the BL1660S compatible with all ice machines?
A: The BL1660S is designed to work with most Scotsman ice machines, featuring adjustable bin-top filler panels for easy integration.
Q: Does the BL1660S produce ice?
A: No, the BL1660S is an ice storage bin and does not produce ice. It must be paired with a compatible ice machine.
Q: What materials are used in the construction of the BL1660S?
A: The BL1660S features a durable stainless steel exterior and a corrosion-resistant polyethylene liner for sanitary ice storage.
Q: Is the BL1660S easy to maintain?
A: Yes, the BL1660S includes a spring-loaded door for easy one-handed access and a built-in ice shield to reduce spills and control ice flow.
Q: What accessories are included with the BL1660S?
A: The BL1660S comes with a 82 oz. plastic ice scoop and 6" adjustable legs.
Q: Is the BL1660S certified for safety and quality?
A: Yes, the BL1660S is NSF listed and made in the USA, ensuring it meets industry standards for safety and performance.
Q: What is the warranty on the BL1660S?
A: The BL1660S comes with a 5-year parts and labor warranty on all components.
Q: How does the BL1660S help preserve ice quality?
A: The BL1660S features foamed-in-place polyurethane insulation that helps maintain ice quality by slowing melting and preserving cold temperatures.
Maintenance Tips
-
Clean the Bin Interior: Remove all ice and clean the bin's interior, including the polyethylene liner and stainless steel bottom, with warm, soapy water. Rinse thoroughly, then sanitize using a food-safe sanitizer.
-
Clean the Exterior: Wipe the stainless steel surfaces with a cleaner to remove fingerprints, dust, and grease.
-
Descale the Bin: Mix ice machine cleaner with warm water and scrub the interior surfaces with a nylon scouring pad to remove any scale buildup. Rinse thoroughly with hot water.
-
Sanitize: Apply a food-safe sanitizer to all interior surfaces and allow the bin to air dry.
-
Ice Gate Maintenance: If the ice flow is restricted, gently jiggle the ice gate. Use the ice paddle tool if necessary to break up any congealed ice.
-
Avoid Contamination: Do not store non-ice items inside the bin to prevent contamination and drainage issues.
