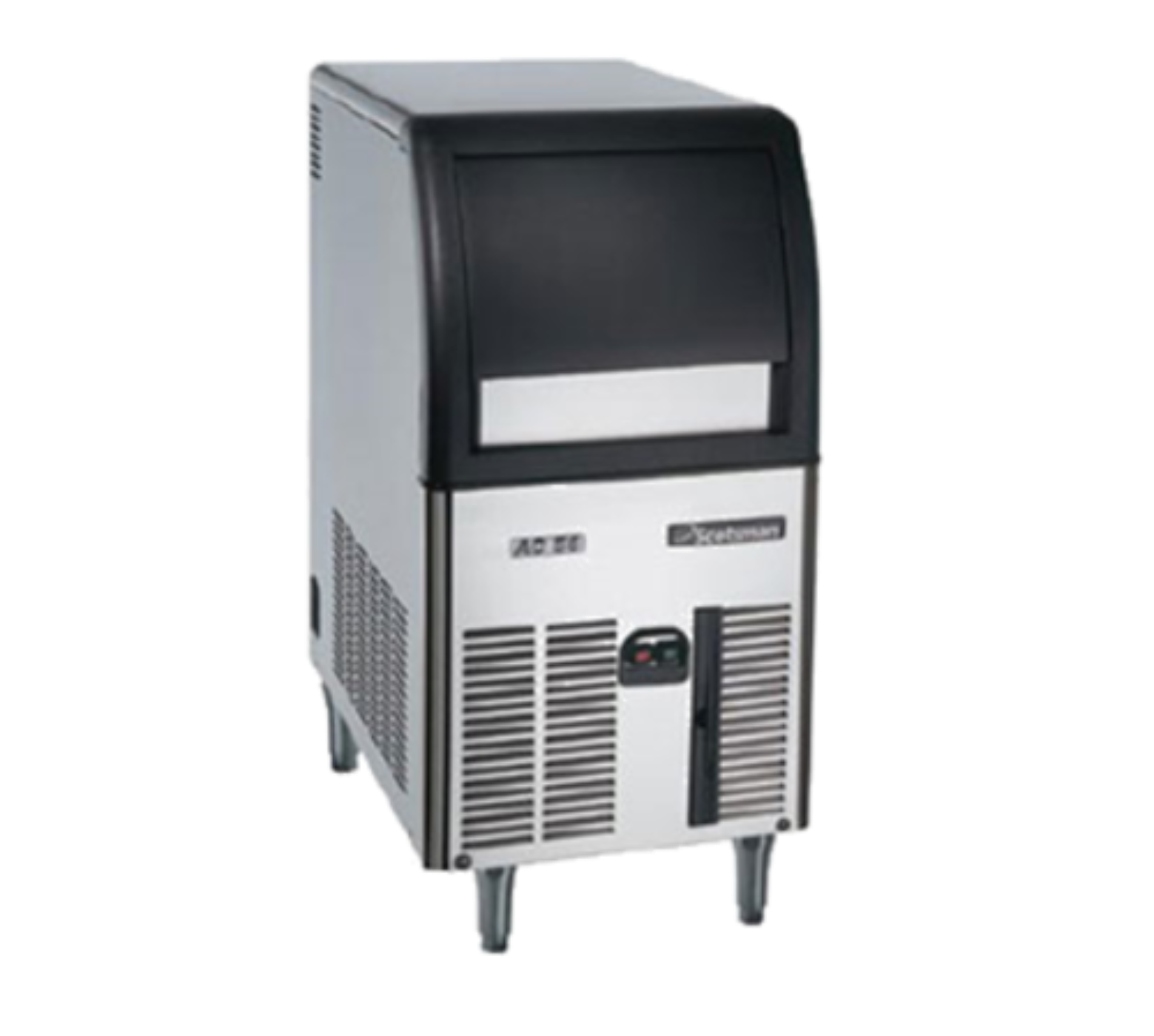

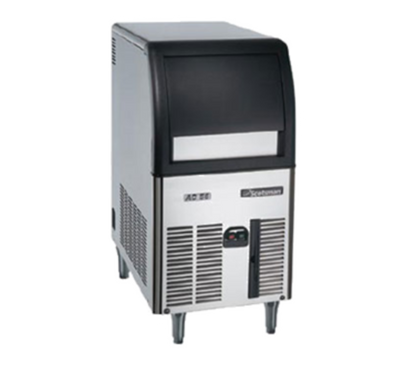

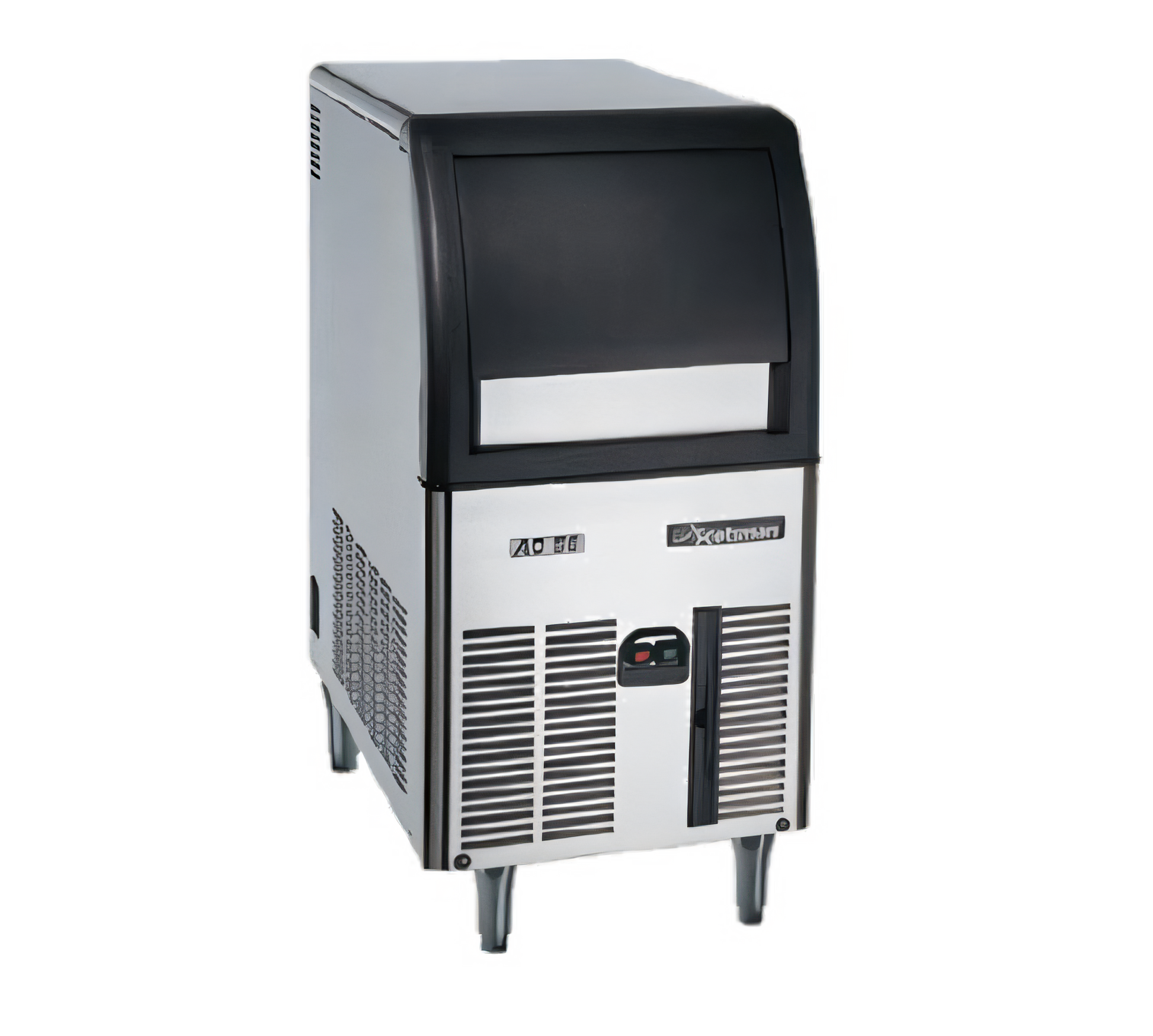

Scotsman CU0515GA-1 Ice Machines - CU0515GA-1
Undercounter Ice Maker With Bin, Gourmet cube style, 1" x 1.13" x 1.25" cube size, air-cooled, 15" width, self-contained condenser, production capacity up to 84 lb/24 hours at 70°/50° (58 lb AHRI certified at 90°/70°), 24 lb bin storage capacity, front opening bin, horizontal evaporator, unit specific QR code, stainless steel finish, R-134A refrigerant, includes legs, includes power cord with NEMA 5-15P plug, 115v/60/1-ph, 5.6 amps, cULus, NSF
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI |
| Height |
34.0 in |
| Width |
15.0 in |
| Depth |
24.0 in |
| Shipping Weight |
95.0 lbs |
| Cube Type |
Gourmet cube (round/thimble) |
| Cube Dimensions |
1" x 1.13" x 1.25" |
| Condenser Type |
Air-cooled |
| Production per 24 hr |
Up to 84 lb (at 70°F air/50°F water), 58 lb AHRI certified (at 90°F/70°F) |
| Bin Storage Capacity |
24 lb (front-opening bin) |
| Refrigeration |
Self-contained, R-134A refrigerant |
| Finish |
Stainless steel |
| Evaporator |
Horizontal |
| Plug Type |
NEMA 5-15P (includes power cord) |
| Voltage |
115v / 60Hz / 1-phase |
| Amperage |
5.6 amps |
| Includes |
Legs, unit-specific QR code |
What our Experts Think
-
Compact Yet Efficient: The Scotsman CU0515GA-1 offers a space-saving design while producing up to 500 lbs of ice per day, ideal for smaller commercial spaces.
-
Quality Ice Production: Delivers gourmet, crystal-clear, cube-style ice that’s perfect for bars, restaurants, and cafes.
-
Energy & Water Efficient: This model uses less energy and water compared to traditional units, which can help reduce operating costs.
-
Easy Installation & Maintenance: The self-contained design and easy-to-clean components make installation and upkeep a breeze.
-
Durable Construction: Built with stainless steel exterior and a corrosion-resistant interior for long-lasting performance in demanding environments.
-
Quiet Operation: Designed to run quietly, ensuring minimal disruption in customer-facing or noise-sensitive areas.
-
Built-In Protection: Features auto shut-off when the bin is full, preventing overflow and maintaining optimal ice storage.
Q&A
Q: What type of ice does the Scotsman CU0515GA-1 produce?
A: The Scotsman CU0515GA-1 produces gourmet, crystal-clear ice cubes, which are perfect for upscale bars, restaurants, and beverage stations.
Q: What is the production capacity of the Scotsman CU0515GA-1?
A: This ice machine produces up to 510 pounds of ice per day, making it suitable for businesses with moderate ice requirements.
Q: Is the Scotsman CU0515GA-1 energy-efficient?
A: Yes, the Scotsman CU0515GA-1 is ENERGY STAR® certified, ensuring efficient energy use and reducing long-term operating costs.
Q: Does the Scotsman CU0515GA-1 include a storage bin?
A: No, the Scotsman CU0515GA-1 is a modular ice maker and does not come with a storage bin. It requires a separate bin for ice storage.
Q: How compact is the Scotsman CU0515GA-1?
A: The Scotsman CU0515GA-1 has a space-saving design, ideal for under-counter installations in commercial kitchens, bars, and restaurants with limited space.
Maintenance Tips
-
Regular Cleaning: Clean the water system and ice bin monthly using a mild detergent to prevent build-up and contamination.
-
Check Water Filter: Replace the water filter every 6 months or as recommended to ensure clean water for ice production.
-
Inspect Condenser Coils: Clean coils every 3-6 months to maintain efficiency and prevent overheating.
-
Clear Drain Lines: Ensure drain lines are free from blockages to avoid water backup.
-
Check for Leaks: Regularly inspect for any water or refrigerant leaks to maintain machine integrity.
-
Monitor Temperature: Keep the ambient temperature between 50°F and 100°F to ensure optimal performance.
