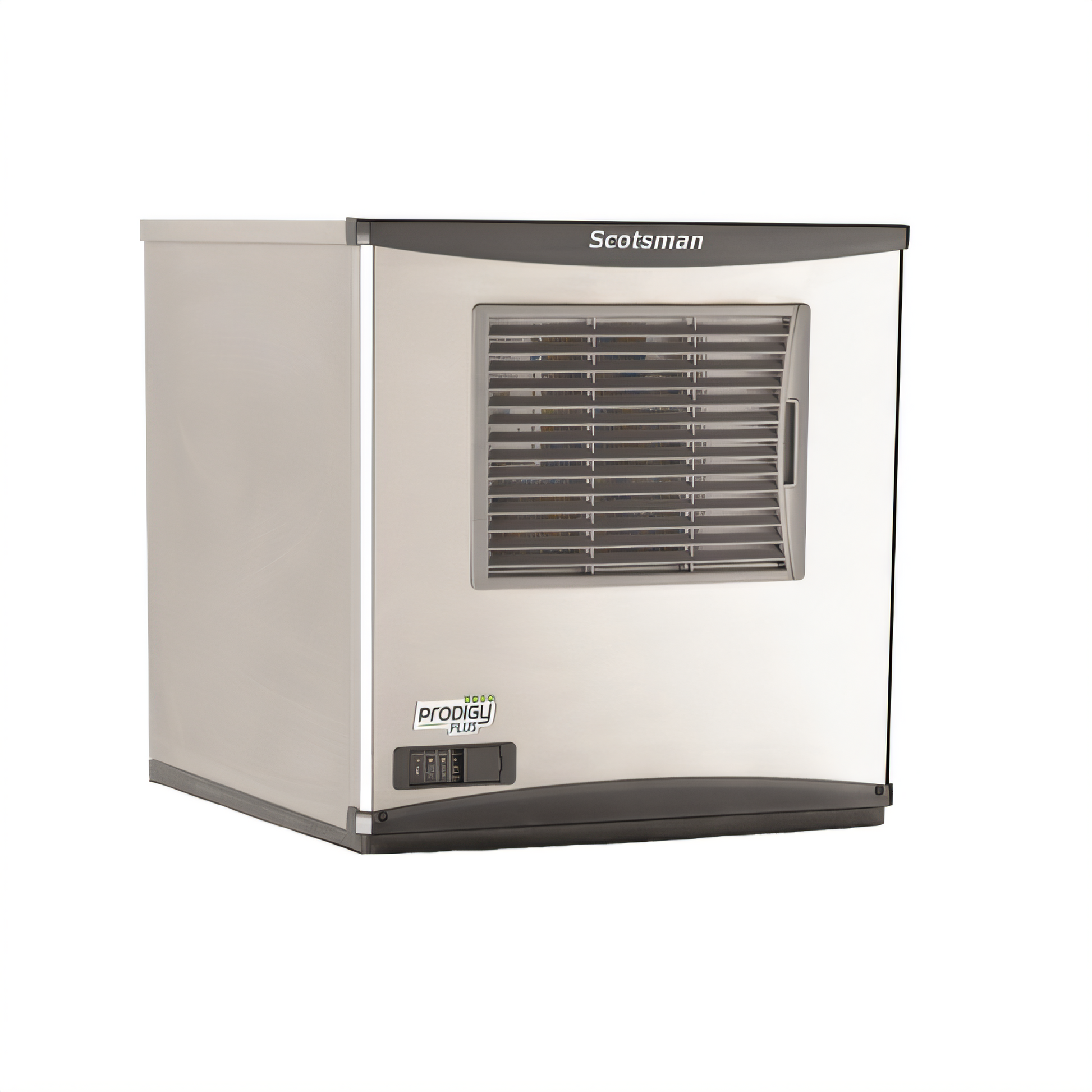

Scotsman FS0522A-1 Prodigy™ Plus Ice Machines - FS0522A-1

Scotsman FS0522A-1 Prodigy™ Plus Ice Machines - FS0522A-1

Prodigy Plus Ice Maker, flake style, air-cooled, self-contained condenser, production capacity up to 450 lb/24 hours at 70°/50° (343 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA

Specifications

What our Experts Think

• High Ice Production: Produces up to 450 lbs of flake ice per day (343 lbs at 90°F air / 70°F water), ideal for busy environments requiring consistent ice supply.

• Compact Design: With dimensions of 22" W x 24" D x 23" H, it fits easily into tighter spaces while offering robust ice production.

• Energy & Water Efficient: Consumes 4.61 kWh and 12 gallons of water per 100 lbs of ice produced, helping reduce operational costs.

• Advanced Features: Equipped with AutoAlert™ indicator lights, a front-located air filter, and a self-aligning front panel, making maintenance easier.

• Durable Construction: Built with a stainless steel exterior and AgION™ antimicrobial protection, ensuring both durability and hygiene.

• User-Friendly Maintenance: Includes one-touch cleaning and a QR code for easy access to service manuals and warranty details.

• Reliable Performance: Operates on 115V/60Hz/1-phase power, drawing 12.9 amps, and uses R-404A refrigerant for optimal performance.

• Certifications: Meets NSF and cULus standards for health and safety, ensuring reliable compliance.

Q&A

Q: What is the Scotsman FS0522A-1 Prodigy Plus Ice Machine?
A: The Scotsman FS0522A-1 is a 22" air-cooled flake ice machine designed for commercial use, producing up to 450 lbs of flake ice per day.

Q: What are the key features of this ice machine?
A: Features include a stainless steel finish, self-contained condenser, front-facing removable air filter, sealed maintenance-free bearings, and AgION™ antimicrobial protection.

Q: How does the Prodigy Plus series enhance usability?
A: It offers AutoAlert™ indicator lights for maintenance alerts, a self-aligning front panel for easy access, and a unit-specific QR code for quick access to service manuals and cleaning guides.

Q: What are the electrical specifications?
A: The FS0522A-1 operates at 115V, 60Hz, 1-phase, with a 12.9-amp draw, and requires hardwiring.

Q: Is this model certified?
A: Yes, it is NSF listed, UL listed in the U.S. and Canada, AHRI certified, and ISO certified.

Maintenance Tips

• Water System Maintenance:

• Remove scale buildup and replace water filters every 6 months.

• Sanitize the water system during scale removal.

• Bin Liner Cleaning:

• Clean and sanitize the ice storage bin with every scale removal and sanitization.

• Air Filter Cleaning:

• Clean or replace the air filter every 6 months, or more frequently if necessary.

• Condenser Coil Cleaning:

• Clean condenser coils every 6 months or more often, depending on usage. Professional service may be required.

• Use of QR Code:

• Scan the unit-specific QR code for easy access to service manuals, cleaning guides, and warranty details.
