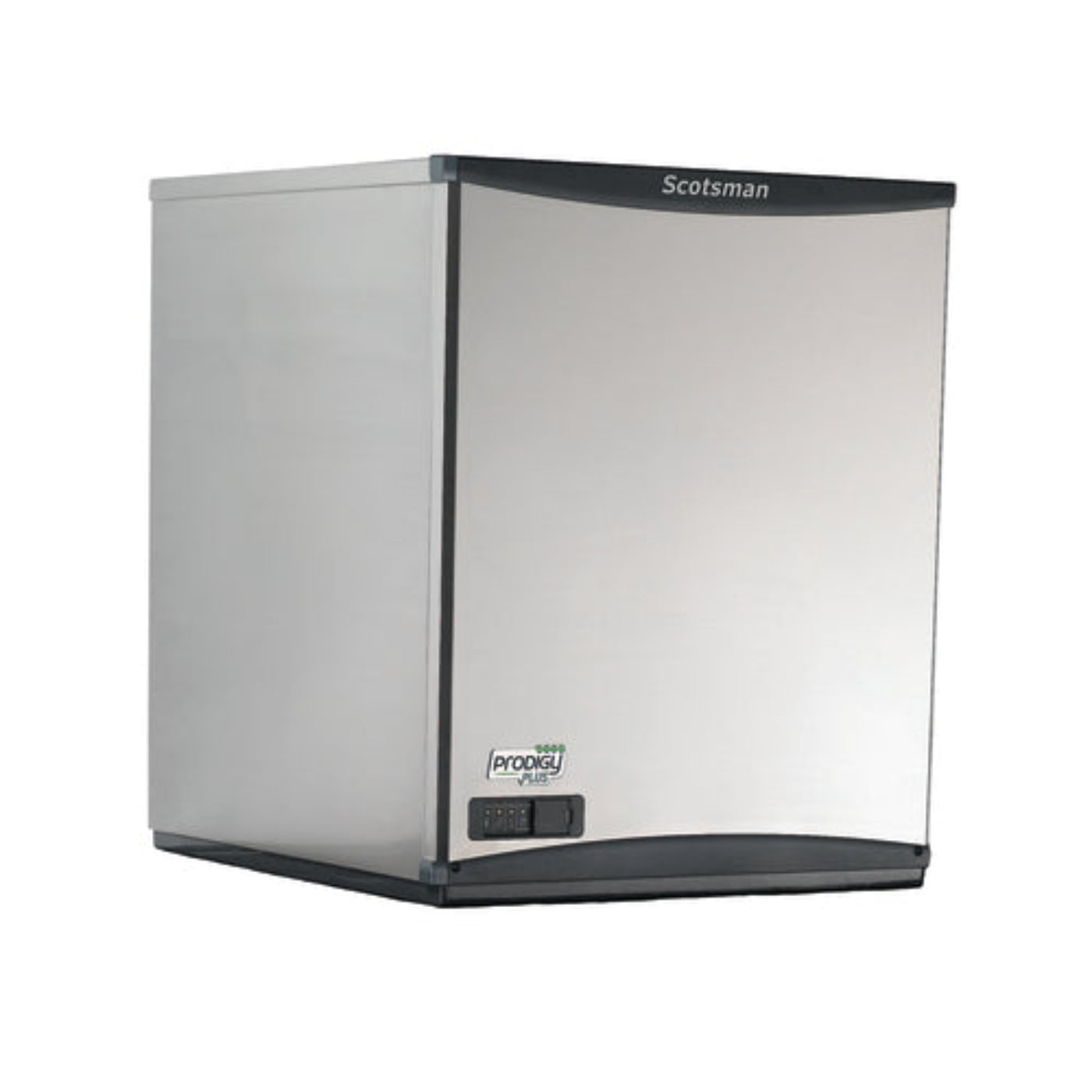

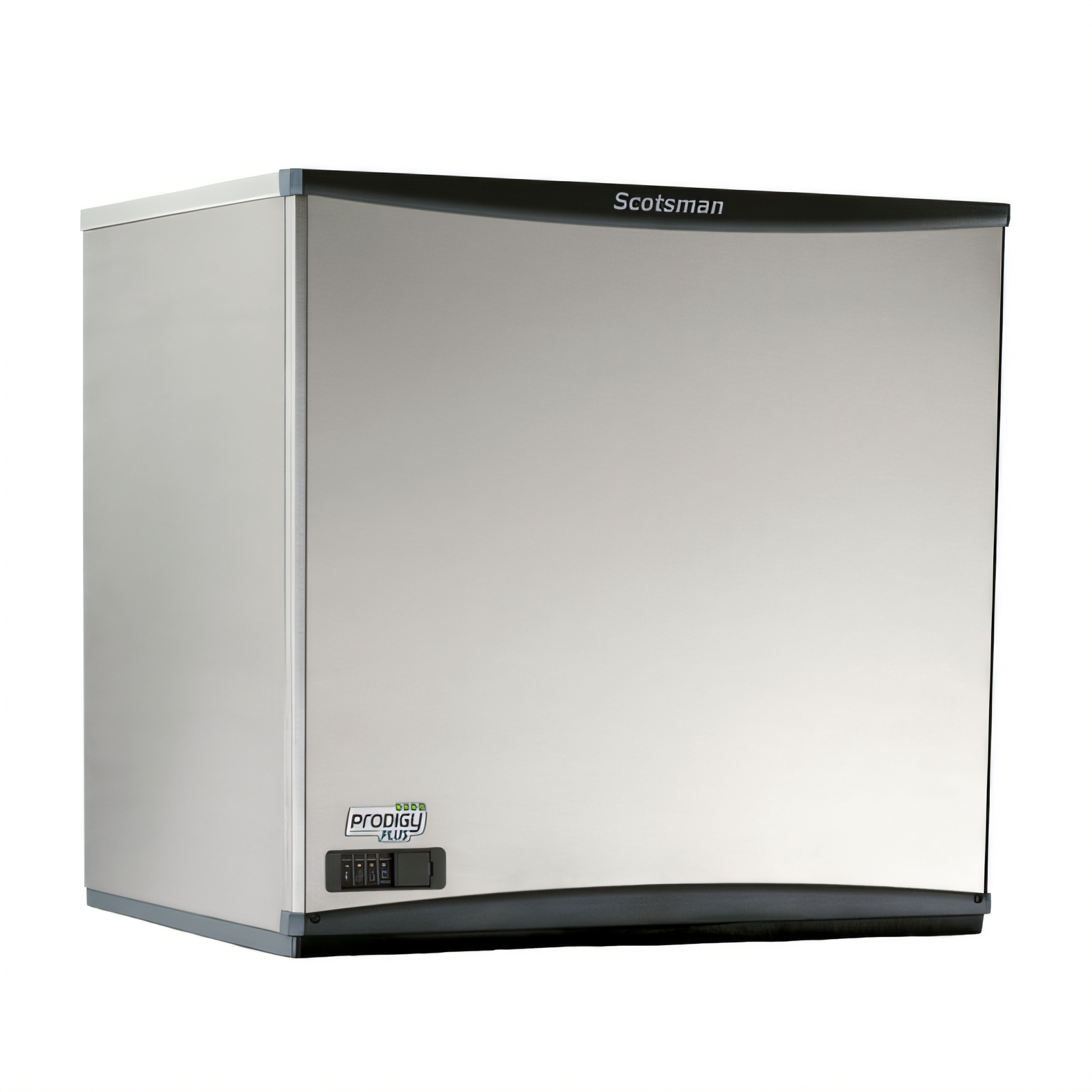

Scotsman FS2330L-32 Prodigy™ Plus Ice Machines - FS2330L-32

Scotsman FS2330L-32 Prodigy™ Plus Ice Machines - FS2330L-32

Prodigy Plus Ice Maker, flake style, remote low side (compressor & condenser separate), self-contained condenser, production capacity up to 2275 lb/24 hours at 70°/50° (1900 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, heat and noise reduced via remote low side configuration, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant (must be added at initial start-up), 208-230v/60/1-ph, NSF, cULus, engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: Produces up to 2,275 lbs of flake ice per day under optimal conditions (70°F air and 50°F water), with an AHRI-certified yield of 1,900 lbs at 90°F air and 70°F water.

• Compact Footprint: With dimensions of 30" W x 24" D x 29" H, it offers a small operational footprint, ideal for establishments with limited space.

• Remote Low-Side Configuration: Features a remote condenser and compressor, reducing heat and noise in the installation area, making it suitable for environments where space and noise are concerns.

• Energy and Water Efficiency: Consumes approximately 3.09 kWh of energy and 12 gallons of water per 100 lbs of ice produced, aligning with federal energy efficiency regulations.

• Durable Construction: Built with stainless steel evaporator and auger, ensuring longevity and reliability in demanding commercial environments.

• Maintenance-Friendly Design: Equipped with AutoAlert™ indicator lights that notify users when it's time to descale, sanitize, or perform other maintenance tasks.

• Advanced Antimicrobial Protection: Incorporates AgION™ antimicrobial protection to guard internal surfaces against bacteria, mold, and mildew, enhancing sanitation.

• Smart Features: Includes a unit-specific QR code for quick access to service manuals, cleaning guides, and warranty history.

• Certifications and Compliance: NSF and cULus certified, ensuring the unit meets rigorous public health and safety standards.

Q&A

Q: What is the ice production capacity of the Scotsman FS2330L-32?
A: The Scotsman FS2330L-32 produces up to 2,275 lbs (1,032 kg) of flake ice per day at 70°F air and 50°F water conditions. It is also AHRI-certified to produce 1,900 lbs (862 kg) per day at 90°F air and 70°F water conditions.

Q: What are the dimensions of the FS2330L-32?
A: The unit measures 30" (W) x 24" (D) x 29" (H).

Q: What type of ice does the FS2330L-32 produce?
A: It produces flake ice, ideal for seafood displays, salad bars, and therapeutic applications.

Q: What is the condenser type used in the FS2330L-32?
A: The FS2330L-32 features a remote low-side condenser, which requires a separate condenser unit for operation.

Q: What are the electrical requirements for the FS2330L-32?
A: The unit operates on 208-230V, 60Hz, single-phase electrical supply and requires hardwiring.

Q: Is the FS2330L-32 energy-efficient?
A: Yes, it consumes 3.09 kWh per 100 lbs of ice produced and uses 12 gallons of water per 100 lbs of ice.

Q: Does the FS2330L-32 comply with safety standards?
A: Yes, it is NSF certified, cULus approved, and AHRI certified, ensuring it meets industry standards for safety and performance.

Q: What is the warranty on the FS2330L-32?
A: The FS2330L-32 comes with a 3-year parts and labor warranty on all components and a 5-year parts warranty on the compressor.

Q: What features enhance maintenance and serviceability?
A: The FS2330L-32 includes AutoAlert™ indicator lights for maintenance alerts, a unit-specific QR code for easy access to manuals and service information, and sealed, maintenance-free bearings for long-lasting performance.

Q: Is the FS2330L-32 made in the USA?
A: Yes, it is engineered and assembled in the USA.

Maintenance Tips

• Clean the Air Filter: Remove and clean the air filter by vacuuming or washing with warm water and mild detergent. Ensure it's completely dry before reinsertion.

• Clean the Condenser: Remove the front panel and kickplate. Vacuum the surface of the condenser fins and carefully brush off any loose dirt. If grease is imbedded, use coil cleaner to wash it out.

• Descale the Ice Machine: Mix 8 oz of Scotsman Ice Machine Scale Remover with warm water. Pour the solution into the reservoir and operate the machine for about 30 minutes. Drain the solution and rinse thoroughly with hot water.

• Sanitize the Water System: After descaling, sanitize the water system following the manufacturer's instructions.

• Avoid Contamination: Do not store non-ice items inside the ice bin to prevent contamination and potential drainage issues.

• Regular Inspections: Regularly check for scale build-up, especially in hard water areas, and clean accordingly to maintain performance.
