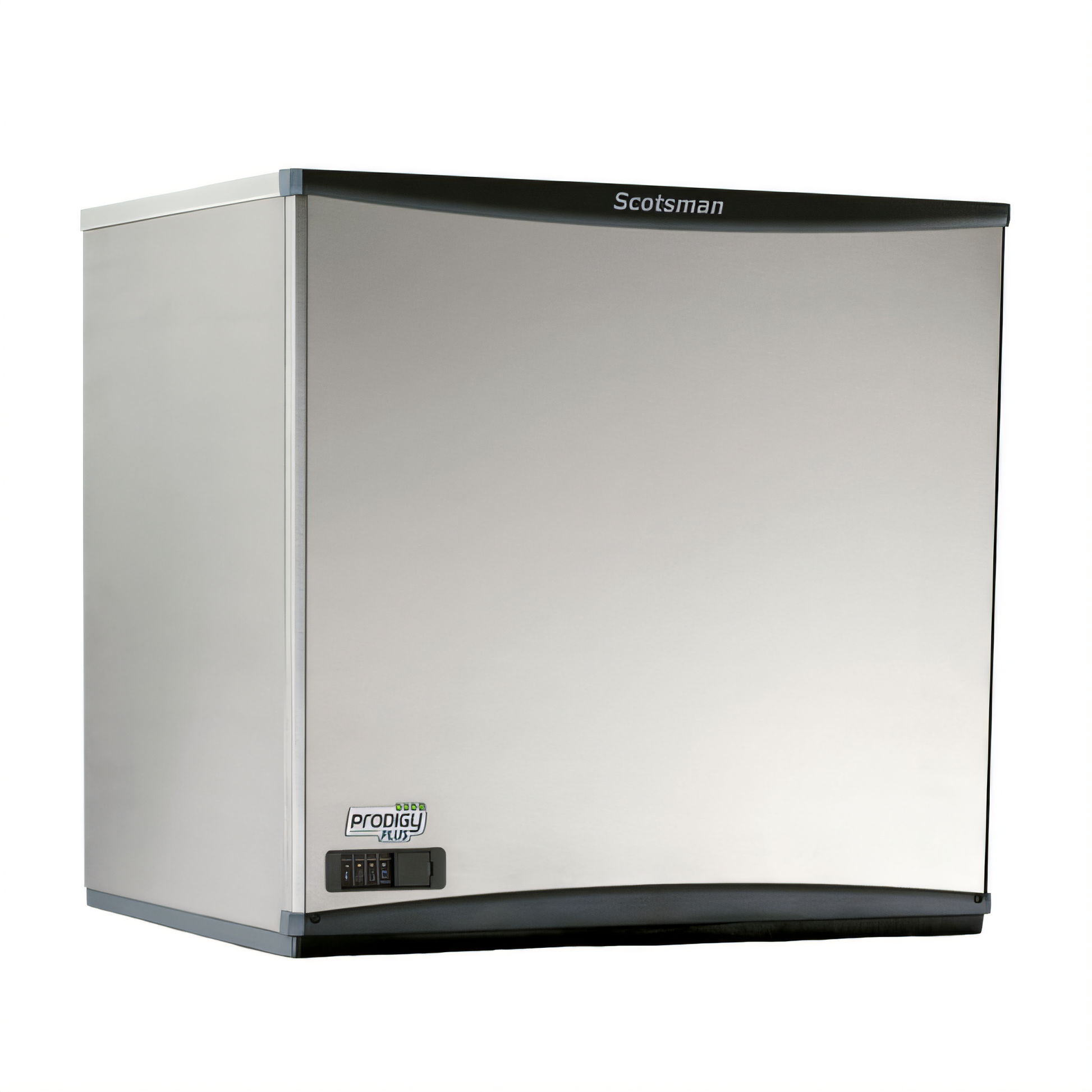

Scotsman FS2330R-3 Prodigy™ Plus Ice Machines - FS2330R-3

Scotsman FS2330R-3 Prodigy™ Plus Ice Machines - FS2330R-3

Prodigy Plus Ice Maker, flake style, remote-cooled, production capacity up to 2218 lb/24 hours at 70°/50° (1741 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/3-ph, 15.2 amps, NSF, cULus, engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: The Scotsman FS2330R-3 produces up to 2,218 lbs of flake ice per day, making it ideal for high-demand establishments such as large restaurants or hotels.

• Energy Efficient: Consuming only 3.09 kWh per 100 lbs of ice produced, it exceeds federal energy efficiency standards, which helps reduce operational costs.

• Water Efficient: It uses 12 gallons of potable water per 100 lbs of ice, optimizing water usage for more sustainable operations.

• Advanced Diagnostics: Features AutoAlert™ indicator lights and a unit-specific QR code for easy access to service information and diagnostics, making maintenance easier.

• Durable Construction: Built with a stainless steel evaporator and auger, along with sealed, maintenance-free bearings, ensuring longevity and reducing the need for frequent repairs.

• Antimicrobial Protection: Integrated AgION™ antimicrobial protection helps prevent the growth of bacteria, mold, and mildew on internal surfaces, ensuring clean ice production.

• Compact Design: With dimensions of 30" W x 24" D x 29" H, it fits into tight spaces, making it perfect for establishments with limited room.

Q&A

Q: What type of ice does the Scotsman FS2330R-3 produce?
A: The Scotsman FS2330R-3 produces flake ice, which is soft, chewable, and ideal for seafood displays, salad bars, and therapeutic uses due to its slow-melting properties.

Q: What is the daily ice production capacity?
A: This model can produce up to 2,218 pounds of ice per day under optimal conditions.

Q: Does it include a storage bin?
A: No, the FS2330R-3 is a modular ice machine and requires a separate storage bin to hold the produced ice.

Q: Is the Scotsman FS2330R-3 energy-efficient?
A: Yes, it operates at 3.09 kWh per 100 lbs of ice produced and uses 12 gallons of water per 100 lbs, exceeding federal energy-efficiency regulations.

Q: What are the dimensions and weight of the Scotsman FS2330R-3?
A: The unit measures 30" W x 24" D x 29" H and weighs approximately 350 lbs.

Q: What is the power requirement for the Scotsman FS2330R-3?
A: The FS2330R-3 operates on a 208-230V, 60Hz, 3-phase electrical supply and requires hardwiring.

Q: Is the Scotsman FS2330R-3 suitable for international use?
A: Yes, it is designed for export markets with a 208-230V/60Hz/3Ph power supply and is CE certified.

Maintenance Tips

• Water System Cleaning: Remove scale and sanitize the water system every 6 months using Scotsman Scale Remover mixed with warm water, following the manufacturer's instructions. Replace water filters during this process.

• Ice Storage Bin Cleaning: Empty the bin and clean it with a solution of 7 oz of scale remover in 84 oz of water. Afterward, sanitize the bin thoroughly. Rinse and allow to air dry.

• Air Filter Cleaning: Remove and clean the air filter every 6 months. Use a vacuum or wash with warm water and mild detergent if necessary. Ensure the filter is completely dry before reinstalling.

• Condenser Coil Maintenance: Inspect and clean the remote condenser coils every 6 months. If dirty, clean them carefully. This may require professional assistance to avoid damage.

• Exterior Cleaning: Wipe down the machine's exterior with warm, soapy water to remove spills and stains. Avoid using abrasive cleaners that could damage the surface.
