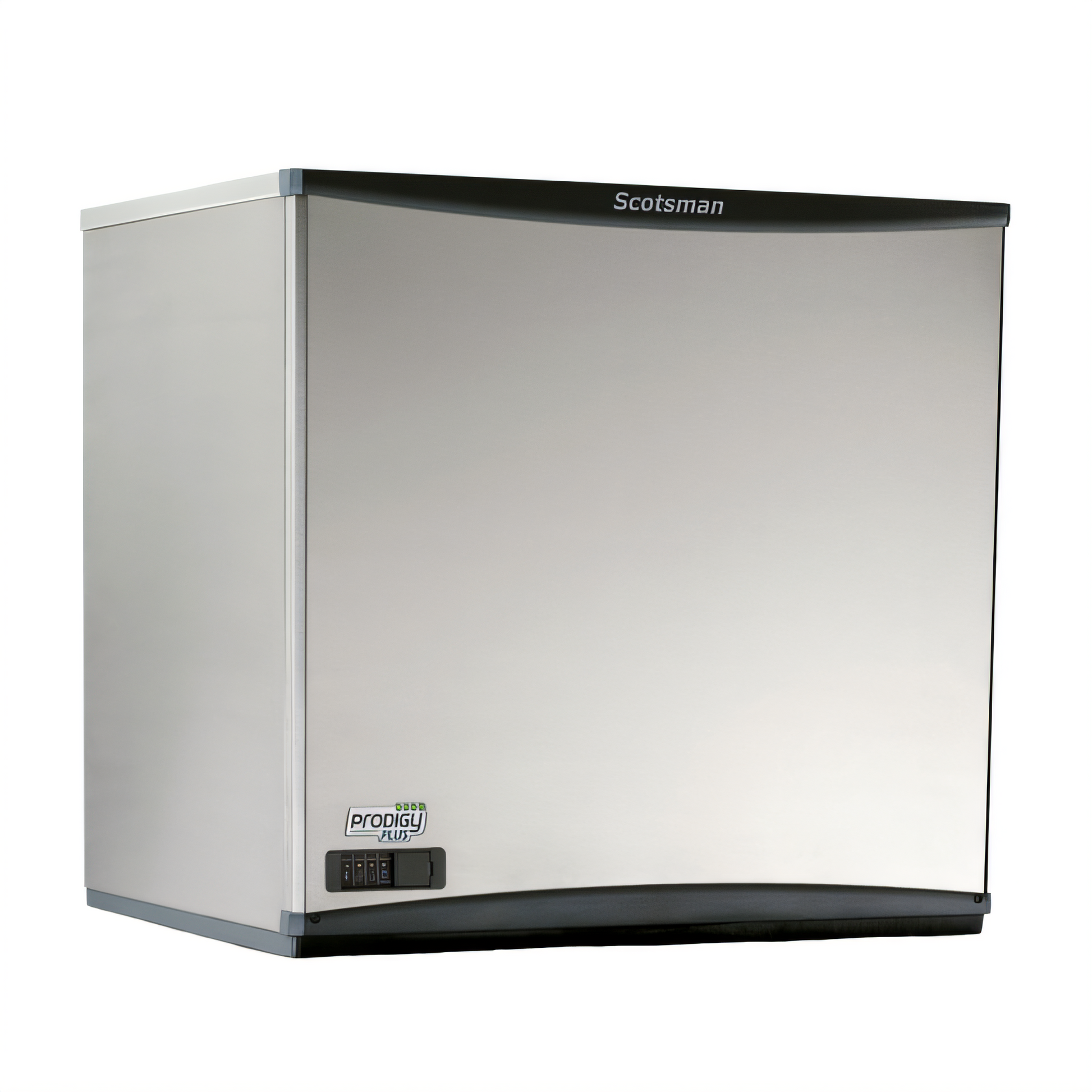

Scotsman FS2330R-32 Prodigy™ Plus Ice Machines - FS2330R-32

Scotsman FS2330R-32 Prodigy™ Plus Ice Machines - FS2330R-32

Prodigy Plus Ice Maker, flake style, remote-cooled, production capacity up to 2218 lb/24 hours at 70°/50° (1741 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 25.2 amps, NSF, cULus, engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: Produces up to 2,218 lbs of flake ice per day under optimal conditions (70°F air and 50°F water), making it suitable for high-demand commercial environments.

• Remote-Cooled Efficiency: Features a remote condenser, reducing heat and noise in the installation area, making it ideal for environments where space and noise are concerns.

• Compact Footprint: With dimensions of 30" W x 24" D x 29" H, it offers a small operational footprint, perfect for establishments with limited space.

• Energy and Water Efficiency: Consumes approximately 3.09 kWh of energy and 12 gallons of water per 100 lbs of ice produced, meeting federal energy efficiency standards.

• Durable Construction: Built with stainless steel evaporators and augers, ensuring long-lasting reliability in demanding commercial settings.

• User-Friendly Features: Equipped with AutoAlert™ indicator lights that notify users when it’s time to descale, sanitize, or perform other maintenance tasks.

• Advanced Antimicrobial Protection: Includes AgION™ antimicrobial protection to prevent bacteria, mold, and mildew buildup, enhancing sanitation.

• Smart Features: Comes with a unit-specific QR code for easy access to service manuals, cleaning guides, and warranty history.

• Certifications and Compliance: NSF and cULus certified, ensuring compliance with public health and safety standards.

Q&A

Q: What is the ice production capacity of the Scotsman FS2330R-32?
A: The Scotsman FS2330R-32 produces up to 2,218 lbs (1,003 kg) of flake ice per day at 70°F air and 50°F water conditions. It is also AHRI-certified to produce 1,741 lbs (790 kg) per day at 90°F air and 70°F water conditions.

Q: What are the dimensions of the FS2330R-32?
A: The unit measures 30" (W) x 24" (D) x 29" (H).

Q: What type of ice does the FS2330R-32 produce?
A: It produces flake ice, ideal for seafood displays, salad bars, and therapeutic applications.

Q: What is the condenser type used in the FS2330R-32?
A: The FS2330R-32 features a remote-cooled condenser, which requires a separate condenser unit for operation.

Q: What are the electrical requirements for the FS2330R-32?
A: The unit operates on 208-230V, 60Hz, single-phase electrical supply and requires hardwiring.

Q: Is the FS2330R-32 energy-efficient?
A: Yes, it consumes 3.09 kWh per 100 lbs of ice produced and uses 12.0 gallons of water per 100 lbs of ice.

Q: Does the FS2330R-32 comply with safety standards?
A: Yes, it is NSF certified, cULus approved, and AHRI certified, ensuring it meets industry standards for safety and performance.

Q: What features enhance maintenance and serviceability?
A: The FS2330R-32 includes AutoAlert™ indicator lights for maintenance alerts, a unit-specific QR code for easy access to manuals and service information, and sealed, maintenance-free bearings for long-lasting performance.

Q: Is the FS2330R-32 made in the USA?
A: Yes, it is engineered and assembled in the USA.

Maintenance Tips

• Clean the Air Filter: Remove and clean the air filter by vacuuming or washing with warm water and mild detergent. Ensure it's completely dry before reinsertion.

• Clean the Condenser: Remove the front panel and kickplate. Vacuum the surface of the condenser fins and carefully brush off any loose dirt. If grease is imbedded, use coil cleaner to wash it out.

• Descale the Ice Machine: Mix 8 oz of Scotsman Ice Machine Scale Remover with warm water. Pour the solution into the reservoir and operate the machine for about 30 minutes. Drain the solution and rinse thoroughly with hot water.

• Sanitize the Water System: After descaling, sanitize the water system following the manufacturer's instructions.

• Avoid Contamination: Do not store non-ice items inside the ice bin to prevent contamination and potential drainage issues.

• Regular Inspections: Regularly check for scale build-up, especially in hard water areas, and clean accordingly to maintain performance.
