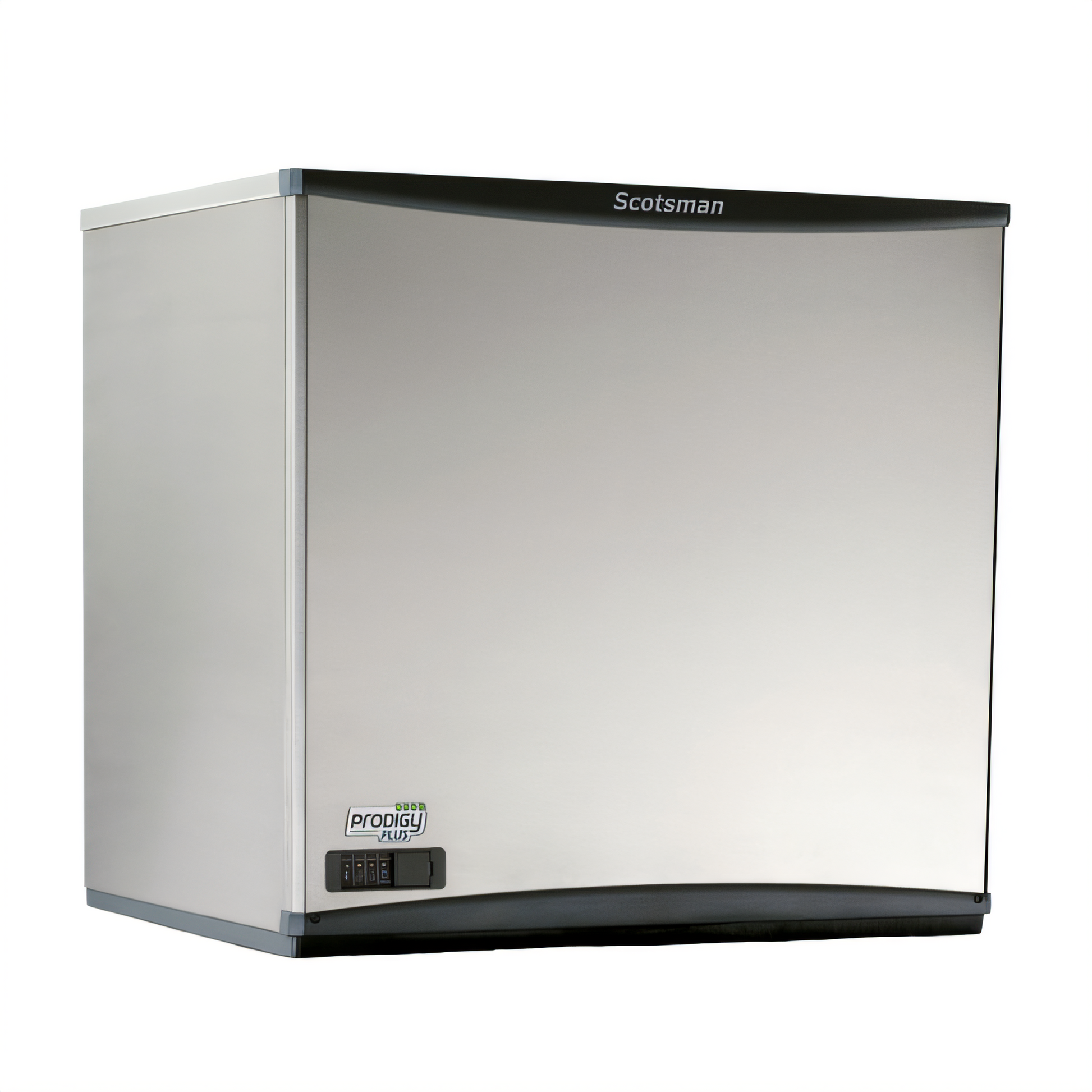

Scotsman FS2330W-3 Prodigy™ Plus Ice Machines - FS2330W-3

Scotsman FS2330W-3 Prodigy™ Plus Ice Machines - FS2330W-3

Prodigy Plus Ice Maker, flake style, water-cooled, self-contained condenser, production capacity up to 2387 lb/24 hours at 70°/50° (1977 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/3-ph, 13.2 amps, NSF, cULus, engineered and assembled in USA

Specifications

What our Experts Think

• Outstanding Ice Output: Produces up to 2,387 lbs of flake ice per day in ideal conditions, and 1,977 lbs per day under AHRI-standard temperatures — perfect for seafood displays, medical facilities, and grocery merchandising.

• Water-Cooled System: Designed with a self-contained, water-cooled condenser that maintains performance even in hot or poorly ventilated environments.

• Efficient Operation: Uses only 2.51 kWh of energy and 12 gallons of potable water per 100 lbs of ice, offering lower utility costs over time.

• Built to Last: Features a stainless steel evaporator and auger, combined with AgION™ antimicrobial protection to reduce bacteria and extend equipment life.

• Easy Maintenance: Equipped with AutoAlert™ indicator lights, one-touch cleaning, and sealed, maintenance-free bearings to minimize downtime and service costs.

• Space-Saving Design: With a 30" W x 24" D x 29" H footprint, this unit delivers large-scale performance without taking up excessive floor space.

• Reliable Specs: Runs on 208-230V, 60Hz, 3-phase power and uses R-404A refrigerant to ensure dependable and consistent ice production.

• Compliant & Certified: NSF and cULus certified, ensuring it meets health, sanitation, and safety standards required in commercial environments.

Q&A

Q: What is the Scotsman FS2330W-3 Prodigy Plus Ice Machine?
A: The Scotsman FS2330W-3 is a water-cooled flake ice machine designed for high-volume commercial use, producing up to 2,387 lbs of flake ice per day.

Q: What type of ice does the FS2330W-3 produce?
A: This machine produces soft, slow-melting flake ice, ideal for food displays, seafood preservation, and healthcare applications.

Q: What are the key features of this model?
A: Features include a durable stainless steel evaporator, maintenance-free sealed bearings, AutoAlert™ indicator lights for operational status, AgION™ antimicrobial protection, and one-touch cleaning for easy maintenance.

Q: What are the dimensions and power requirements?
A: The unit measures 30" W x 24" D x 29" H and operates on 208-230V/60Hz/3-phase power, drawing 13.2 amps.

Q: Is this machine energy and water efficient?
A: Yes, it consumes about 2.51 kWh of energy and 12 gallons of water per 100 lbs of ice, making it efficient for high-demand environments.

Q: What certifications does the FS2330W-3 have?
A: It is NSF listed and cULus certified, ensuring it meets industry standards for safety and performance.

Q: What warranty is provided with this ice machine?
A: The Scotsman FS2330W-3 comes with a 3-year parts and labor warranty and a 5-year parts warranty on the compressor.

Q: Where is the Scotsman FS2330W-3 manufactured?
A: The machine is designed and assembled in the USA, reflecting Scotsman’s commitment to quality craftsmanship.

Maintenance Tips

• Descale and Sanitize Water System:

• Perform descaling and sanitizing every 6 months.

• Replace the water filter during each cleaning cycle to maintain water quality.

• Clean Ice Storage Bin:

• Sanitize the ice bin during each maintenance session.

• Use food-safe cleaners and allow the bin to air dry completely.

• Maintain Air Filter and Condenser Coils:

• Clean or replace the air filter at least every 6 months, or more often in dusty environments.

• Clean the condenser coils every 6 months to ensure efficient performance.

• Monitor AutoAlert™ Indicators:

• Pay attention to system alerts indicating the need for cleaning or service and address them promptly.

• Inspect for Performance Issues:

• Regularly check for unusual noises, low ice output, or irregularly shaped ice.

• Ensure all components are functioning well, and replace any worn parts as needed.
