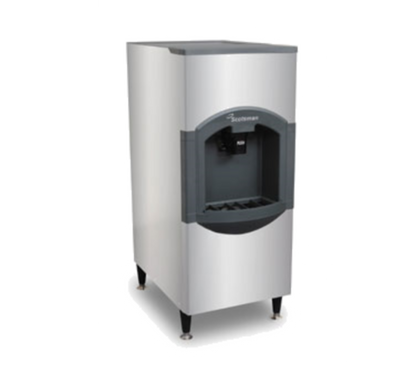

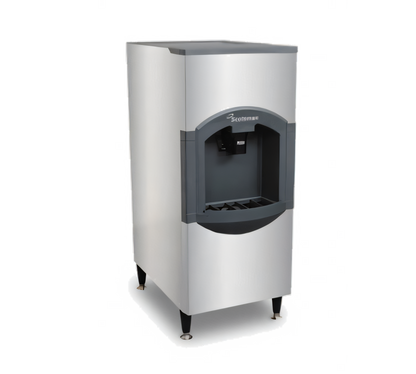

Scotsman HD22B-6 iceValet Ice & Water Dispensers - HD22B-6

Scotsman HD22B-6 iceValet Ice & Water Dispensers - HD22B-6

iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 120 lb application capacity, designed for 22" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, 230v/50/1-ph, NSF, cULus, engineered and assembled in USA, ADA Compliant dispensing area (Export Model, 50hz version)

Specifications

What our Experts Think

• High Storage Capacity: The Scotsman HD22B-6 iceValet® Ice & Water Dispenser offers a large 120 lbs storage capacity, ensuring a consistent supply of ice for high-traffic areas.

• User-Friendly Design: Features a push-button dispensing system, allowing easy and convenient access to ice, which improves the overall user experience.

• ADA Compliant: Designed to meet ADA standards, the dispenser provides accessibility for all users, making it ideal for public spaces.

• Durable Construction: Built with a sleek, metallic exterior, the HD22B-6 is both visually appealing and durable enough to withstand heavy use in demanding environments.

• Energy Efficient: Operating with energy-efficient technology, this model helps reduce energy consumption, aligning with modern sustainability standards.

• Easy Maintenance: The unit is designed for simple maintenance, with a removable top panel for easy access to the bin, allowing quick cleaning and servicing.

Q&A

Q: What is the storage capacity of the Scotsman HD22B-6 iceValet?
A: The Scotsman HD22B-6 iceValet has a storage capacity of 120 lbs of ice, ensuring a continuous supply for guests.

Q: What are the dimensions of the Scotsman HD22B-6 iceValet?
A: The unit measures 22" W x 33.5" D x 47.25" H, with an additional 6" height for adjustable legs.

Q: What voltage does the Scotsman HD22B-6 iceValet operate on?
A: The Scotsman HD22B-6 operates on a 230V, 50Hz, 1-phase electrical supply, suitable for export markets.

Q: Is the Scotsman HD22B-6 iceValet ADA compliant?
A: Yes, the dispenser features an ADA-compliant dispensing area, ensuring accessibility for all guests.

Q: What certifications does the Scotsman HD22B-6 iceValet have?
A: The unit is NSF and cULus certified, meeting health and safety standards for commercial use.

Q: Is the Scotsman HD22B-6 iceValet easy to maintain?
A: Yes, it includes a removable top panel for easy bin access, simplifying cleaning and maintenance without removing the ice machine head.

Maintenance Tips

• Regular Cleaning: Clean the exterior with warm, soapy water. For the ice storage bin, remove all ice, disconnect power, and clean it with a solution of ice machine cleaner diluted with warm water. Rinse thoroughly and sanitize using a bleach solution (1 oz bleach per 2 gallons of water). Allow parts to air dry before reassembling.

• Ice Catch Pan Maintenance: Periodically remove any debris from the ice catch pan below the sink grill. Flush the drain to prevent water backups, as neglecting this may lead to leaks that are not covered by the warranty.

• Agitation Cycle Adjustment: The dispenser is preset for a 3-second agitation every 6 hours. If the unit is in a cooler environment or ice quality issues arise, consider adjusting the frequency as needed.

• Power-Lock Switch: Always use the power-lock switch during maintenance to ensure safety. This feature prevents accidental operation while servicing the unit.

• Compatibility: The HD22B-6 works best with 22" wide top-mount cube-type ice machines, such as the Scotsman Prodigy Plus series. Ensure compatibility for optimal performance.
