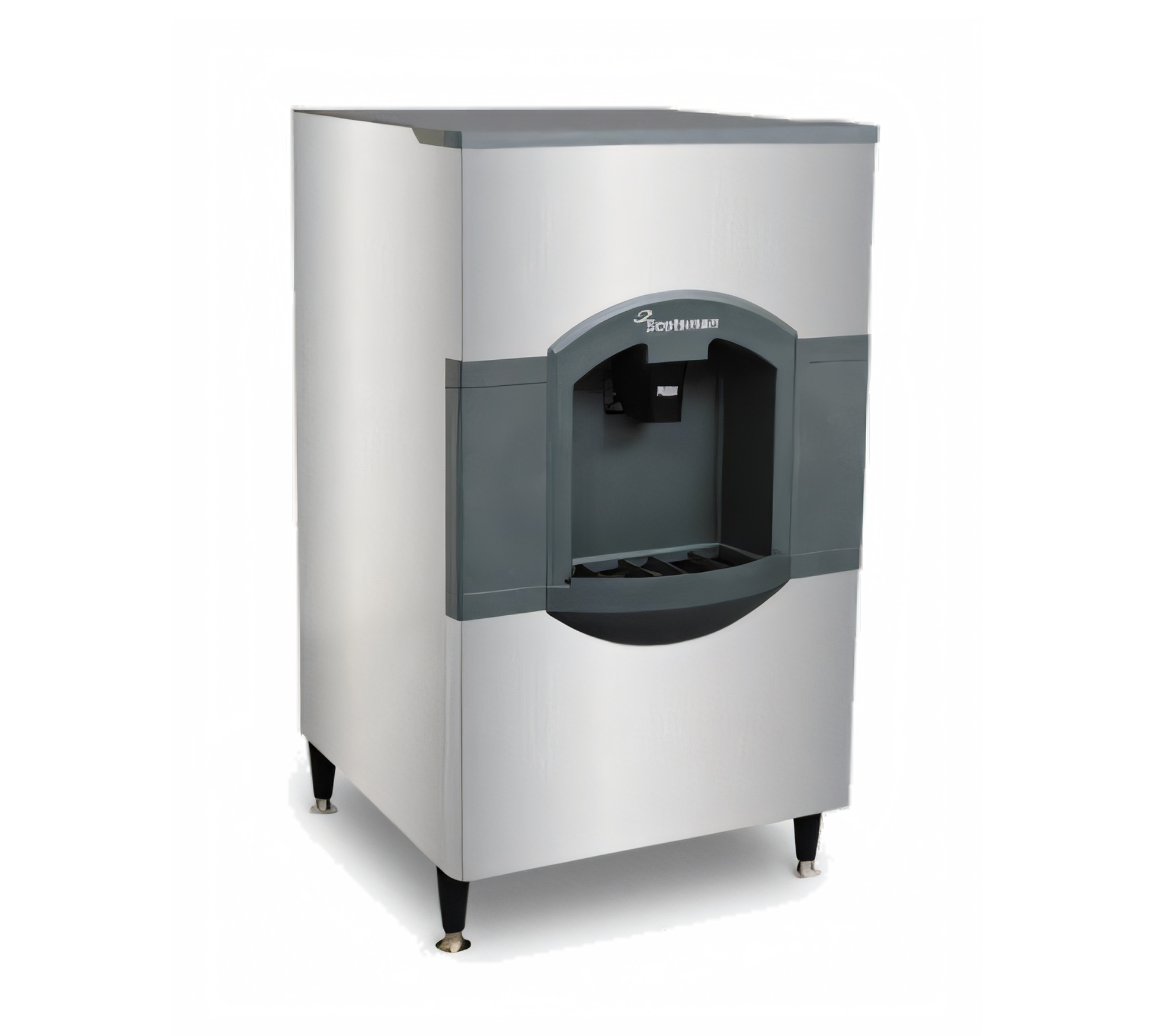

Scotsman HD30B-1 iceValet Ice & Water Dispensers - HD30B-1

Scotsman HD30B-1 iceValet Ice & Water Dispensers - HD30B-1

iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, includes 11’ power cord with NEMA 5-15P plug, 115v/60/1-ph, 2.1 amps, NSF, cULus, engineered and assembled in USA, ADA Compliant dispensing area

Specifications

What our Experts Think

• High Storage Capacity: Holds up to 180 lbs of ice, ensuring there is always plenty available for guests, even during peak demand.

• Push-Activated Dispensing: Features a convenient push chute that allows guests to easily dispense ice without the need for scoops, improving hygiene and ease of use.

• ADA-Compliant Design: The dispenser is designed to meet ADA standards, making it accessible for a wide range of users and compatible with various hotel ice buckets.

• Durable Construction: Built with a corrosion-resistant metallic cabinet, it offers long-lasting durability and a sleek, professional appearance.

• Easy Maintenance: The removable top panel provides quick access to the ice bin for hassle-free cleaning and servicing, ensuring the machine stays in optimal condition.

• Enhanced Insulation: Polyurethane insulation helps maintain ice quality and prevents excessive melting, keeping ice fresh longer.

• Flexible Power Setup: Comes with an 11-foot power cord, allowing for flexible installation options in different environments.

• Safety Features: Includes a power-lock switch that ensures safe operation during maintenance, preventing accidents.

Q&A

Q: What is the ice storage capacity of the Scotsman HD30B-1?
A: The Scotsman HD30B-1 can store up to 180 lbs (81.6 kg) of cube ice.

Q: What are the dimensions of the HD30B-1?
A: The unit measures 30" (W) x 33.5" (D) x 53.25" (H).

Q: What type of ice does the HD30B-1 dispense?
A: It dispenses cube ice.

Q: What is the dispensing mechanism of the HD30B-1?
A: The dispenser features a push chute for easy ice dispensing.

Q: What is the voltage and amperage requirement for the HD30B-1?
A: The unit operates on 115V, 60Hz, single-phase electrical supply and requires 2.1 amps.

Q: Is the HD30B-1 compliant with any standards?
A: Yes, it is NSF certified, cULus approved, and ADA compliant, ensuring it meets industry standards for safety and accessibility.

Q: What is the warranty on the HD30B-1?
A: The unit comes with a 3-year parts and labor warranty on all components and a 5-year parts warranty on the compressor.

Q: What features enhance maintenance and serviceability?
A: The HD30B-1 includes AutoAlert™ indicator lights for maintenance alerts, a unit-specific QR code for easy access to manuals and service information, and sealed, maintenance-free bearings for long-lasting performance.

Q: Is the HD30B-1 made in the USA?
A: Yes, it is engineered and assembled in the USA.

Maintenance Tips

• Clean the Ice Storage Bin: Remove all ice and clean the bin's interior, including the polyethylene liner and stainless steel bottom, with warm, soapy water. Rinse thoroughly and sanitize using a food-safe sanitizer.

• Clean the Exterior: Wipe down the stainless steel surfaces with a cleaner to remove fingerprints, dust, and grease.

• Clean the Air Filter: Remove and clean the air filter by vacuuming or washing with warm water and mild detergent. Ensure it's completely dry before reinsertion.

• Clean the Condenser: Remove the front panel and kickplate. Vacuum the surface of the condenser fins and carefully brush off any loose dirt. If grease is imbedded, use coil cleaner to wash it out.

• Descale the Ice Machine: Mix 8 oz of Scotsman Ice Machine Scale Remover with warm water. Pour the solution into the reservoir and operate the machine for about 30 minutes. Drain the solution and rinse thoroughly with hot water.

• Sanitize the Water System: After descaling, sanitize the water system following the manufacturer's instructions.
