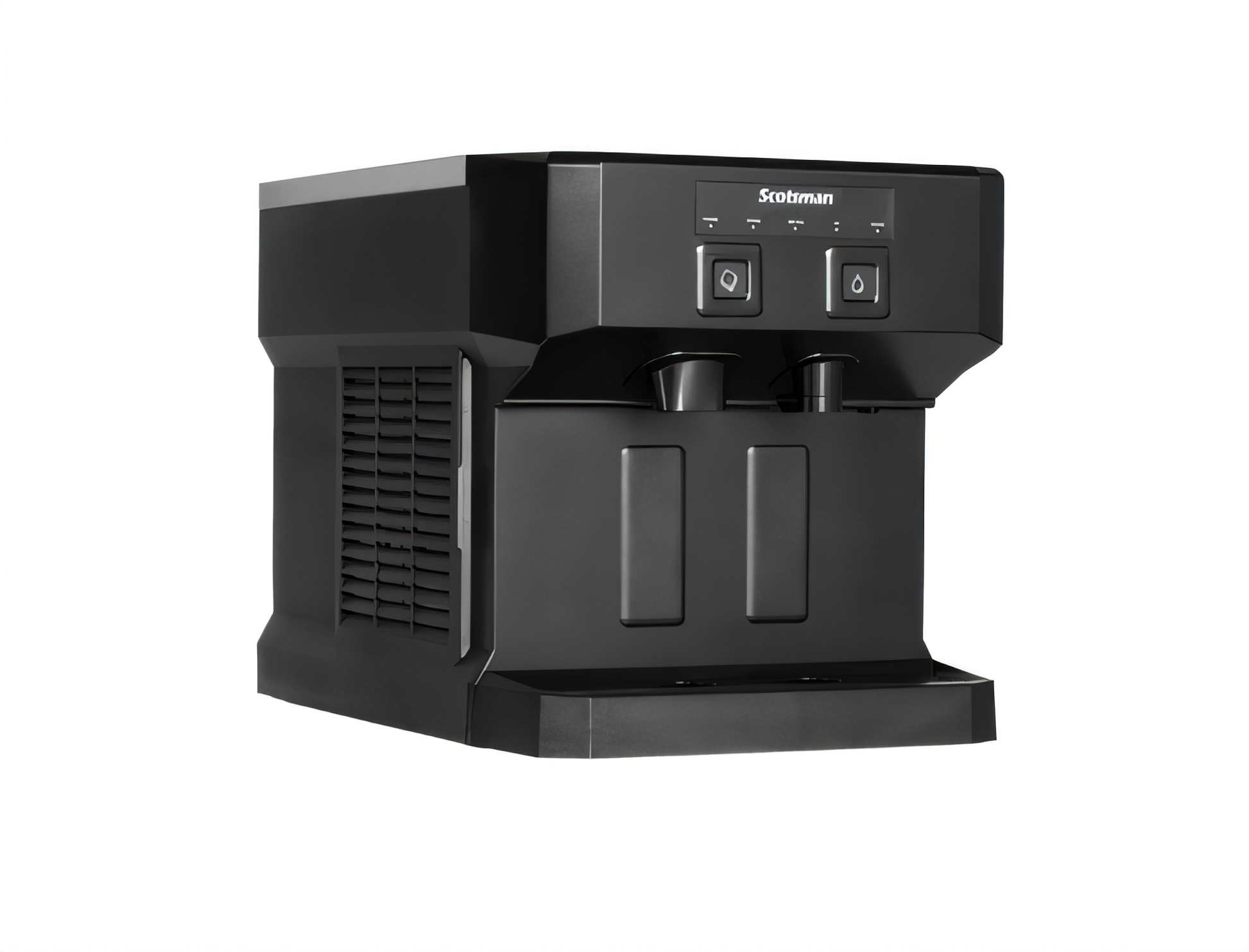

Scotsman HID207ABX-1 Meridian™ Ice & Water Dispensers - HID207ABX-1

Scotsman HID207ABX-1 Meridian™ Ice & Water Dispensers - HID207ABX-1

Meridian™ Compact Ice & Water Dispenser, antimicrobial push-button dispensing, nugget style, Original Chewable Ice®, air-cooled, production capacity up to 196 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°/70°), 7 lb bin storage capacity, sealed maintenance-free bearing, UV-LED internal sanitation module, AutoAlert™ external indicating lights, removable bin, removable air filter, SmoothStream™ water dispensing, illuminated dispensing, removable spouts and sink, integrated sink drain cover, consolidated 0.75" drain outlet, recessed utility chase, stainless steel evaporator and auger, ADA compliant dispensing area, 8.15" dispensing area, unit specific QR code, included snap-on panels for ice only configuration, AgION® antimicrobial protection, R-290 refrigerant, includes 6’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 5.8 amps, cULus, NSF, AHRI, engineered and assembled in USA, ENERGY STAR

Specifications

What our Experts Think

• High Production Capacity: The Scotsman HID207ABX-1 Meridian™ Ice & Water Dispenser produces up to 196 lbs of nugget ice per day, making it an excellent choice for businesses with moderate to high ice needs.

• Compact Design: With dimensions of 16.05" W x 23.44" D x 17.54" H, this unit is designed for countertop installation, making it ideal for spaces where room is limited.

• User-Friendly Dispensing: Features a convenient push-button dispensing system for both ice and water, providing easy access for customers or staff.

• Sanitation Features: Equipped with an internal UV-LED sanitation module and AgION® antimicrobial protection to prevent the growth of bacteria, mold, and mildew, ensuring cleaner ice and water.

• Energy and Water Efficiency: The unit consumes 4.9 kWh per 100 lbs of ice and uses 12 gallons of water per 100 lbs of ice, making it both energy and water-efficient.

• Durable Construction: Built with a stainless steel evaporator and auger, and sealed maintenance-free bearings, which enhance the machine's durability and reduce maintenance requirements.

Q&A

Q: What type of ice does the Scotsman HID207ABX-1 produce?
A: The Scotsman HID207ABX-1 produces nugget ice, which is known for its chewable texture and slow-melting properties, ideal for beverages and healthcare applications.

Q: What is the daily ice production capacity?
A: This model produces up to 196 lbs of nugget ice per day under optimal conditions (70°F air and 50°F water).

Q: What is the storage capacity?
A: The unit includes a 7 lb storage bin, suitable for light to moderate usage.

Q: What are the dimensions and weight?
A: The unit measures 16.05" W x 23.89" D x 17.54" H and weighs approximately 80 lbs.

Q: What voltage does the Scotsman HID207ABX-1 operate on?
A: The unit operates on a 115V, 60Hz, 1-phase electrical supply.

Q: Is the Scotsman HID207ABX-1 energy-efficient?
A: Yes, it operates at 4.9 kWh per 100 lbs of ice produced and uses 12 gallons of water per 100 lbs, exceeding federal energy-efficiency regulations.

Q: Does it include a storage bin?
A: Yes, the unit includes a 7 lb storage bin.

Q: Is the Scotsman HID207ABX-1 suitable for international use?
A: Yes, it is designed for export markets with a 115V/60Hz/1Ph power supply and is CE certified.

Maintenance Tips

• Regular Cleaning:

• Drip Tray & Chutes: Remove the drip tray and disconnect it from the drain. Clean with ice machine scale remover, rinse thoroughly, and allow it to air dry.

• Dispensing Bin Components: Clean the dispensing bin with warm water and mild detergent. Sanitize with a solution of 2 oz of NuCalgon per 1.25 gallons of water at 95-115°F. Let it air dry before reassembling.

• Air Filter: Clean the air filter regularly using a vacuum or wash it with warm water and mild detergent. Ensure it is completely dry before reinstalling.

• UV-LED Sanitation Module:

• The UV module helps keep the ice and water clean. Check the UV indicator light regularly—it should glow green when the water is flowing through the module.

• Ice Level Controls:

• If the bin shows full but no ice is present, clean the ice level sensors. Disconnect them, clean the sensors, and reconnect them to resolve the issue.

• Water System Maintenance:

• Regularly check the water supply to ensure proper operation. If the unit isn’t sensing water, check the water indicator light. If it’s on, troubleshoot the water supply issue.

• General Tips:

• Avoid placing garbage, coffee, or soda into the drip tray, as it’s not designed for such waste.

• Use the power-lock switch during maintenance for safety.

• Regularly inspect the machine for any signs of wear or malfunction and address them promptly.
