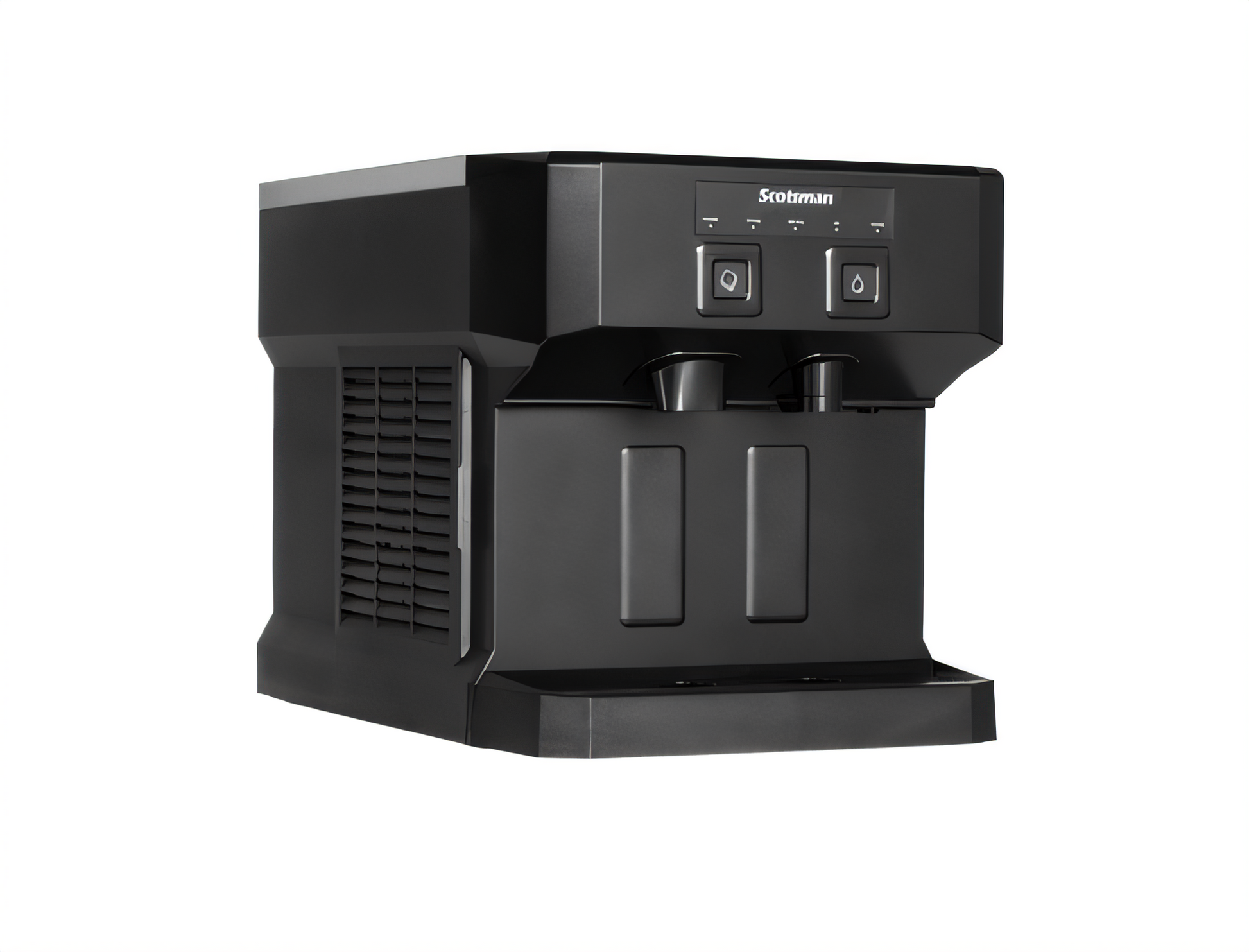

Scotsman HID207AX-1 Meridian™ Ice & Water Dispensers - HID207AX-1

Scotsman HID207AX-1 Meridian™ Ice & Water Dispensers - HID207AX-1

Meridian™ Compact Ice & Water Dispenser, Touchfree® infrared dispensing, nugget style, Original Chewable Ice , air-cooled, production capacity up to 196 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°/70°), 7 lb bin storage capacity, sealed maintenance-free bearing, UV-LED internal sanitation module, AutoAlert™ external indicating lights, removable bin, removable air filter, SmoothStream™ water dispensing, illuminated dispensing, removable spouts and sink, integrated sink drain cover, consolidated 0.75" drain outlet, recessed utility chase, stainless steel evaporator and auger, ADA compliant dispensing area, 8.15" dispensing area, unit specific QR code, included snap-on panels for ice only configuration, AgION® antimicrobial protection, R-290 refrigerant, includes 6’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 5.8 amps, cULus, NSF, AHRI, engineered and assembled in USA, ENERGY STAR

Specifications

What our Experts Think

• High Production Capacity: Produces up to 196 lbs of nugget ice per day, ensuring a reliable supply for high-demand environments.

• Touch-Free Dispensing: Features infrared sensor dispensing for both ice and water, promoting a hygienic, contactless experience for users.

• UV-LED Sanitation: Includes an internal UV-LED module that sanitizes incoming water, ensuring the ice and water dispensed are clean and fresh.

• Compact Design: With a small footprint of 16.05" W x 23.44" D x 17.54" H, it fits easily into spaces with limited room while maintaining efficiency.

• ADA-Compliant Dispensing Area: Designed to meet ADA standards, the dispensing area accommodates a wide range of users and is compatible with various hotel ice buckets.

• Energy and Water Efficiency: Consumes approximately 4.9 kWh of energy and 12 gallons of water per 100 lbs of ice produced, complying with federal energy efficiency standards.

• Durable Construction: Built with stainless steel evaporators and augers for long-lasting durability in demanding commercial settings.

• Maintenance-Friendly Design: Components such as the air filter, chutes, sink, grill, and bin are fully removable for easy cleaning and maintenance.

• Antimicrobial Protection: Incorporates AgION™ antimicrobial protection to prevent bacteria, mold, and mildew buildup, ensuring better hygiene.

• Smart Features: Equipped with AutoAlert™ indicator lights to notify users when it’s time for descaling, sanitizing, or maintenance.

• Environmentally Friendly: Uses R-290 refrigerant, which has zero ozone depletion potential and low global warming potential.

• Certifications and Compliance: NSF and cULus certified, ensuring compliance with public health and safety standards.

Q&A

Q: What is the ice production capacity of the Scotsman HID207AX-1?
A: The Scotsman HID207AX-1 produces up to 196 lbs (89 kg) of nugget ice per day at 70°F air and 50°F water conditions.

Q: What are the dimensions of the HID207AX-1?
A: The unit measures 16.05" (W) x 23.44" (D) x 17.54" (H).

Q: What type of ice does the HID207AX-1 produce?
A: It produces nugget ice, known for its chewable texture and suitability for beverages and medical applications.

Q: What is the condenser type used in the HID207AX-1?
A: The HID207AX-1 features an air-cooled condenser, which simplifies installation and reduces space requirements.

Q: What are the electrical requirements for the HID207AX-1?
A: The unit operates on 115V, 60Hz, single-phase electrical supply and requires 5.8 amps.

Q: Is the HID207AX-1 energy-efficient?
A: Yes, it consumes 4.9 kWh per 100 lbs of ice produced and uses 12.0 gallons of water per 100 lbs of ice.

Q: Does the HID207AX-1 comply with safety standards?
A: Yes, it is NSF certified, cULus approved, and AHRI certified, ensuring it meets industry standards for safety and performance.

Q: Is the HID207AX-1 made in the USA?
A: Yes, it is engineered and assembled in the USA.

Maintenance Tips

• Air Filter Cleaning: Remove and clean the air filter to maintain optimal airflow and efficiency.

• Condenser Cleaning: Vacuum and brush the condenser fins to remove dust and debris, ensuring efficient heat exchange.

• Scale Removal: Use Scotsman Clear 1 scale remover to clean the ice machine's water system, following the manufacturer's instructions.

• Sanitization: After descaling, sanitize the water system using a recommended sanitizer to maintain hygiene.

• Ice Dispense Bin & Rotor Cleaning: Remove and clean the ice dispense bin and rotor to prevent microbial growth.

• Photo Eye Ice Level Control: Clean the photo eye sensor to ensure accurate ice dispensing.

• Water Filter Replacement: Replace the water filter to maintain water quality and machine performance.
