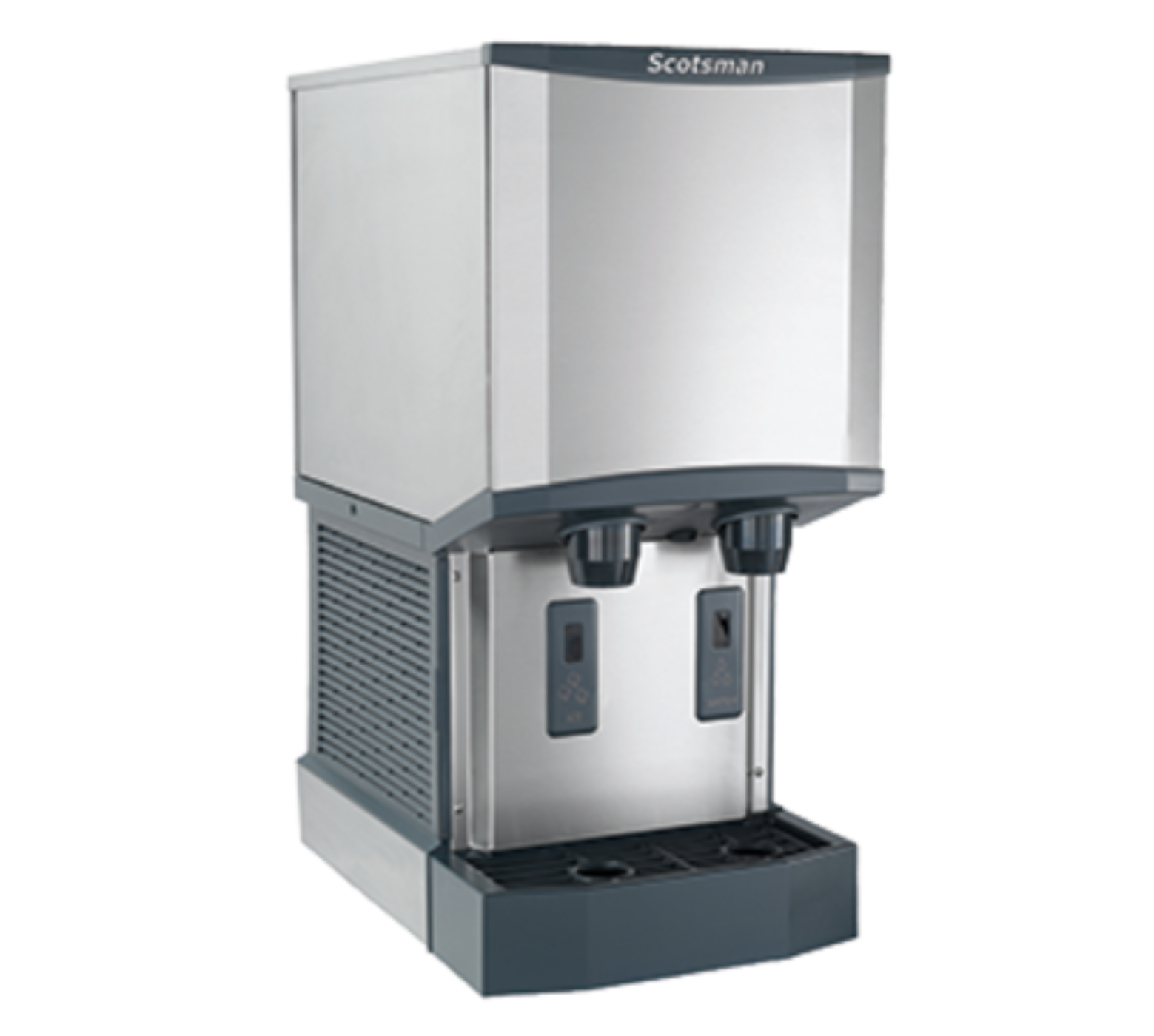

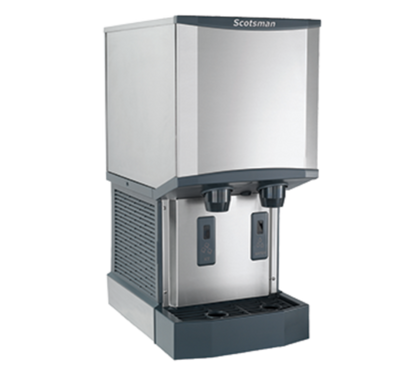

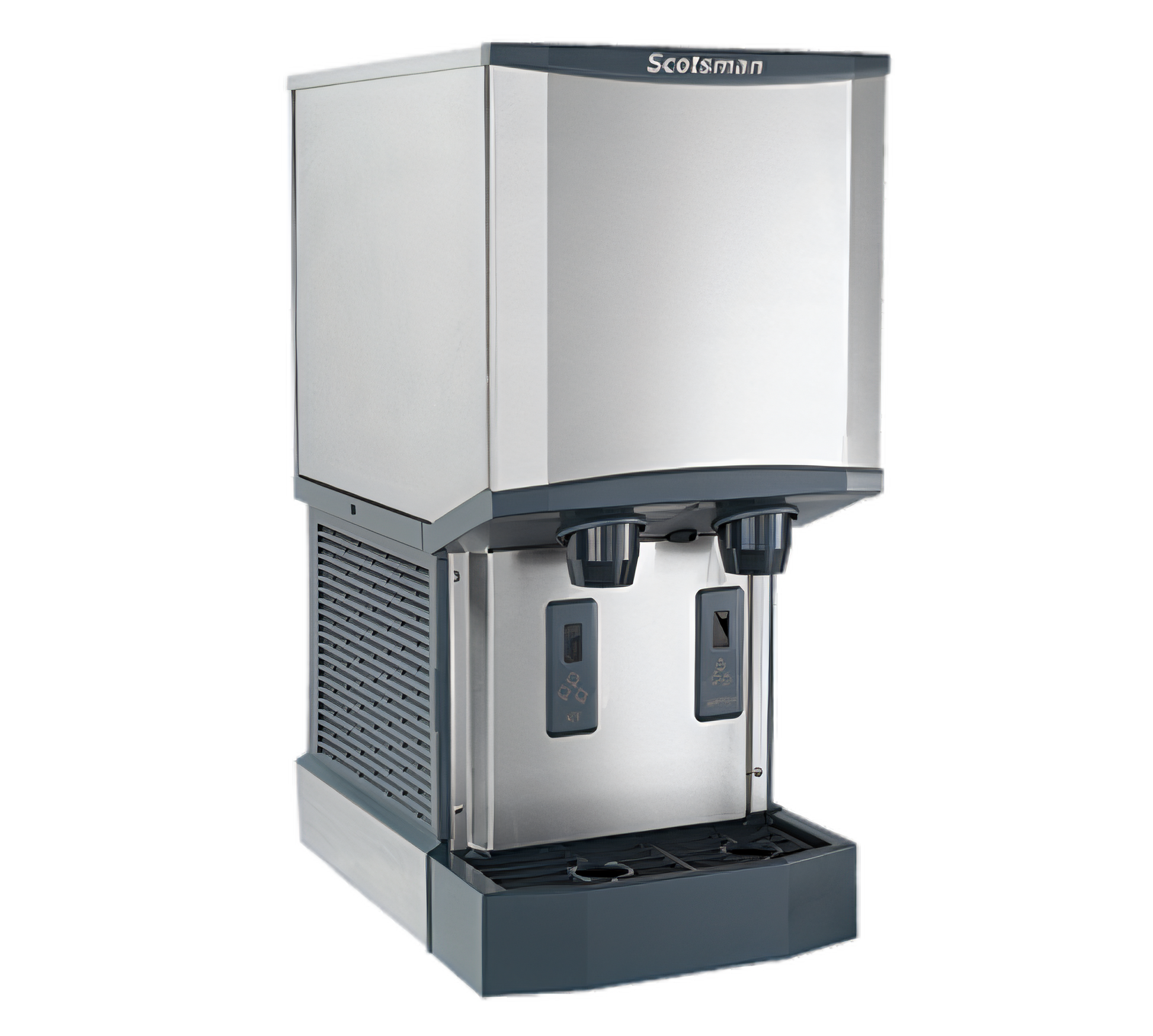

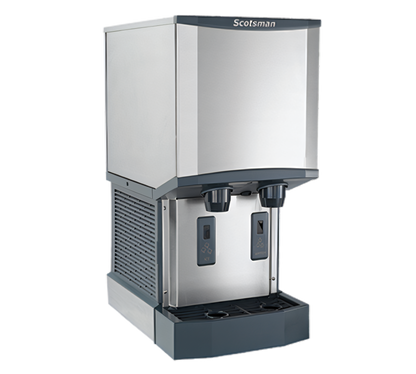

Scotsman HID312A-6 Meridian™ Ice & Water Dispensers - HID312A-6
Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air cooled, production capacity up to 260 lb/24 hours at 70°/50°, 12 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless exterior, AgION™ antimicrobial protection, 230V/50/1, 7.0 amps engineered and assembled in USA (Export Model, 50hz version)
Specifications
| Manufacturer |
Scotsman |
| Brand Name |
Meridian™ |
| Certifications |
NSF, cULus, AHRI |
| Height |
35.0 in |
| Width |
16.25 in |
| Depth |
24.38 in |
| Shipping Weight |
183.0 lbs |
| Cooling |
Air-cooled |
| Production per 24 hr |
201 – 300 lb (91 – 136 kg) |
| Style |
Counter |
| Bin Storage Capacity |
11 – 20 lb (5 – 9 kg) |
| Type |
Ice & water combination machine |
| Specifications |
Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air-cooled, production up to 260 lb/24 hr at 70°/50° (225 lb AHRI at 90°/70°), 12 lb bin capacity, sealed maintenance-free bearings, removable bin and air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit-specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-134a refrigerant, 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 7.0 amps, NSF, cULus, engineered and assembled in USA |
What our Experts Think
-
High Production Capacity: The Scotsman HID312A-6 produces up to 260 lbs of nugget ice per day, making it ideal for establishments with moderate to high ice needs.
-
Compact Design: With dimensions of 16.25" W x 24.38" D x 35" H, it fits easily into tight spaces, perfect for countertop installation in areas with limited space.
-
Touch-Free Dispensing: Equipped with TouchFree® infrared dispensing for both ice and water, this system reduces the risk of cross-contamination and enhances convenience for users.
-
Sanitation Features: Features AgION™ antimicrobial protection, which helps inhibit the growth of bacteria, mold, and other microbes on key components, ensuring cleaner ice and water.
-
Easy Maintenance: The unit is designed with fully removable bins, spouts, air filters, sink, and grill, making it easy to clean and maintain for long-lasting performance.
-
Energy and Water Efficiency: Built to be energy and water efficient, helping businesses reduce operational costs while being environmentally friendly.
-
Durable Construction: Made with stainless steel for both the evaporator and exterior panels, ensuring durability and longevity in high-demand environments.
-
Enhanced Service Features: Comes with LED diagnostic lights, a unit-specific QR code for quick access to service manuals, and a USB drive for software updates, making maintenance and service easy.
Q&A
Q: What type of ice does the Scotsman HID312A-6 produce?
A: The Scotsman HID312A-6 produces chewable H² Nugget Ice, ideal for beverages and healthcare applications due to its slow-melting properties.
Q: What is the daily ice production capacity?
A: This model produces up to 260 lbs of nugget ice per day under optimal conditions (70°F air and 50°F water).
Q: What is the storage capacity?
A: The unit includes a 12 lb storage bin, suitable for moderate usage.
Q: What are the dimensions and weight?
A: The unit measures 16.25" W x 24.38" D x 35" H and weighs approximately 183 lbs.
Q: What voltage does the Scotsman HID312A-6 operate on?
A: The unit operates on a 230V, 50Hz, 1-phase electrical supply, suitable for export markets.
Q: Is the Scotsman HID312A-6 energy-efficient?
A: Yes, it operates at 4.9 kWh per 100 lbs of ice produced and uses 12 gallons of water per 100 lbs, exceeding federal energy-efficiency regulations.
Q: Does it include a storage bin?
A: Yes, the unit includes a 12 lb storage bin.
Q: Is the Scotsman HID312A-6 suitable for international use?
A: Yes, it is designed for export markets with a 230V/50Hz/1Ph power supply and is CE certified.
Maintenance Tips
-
Regular Cleaning:
-
Drip Tray & Drain System: Regularly remove debris and flush the drain with hot water to prevent clogs. Clean the drip tray and dispensing chutes with an ice machine scale remover when necessary.
-
Dispensing Bin: Remove and clean the dispensing bin using warm water and mild detergent. Sanitize with a solution of 2 oz NuCalgon to 1.25 gallons of water at 95–115°F. Allow parts to air dry before reassembling.
-
Air Filter: Clean the removable air filter regularly to prevent dust buildup. This will help maintain efficient air circulation.
-
Water System Maintenance:
-
Clean and sanitize the water system periodically to prevent microbial growth and maintain clean ice and water dispensing.
-
Ice Level Sensors:
-
Ensure the photo eye sensors are clean and unobstructed to allow accurate ice level detection in the bin.
-
General Tips:
-
Avoid Contaminants: Do not dispose of garbage, coffee, or soda into the drip tray as it’s not designed for such waste.
-
Use Power-Lock Switch: Always engage the power-lock switch during maintenance to ensure safety.
