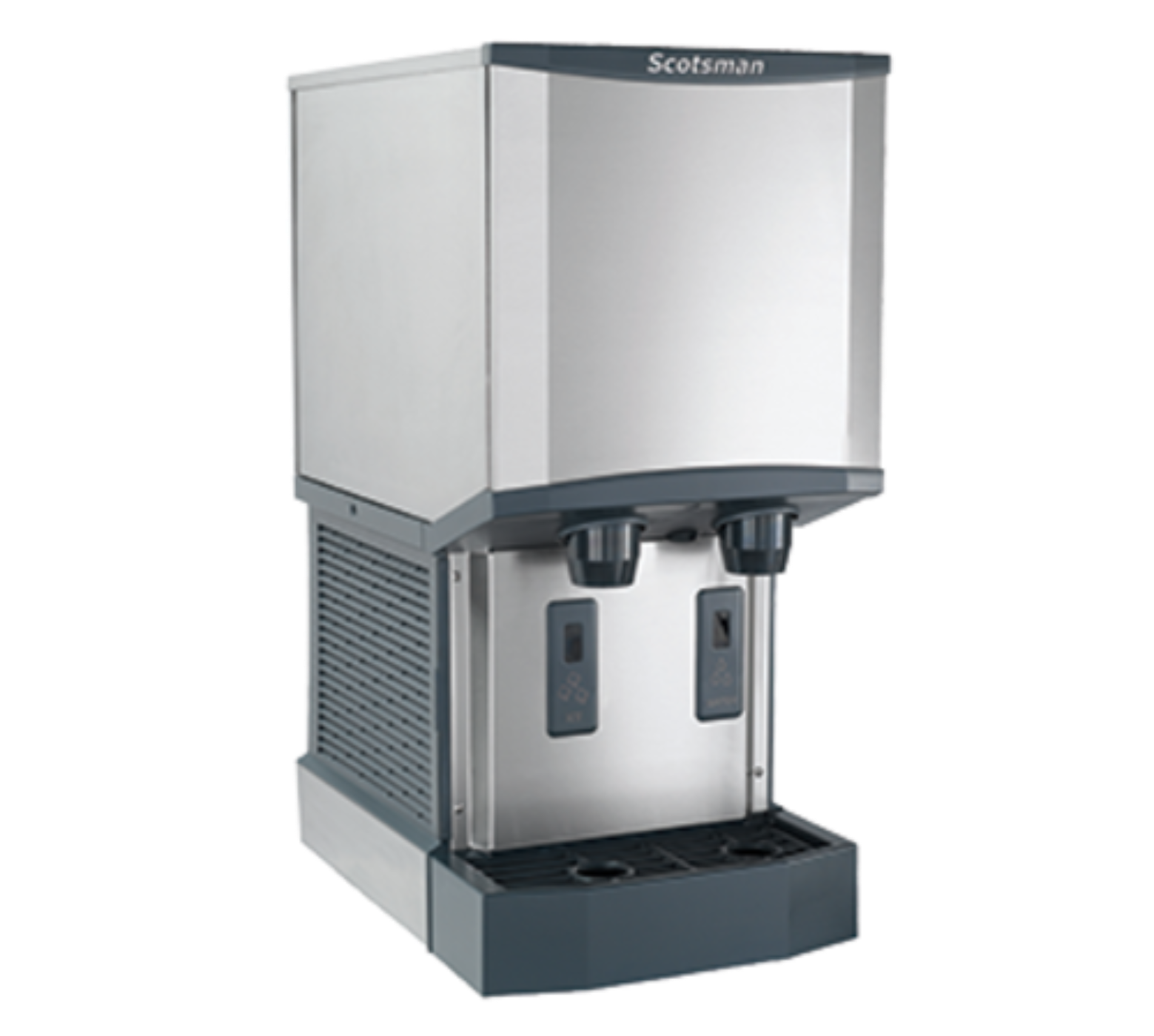

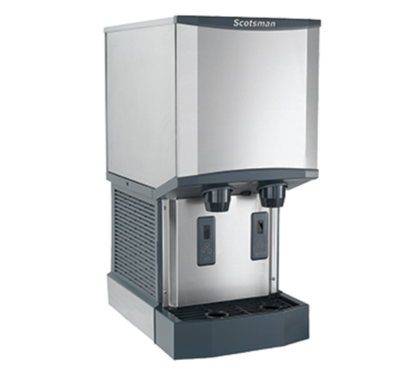

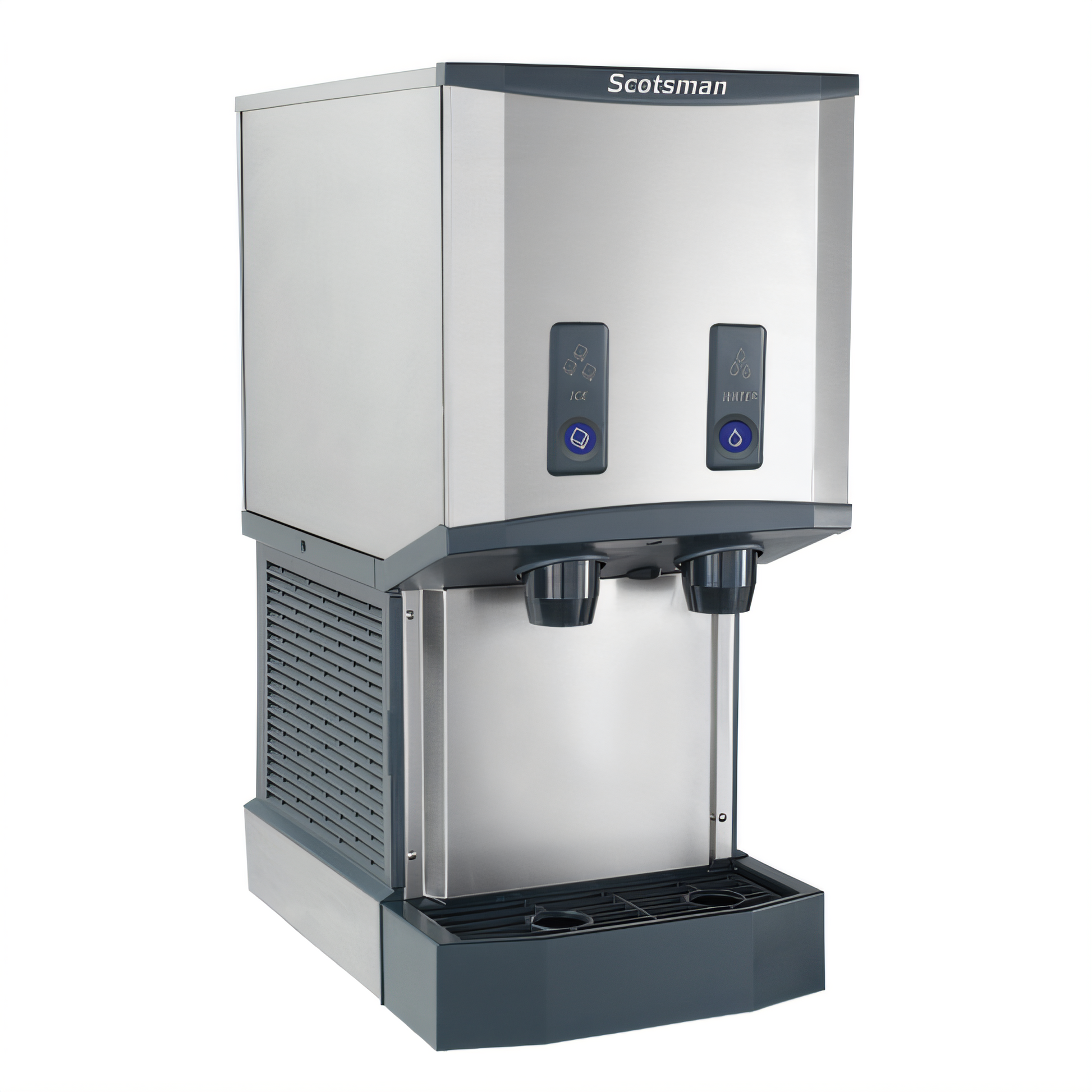

Scotsman HID312AB-1 Meridian™ Ice & Water Dispensers - HID312AB-1

Scotsman HID312AB-1 Meridian™ Ice & Water Dispensers - HID312AB-1

Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 260 lb/24 hours at 70°/50° (225 lb AHRI certified at 90°/70°), 12 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-134a refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 7.0 amps, cULus, NSF engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: Produces up to 260 lbs of chewable nugget ice per day, making it ideal for high-demand environments where a consistent ice supply is needed.

• Compact Countertop Design: With dimensions of 16.25" W x 24.38" D x 35" H, this unit is designed to fit into spaces with limited room while still offering high efficiency.

• Push-Button Dispensing: Features easy-to-use push-button dispensing for both ice and water, providing a straightforward user experience for guests.

• Air-Cooled Efficiency: The air-cooled condenser ensures efficient operation in various environments, reducing the need for additional cooling systems.

• Energy and Water Efficiency: Consumes approximately 4.9 kWh of energy and 12 gallons of water per 100 lbs of ice produced, meeting federal energy efficiency standards.

• Durable Construction: Built with stainless steel evaporators and augers for long-lasting durability in demanding commercial environments.

• Maintenance-Friendly Design: Components such as the air filter, spouts, sink, and grill are fully removable, making cleaning and maintenance easier.

• Enhanced Sanitation: Incorporates AgION™ antimicrobial protection to help prevent bacteria, mold, and mildew buildup, ensuring a more hygienic experience.

• Smart Features: Includes a USB software upgrade port and a unit-specific QR code for quick access to service manuals, cleaning guides, and warranty history.

• Certifications and Compliance: NSF, cULus, and CE certified, ensuring the unit meets rigorous public health and safety standards.

Q&A

Q: What is the ice production capacity of the Scotsman HID312AB-1?
A: The Scotsman HID312AB-1 produces up to 260 lbs (118 kg) of nugget ice per day at 70°F air and 50°F water conditions.

Q: What are the dimensions of the HID312AB-1?
A: The unit measures 16.25" (W) x 24.38" (D) x 35" (H).

Q: What type of ice does the HID312AB-1 produce?
A: It produces nugget ice, known for its chewable texture and suitability for beverages and medical applications.

Q: What is the condenser type used in the HID312AB-1?
A: The HID312AB-1 features an air-cooled condenser, which simplifies installation and reduces space requirements.

Q: What are the electrical requirements for the HID312AB-1?
A: The unit operates on 115V, 60Hz, single-phase electrical supply and requires 7.5 amps.

Q: Is the HID312AB-1 energy-efficient?
A: Yes, it consumes 4.9 kWh per 100 lbs of ice produced and uses 12.0 gallons of water per 100 lbs of ice.

Q: Does the HID312AB-1 comply with safety standards?
A: Yes, it is NSF certified, cULus approved, and CE listed, ensuring it meets industry standards for safety and performance.

Q: What is the warranty on the HID312AB-1?
A: The unit comes with a 3-year parts and labor warranty on all components and a 5-year parts warranty on the compressor.

Q: What features enhance maintenance and serviceability?
A: The HID312AB-1 includes AutoAlert™ indicator lights for maintenance alerts, a unit-specific QR code for easy access to manuals and service information, and sealed, maintenance-free bearings for long-lasting performance.

Q: Is the HID312AB-1 made in the USA?
A: Yes, it is engineered and assembled in the USA.

Maintenance Tips

• Scale Removal: Use Scotsman Clear 1 scale remover to clean the ice machine's water system, following the manufacturer's instructions.

• Sanitization: After descaling, sanitize the water system using a recommended sanitizer to maintain hygiene.

• Ice Dispense Bin & Rotor Cleaning: Remove and clean the ice dispense bin and rotor to prevent microbial growth.

• Photo Eye Ice Level Control: Clean the photo eye sensor to ensure accurate ice dispensing.

• Water Filter Replacement: Replace the water filter to maintain water quality and machine performance.
