Scotsman HID312AW-1 Meridian™ Ice & Water Dispensers - HID312AW-1

Scotsman HID312AW-1 Meridian™ Ice & Water Dispensers - HID312AW-1

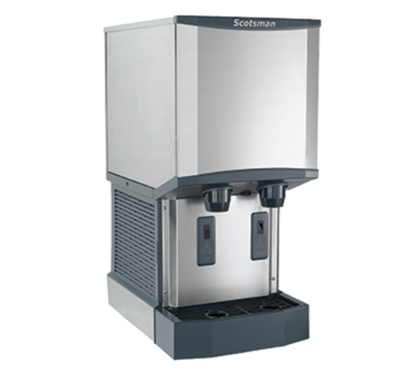

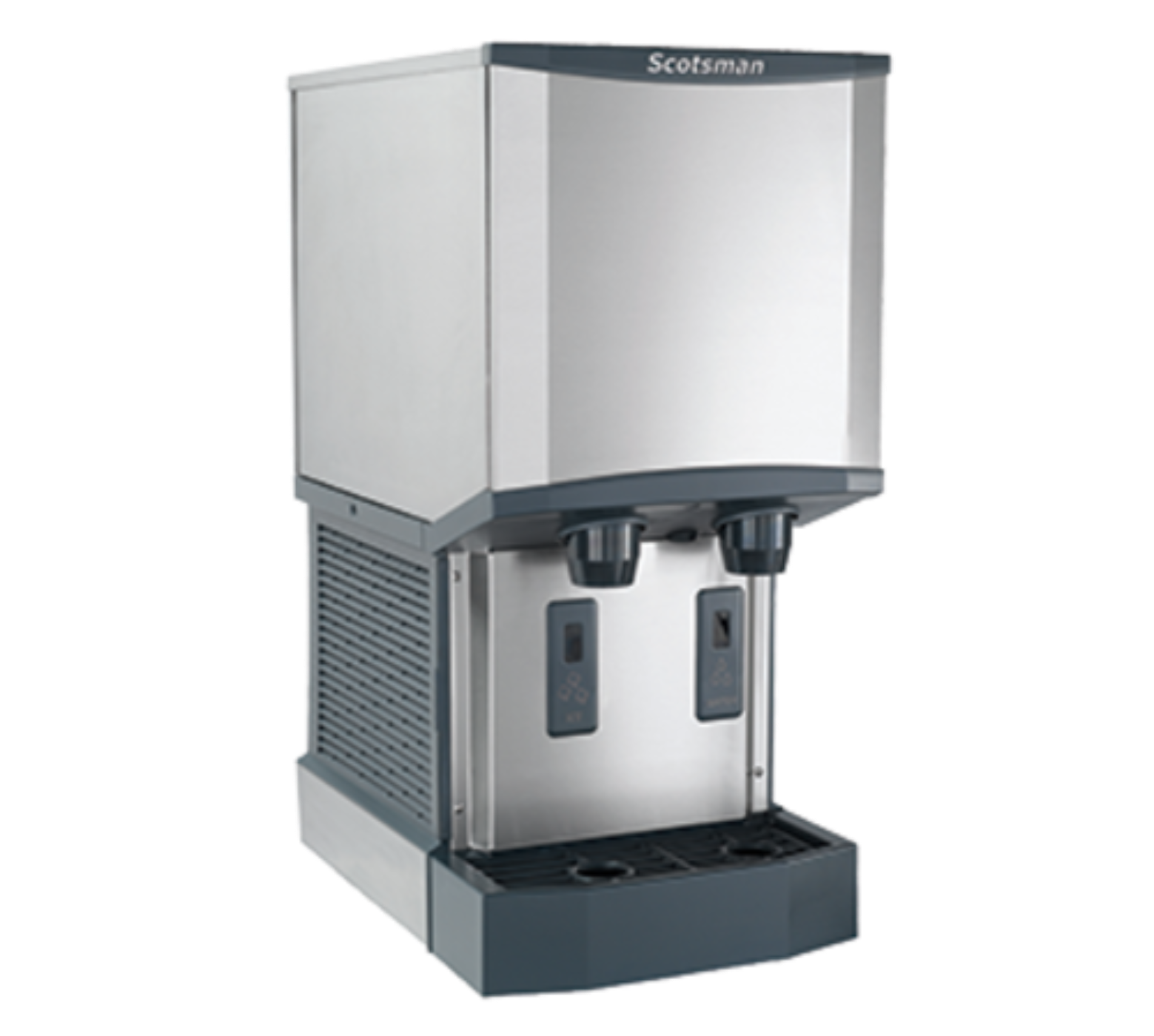

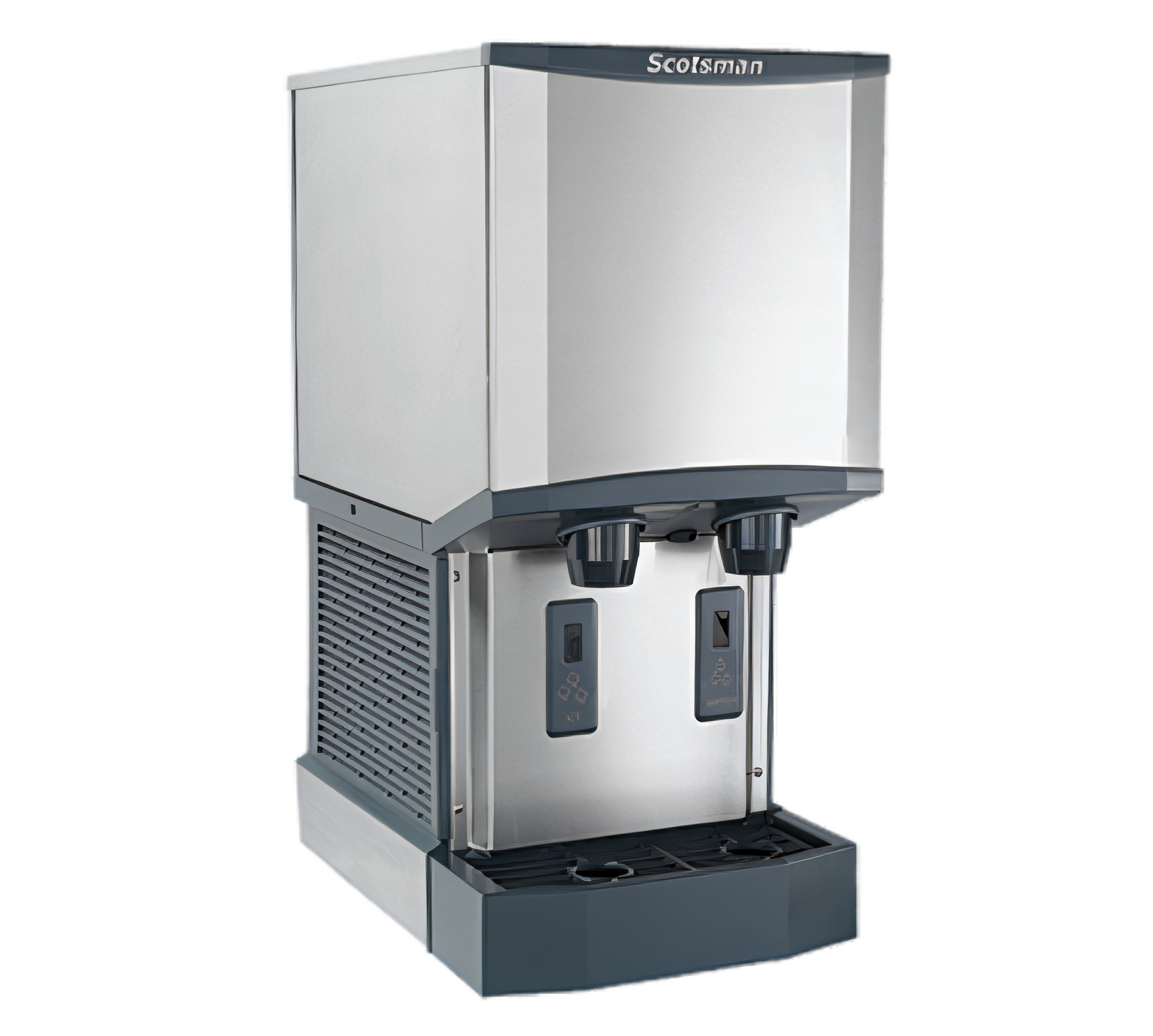

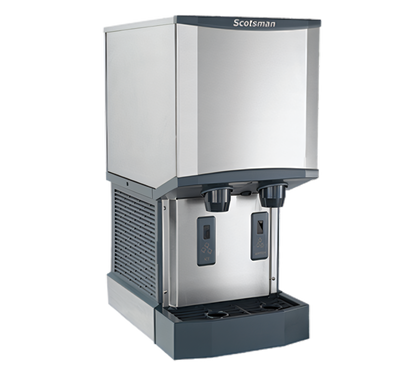

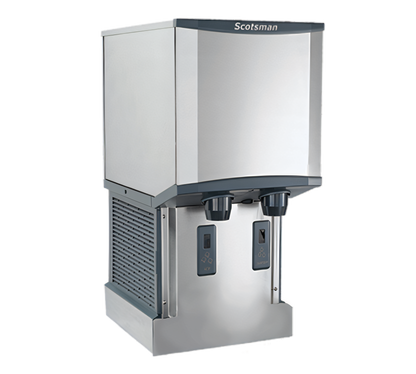

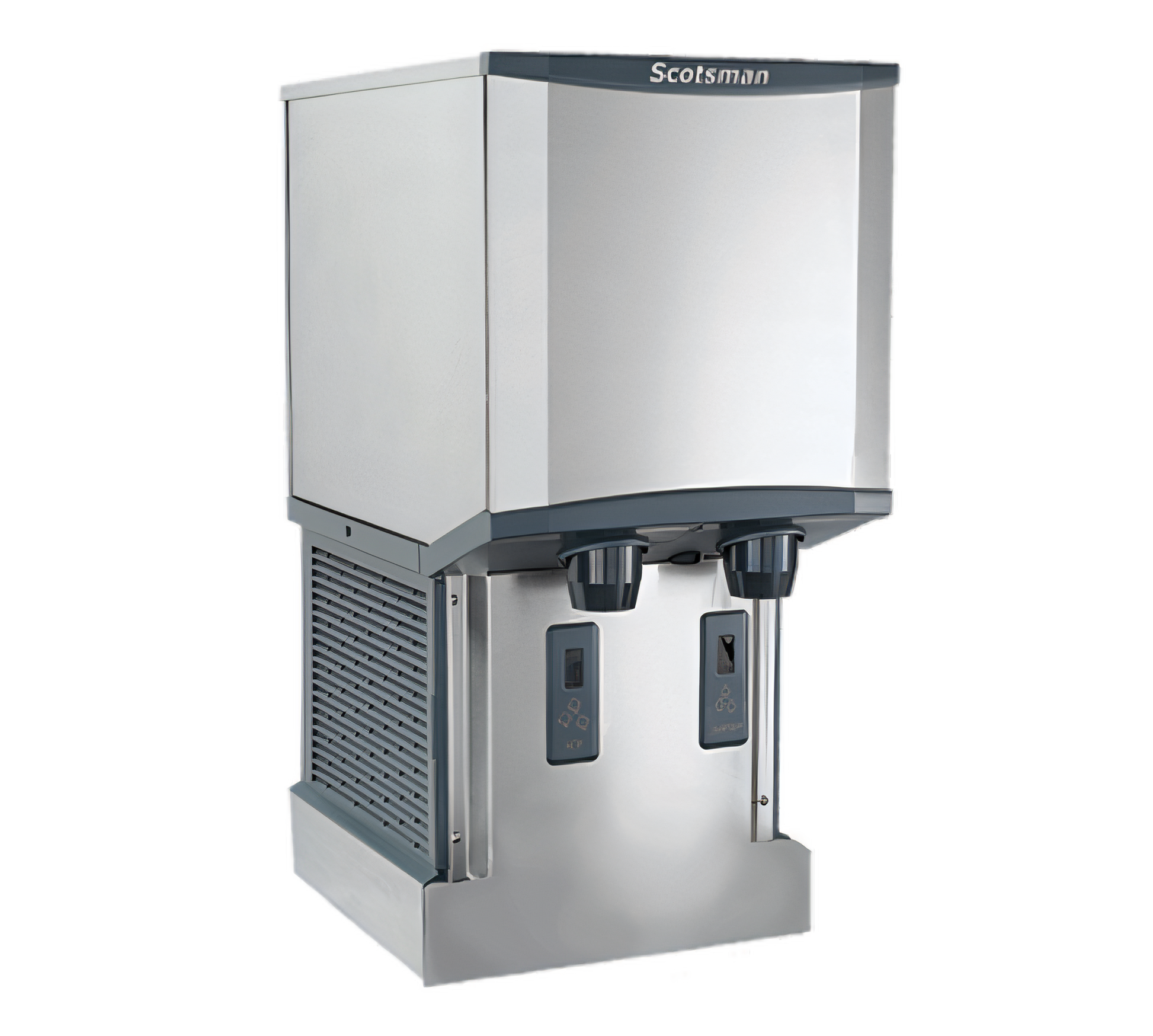

Meridian™ Ice & Water Dispenser, wall-mounted, Touchfree® infrared dispensing, H2 Nugget Ice, air-cooled, production capacity up to 260 lb/24 hours at 70°/50° (225 lb AHRI certified at 90°/70°), 12 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-134a refrigerant, includes power cord with NEMA 5-15P plug, 115V/60/1-ph, 7.0 amps, cULus, NSF CE, engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: Produces up to 260 lbs of nugget ice per day under optimal conditions (70°F air / 50°F water); AHRI certified at 225 lbs per day at 90°F air / 70°F water.

• Compact Design: Wall-mounted unit with dimensions of 18.25" W x 24.38" D x 35" H, featuring a 12 lb storage bin, making it ideal for space-constrained environments.

• Touch-Free Operation: Equipped with TouchFree® infrared dispensing for both ice and water, improving hygiene by reducing the risk of cross-contamination.

• Efficient Energy & Water Usage: Uses approximately 4.9 kWh of energy and 12 gallons of water per 100 lbs of ice produced, promoting cost-effective and sustainable operation.

• Durable Construction: Features a stainless steel exterior, AgION™ antimicrobial protection, and sealed, maintenance-free bearings for long-term reliability and easy upkeep.

• Enhanced Service Features: Includes a removable air filter, USB software upgrade port, and a unit-specific QR code for easy access to service manuals and warranty information.

• Certifications: NSF and cULus certified, meeting the highest health and safety standards for commercial use.

Q&A

Q: What is the Scotsman HID312AW-1 Meridian™ Ice & Water Dispenser?
A: The Scotsman HID312AW-1 is a wall-mounted, air-cooled ice and water dispenser that produces up to 260 lbs of chewable H² Nugget Ice per day and has a 12 lb storage capacity.

Q: What type of ice does it produce?
A: It produces soft, chewable H² Nugget Ice, ideal for beverages, healthcare applications, and smoothies.

Q: What are the key features of this model?
A: Features include touch-free infrared dispensing, AgION™ antimicrobial protection, removable bin and air filter, SmoothStream™ water dispensing, sealed maintenance-free bearings, and a USB software upgrade port.

Q: What are the dimensions and electrical requirements?
A: The unit measures 16.25" W x 24.38" D x 35" H and operates on 115V/60Hz/1-phase power, drawing 7.0 amps.

Q: What certifications does this dispenser have?
A: It is NSF certified, cULus listed, CE certified, and AHRI tested, ensuring compliance with industry standards.

Q: What warranty coverage is provided?
A: Scotsman offers a 3-year parts and labor warranty on all components, plus a 5-year parts warranty on the compressor and condenser.

Q: Where is the Scotsman HID312AW-1 manufactured?
A: This ice and water dispenser is engineered and assembled in the USA, ensuring high quality and durability.

Maintenance Tips

• Regular Cleaning:

• Clean the exterior using warm water and mild detergent.

• Sanitize the ice storage bin every 90 days by removing all ice and following the recommended cleaning procedure.

• Component Maintenance:

• Periodically inspect and clean the dispense wheel and sweep arm to ensure smooth operation.

• Check the drain system for any blockages to prevent water accumulation.

• Water System Care:

• Replace the water filter as recommended to maintain water quality and prevent scale buildup.

• Ensure the water supply line is secure and free from leaks.

• Electrical System Check:

• Inspect the power cord and plug for any signs of wear or damage.

• Ensure the unit is properly grounded to avoid electrical hazards.
