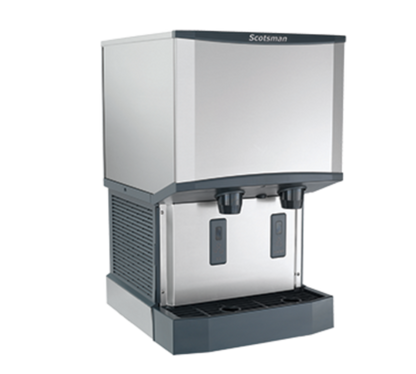

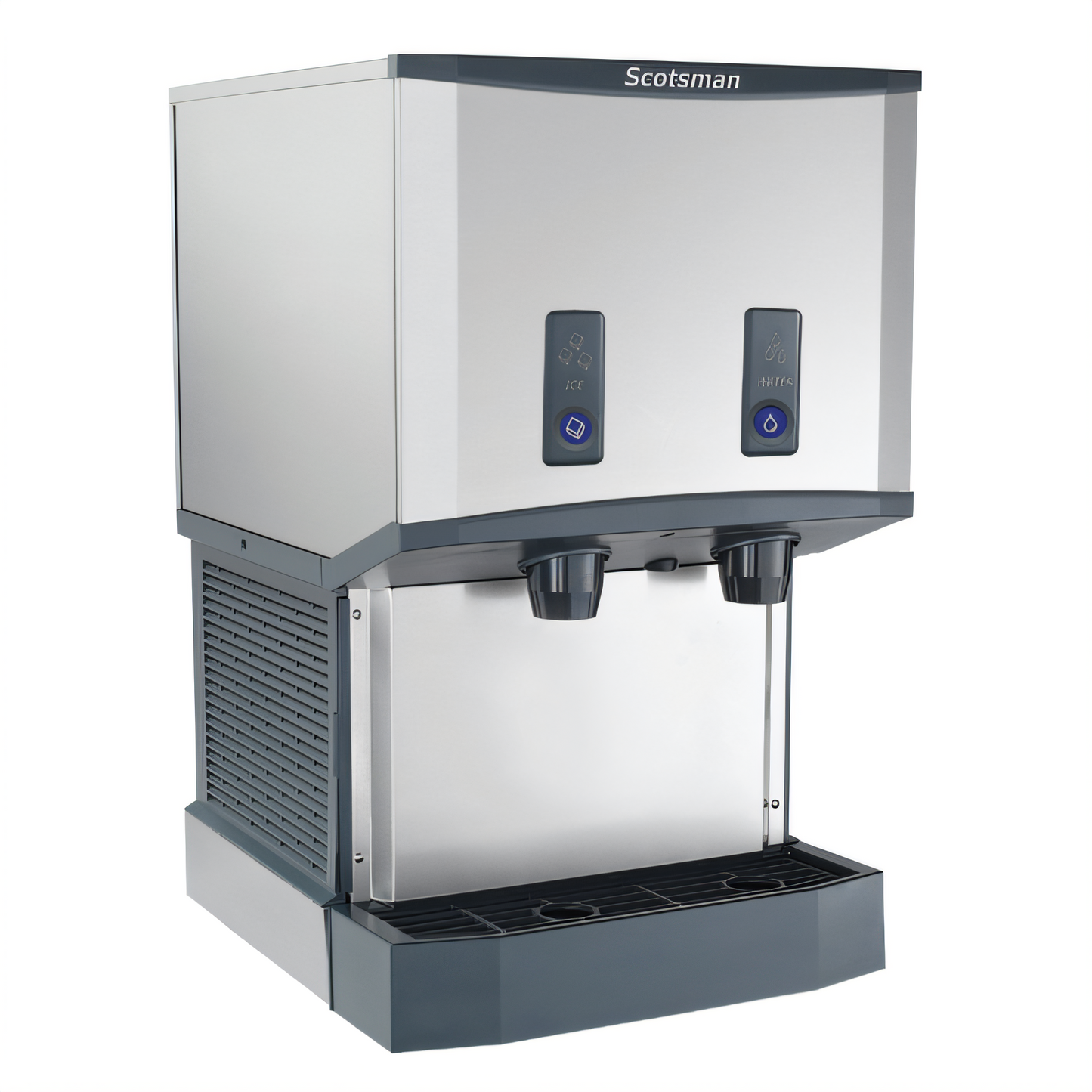

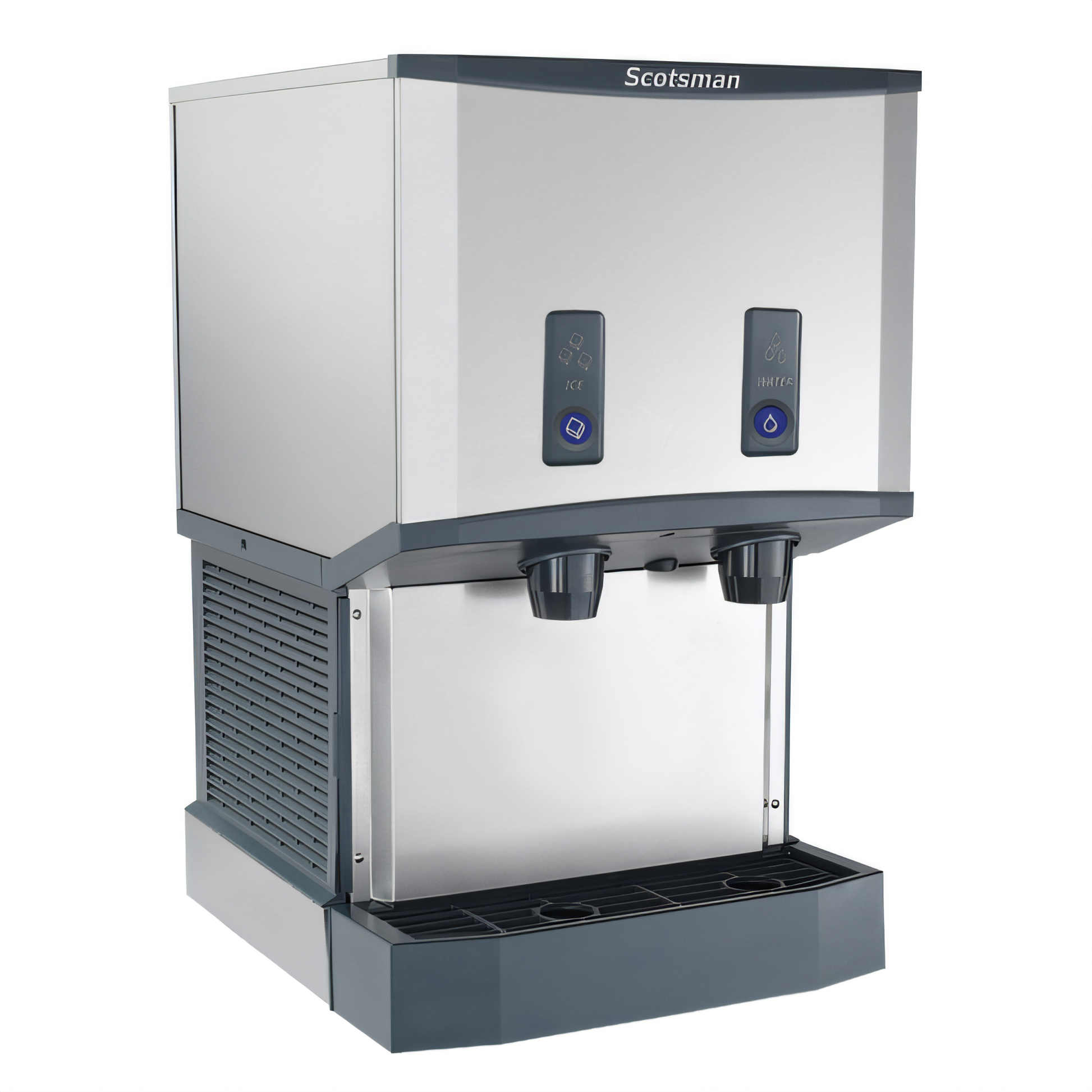

Scotsman HID525AB-1 Meridian™ Ice & Water Dispensers - HID525AB-1

Scotsman HID525AB-1 Meridian™ Ice & Water Dispensers - HID525AB-1

Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 25 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-404a refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: Produces up to 500 lbs of chewable H² nugget ice per day under optimal conditions (70°F air and 50°F water), with an AHRI-certified yield of 365 lbs at 90°F air and 70°F water.

• Compact Countertop Design: With dimensions of 21.25" W x 24.375" D x 35" H, this unit offers a small operational footprint, ideal for establishments with limited space.

• Push-Button Dispensing: Features push-button dispensing for both ice and water, providing a user-friendly interface for guests.

• Air-Cooled Efficiency: Equipped with an air-cooled condenser, this unit is designed for efficient operation in various environments.

• Energy and Water Efficiency: Consumes approximately 5.5 kWh of energy and 12 gallons of water per 100 lbs of ice produced, aligning with federal energy efficiency regulations.

• Durable Construction: Built with stainless steel evaporator and auger, ensuring longevity and reliability in demanding commercial settings.

• Maintenance-Friendly Design: Components such as the air filter, spouts, sink, and grill are fully removable for easy cleaning and maintenance.

• Enhanced Sanitation: Incorporates AgION™ antimicrobial protection to guard internal surfaces against bacteria, mold, and mildew, enhancing sanitation.

• Smart Features: Includes LED diagnostic lights and a USB drive for quick software updates, simplifying maintenance and support.

• Certifications and Compliance: NSF, cULus, and CE certified, ensuring the unit meets rigorous public health and safety standards.

Q&A

Q: What is the ice production capacity of the Scotsman HID525AB-1?
A: The Scotsman HID525AB-1 produces up to 500 lbs (227 kg) of nugget ice per day at 70°F air and 50°F water conditions.

Q: What are the dimensions of the HID525AB-1?
A: The unit measures 21.25" (W) x 24.375" (D) x 35" (H).

Q: What type of ice does the HID525AB-1 produce?
A: It produces nugget ice, known for its chewable texture and suitability for beverages and medical applications.

Q: What is the condenser type used in the HID525AB-1?
A: The HID525AB-1 features an air-cooled condenser, which simplifies installation and reduces space requirements.

Q: What are the electrical requirements for the HID525AB-1?
A: The unit operates on 115V, 60Hz, single-phase electrical supply and requires 9.0 amps.

Q: Is the HID525AB-1 energy-efficient?
A: Yes, it consumes 5.5 kWh per 100 lbs of ice produced and uses 12.0 gallons of water per 100 lbs of ice.

Q: Does the HID525AB-1 comply with safety standards?
A: Yes, it is NSF certified, cULus approved, and CE listed, ensuring it meets industry standards for safety and performance.

Q: What is the warranty on the HID525AB-1?
A: The unit comes with a 3-year parts and labor warranty on all components and a 5-year parts warranty on the compressor.

Q: What features enhance maintenance and serviceability?
A: The HID525AB-1 includes AutoAlert™ indicator lights for maintenance alerts, a unit-specific QR code for easy access to manuals and service information, and sealed, maintenance-free bearings for long-lasting performance.

Q: Is the HID525AB-1 made in the USA?
A: Yes, it is engineered and assembled in the USA.

Maintenance Tips

• Scale Removal: Use Scotsman Clear 1 scale remover to clean the ice machine's water system, following the manufacturer's instructions.

• Sanitization: After descaling, sanitize the water system using a recommended sanitizer to maintain hygiene.

• Ice Dispense Bin & Rotor Cleaning: Remove and clean the ice dispense bin and rotor to prevent microbial growth.

• Photo Eye Ice Level Control: Clean the photo eye sensor to ensure accurate ice dispensing.

• Water Filter Replacement: Replace the water filter to maintain water quality and machine performance.

• UV-LED Sanitation: The internal UV module actively treats intake air to ensure clean, refreshing ice and water.

• Antimicrobial Protection: AgION® antimicrobial technology is molded into key components to help inhibit the growth of microbes, bacteria, mold, and algae.

• Sealed Refrigeration System: Minimizes outside airborne contamination, enhancing reliability.
