Scotsman HID540A-6 Meridian™ Ice & Water Dispensers - HID540A-6

Scotsman HID540A-6 Meridian™ Ice & Water Dispensers - HID540A-6

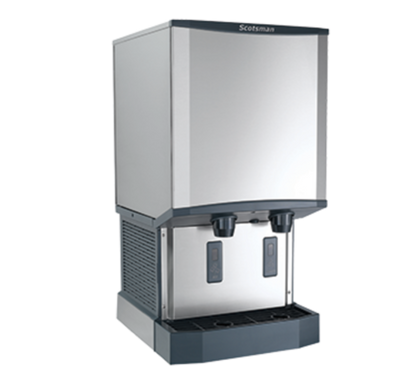

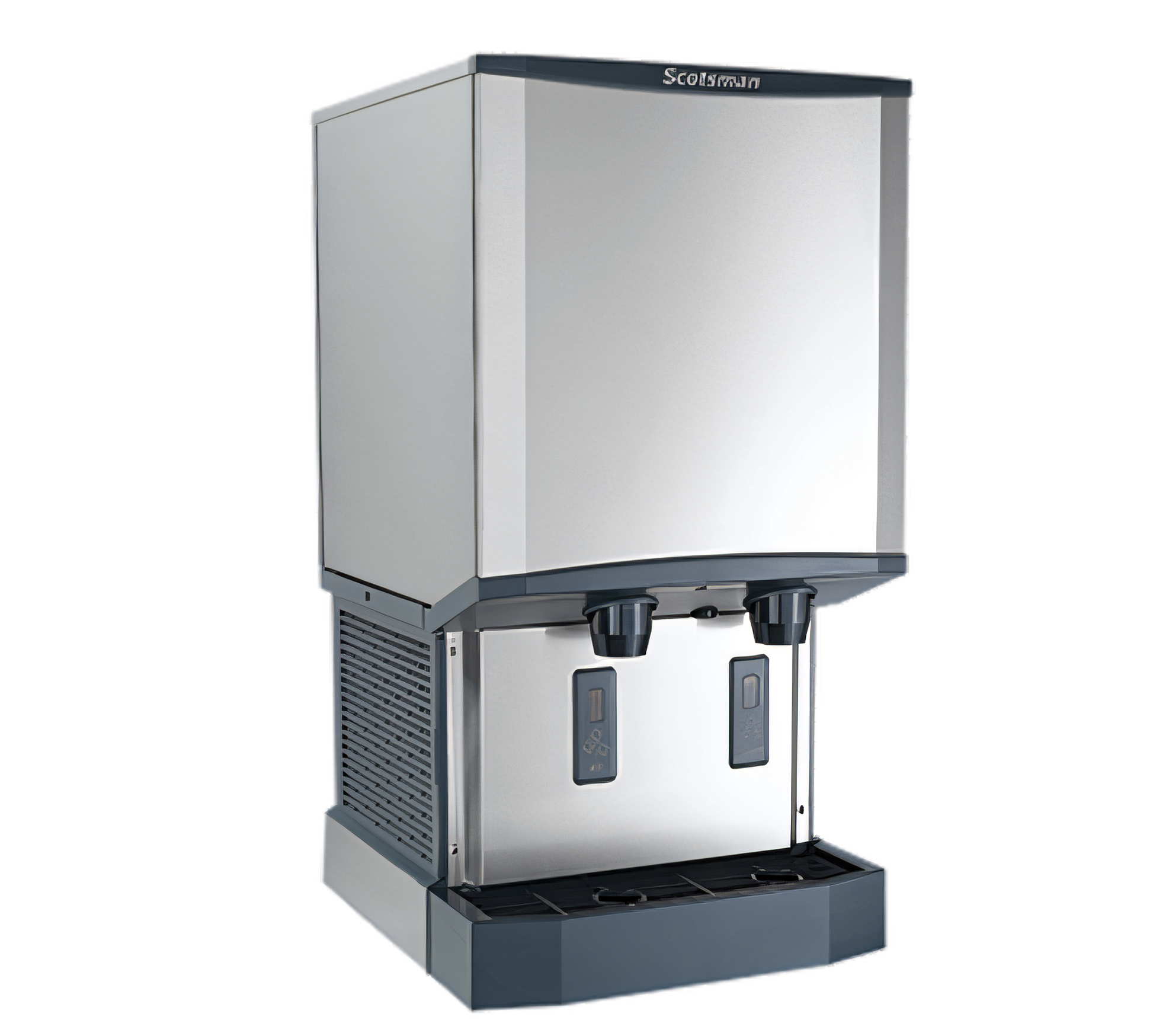

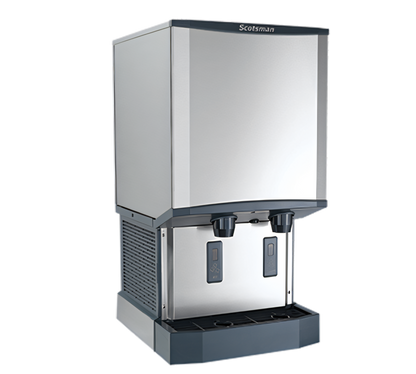

Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air cooled, production capacity up to 500 lb/24 hours at 70°/50°, 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless exterior, AgION™ antimicrobial protection, 230V/50/1 engineered and assembled in USA (Export Model, 50hz version)

Specifications

What our Experts Think

• High Production Capacity: Produces up to 500 lbs of chewable nugget ice per day, providing a reliable ice supply for busy commercial environments.

• Compact Countertop Design: With dimensions of 21.25" W x 24.38" D x 41" H, this unit has a small footprint, making it ideal for limited space without compromising on performance.

• Touch-Free Dispensing: Features infrared sensor dispensing for both ice and water, ensuring a hygienic, hands-free experience for users.

• SmoothStream™ Water Dispensing: The design reduces splashing and minimizes water mess around the machine, keeping the area clean.

• Enhanced Sanitation: Incorporates AgION™ antimicrobial protection to reduce the growth of bacteria, mold, and mildew, enhancing hygiene.

• Maintenance-Friendly Design: Fully removable components, including the air filter, spouts, sink, and grill, make cleaning and maintenance quick and easy.

• Durable Construction: Built with stainless steel evaporators and augers, ensuring the unit's durability and longevity in demanding commercial settings.

• Smart Features: Equipped with LED diagnostic lights, a USB upgrade port, and a QR code for easy access to service manuals and warranty history.

• Energy and Water Efficiency: Consumes approximately 5.5 kWh of energy and 12 gallons of water per 100 lbs of ice produced, adhering to energy efficiency standards.

• Certifications and Compliance: Certified with NSF, cULus, and CE standards, ensuring the unit meets health and safety regulations.

Q&A

Q: What is the ice production capacity of the Scotsman HID540A-6?
A: The Scotsman HID540A-6 produces up to 500 lbs (227 kg) of nugget ice per day at 70°F air and 50°F water conditions.

Q: What are the dimensions of the HID540A-6?
A: The unit measures 21.25" (W) x 24.38" (D) x 41" (H).

Q: What type of ice does the HID540A-6 produce?
A: It produces nugget ice, known for its chewable texture and suitability for beverages and medical applications.

Q: What is the condenser type used in the HID540A-6?
A: The HID540A-6 features an air-cooled condenser, which simplifies installation and reduces space requirements.

Q: What are the electrical requirements for the HID540A-6?
A: The unit operates on 230V, 50Hz, single-phase electrical supply and requires 15 amps.

Q: Is the HID540A-6 energy-efficient?
A: Yes, it consumes 5.5 kWh per 100 lbs of ice produced and uses 12.0 gallons of water per 100 lbs of ice.

Q: Does the HID540A-6 comply with safety standards?
A: Yes, it is CE certified, ensuring it meets European health, safety, and environmental protection legislations.

Q: Is the HID540A-6 made in the USA?
A: Yes, it is engineered and assembled in the USA.

Maintenance Tips

• Scale Removal: Use Scotsman Clear 1 scale remover to clean the ice machine's water system, following the manufacturer's instructions.

• Sanitization: After descaling, sanitize the water system using a recommended sanitizer to maintain hygiene.

• Ice Dispense Bin & Rotor Cleaning: Remove and clean the ice dispense bin and rotor to prevent microbial growth.

• Photo Eye Ice Level Control: Clean the photo eye sensor to ensure accurate ice dispensing.

• UV-LED Sanitation: The internal UV module actively treats intake air to ensure clean, refreshing ice and water.

• Antimicrobial Protection: AgION® antimicrobial technology is molded into key components to help inhibit the growth of microbes, bacteria, mold, and algae.

• Sealed Refrigeration System: Minimizes outside airborne contamination, enhancing reliability.
