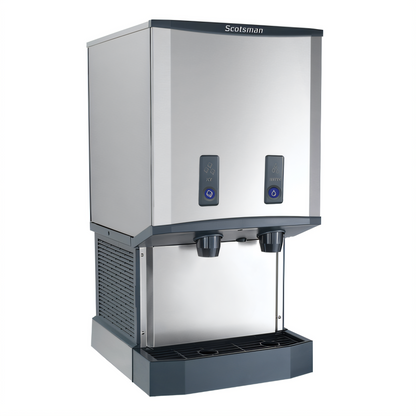

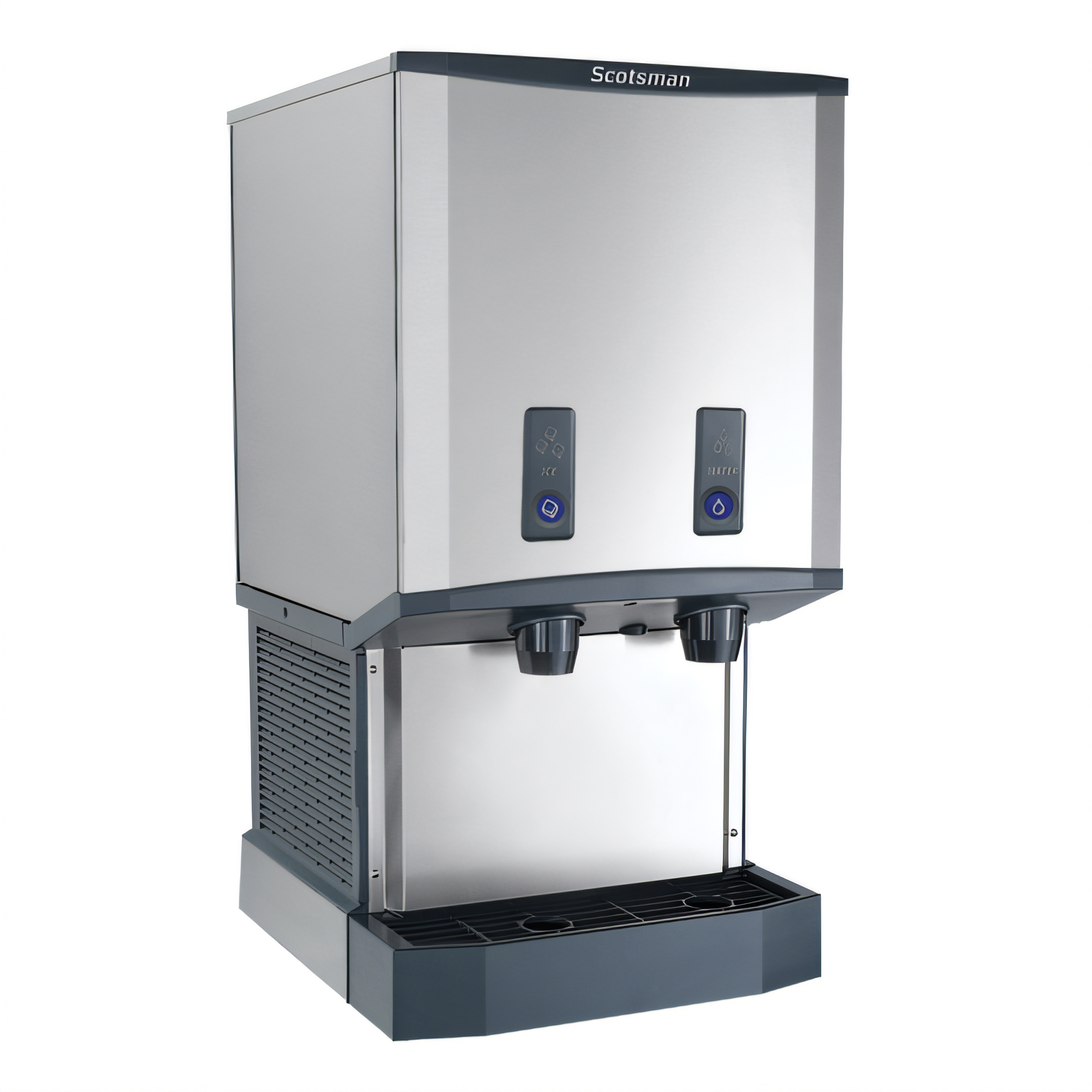

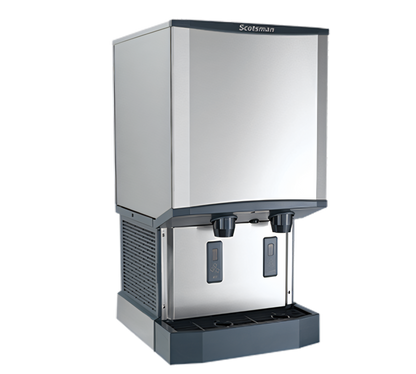

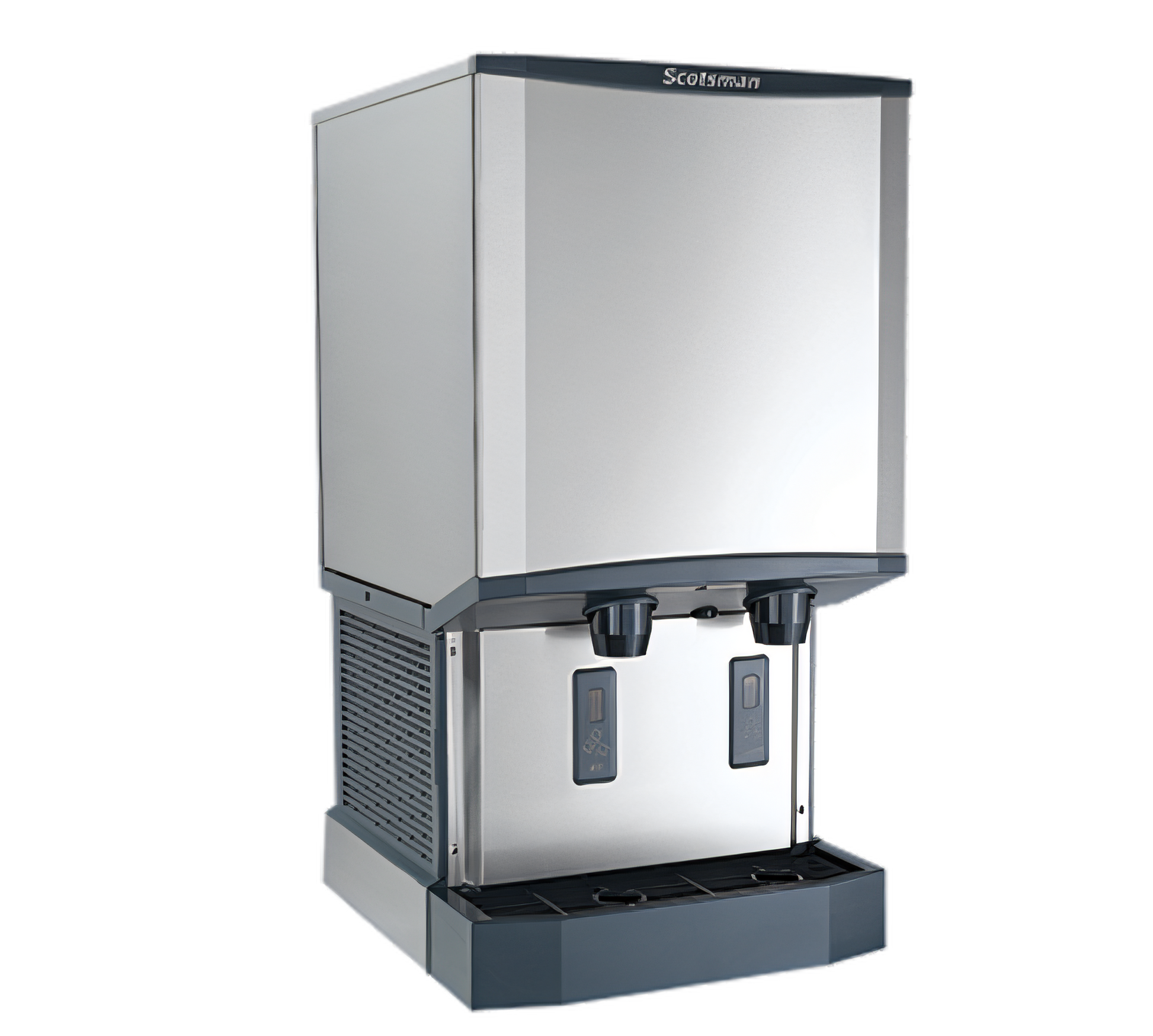

Scotsman HID540AB-1 Meridian™ Ice & Water Dispensers - HID540AB-1

Scotsman HID540AB-1 Meridian™ Ice & Water Dispensers - HID540AB-1

Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-404a refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF engineered and assembled in USA

Specifications

What our Experts Think

• High Ice Production: Produces up to 500 lbs of chewable nugget ice per day under optimal conditions, certified for 365 lbs daily in standard commercial environments.

• Generous Storage: Comes with a built-in 40 lb ice storage bin, supporting high-demand areas like healthcare facilities, offices, and cafeterias.

• Compact Footprint: Countertop-friendly design measuring 21.25" W x 24.38" D x 35" H makes it ideal for locations with limited space.

• Simple Push-Button Dispensing: Offers an easy-to-use interface for dispensing both ice and water, ensuring a hygienic, touch-minimized experience.

• Efficient Operation: Uses approximately 5.5 kWh of energy per 100 lbs of ice, providing a good balance of performance and operating cost.

• Hygienic Build: Stainless steel exterior and AgION™ antimicrobial-treated components promote cleanliness and reduce microbial growth.

• Easy Maintenance: Features like removable air filter, drip tray, and sink, plus user-friendly diagnostics and software update access, simplify upkeep.

• Certifications: NSF and UL listed for commercial sanitation and electrical safety standards compliance.

Q&A

Q: What is the Scotsman HID540AB-1 Meridian™ Ice & Water Dispenser?
A: The Scotsman HID540AB-1 is a countertop, air-cooled ice and water dispenser that produces up to 500 lbs of nugget ice daily and holds up to 40 lbs in storage.

Q: What type of ice does it produce?
A: It produces soft, chewable nugget ice, ideal for beverages, patient care, and hydration stations.

Q: What are the key features of this model?
A: Key features include touch-free infrared dispensing, AgION™ antimicrobial protection, removable sink and grill, sealed maintenance-free bearings, intuitive LED service lights, and a USB port for software updates.

Q: What are the dimensions and electrical requirements?
A: The unit measures 21.25" W x 24.38" D x 40.9" H and requires 115V, 60Hz, single-phase power, drawing 9.0 amps.

Q: Is it easy to clean and maintain?
A: Yes, it’s designed with a removable air filter, external air flow, and front-access components for simplified cleaning and servicing.

Q: What certifications does this dispenser have?
A: It is NSF certified, cULus listed, and CE marked, meeting strict industry standards for sanitation and safety.

Q: Where is this dispenser manufactured?
A: The Scotsman HID540AB-1 is engineered and assembled in the USA, ensuring top-tier quality and performance.

Maintenance Tips

• Routine Cleaning (Every 6 Months or as Needed):

• Run a cleaning cycle using the built-in "Clean" function.

• Use a manufacturer-approved scale remover; rinse thoroughly after use.

• Sanitize all food-contact surfaces, including the bin and dispensing area, and let air dry.

• Component Care:

• Clean the air filter regularly; replace it if damaged or excessively dirty.

• Inspect and gently clean condenser coils to maintain efficient performance.

• Water System Maintenance:

• Replace the water filter according to schedule to maintain ice quality and prevent scale.

• Ensure drain lines are clear and unobstructed to avoid overflow or leakage.

• Check System Operation:

• Test the dispensing mechanism for smooth and accurate function.

• Listen for unusual noises or vibrations that may signal mechanical issues.

• General Upkeep:

• Wipe down the exterior with a damp cloth and mild detergent—avoid abrasive cleaners.

• Inspect the unit periodically for wear, corrosion, or any loose components.
