Scotsman Meridian Ice & Water Dispensers - HID540AWX-1

Scotsman  Meridian Ice & Water Dispensers - HID540AWX-1

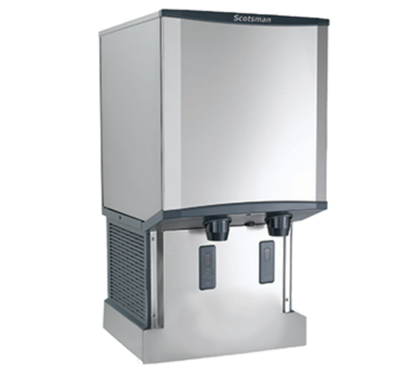

Scotsman Meridian HID540AWX-1: wall-mounted touchfree nugget ice & water dispenser, 365 lb AHRI, 40 lb bin, stainless, NSF, AgION protection.

What our Experts Think

• Reliable combined ice + chilled water dispensing
  Delivers both ice and filtered, chilled water on demand, ideal for restaurants, hotels, cafeterias, offices, and self‑serve beverage stations.

• Commercial‑ready durability
  Designed with robust construction and quality components to withstand continuous use in high‑traffic environments.

• Easy‑to‑use operation
  Intuitive controls and efficient dispensing help improve flow at beverage stations and reduce wait times.

• Maintenance‑friendly design
  Accessible internal components and easy‑to‑clean surfaces support routine sanitation and help reduce service time.

• Supports quality water performance
  Compatible with filtration systems to deliver clean, crisp water and clearer ice, enhancing drink quality and guest experience.

• Space‑efficient footprint
  Compact design makes installation simpler in both front‑of‑house and back‑of‑house settings without compromising performance.

Q&A

Q1: How much ice does the Scotsman HID540AWX‑1 produce in a day?
A: The HID540AWX‑1 produces up to 500 lbs of H2 nugget ice per 24 hours with about 365 lbs AHRI‑certified output at 90°F/70°F, ideal for high‑traffic beverage areas.

Q2: What type of ice and water can this dispenser serve?
A: It delivers chewable nugget ice and chilled water through a touch‑free infrared dispensing system with an enlarged dispensing area for faster service.

Q3: What storage capacity does the unit have?
A: The dispenser includes a 40 lb internal storage bin to ensure ice ready for demand peaks.

Q5: What construction and reliability are there?
A: Built with stainless steel exterior, evaporator, and auger, plus sealed maintenance‑free bearings and USB software upgrade port with QR code access for diagnostics and service.

Q6: What are the installation and electrical ?
A: This air‑cooled, wall‑mount dispenser runs on 115 V/60 Hz with a NEMA 5‑15P plug and draws about 9 amps, making it easy to install in commercial settings.

Maintenance Tips

• Daily surface wipe‑down — Clean the ice chute, water dispense area, control panel, and drip tray to keep surfaces sanitary.

• Routine sanitation — Sanitize the ice bin, auger, chutes, and internal water paths every 3–6 months (more often in heavy‑use environments) to maintain ice and water quality.

• Air filter cleaning — Remove and wash the air intake filters regularly to ensure proper airflow and efficient cooling.

• Drip tray & drain maintenance — Empty and clean the drip tray daily; check drains to prevent clogs and standing water.

• Sensor & dispenser cleaning — Wipe photo sensors and dispense points to prevent misreads and ensure reliable operation.

• Water filter replacement — Change water filtration cartridges on schedule to reduce scale, improve taste, and protect components.

• Seal & gasket check — Inspect and clean door seals and gaskets to maintain proper temperature and prevent leaks.

• Annual professional service — Have a trained technician inspect refrigeration parts, water system, and electronics to prolong lifespan and maintain performance.
