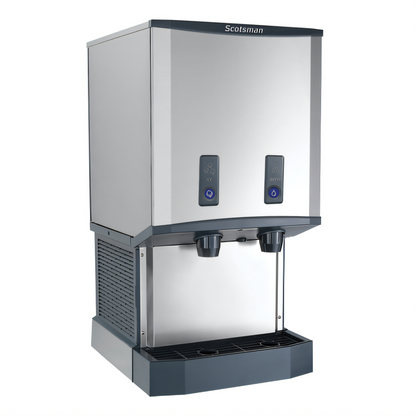

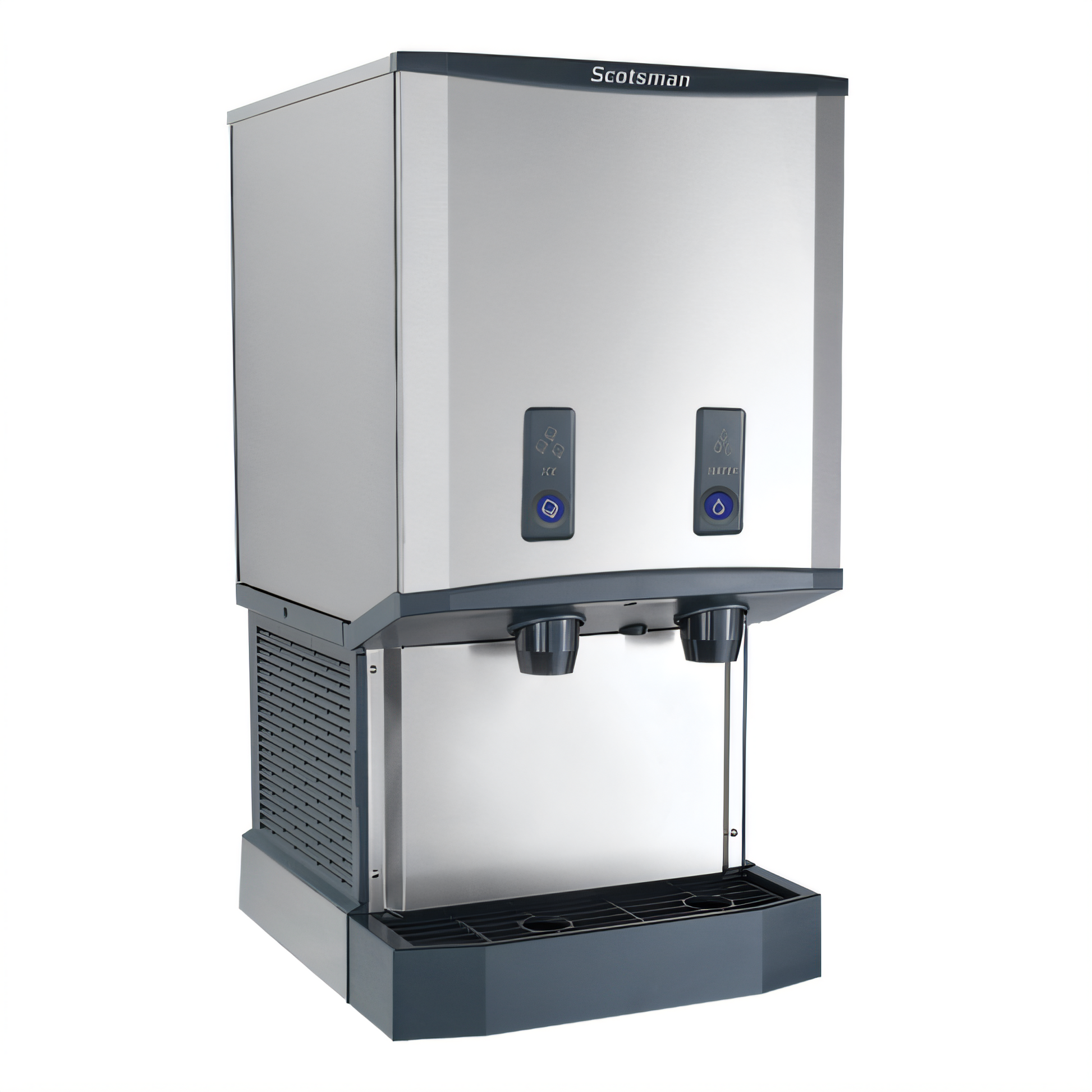

Scotsman HID540WB-1 Meridian™ Ice & Water Dispensers - HID540WB-1
Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, water-cooled, production capacity up to 500 lb/24 hours at 70°/50° (400 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-404a refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 9.0 amps, cULus, NSF engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Brand Name |
Meridian™ |
| Certifications |
NSF, cULus, AHRI |
| Height |
41.0 in |
| Width |
21.25 in |
| Depth |
24.38 in |
| Shipping Weight |
215.0 lbs |
| Cooling |
Air-cooled |
| Bin Storage Capacity |
31 - 40 lb (14 - 18 kg) |
| Type |
Ice & water combination machine |
| Style |
Counter |
| Production per 24 hr |
401 - 500 lb (183 - 227 kg) |
| Specifications |
Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air-cooled, production up to 500 lb/24 hr at 70°F/50°F (365 lb AHRI certified at 90°F/70°F), 40 lb bin storage, sealed maintenance-free bearings, removable bin, air filter, spouts, and sink, SmoothStream™ water dispensing, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, 11" dispensing area, USB software upgrade port, unit-specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-404a refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 9.0 amps, cULus, NSF, engineered and assembled in USA |
What our Experts Think
-
High Production Capacity: Produces up to 500 lbs of chewable nugget ice per day, with an AHRI-certified yield of 365 lbs at 90°F air and 70°F water.
-
Compact Countertop Design: With dimensions of 21.25" W x 24.38" D x 41" H, this unit offers a small operational footprint, ideal for establishments with limited space.
-
Water-Cooled Efficiency: Designed for water-cooled operation, ensuring efficient performance in various environments
-
Push-Button Dispensing: Features push-button dispensing for both ice and water, providing a user-friendly interface for guests.
-
SmoothStream™ Water Dispensing: Designed to reduce splashing, keeping the machine and surrounding areas clean.
-
Enhanced Sanitation: Incorporates AgION™ antimicrobial protection to guard internal surfaces against bacteria, mold, and mildew, enhancing sanitation.
-
Maintenance-Friendly Design: Components such as the air filter, spouts, sink, and grill are fully removable for easy cleaning and maintenance.
-
Smart Features: Includes LED diagnostic lights and a USB software upgrade port for quick access to service manuals, cleaning guides, and warranty history.
-
Energy and Water Efficiency: Consumes approximately 5.5 kWh of energy and 12 gallons of water per 100 lbs of ice produced, aligning with federal energy efficiency regulations.
-
Certifications and Compliance: NSF, cULus, and CE certified, ensuring the unit meets rigorous public health and safety standards.
Q&A
Q: What is the ice production capacity of the Scotsman HID540WB-1?
A: The Scotsman HID540WB-1 produces up to 500 lbs (227 kg) of nugget ice per day at 70°F air and 50°F water conditions.
Q: What are the dimensions of the HID540WB-1?
A: The unit measures 21.25" (W) x 24.375" (D) x 41" (H).
Q: What type of ice does the HID540WB-1 produce?
A: It produces H² nugget ice, known for its chewable texture and suitability for beverages and medical applications.
Q: What is the condenser type used in the HID540WB-1?
A: The HID540WB-1 features a water-cooled condenser, which is ideal for environments where air-cooled units may not be suitable.
Q: What are the electrical requirements for the HID540WB-1?
A: The unit operates on 115V, 60Hz, single-phase electrical supply and requires 9.0 amps.
Q: Is the HID540WB-1 energy-efficient?
A: Yes, it consumes 5.5 kWh per 100 lbs of ice produced and uses 12.0 gallons of water per 100 lbs of ice.
Q: Does the HID540WB-1 comply with safety standards?
A: Yes, it is NSF certified, cULus approved, and CE listed, ensuring it meets industry standards for safety and performance.
Q: Is the HID540WB-1 made in the USA?
A: Yes, it is engineered and assembled in the USA.
Maintenance Tips
-
Scale Removal: Use Scotsman Clear 1 scale remover to clean the ice machine's water system, following the manufacturer's instructions.
-
Sanitization: After descaling, sanitize the water system using a recommended sanitizer to maintain hygiene.
-
Ice Dispense Bin & Rotor Cleaning: Remove and clean the ice dispense bin and rotor to prevent microbial growth.
-
Photo Eye Ice Level Control: Clean the photo eye sensor to ensure accurate ice dispensing.
-
Water Filter Replacement: Replace the water filter to maintain water quality and machine performance.
-
UV-LED Sanitation: The internal UV module actively treats intake air to ensure clean, refreshing ice and water.
-
Antimicrobial Protection: AgION® antimicrobial technology is molded into key components to help inhibit the growth of microbes, bacteria, mold, and algae.
-
Sealed Refrigeration System: Minimizes outside airborne contamination, enhancing reliability.
