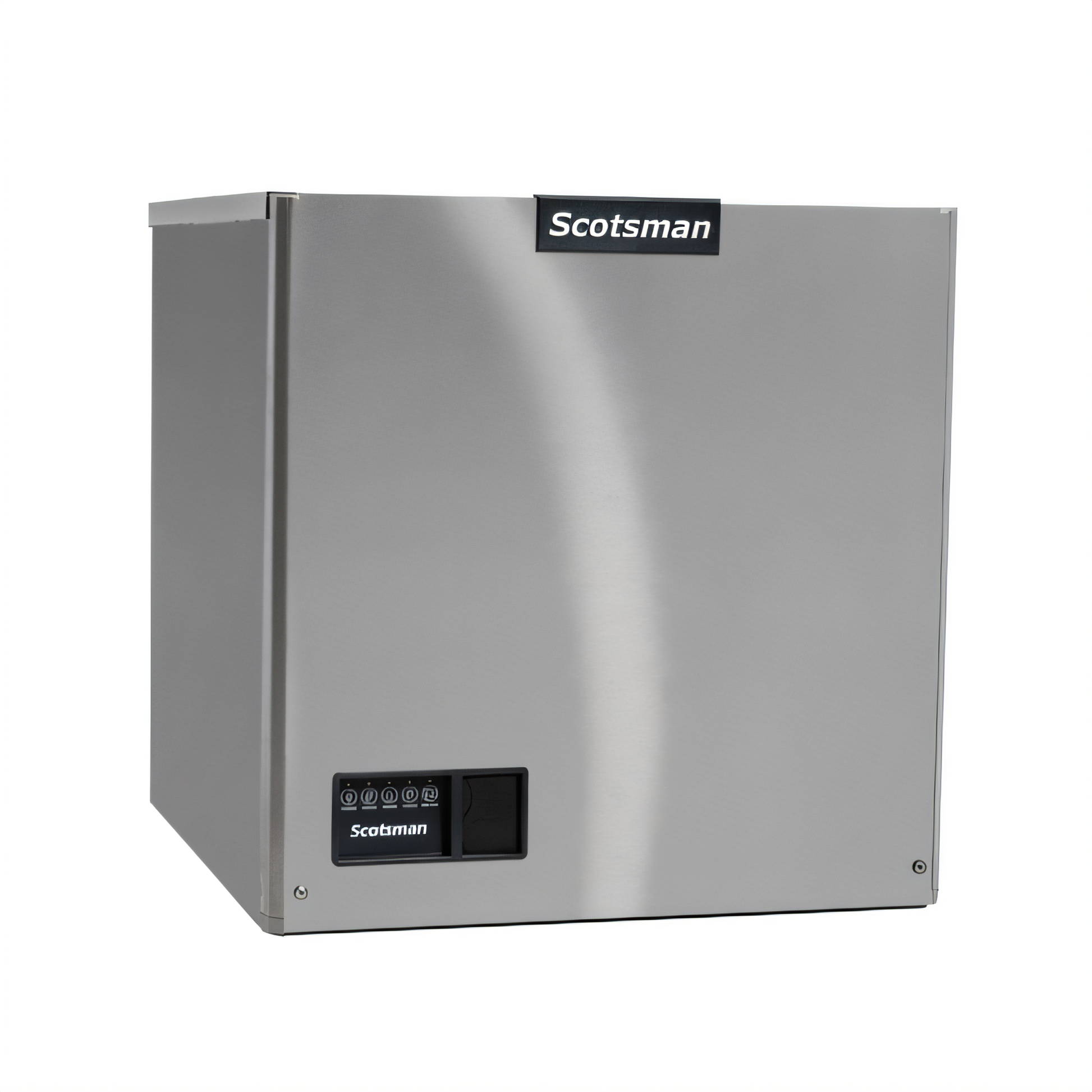

Scotsman MC0322SW-1 Prodigy ELITE Ice Machines - MC0322SW-1

Scotsman MC0322SW-1 Prodigy ELITE Ice Machines - MC0322SW-1

Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 366 lb/24 hours at 70°/50° (292 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 11.9 amps, cULus, NSF, engineered and assembled in USA

Specifications

Drawings

• Aqsl_scotsman_mc0322mw-sw_p.dwg
• Aqsl_scotsman_mc0322mw-sw_s.dwg
• Qf_scotsman_mc0322mw_sw_cat.zip
• Aqsl_scotsman_mc0322mw-sw_e.dwg

Documents

• Cutsheet
• Warranty statement
• Prodigy elite® product presentation
• Introducing prodigyelite video
• Sellsheet
• Icelinq video
• Owner's manual
• Icelinq app demo

What our Experts Think

• High-Volume Production: Produces up to 366 lbs of small (7/8" x 7/8" x 3/8") half-cube ice daily, making it perfect for high-demand environments such as restaurants, bars, and hotels.

• Advanced Connectivity: Integrated Bluetooth® technology allows remote diagnostics, real-time monitoring, and easy maintenance through the ICELINQ® mobile app.

• Efficient Operation: Utilizes WaterSense adaptive purge control to reduce scale buildup, enhancing performance and extending the lifespan of the machine.

• User-Friendly Features: Includes AutoAlert™ indicator lights and a QR code for quick access to manuals, service information, and warranty details.

• Compact & Durable: At just 22" wide, it fits into smaller spaces while maintaining a robust, stainless steel construction designed for long-lasting use.

• Energy Efficient: The machine uses only 5.23 kWh per 100 lbs of ice produced, promoting energy savings without sacrificing output.

• Maintenance Made Easy: With features like one-touch cleaning and a removable front air filter, routine maintenance is quick and simple.

Q&A

Q: What is the ice production capacity of the Scotsman MC0322SW-1?
A: It produces up to 366 lbs of half-cube ice per day under optimal conditions (70°F air / 50°F water). The AHRI-certified output is 292 lbs/day at 90°F air / 70°F water.

Q: How does the ICELINQ® mobile app enhance usability?
A: The app offers Bluetooth connectivity for real-time diagnostics, guided cleaning, settings adjustments, and maintenance reminders.

Q: What maintenance features does this model include?
A: It features one-touch cleaning, WaterSense adaptive purge control to reduce scale buildup, and an AutoAlert™ panel with external indicators for operational status.

Q: Is this ice machine energy-efficient?
A: Yes, it consumes 5.23 kWh per 100 lbs of ice produced, making it energy-efficient for commercial use.

Q: What are the dimensions and power requirements?
A: The unit measures 22" W x 24" D x 23" H and operates on 115V/60Hz/1-phase power, drawing 11.9 amps.

Q: Does it require plumbing?
A: No, it has a self-contained water-cooled condenser, eliminating the need for additional plumbing.

Maintenance Tips

• Clean Regularly: Perform a thorough cleaning every 6 months. Use Scotsman-approved scale removers to eliminate mineral build-up.

• Replace Water Filter: Change the water filter every 6 months to maintain high-quality ice production and water flow.

• Sanitize the System: After cleaning, sanitize the entire water system to prevent microbial growth.

• Air Filter Maintenance: Clean or replace the air filter regularly to ensure proper airflow and cooling.

• Condenser Coil Cleaning: Clean the condenser coils to avoid overheating and maintain efficient ice production.

• Monitor Ice Production: Pay attention to performance indicators like ice production levels and ice quality to detect any issues early.

• Use the Smart Features: Leverage the machine’s AutoAlert™ and mobile app features for alerts and diagnostics.
