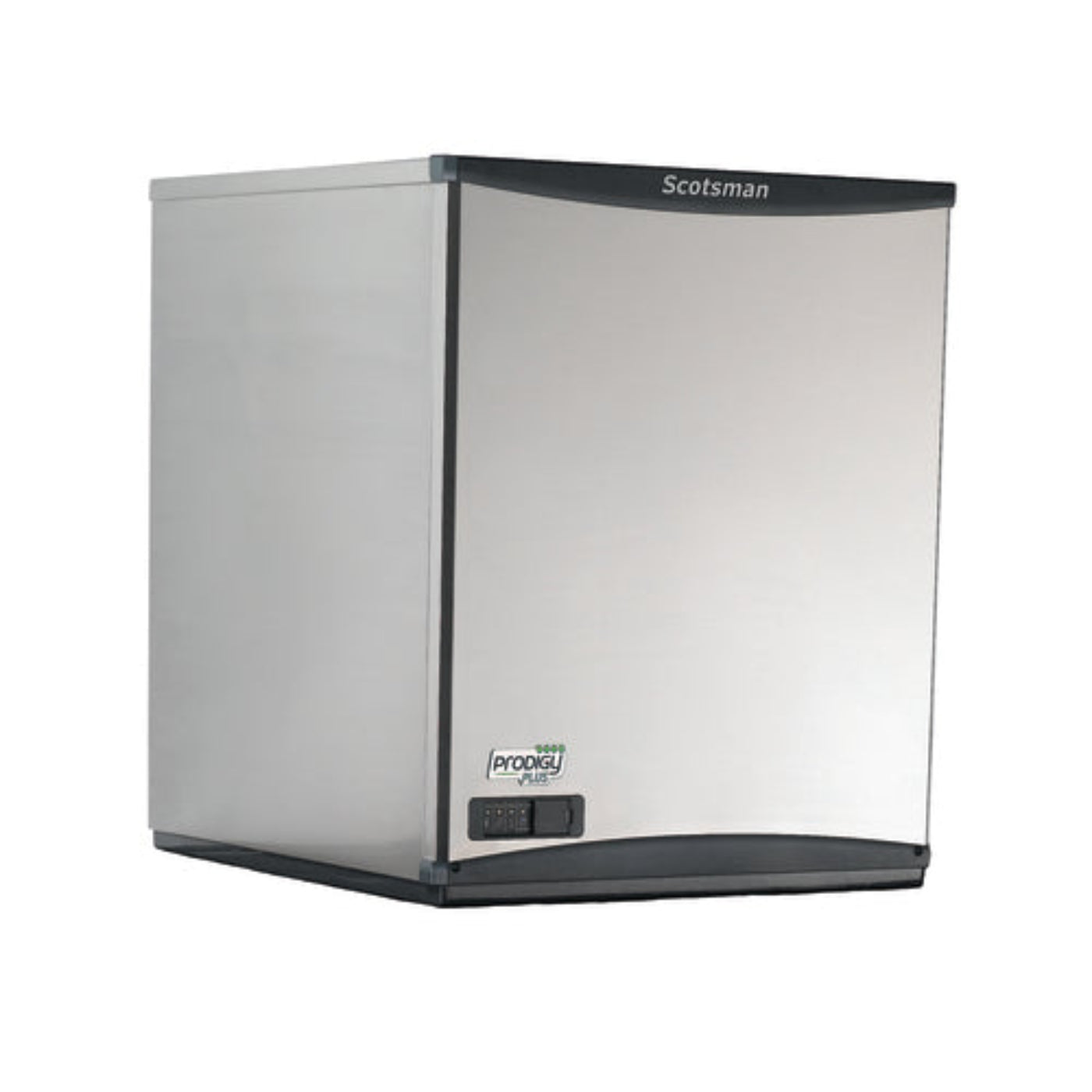

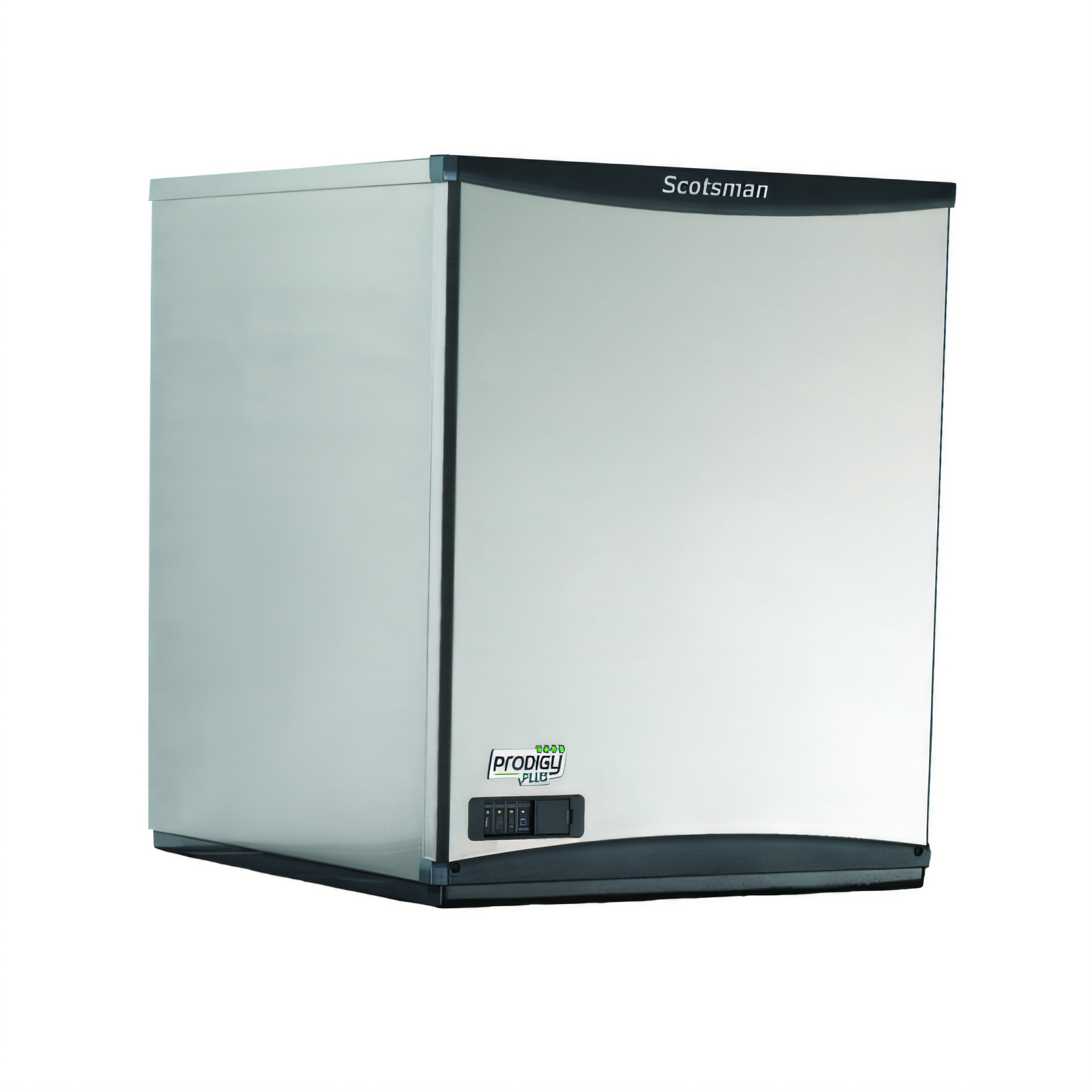

Scotsman Prodigy™ Plus Ice Machines - NS0922W-3

Scotsman  Prodigy™ Plus Ice Machines - NS0922W-3

Prodigy Plus Ice Maker, nugget style, Original Chewable Ice water-cooled, self-contained condenser, production capacity up to 1094 lb/24 hours at 70°/50° (863 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/3-ph, 8.0 amps, NSF, cULus, engineered and assembled in USA

Specifications

Drawings

• Qf_scotsman_ns-nh_0922w_ns-nh_1322w_cat.zip

Documents

• Cutsheet
• Parts list
• Sell sheet
• Installation manual
• Flyer
• Product presentation

What our Experts Think

• High Ice Output – Produces up to 1,094 lbs of Original Chewable Nugget Ice® per day at 70°F air / 50°F water (863 lbs AHRI certified at 90°F air / 70°F water), ensuring a consistent supply even during peak demand.

• Energy & Water Efficient – Uses up to 40% less water and 15% less energy than cube ice machines, helping reduce utility costs while meeting environmental standards.

• Advanced Sanitation Features – Equipped with AgION™ antimicrobial protection and one-touch cleaning, promoting sanitary ice production and simplifying maintenance.

• Durable Construction – Built with a stainless steel finish, stainless steel auger, and evaporator, ensuring long-lasting performance.

• User-Friendly – Features AutoAlert™ indicating lights for at-a-glance operational status updates and a unit-specific QR code for quick access to service manuals and guides.

• Compact Design – At just 22" wide, this modular unit offers a small operational footprint, making it ideal for establishments with limited space.

Q&A

Q: What type of ice does the Scotsman NS0922W-3 produce?
A: It produces soft, chewable nugget ice, known as Original Chewable Ice, ideal for beverages and healthcare applications.

Q: What is the daily ice production capacity?
A: Up to 1,094 lbs per 24 hours at 70°F air/50°F water conditions; 863 lbs AHRI certified at 90°F air/70°F water.

Q: Is the condenser self-contained?
A: Yes, it features a self-contained, water-cooled condenser for efficient operation.

Q: What are the electrical requirements?
A: 208-230V/60Hz/3-phase, drawing 8.0 amps.

Q: What maintenance are ?
A: One-touch cleaning, sealed maintenance-free bearings, AutoAlert™ indicator lights, and AgION™ antimicrobial protection.

Maintenance Tips

• Utilize One-Touch Cleaning
  Activate the machine's built-in one-touch cleaning feature regularly to initiate an automatic cleaning cycle, simplifying maintenance and ensuring consistent ice quality.

• Monitor AutoAlert™ Indicators
  Pay attention to the AutoAlert™ indicator lights, which signal when it's time to descale or sanitize the unit, helping to maintain optimal performance.

• Descale the Water System Biannually
  Perform a thorough descaling of the machine's water system at least twice a year to prevent mineral buildup and maintain ice quality.

• Sanitize the Ice Bin
  After descaling, sanitize the ice storage bin using an approved sanitizer to prevent microbial growth.

• Clean the Condenser Coils
  Regularly clean the condenser coils to maintain efficient cooling and prevent overheating. This should be done every six months or more frequently if needed.

• Inspect and Clean the Ice Thickness Sensor
  Regularly inspect and clean the ice thickness sensor to ensure accurate ice production and prevent scale buildup.

• Access Unit-Specific Resources
  Utilize the unit-specific QR code located on the machine to access service manuals, warranty information, and cleaning instructions, ensuring you have the most accurate and up-to-date maintenance procedures.
