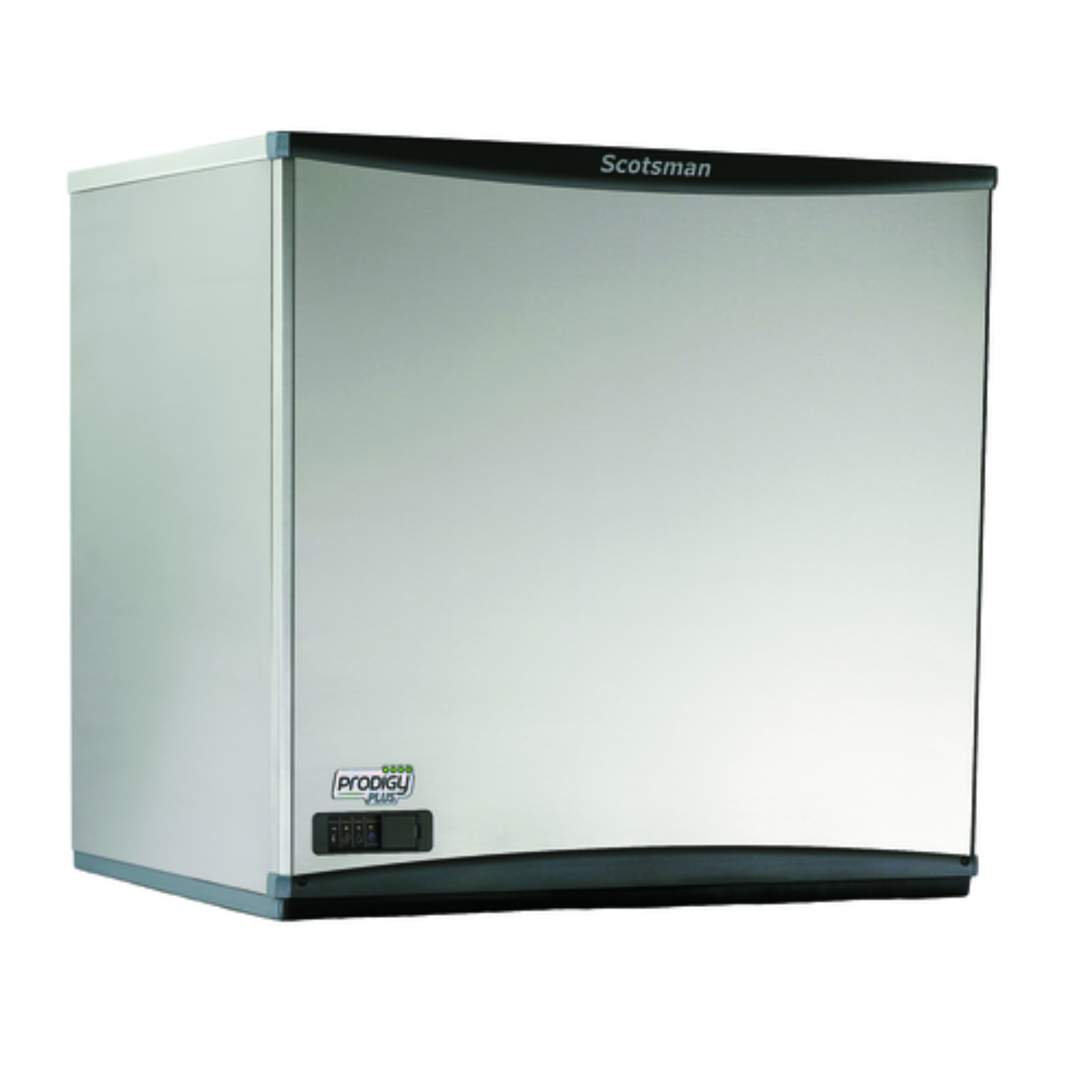

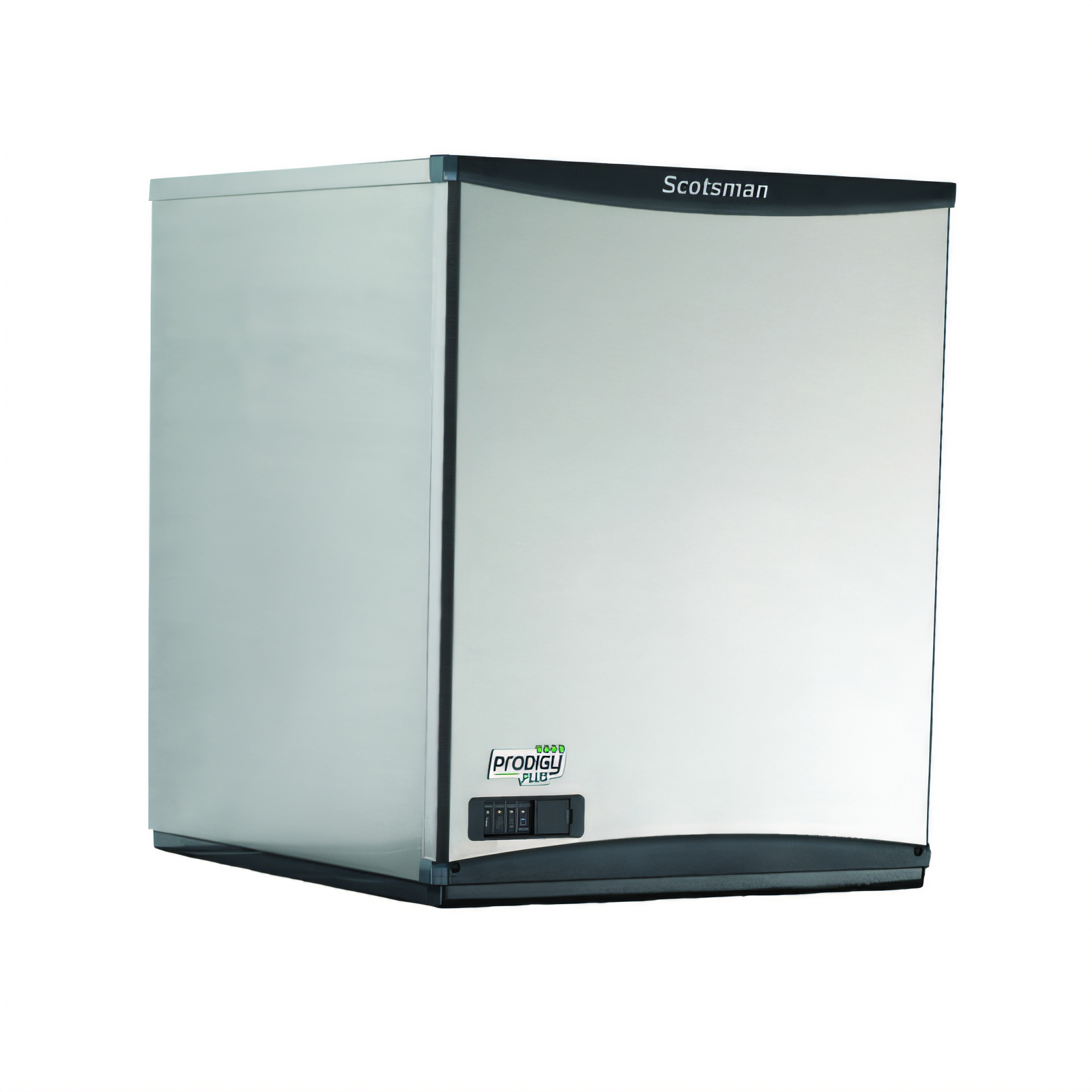

Scotsman Prodigy™ Plus Ice Machines - NS2030R-3
Prodigy Plus Ice Maker, nugget style, Original Chewable Ice, remote-cooled, production capacity up to 2008 lb/24 hours at 70°/50° (1620 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/3-ph, 15.2 amps, NSF, cULus, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Brand Name |
Prodigy™ Plus |
| Certifications |
NSF, cULus Classified |
| Height |
29.0 in |
| Width |
30.0 in |
| Depth |
24.0 in |
| Shipping Weight |
350.0 lbs |
| Production per 24 hr |
Up to 2008 lb at 70°/50° (1620 lb AHRI certified at 90°/70°) |
| Cube Type |
Nugget (Original Chewable Ice®) |
| Cooling |
Remote-cooled (refrigeration system not included; specify configuration) |
| Refrigeration |
Remote (low side only) |
| Construction |
Stainless steel finish, stainless auger and evaporator |
| Additional Features |
Sealed maintenance-free bearings, AutoAlert™ indicating lights, unit-specific QR code, one-touch cleaning, AgION™ antimicrobial protection |
| Refrigerant |
R-404A |
| Electrical |
208–230 V / 60 Hz / 3 phase, 15.2 amps |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Ice Production: Delivers up to 2,008 lbs of soft, chewable nugget ice per day at 70°F air and 50°F water conditions, with an AHRI-certified output of 1,620 lbs at 90°F air and 70°F water conditions.
-
Remote-Cooled Efficiency: Features a remote condenser (sold separately), allowing for quieter operation in the ice production area and flexibility in placement.
-
Energy and Water Efficient: Consumes 3.45 kWh of energy per 100 lbs of ice produced and uses 12 gallons of potable water per 100 lbs of ice produced, making it more efficient than traditional cubed ice machines.
-
User-Friendly: Equipped with AutoAlert™ indicator lights for maintenance alerts and a unit-specific QR code for quick access to service manuals and warranty information.
-
Durable Construction: Built with stainless steel evaporator and auger, and protected with AgION™ antimicrobial technology to inhibit microbial growth, ensuring longevity and hygiene.
-
Compact Footprint: Measures 30" W x 24" D x 29" H, fitting into tight spaces while providing high ice production capacity.
Q&A
Q: What is the Scotsman NS2030R-3 Ice Machine?
The Scotsman NS2030R-3 is a 30" wide, remote-cooled nugget ice machine from the Prodigy Plus® series, capable of producing up to 2,008 lbs of soft, chewable nugget ice per day under optimal conditions (70°F air / 50°F water).
Q: What type of ice does it produce?
It produces "The Original Chewable Nugget Ice," a soft and chewable ice ideal for beverages and fountain drinks.
Q: Is it energy-efficient?
Yes, it uses 3.45 kWh of energy per 100 lbs of ice and 12.0 gallons of water per 100 lbs of ice, resulting in lower operational costs.
Q: Where is it manufactured?
The Scotsman NS2030R-3 is engineered and assembled in the USA.
Maintenance Tips
-
Scale Removal: Use Scotsman Clear One Scale Remover every 6 months or more frequently in hard water areas. Follow the manufacturer's instructions for descaling and sanitizing the machine.
-
Sanitization: Clean and sanitize the water system during scale removal. This includes cleaning the ice storage bin and ice-making components to prevent mold and bacteria growth.
-
Air Filter Cleaning: Remove and clean the front-located air filter every 6 months or more often if needed. Ensure proper airflow around the machine by keeping vents clear and clean.
-
Condenser Coil Cleaning: Clean remote condenser coils every 6 months or as needed. Ensure the remote condenser unit is properly maintained.
-
Sensor Maintenance: Clean photoelectric sensors during each scale removal to ensure proper operation.
-
Bin Cleaning: Clean and sanitize the ice storage bin every 6 months or as needed. Remove all ice, clean the interior surfaces, and sanitize thoroughly.
-
Water Filter Replacement: Replace water filters every 6 months or as recommended by the manufacturer. This ensures optimal water quality and ice production.
