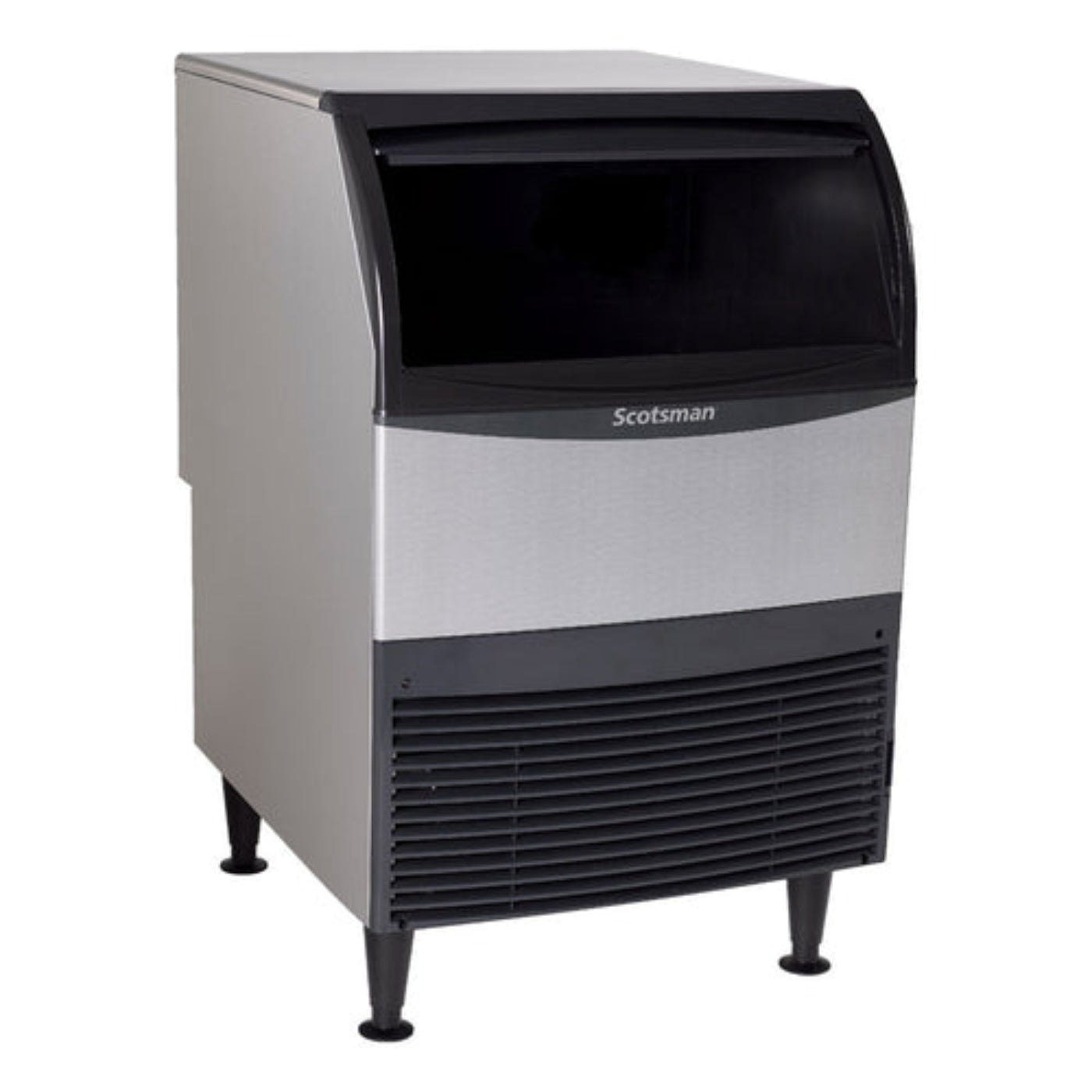

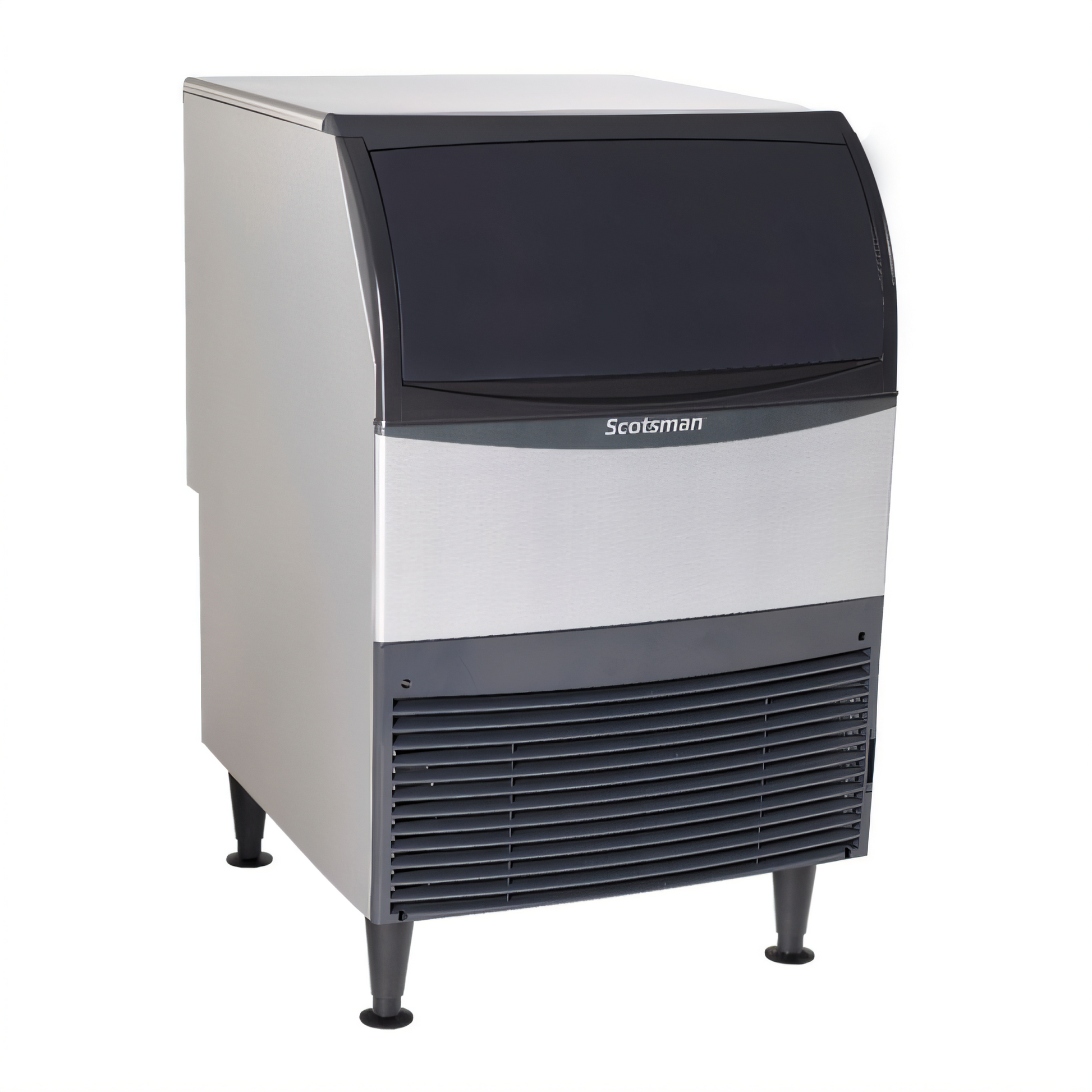

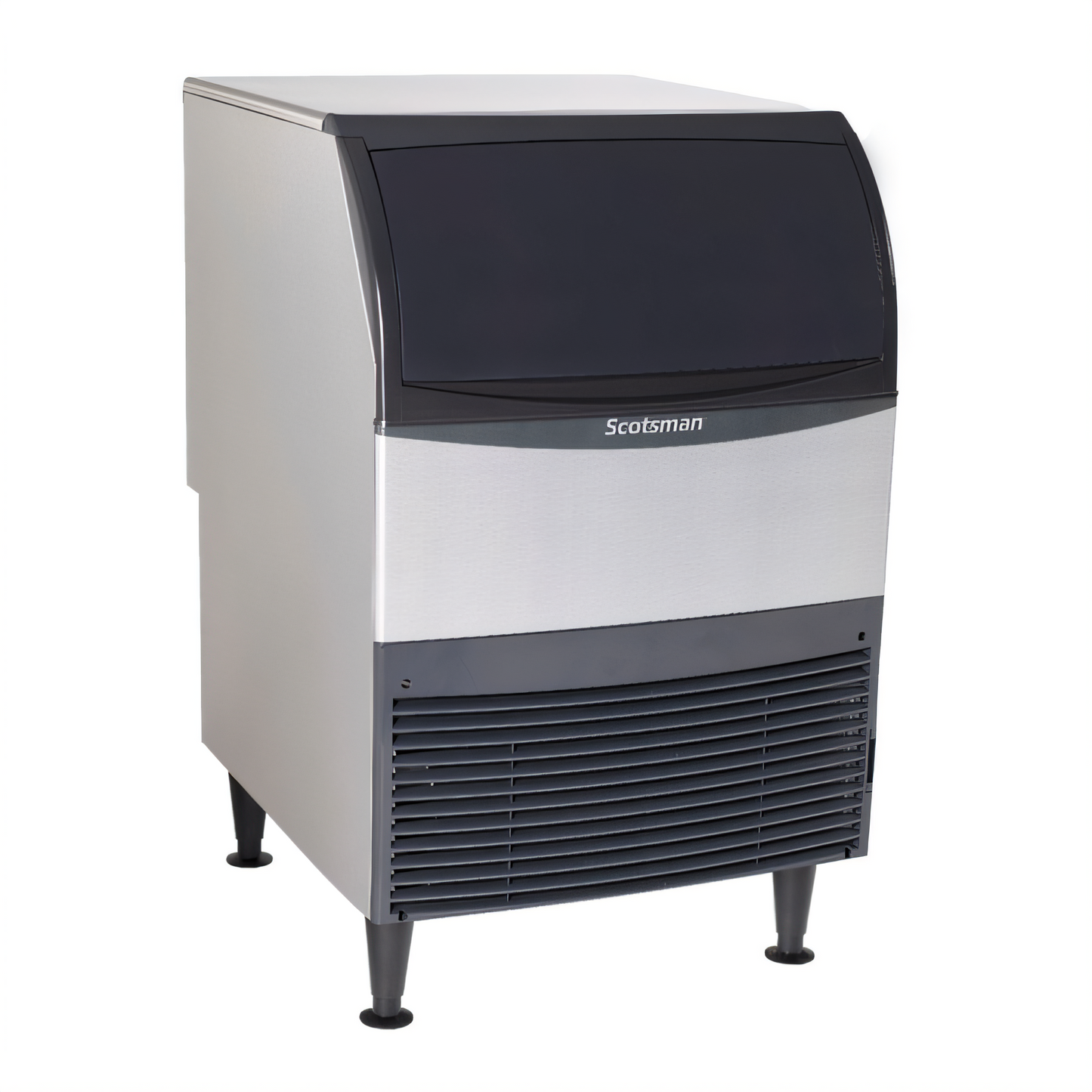

Scotsman Ice Machines - UC2724MW-1
Undercounter Ice Maker with Bin, cube style, water-cooled, 24" width, self-contained condenser, production capacity up to 266 lb/24 hours at 70°/50° (227 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, medium cube size, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus, engineered and assembled in USA
Ice Maker with Bin, Cube Style, water cooled, self contained condenser, production capacity up to 266 lb production/24 hours at 70°/50° (227 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, clear medium cube, recessed utility chase, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, cULus, NSF, designed/engineered/assembled in USA.
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
175.0 lbs |
| Production per 24 hr |
Up to 266 lb/24 hours at 70°/50° (227 lb AHRI certified at 90°/70°) |
| Bin Storage Capacity |
80 lb |
| Cube Type |
Full size / dice (medium cube size) |
| Condenser Type |
Water-cooled |
| Refrigeration |
Self-contained refrigeration |
| Finish |
Stainless steel |
| Additional Features |
Recessed utility chase, unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
What our Experts Think
-
High Ice Production: Produces up to 266 lbs of medium cube ice per day, with an 80 lb storage capacity—ideal for high-demand environments like restaurants and bars.
-
Compact & Space-Saving Design: At just 24" wide, this unit fits into tight spaces and features a front-breathing design, eliminating the need for side clearance and allowing flexible placement.
-
Water-Cooled Efficiency: Utilizes R-134A refrigerant and a water-cooled condenser, ensuring consistent performance even in warmer environments.
-
User-Friendly Features: Equipped with an ergonomic slide-back door for easy access, a removable external air filter for easy cleaning, and a unit-specific QR code for quick access to service manuals and warranty history.
-
Durable Construction: Built with rust-free front panels and corrosion-resistant aluminum alloy side panels for maximum lifespan.
-
Energy Efficient: Meets new U.S. federal energy efficiency requirements and uses non-ozone depleting refrigerant, aligning with eco-friendly initiatives
Q&A
Q: What is the Scotsman UC2724MW-1 Ice Machine?
The Scotsman UC2724MW-1 is a compact, water-cooled undercounter ice machine designed for commercial use. It produces up to 266 lbs of medium cube ice per day and stores up to 80 lbs, making it ideal for establishments with limited space.
Q: What type of ice does it produce?
It produces medium-sized cube ice measuring 7/8" x 7/8" x 7/8", known for its slow-melting properties, making it perfect for beverages and blended drinks.
Q: Is it energy-efficient?
Yes, it meets U.S. federal energy efficiency requirements and uses non-ozone-depleting R-134A refrigerant.
Q: Where is it manufactured?
The Scotsman UC2724MW-1 is designed, engineered, and assembled in the USA.
Maintenance Tips
-
Monthly Cleaning: Sanitize the ice bin and all internal components to prevent contamination.
-
Descale Quarterly: Use Scotsman-approved descaler to prevent mineral buildup and ensure smooth operation.
-
Replace Water Filter Every 6 Months: Maintain high-quality ice and prolong the machine’s life.
-
Clean Condenser Coils: Ensure efficient performance by removing dust and debris.
-
Check Water Lines Regularly: Inspect hoses for leaks and blockages to prevent disruptions.
-
Annual Professional Maintenance: Schedule a technician for a thorough inspection and servicing.
