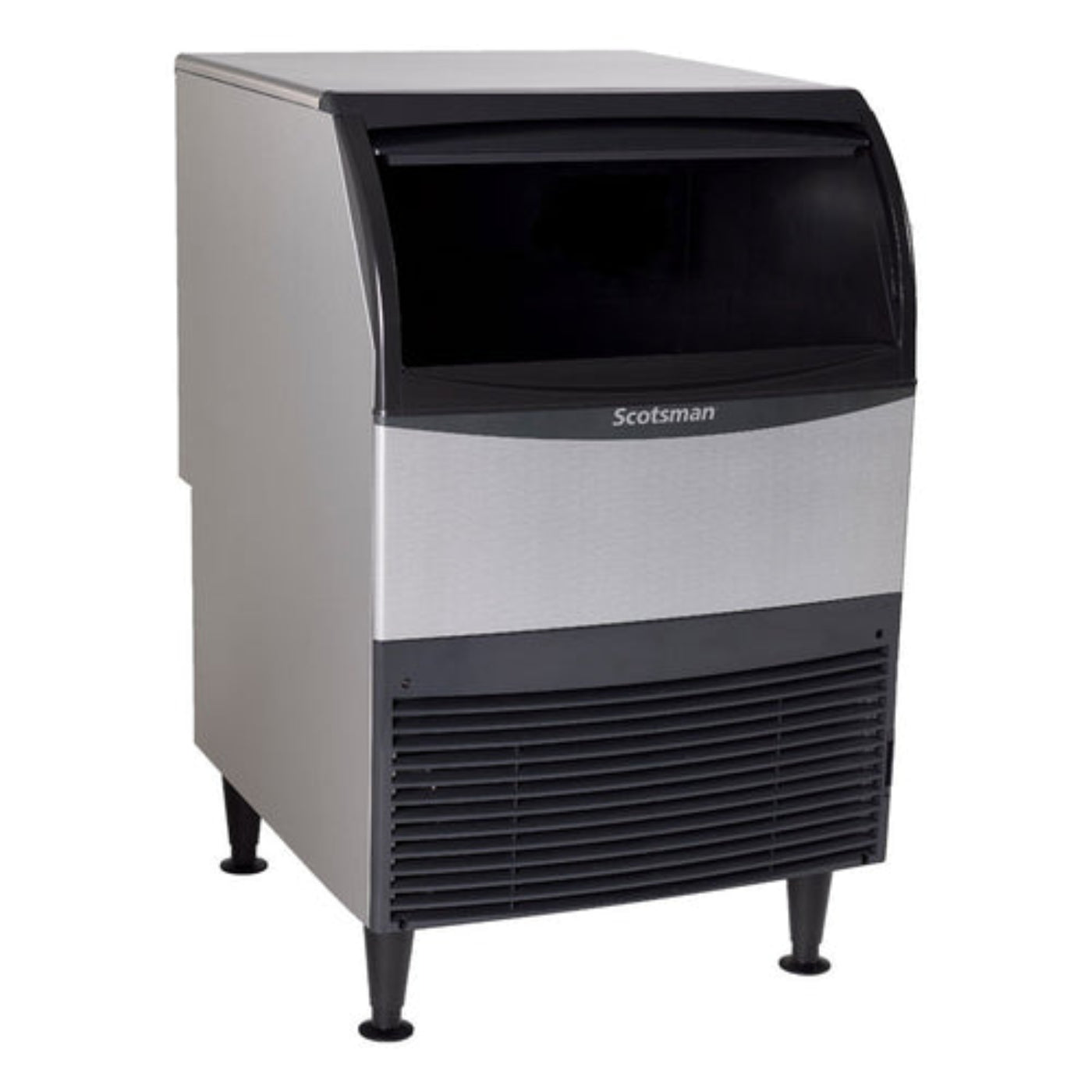

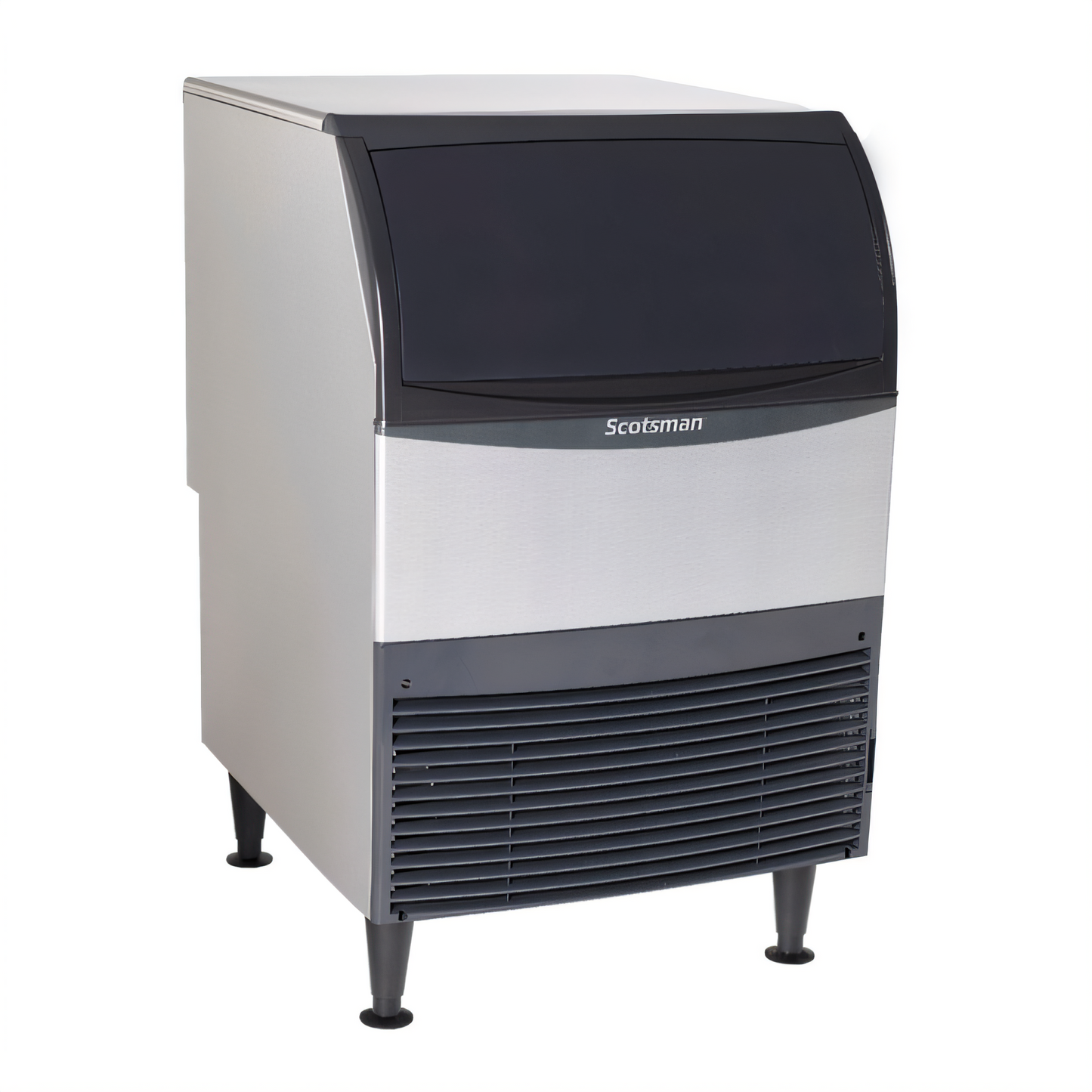

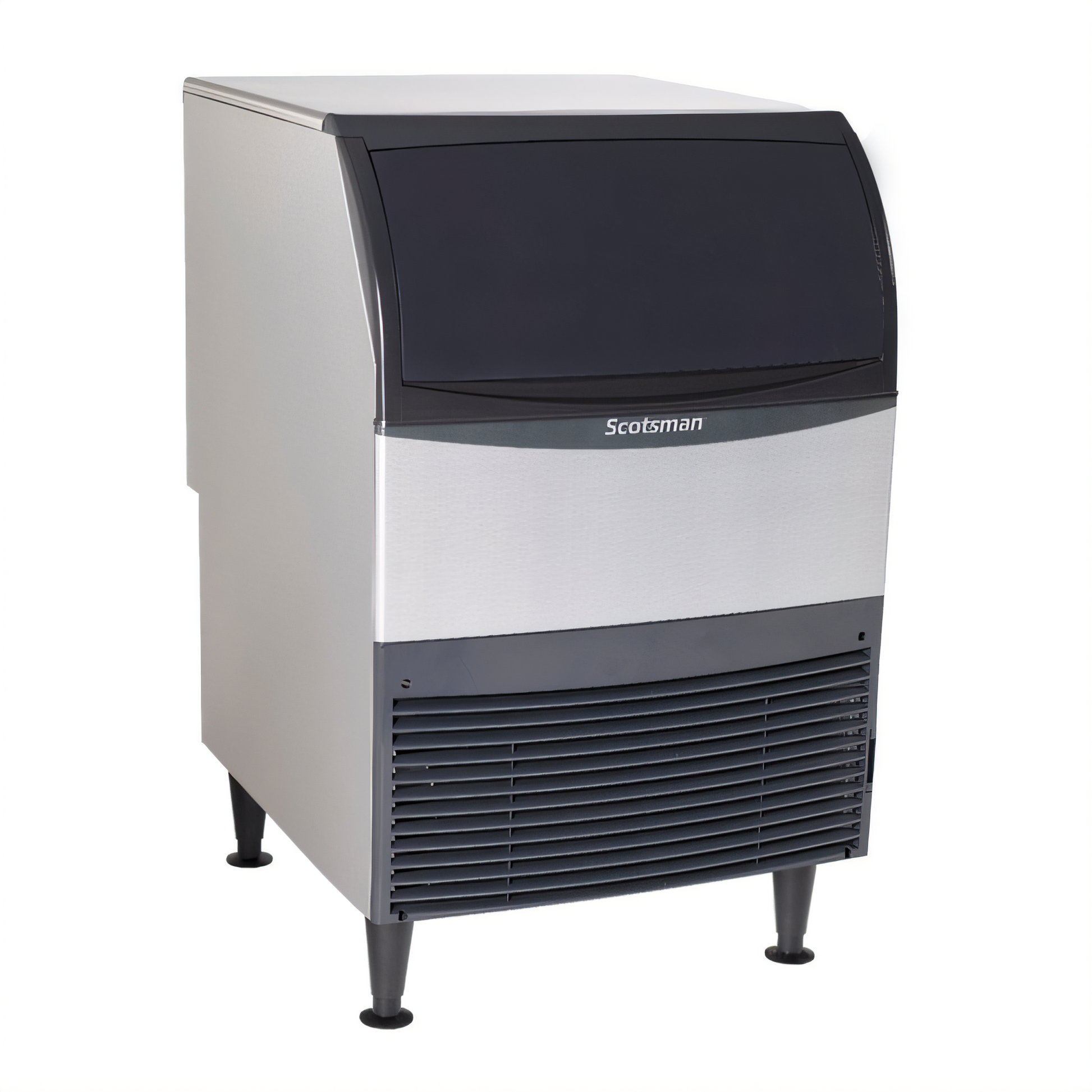

Scotsman Ice Machines - UC2724SA-1
Undercounter Ice Maker with Bin, cube style, air-cooled, 24" width, self-contained condenser, production capacity up to 282 lb/24 hours at 70°/50° (210 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, small cube size, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus, engineered and assembled in USA
Ice Maker with Bin, Cube Style, air cooled, self contained condenser, production capacity up to 282 lb production/24 hours at 70°/50° (210 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, clear small cube, recessed utility chase, front air intake and exhaust, removable external air filter, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, cULus, NSF, designed/engineered/assembled in USA.
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
175.0 lbs |
| Cube Type |
Half size / half dice (small cube size) |
| Bin Storage Capacity |
80 lb |
| Production per 24 hr |
Up to 282 lb at 70°/50° (210 lb AHRI certified at 90°/70°) |
| Condenser Type |
Air-cooled |
| Refrigeration |
Self-contained refrigeration |
| Additional Features |
Front facing removable air filter, recessed utility chase, unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Ice Output – Produces up to 282 lbs of small cube ice per day, with an 80 lb built-in storage bin—ideal for restaurants, cafes, and healthcare facilities.
-
Compact & Flexible Design – At just 24" wide, this undercounter unit fits tight spaces and features front-breathing ventilation, requiring no side clearance.
-
Energy Efficient – Operates on 115V, helping reduce utility costs while meeting environmental standards.
-
User-Friendly Features – Equipped with an ergonomic slide-back door, removable external air filter, and unit-specific QR code for quick access to service manuals and guides.
-
Durable Construction – Built with a rust-free front panel and corrosion-resistant aluminum alloy side panels, ensuring long-lasting performance.
-
Easy Installation – Includes a 5.5’ power cord with NEMA 5-15P plug, ice scoop, and 6" adjustable legs for quick setup.
Q&A
Q: What type of ice does the Scotsman UC2724SA-1 produce?
A: It produces small half-cube ice, measuring 7/8" x 7/8" x 3/8", ideal for sodas, cocktails, and smoothies.
Q: What is the daily ice production capacity?
A: It can produce up to 282 lbs of ice per day under optimal conditions (70°F air / 50°F water).
Q: How much ice can the built-in bin store?
A: The integrated storage bin holds up to 80 lbs of ice.
Q: Is this unit suitable for tight spaces?
A: Yes, its compact 24" width, front-breathing design, and recessed utility chase allow for installation in tight spaces without side clearance.
Q: What are the electrical requirements?
A: It operates on 115V/60Hz/1-phase power and comes with a NEMA 5-15P plug.
Q: Is the condenser self-contained and air-cooled?
A: Yes, it features a self-contained, air-cooled condenser using eco-friendly R-134A refrigerant.
Maintenance Tips
-
Biannual Deep Cleaning
Clean the machine at least twice a year using a food-grade scale remover like Scotsman Clear 1. This prevents mineral buildup and maintains ice quality.
-
Descale Internal Components
Prepare a solution by mixing 5 oz (150 cc) of Scotsman Clear 1 with 2.5 quarts (2.4 liters) of warm potable water (95°F to 115°F). Remove the spray bar and ice level control plate, soak them in the solution, and clean thoroughly.
-
Sanitize the Ice Bin
After descaling, sanitize the ice storage bin with an approved sanitizer to prevent microbial growth.
-
Clean the Air Filter
Regularly remove and clean the front-facing air filter to maintain proper airflow and efficient cooling.
-
Monitor AutoAlert Indicators
Pay attention to the AutoAlert control panel's LED lights, which notify you of scale buildup and when it's time to descale or sanitize.
-
Inspect the Drain Line
Ensure the drain line is clear and unobstructed to prevent water backup and potential overflows.
-
Check for Cleaning Indicators
Be alert for signs like unusual ice taste, reduced ice production, or the "Time to Clean" light, indicating the need for maintenance.
