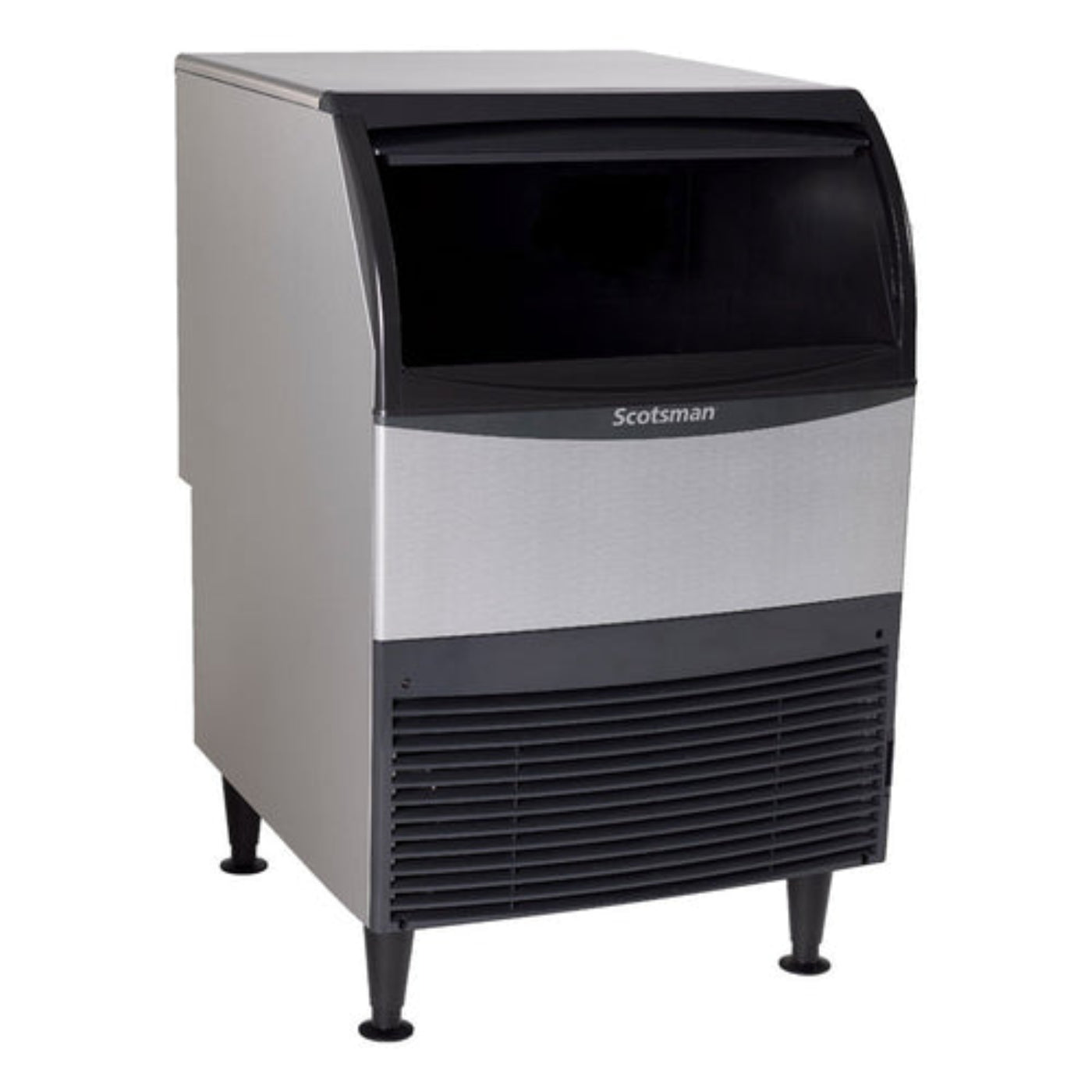

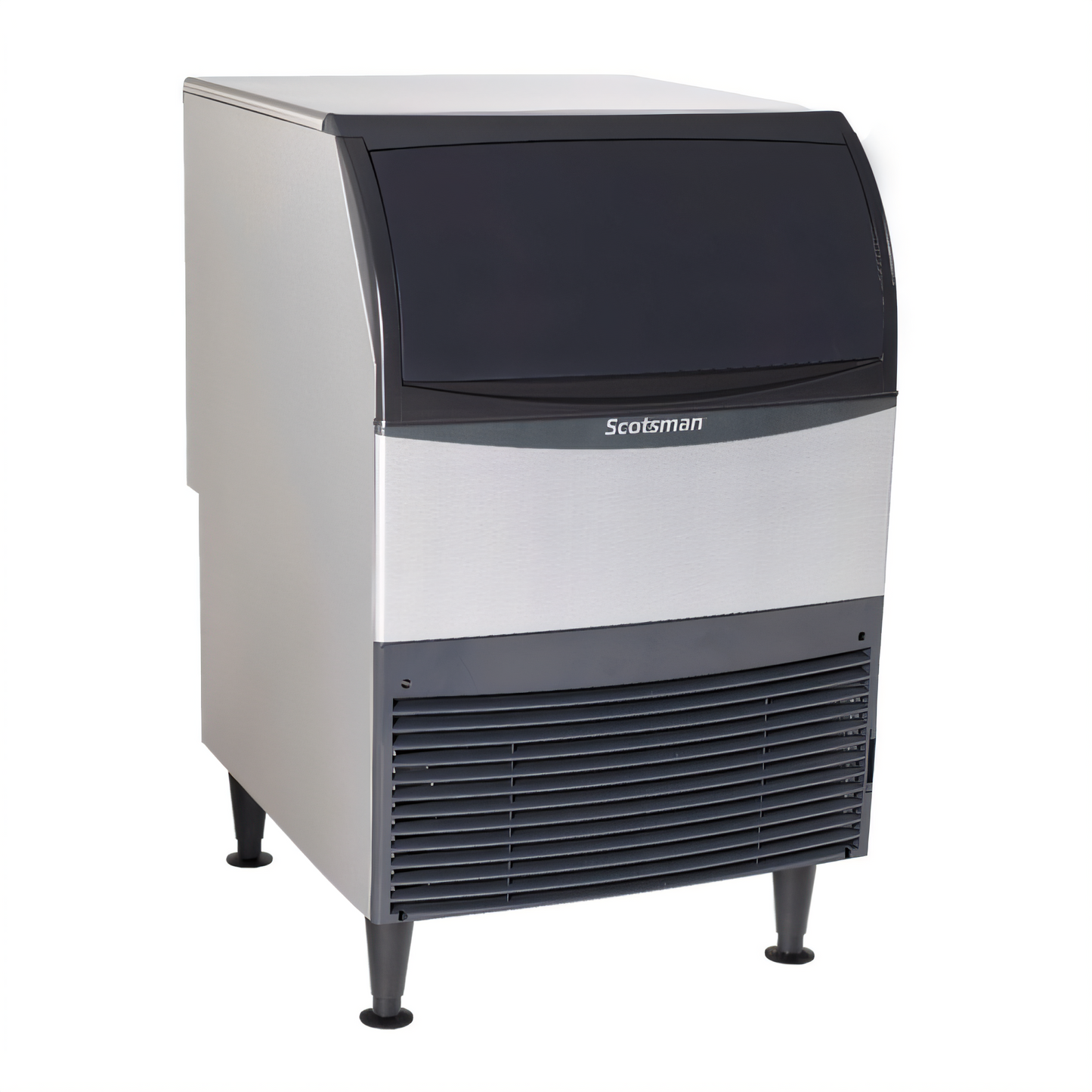

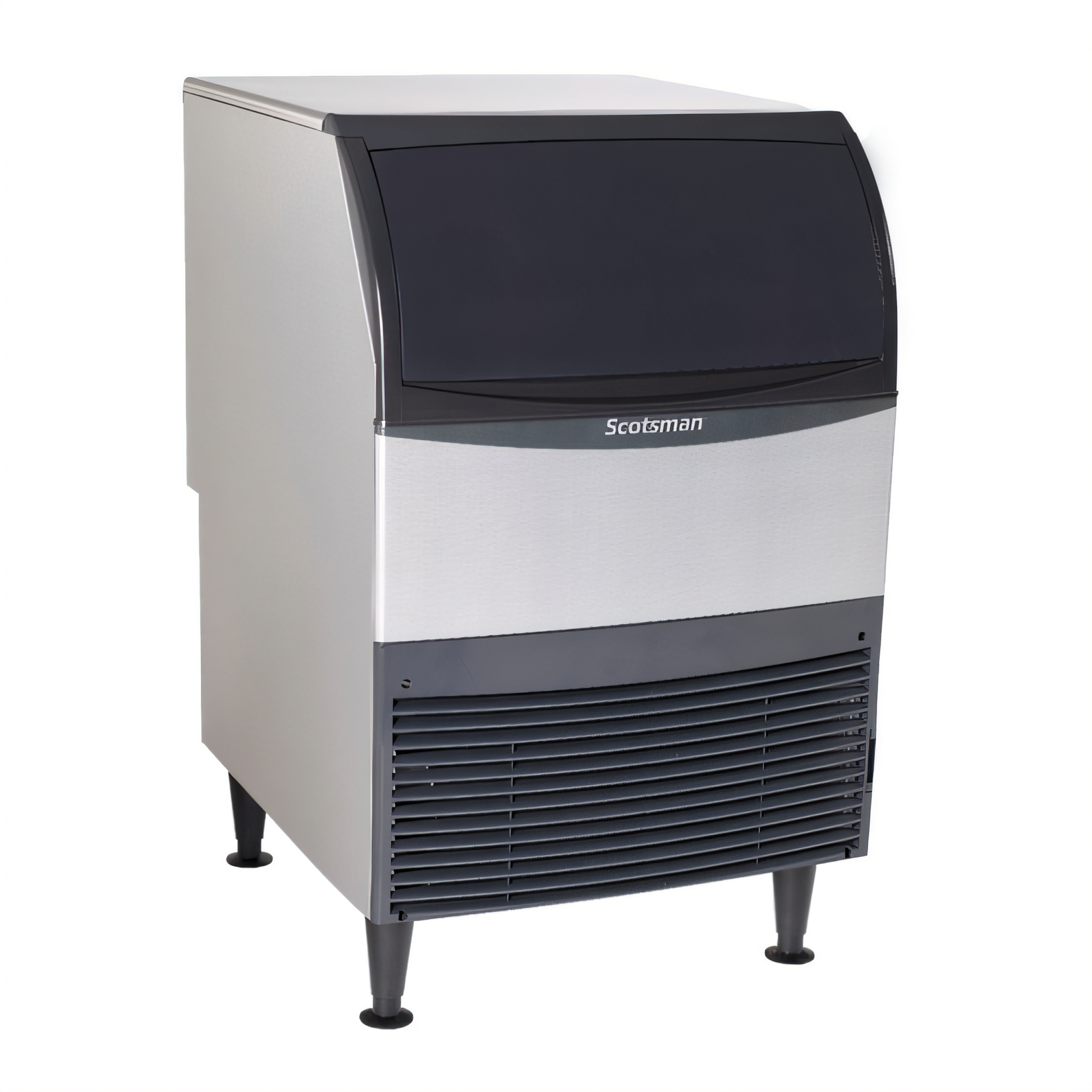

Scotsman Ice Machines - UC2724SW-1
Undercounter Ice Maker with Bin, cube style, water-cooled, 24" width, self-contained condenser, production capacity up to 266 lb/24 hours at 70°/50° (227 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, small cube size, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus, engineered and assembled in USA
Ice Maker with Bin, Cube Style, water cooled, self contained condenser, production capacity up to 266 lb production/24 hours at 70°/50° (227 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, clear small cube, recessed utility chase, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, cULus, NSF, designed/engineered/assembled in USA.
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
175.0 lbs |
| Cube Type |
Half size / Half dice |
| Bin Storage Capacity |
80 lb (within 51 – 100 lb range) |
| Production per 24 hr |
Up to 266 lb at 70°F air / 50°F water (227 lb AHRI certified at 90°F air / 70°F water) |
| Condenser Type |
Water-cooled |
| Cooling System |
Self-contained condenser |
| Energy Efficiency |
Not ENERGY STAR rated |
| Additional Features |
Small cube size, recessed utility chase, unit-specific QR code, ice scoop included, 6″ adjustable legs |
| Electrical |
115 V / 60 Hz / 1 ph, includes 5.5′ power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Ice Production: Produces up to 266 lbs of small cube ice per day, with an 80 lb storage capacity—ideal for high-demand environments like restaurants, bars, and cafes.
-
Compact & Space-Saving Design: At just 24" wide, this unit fits into tight spaces and features a front-breathing design, eliminating the need for side clearance and allowing flexible placement.
-
Water-Cooled Efficiency: Utilizes R-134A refrigerant and a water-cooled condenser, ensuring consistent performance even in warmer environments.
-
User-Friendly: Equipped with an ergonomic slide-back door for easy access, a removable external air filter for easy cleaning, and a unit-specific QR code for quick access to service manuals and warranty history.
-
Durable Construction: Built with rust-free front panels and corrosion-resistant aluminum alloy side panels for maximum lifespan.
-
Energy Efficient: Meets new U.S. federal energy efficiency requirements and uses non-ozone depleting refrigerant, aligning with eco-friendly initiatives.
Q&A
Q: What is the Scotsman UC2724SW-1 Ice Machine?
The Scotsman UC2724SW-1 is a compact, water-cooled undercounter ice machine designed for commercial use. It produces up to 266 lbs of small cube ice per day and stores up to 80 lbs, making it ideal for establishments with limited space.
Q: What type of ice does it produce?
It produces small cube ice measuring 7/8" x 7/8" x 3/8", known for its slow-melting properties, making it perfect for beverages and blended drinks.
Q: Is it energy-efficient?
Yes, it meets U.S. federal energy efficiency requirements and uses non-ozone-depleting R-134A refrigerant.
Q: Where is it manufactured?
The Scotsman UC2724SW-1 is designed, engineered, and assembled in the USA.
Maintenance Tips
-
Monthly Cleaning: Sanitize the ice bin and internal components to prevent scale and bacterial buildup.
-
Descale Every 3–6 Months: Use Scotsman-approved descaler to remove mineral deposits.
-
Replace Water Filter Biannually: Ensure consistent ice quality and machine longevity.
-
Clean Air Filter Monthly: Remove and clean the air filter to maintain cooling efficiency.
-
Inspect Water Lines Regularly: Check hoses for leaks and blockages to prevent disruptions.
-
Annual Professional Maintenance: Schedule a technician for a thorough inspection and servicing
