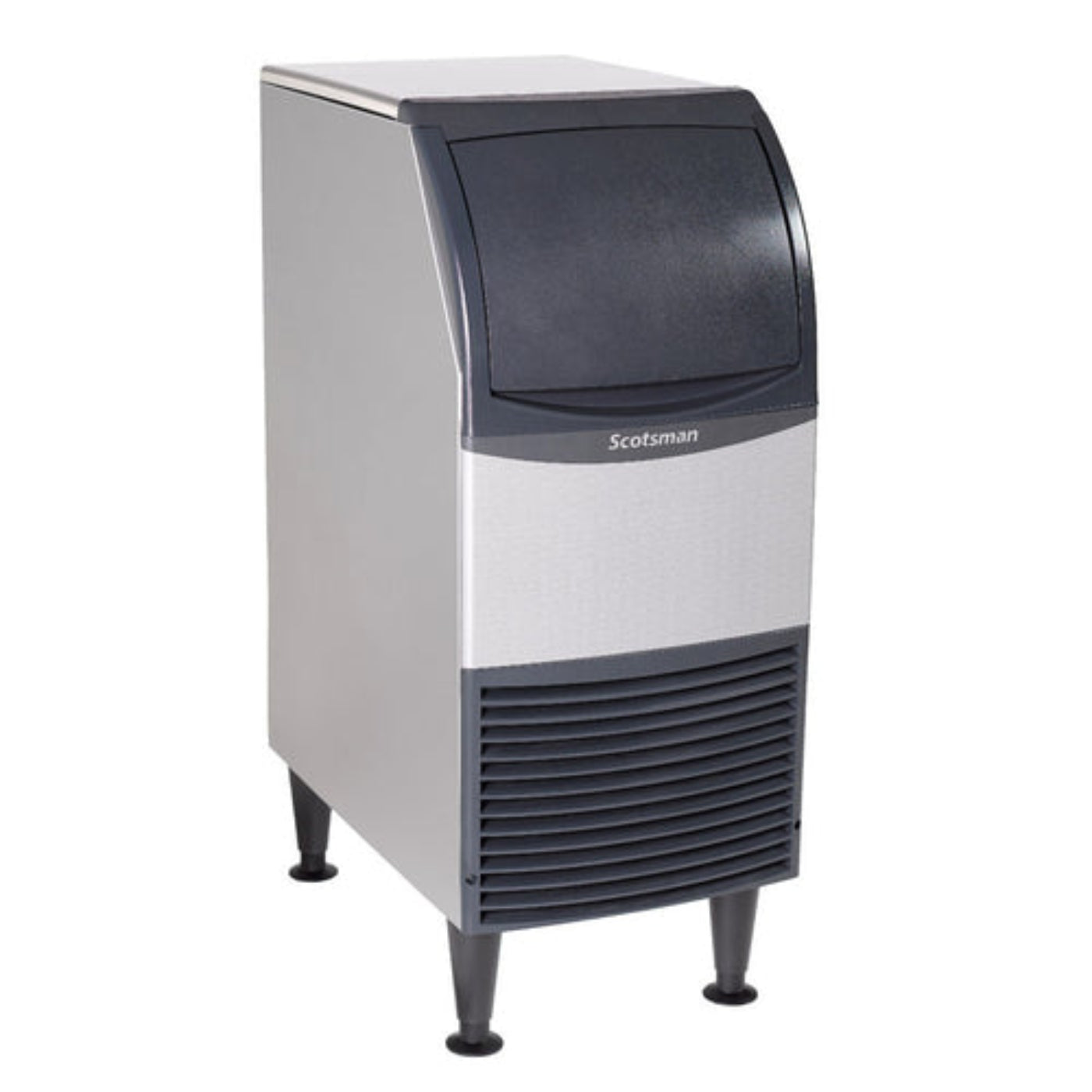

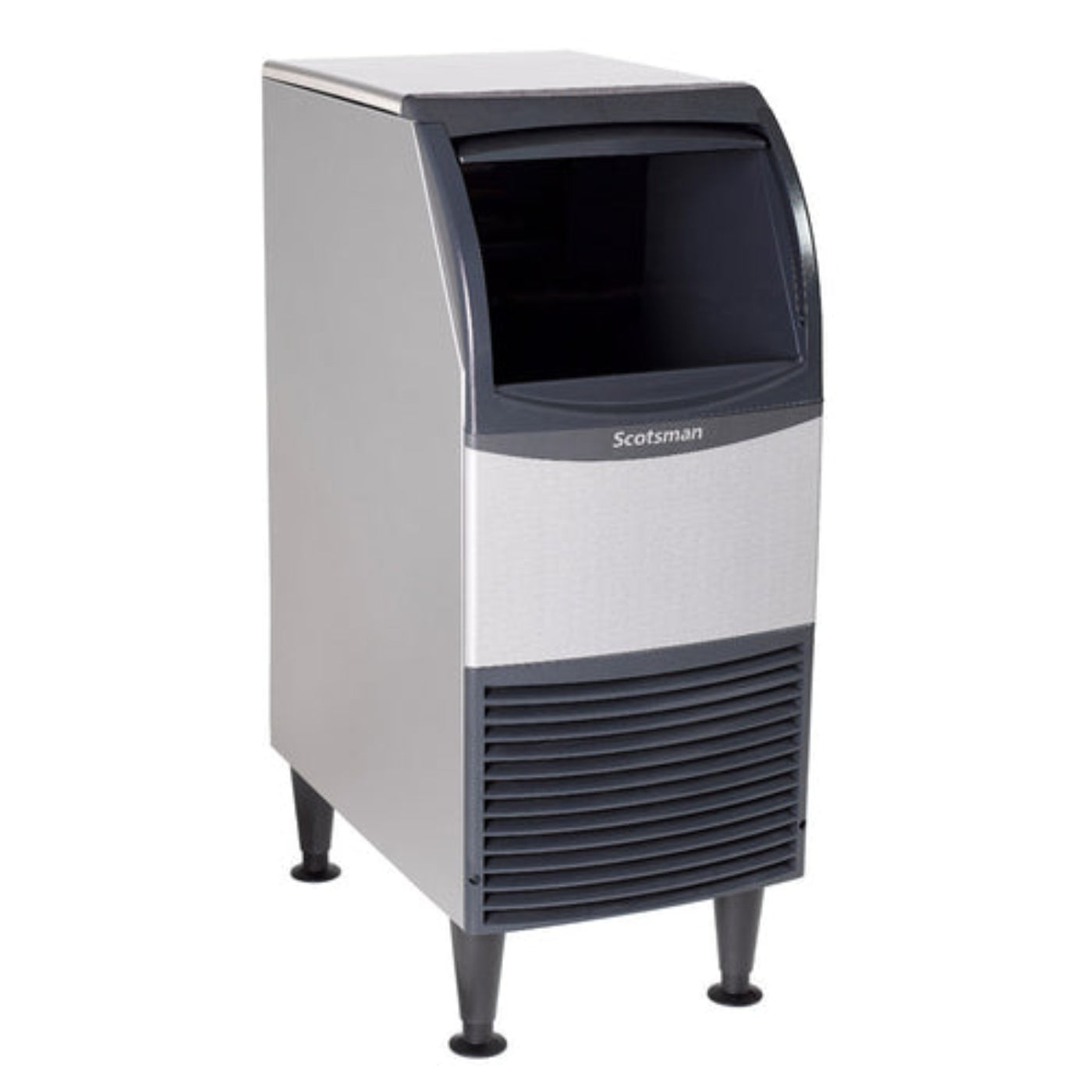

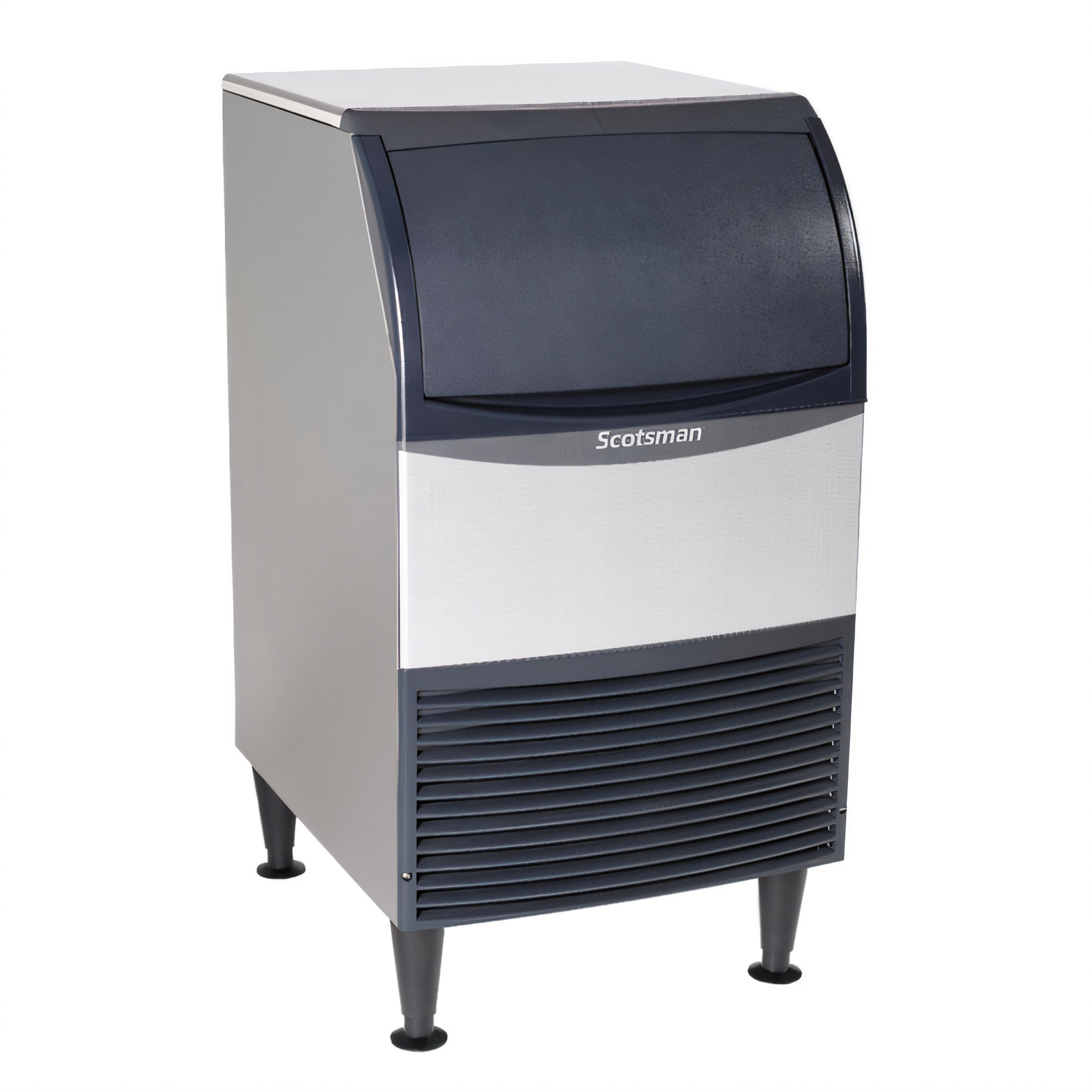

Scotsman Ice Machines - UN0815A-1
Undercounter Ice Maker with Bin, nugget style, air-cooled, 15" width, self-contained condenser, production capacity up to 79 lb/24 hours at 70°/50° (55 lb AHRI certified at 90°/70°), 36 lb bin storage capacity, Original Chewable Ice®, sealed maintenance-free bearings, stainless steel evaporator & auger, ADA compliant with floor mount kit, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes power cord with NEMA 5-15P plug, NSF, cULus, ENERGY STAR®, engineered and assembled in USA
Ice Maker with Bin, Nugget Style, air cooled, self contained condenser, production capacity up to 79 lb production/24 hours at 70°/50° (55 lb AHRI certified at 90°/70°), 36 lb bin storage capacity, stainless steel evaporator and auger, sealed bearings, front air intake and exhaust, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, ENERGY STAR cULus, NSF, ADA compliant (with floor mount kit), designed/engineered/assembled in USA.
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI, ADA Compliant, ENERGY STAR |
| Height |
38.0 in |
| Width |
15.0 in |
| Depth |
24.0 in |
| Shipping Weight |
108.0 lbs |
| Bin Storage Capacity |
36 lb (0 - 50 lb range) |
| Cooling Type |
Air-cooled |
| Ice Production (24 hr) |
Up to 79 lb at 70°F air / 50°F water |
| 55 lb AHRI certified at 90°F air / 70°F water |
|
| Ice Type |
Nugget (Original Chewable Ice®) |
| Finish |
Stainless steel (assumed based on others in the series) |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Refrigeration |
Self-contained refrigeration |
| Materials |
Stainless steel evaporator & auger |
| Bearings |
Sealed, maintenance-free |
| ADA Compliant |
Yes, with floor mount kit |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v / 60Hz / 1-ph, includes power cord with NEMA 5-15P plug |
| Energy Efficiency |
ENERGY STAR® |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
Efficient Ice Production – Produces up to 80 lbs of nugget ice daily, ideal for small to mid-sized businesses like cafes, restaurants, and bars.
-
Nugget Ice Perfection – The chewable, soft nugget ice is highly sought after for its ideal texture in drinks and healthcare applications.
-
Compact & Convenient – The undercounter design allows for easy installation in tight spaces without compromising on performance.
-
Reliable & Low Maintenance – Equipped with a self-contained water system for easy maintenance and reduced risk of contamination.
-
Energy-Saving Features – Air-cooled, designed to minimize energy consumption while ensuring consistent ice production.
-
Durable & Long-Lasting – Constructed with a stainless steel exterior for added durability in high-traffic environments.
Q&A
Q: What is the ice production capacity of the Scotsman UN0815A-1?
The Scotsman UN0815A-1 produces up to 79 lbs of nugget ice per day, making it ideal for small to medium-sized establishments.
Q: What type of ice does the UN0815A-1 produce?
This model produces chewable nugget ice, known for its soft texture and slow melting properties, perfect for beverages and food displays.
Q: What are the of the UN0815A-1?
The unit measures 15" W x 24" D x 38" H, allowing it to fit in tight spaces and under ADA-compliant counters with an optional floor mount kit.
Q: How much ice can the UN0815A-1 store?
The integrated bin can store up to 36 lbs of ice, ensuring a steady supply during peak hours.
Q: Is the Scotsman UN0815A-1 energy-efficient?
Yes, it is ENERGY STAR , ensuring energy-efficient performance while reducing operational costs.
Maintenance Tips
-
Clean the exterior with a damp cloth to remove dirt and stains.
-
Descale and sanitize the interior every 6 months to prevent scale buildup.
-
Replace water filters regularly, as per manufacturer guidelines.
-
Ensure the air filter is clean and unobstructed for proper airflow.
-
Inspect and clean the condenser coils to maintain efficiency.
-
Check the drainage system to avoid clogging or water backup.
-
Maintain proper ventilation around the unit to prevent overheating.
