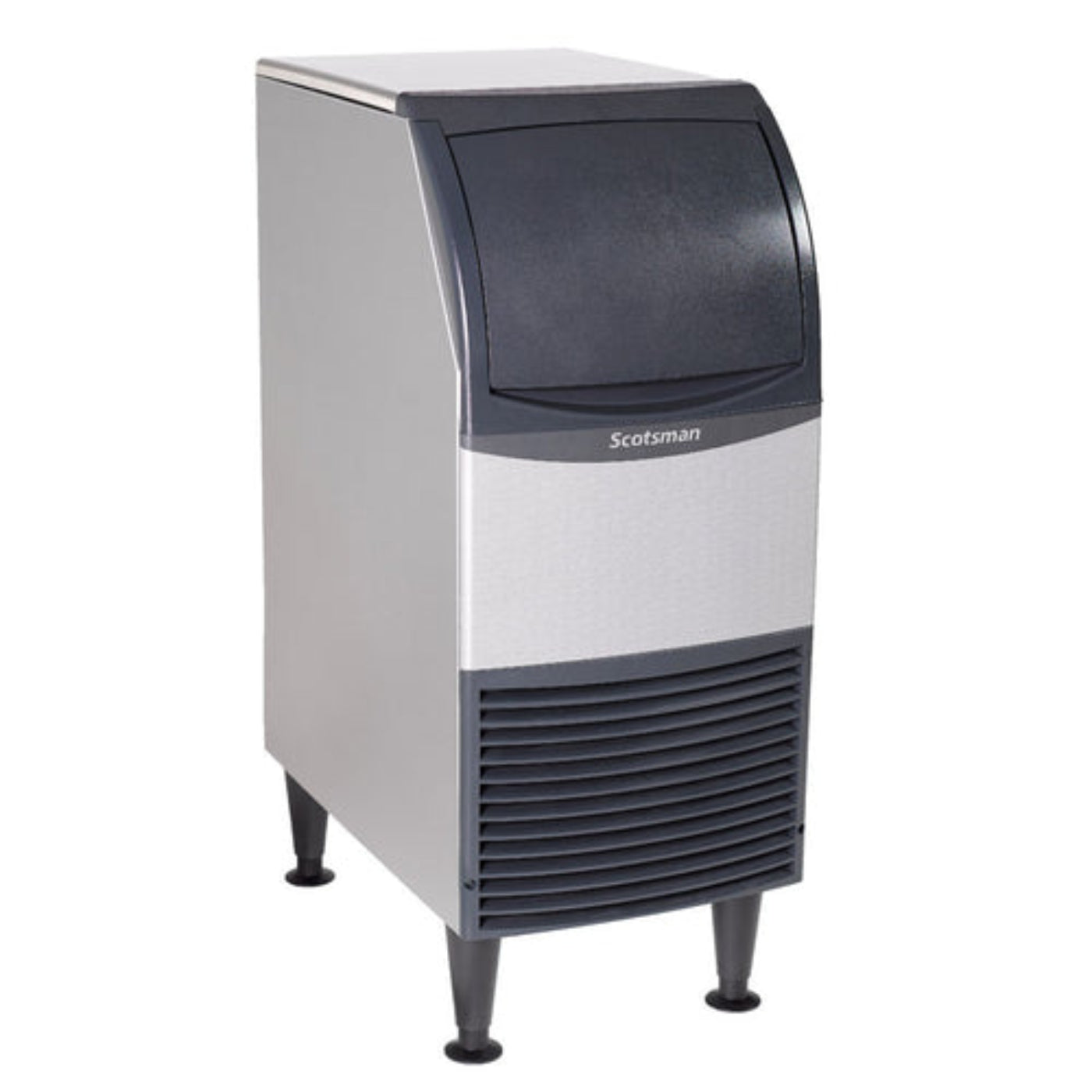

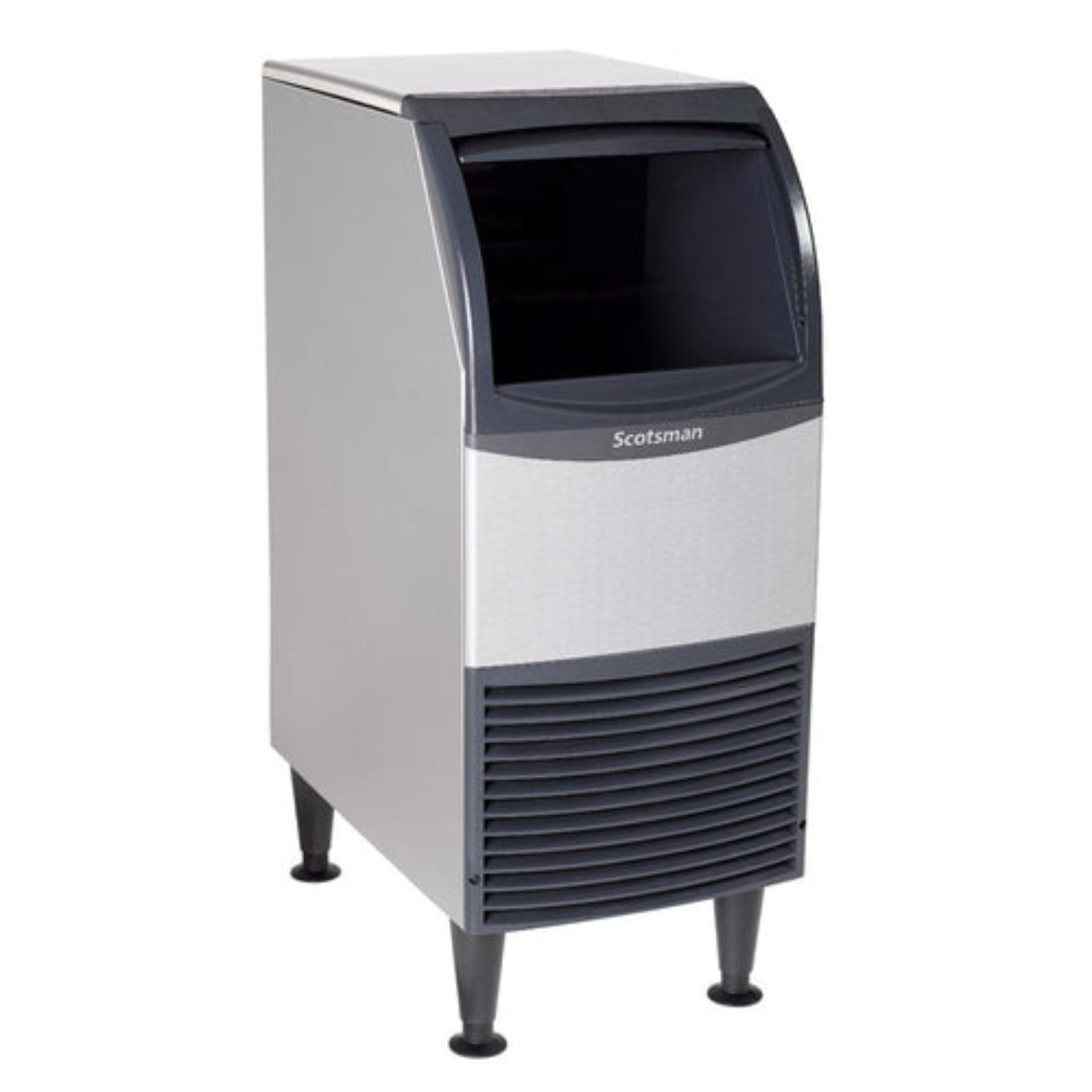

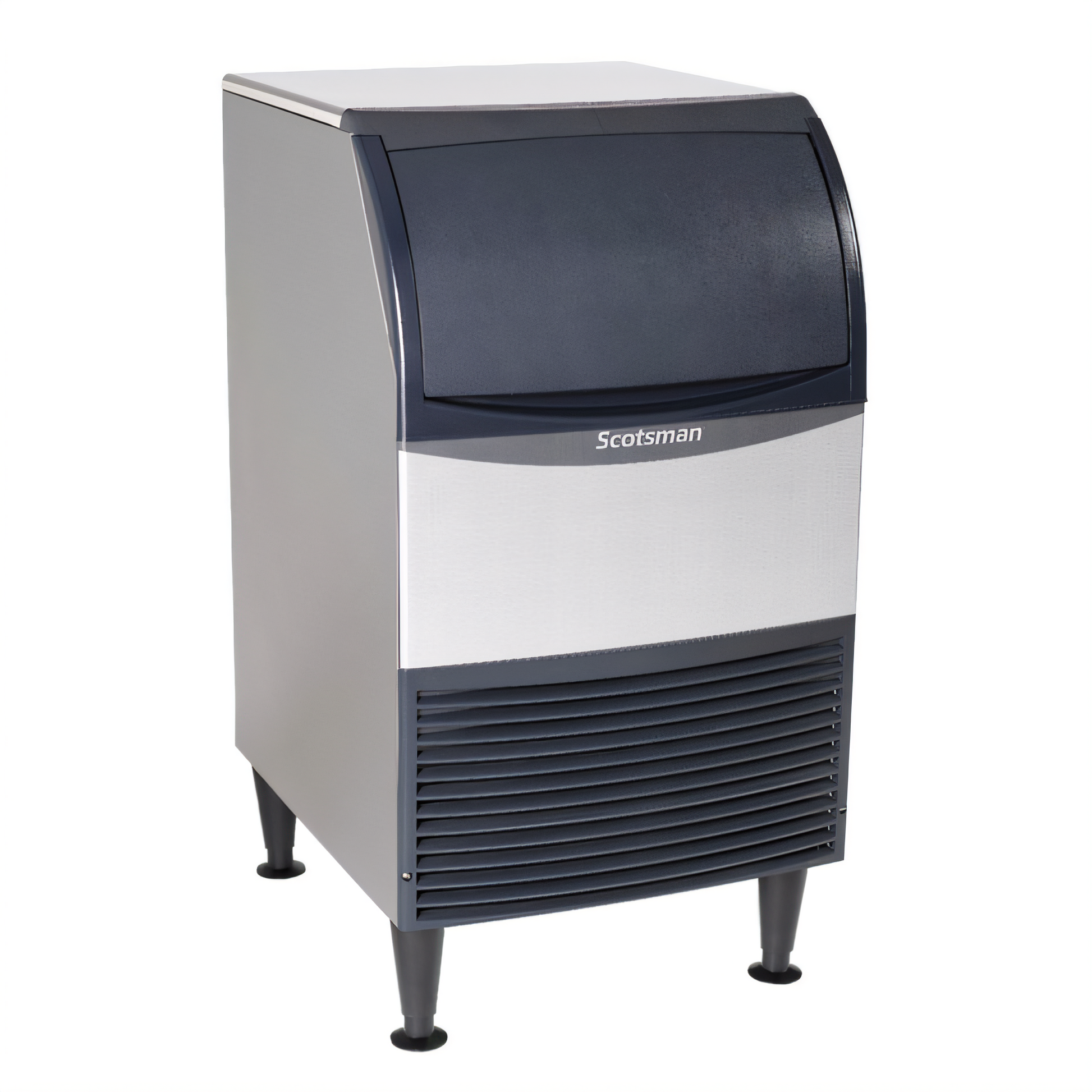

Scotsman Ice Machines - UN1215A-1
Undercounter Ice Maker with Bin, nugget style, air-cooled, 15" width, self-contained condenser, production capacity up to 119 lb/24 hours at 70°/50° (84 lb AHRI certified at 90°/70°), 36 lb bin storage capacity, Original Chewable Ice®, sealed maintenance-free bearings, stainless steel evaporator & auger, ADA compliant with floor mount kit, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes power cord with NEMA 5-15P plug, NSF, cULus, ENERGY STAR®, engineered and assembled in USA
Ice Maker with Bin, Nugget Style, air cooled, self contained condenser, production capacity up to 119 lb production/24 hours at 70°/50° (84 lb AHRI certified at 90°/70°), 36 lb bin storage capacity, stainless steel evaporator and auger, sealed bearings, front air intake and exhaust, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, ENERGY STAR, cULus, NSF, ADA compliant (with floor mount kit), designed/engineered/assembled in USA.
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI, ADA Compliant, ENERGY STAR |
| Height |
38.0 in |
| Width |
15.0 in |
| Depth |
24.0 in |
| Shipping Weight |
109.0 lbs |
| Bin Storage Capacity |
36 lb (0 - 50 lb range) |
| Cooling Type |
Air-cooled |
| Ice Production (24 hr) |
Up to 119 lb at 70°F air / 50°F water |
| 84 lb AHRI certified at 90°F air / 70°F water |
|
| Ice Type |
Nugget (Original Chewable Ice®) |
| Finish |
Stainless steel |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Refrigeration |
Self-contained refrigeration |
| Materials |
Stainless steel evaporator & auger |
| Bearings |
Sealed, maintenance-free |
| ADA Compliant |
Yes, with floor mount kit |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v / 60Hz / 1-ph, includes power cord with NEMA 5-15P plug |
| Energy Efficiency |
ENERGY STAR® |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Ice Production: Delivers up to 1,120 lbs of ice per day, making it perfect for high-demand settings like busy restaurants, bars, and healthcare facilities.
-
Compact & Versatile Design: The undercounter footprint allows for efficient use of space while offering powerful ice production.
-
Premium Quality Ice: Produces full cubes, ideal for cooling drinks, keeping food fresh, and other high-volume applications.
-
Dependable Scotsman Brand: Known for top-tier reliability, this model is built to last in demanding commercial environments.
-
Energy-Efficient: Designed to meet energy standards while delivering optimal performance, reducing operational costs.
-
Ease of Maintenance: User-friendly with front-access components for quick service and minimal downtime.
-
ADA Compliant: Meets accessibility requirements, providing a user-friendly experience in diverse environments.
Q&A
Q: What is the Scotsman UN1215A-1 Ice Machine?
The Scotsman UN1215A-1 is a compact undercounter nugget ice machine designed for commercial use. It produces up to 119 lbs of chewable nugget ice per day and stores up to 36 lbs, making it ideal for establishments with limited space.
Q: What type of ice does it produce?
It produces nugget ice, known for its chewable texture and rapid cooling properties, perfect for beverages and blended drinks.
Q: Is it energy-efficient?
Yes, the UN1215A-1 is ENERGY STAR certified, ensuring lower energy consumption and operating costs.
Q: Where is it manufactured?
The Scotsman UN1215A-1 is designed, engineered, and assembled in the USA.
Maintenance Tips
-
Regular Cleaning: Clean the ice-making system every 6 months using Scotsman Clear 1 Ice Machine Scale Remover to prevent mineral buildup.
-
Sanitize Water System: Sanitize the water reservoir and components quarterly with a solution of NuCalgon IMS III and potable water to ensure sanitary ice production.
-
Inspect Photo Eye Sensors: Clean photo eye sensors monthly with a cotton swab and scale remover solution to maintain proper ice level control.
-
Clean Air Filter: Remove and clean the air filter every month to prevent airflow restriction and maintain efficient operation.
-
Maintain Condenser: Semi-annually, vacuum the condenser fins to remove dust and debris, ensuring optimal refrigeration performance.
-
Storage Bin Care: Clean and sanitize the ice storage bin weekly to prevent contamination and ensure ice quality.
-
Exterior Cleaning: Wipe down the exterior panels with a stainless steel cleaner to remove fingerprints and maintain appearance.
