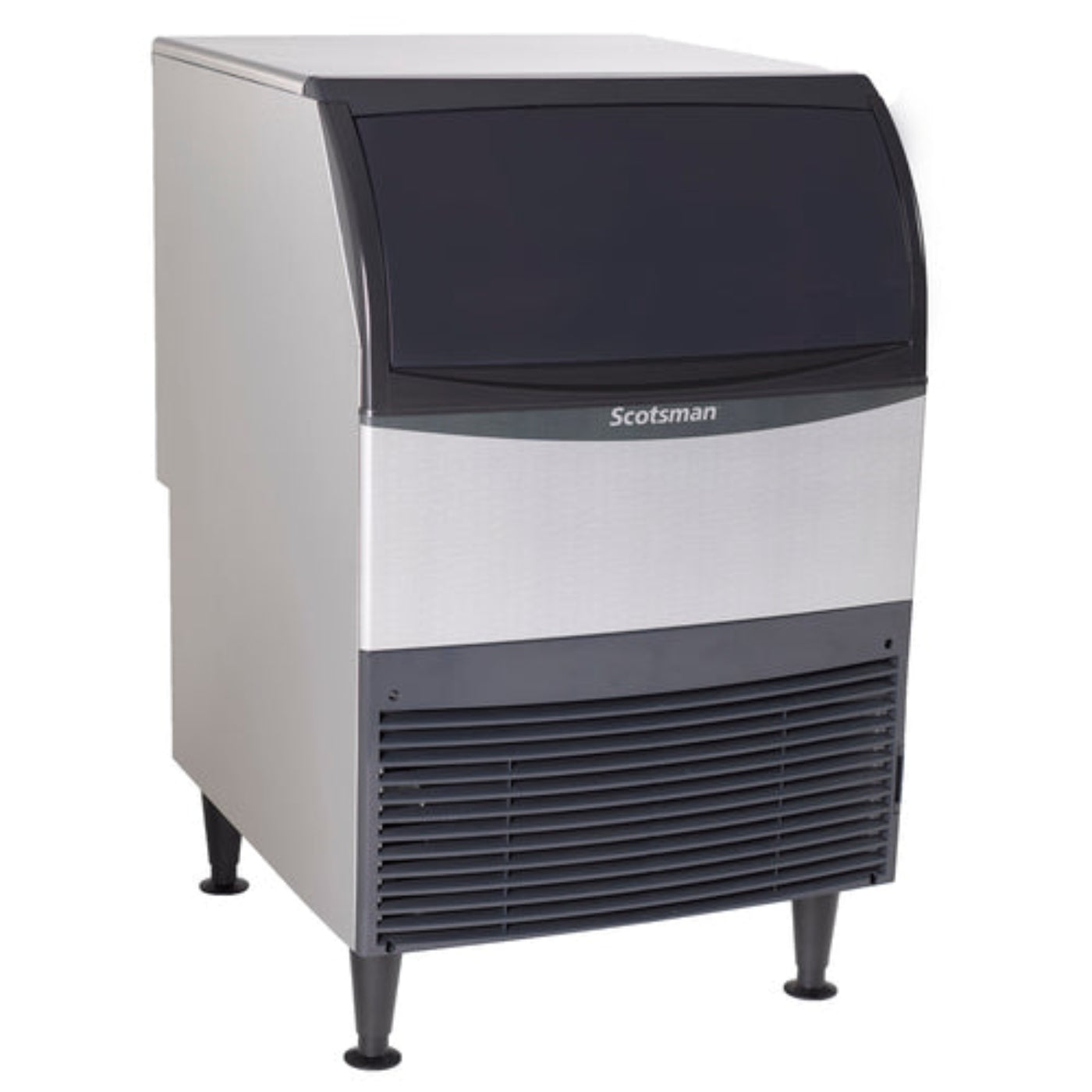

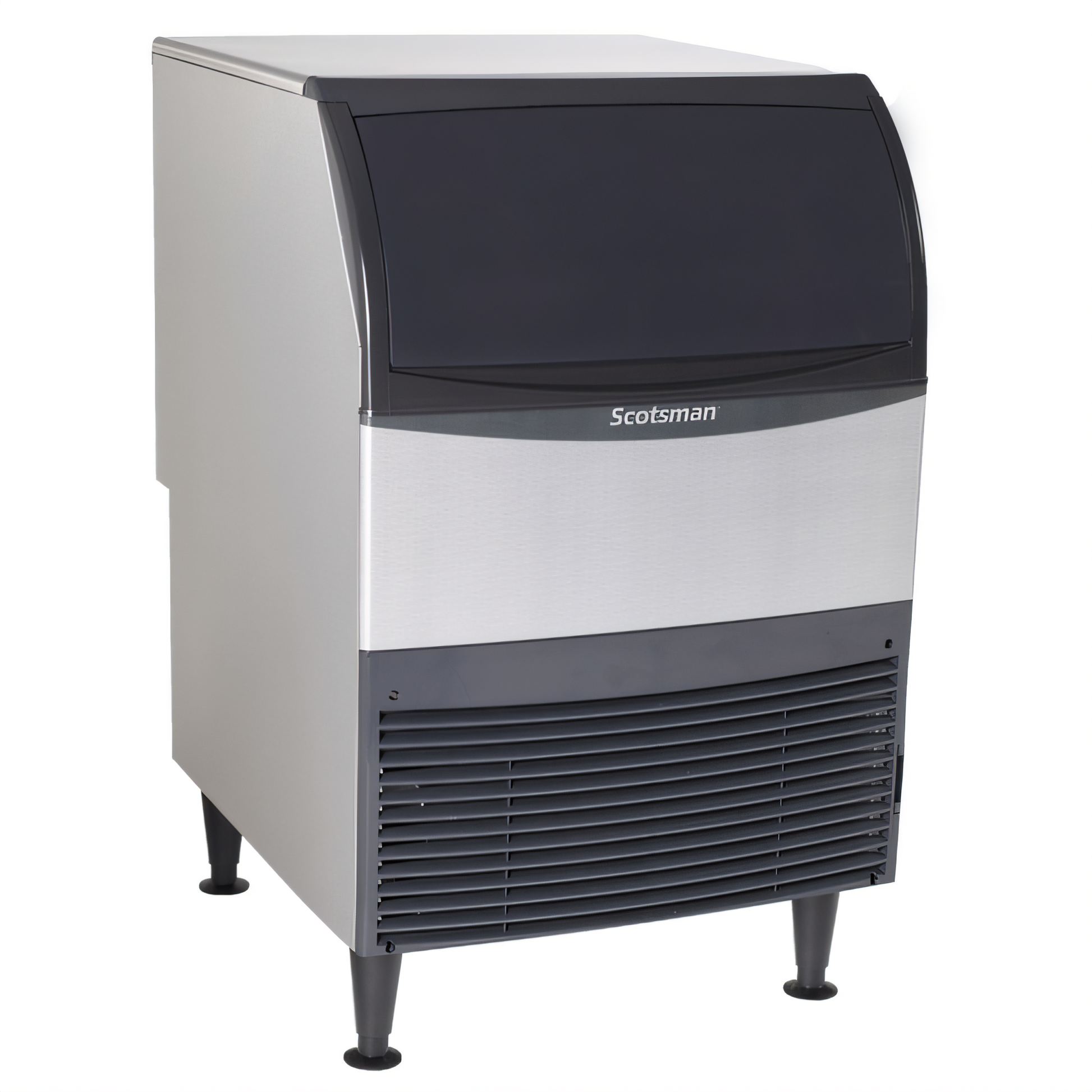

Scotsman Ice Machines - UN324A-1
Undercounter Ice Maker with Bin, nugget style, air cooled, 24" width, self contained condenser, production capacity up to 340 lb production/24 hours at 70°/50° (266 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, H2 Nugget Ice, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, 115v/60/1-ph, includes 5.5' power cord with NEMA 5-15P plug, cULus, NSF, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
210.0 lbs |
| Bin Storage Capacity |
80 lb (51 - 100 lb range) |
| Cooling Type |
Air-cooled |
| Ice Production (24 hr) |
Up to 340 lb at 70°F air / 50°F water |
| 266 lb AHRI certified at 90°F air / 70°F water |
|
| Ice Type |
Nugget (H2 Nugget Ice) |
| Finish |
Stainless steel |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Refrigeration |
Self-contained refrigeration |
| Materials |
Stainless steel auger & evaporator |
| Bearings |
Sealed, maintenance-free |
| Air Filter |
Front-facing, removable |
| Utility Chase |
Recessed |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v / 60Hz / 1-ph, includes 5.5' power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
Efficient Water-Cooled Technology: Designed to perform well in environments with higher temperatures, maintaining consistent ice production.
-
Strong Ice Output: Produces up to 350 lbs of soft, chewable flake ice daily—ideal for bars, restaurants, and medical use.
-
Compact & Space-Saving: Undercounter design fits seamlessly into smaller spaces without sacrificing performance.
-
Top-Quality Flake Ice: The soft, moldable ice is perfect for beverages, seafood displays, and other applications where ice quality is key.
-
Trusted Scotsman Brand: Known for durability and cutting-edge innovation in commercial ice machines, Scotsman ensures long-lasting reliability.
-
Ease of Maintenance: Front-access service and self-cleaning features reduce time and cost spent on upkeep.
-
Energy-Efficient: Water-cooled design reduces energy consumption, helping to lower overall operational costs.
-
ADA Compliant: Meets accessibility standards for a more inclusive and user-friendly setup.
Q&A
Q: What is the Scotsman UN324A-1 Ice Machine?
The Scotsman UN324A-1 is a compact, air-cooled undercounter nugget ice machine designed for commercial use. It produces up to 340 lbs of nugget ice per day and stores up to 80 lbs, making it ideal for high-demand environments with limited space.
Q: What type of ice does it produce?
It produces chewable nugget ice, perfect for beverages, blended drinks, and healthcare applications.
Q: Is it energy-efficient?
Yes, it meets U.S. federal energy efficiency requirements and uses non-ozone-depleting R-134A refrigerant.
Q: Where is it manufactured?
The Scotsman UN324A-1 is designed, engineered, and assembled in the USA
Maintenance Tips
-
Regular Cleaning: Use Scotsman Clear 1 Ice Machine Scale Remover to clean the ice-making system every 6 months. Mix 4 oz with 1.5 qt of warm water (90–110°F), pour into the reservoir, and run the cleaning cycle until the solution is used up. Drain and rinse thoroughly.
-
Sanitize Water System: Mix 4 oz of NuCalgon IMS III with 2.5 gallons of potable water to create a 200 ppm solution. Pour into the reservoir, run the machine for 15 minutes, then drain and rinse.
-
Clean Photo Eye Sensors: Remove sensors using a cotton swab and cleaning solution, rinse with clean water, and reinstall.
-
Bin Maintenance: Clean the ice storage bin weekly with a solution of Scotsman Clear 1 and potable water. Rinse and sanitize all surfaces that contact ice.
-
Air Filter Cleaning: Remove the front-accessible air filter monthly. Wash with warm water and a mild detergent, rinse thoroughly, and reinstall.
-
Condenser Care: Every 6 months, vacuum or lightly brush the condenser fins to remove dust and debris. Ensure proper airflow for efficient operation.
-
Exterior Cleaning: Wipe down stainless steel panels with a quality cleaner to remove fingerprints, dust, and grease. Avoid using chlorine-based cleaners on the exterior.
