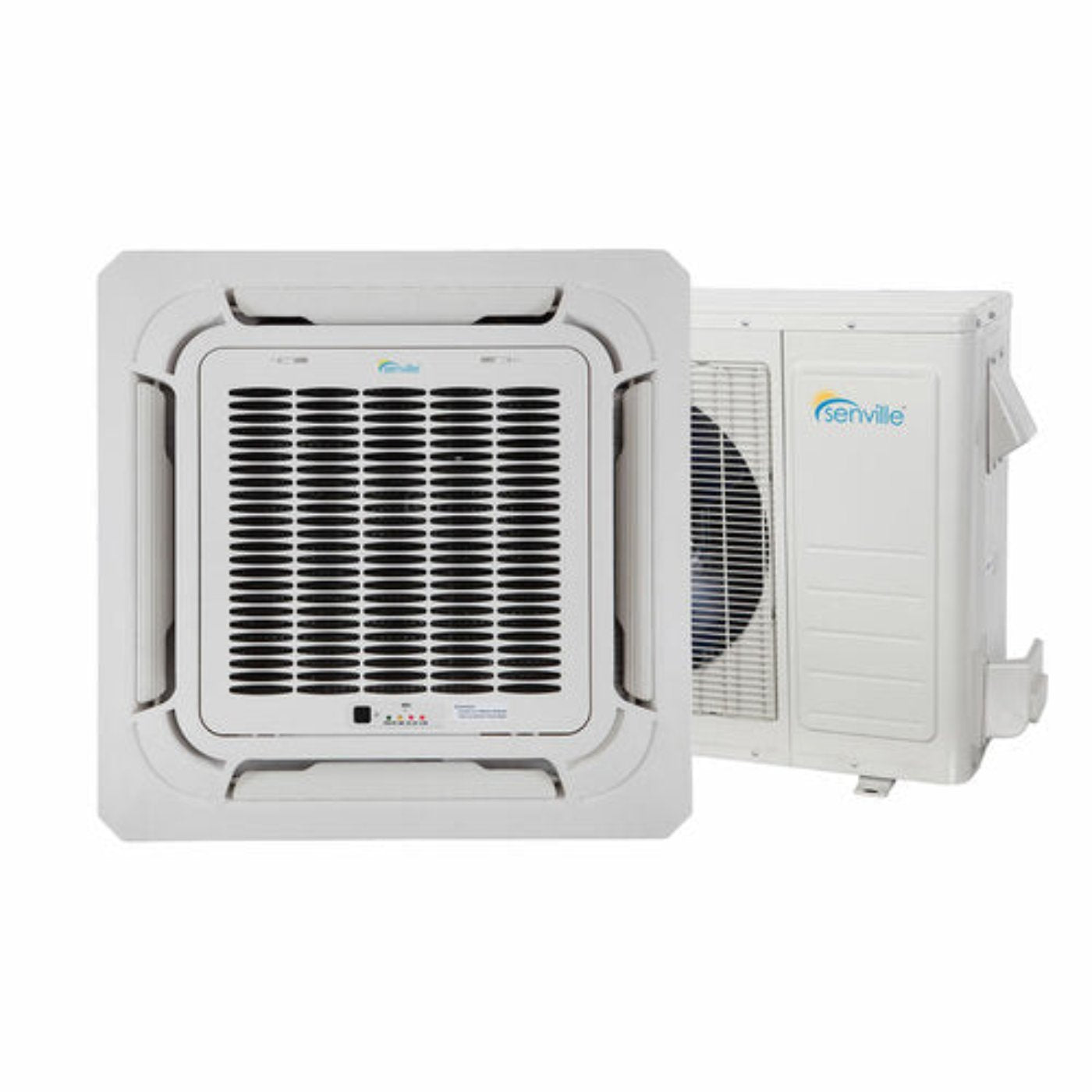

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC

Looking for a ductless air conditioning/heat pump without the traditional air handler?  Are you looking for that ceiling duct look with out the installation trouble of a traditional duct system? Check out the Senville AURA Series Ceiling Cassette air conditioner and heat pump kits.

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 20.5 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud offer one of the most advanced heating and cooling systems in the world. Our Ultra-Inverter Technology, allows our mini split systems to provide cooling and heating at up to -22F, with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating, all year round, even in the coldest climates.  Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

• 20.5 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Low Ambient Cooling (Up to -30C / -22F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)

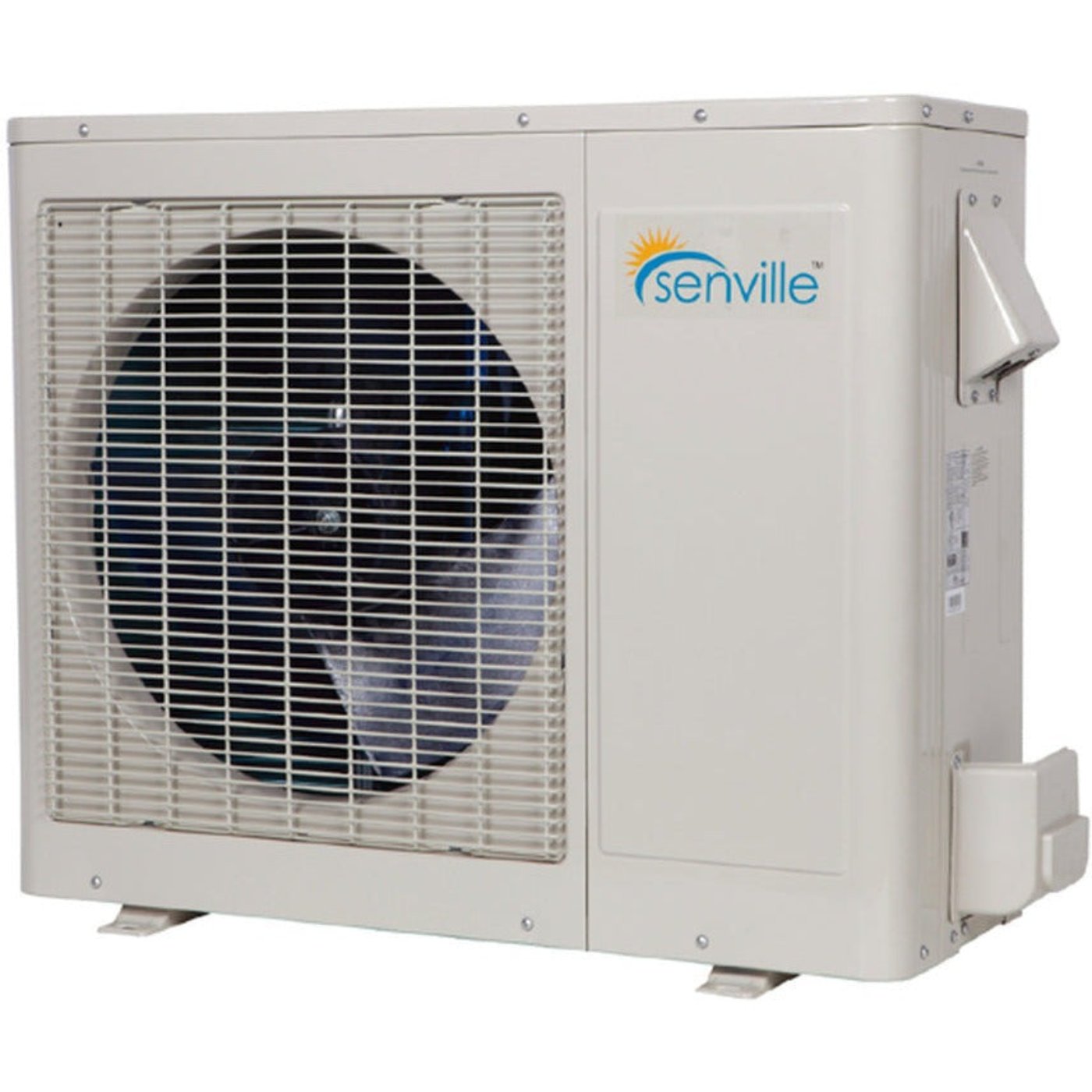

• Senville AURA Series 9,000 BTU Mini Split AC/Heat Pump
• Senville Indoor Ceiling Cassette

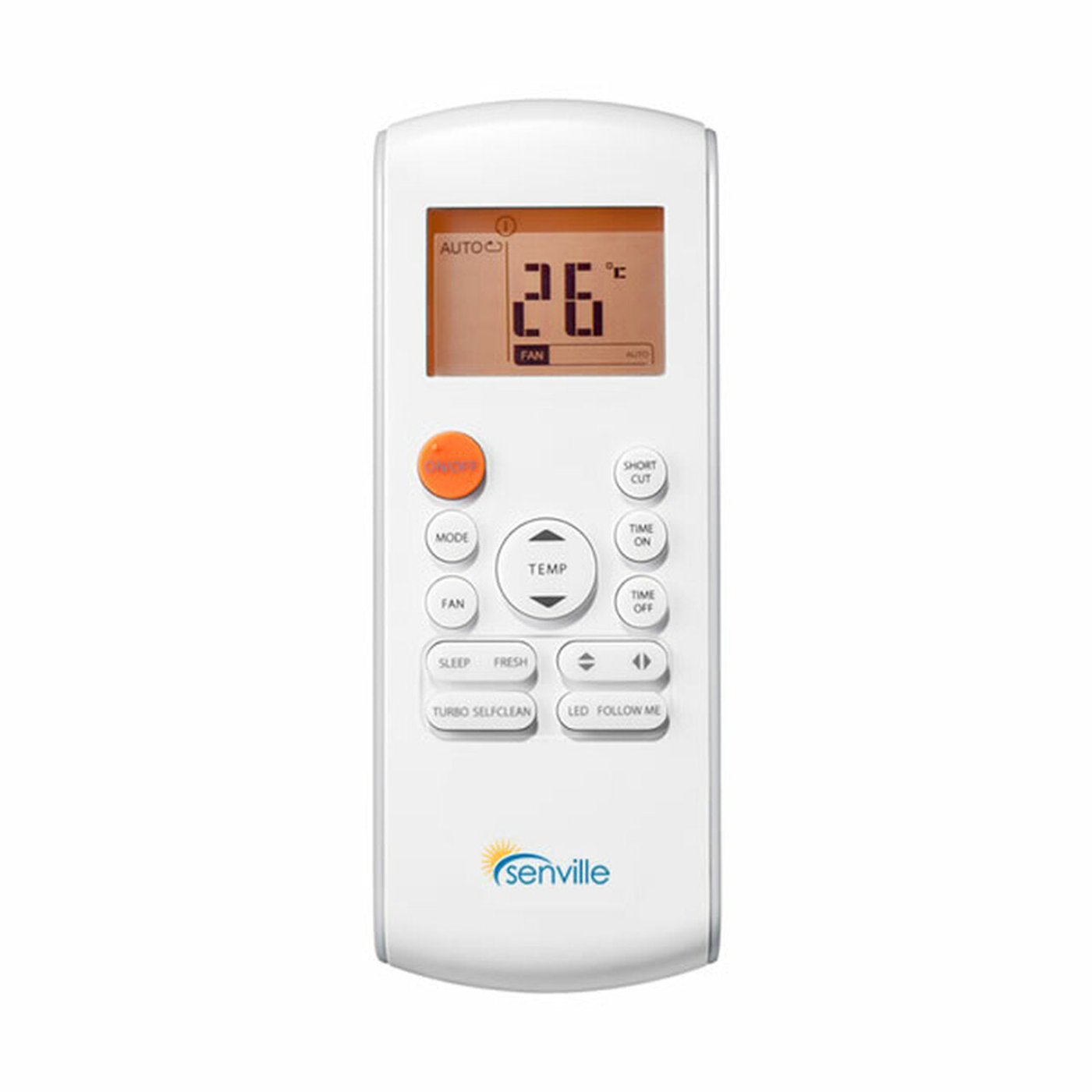

• Remote Control
• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

• Model Number:  SENA-09HF-ICQ
• Style:  Ceiling Cassette Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range:  187-253
• SEER:  20.5
• EER:  13
• Cooling (Range):  2850~11100
• Input (W):  692
• Rated current   A:  3.17
• Heating (Range):  2270~12500
• Input (W): 1000
• Rated Current (A):  4.58
• HSPF4:  10.8
• HSPF5:  9
• COP W/W:  2.93
• Minimum Circuit Ampacity (A):  15
• Max. Fuse (A):  15
• Indoor Dimensions (WxDxH) (in.):  22.44x22.44x10.24
• Indoor Air Flow (H/M/L) CFM:  352.94/305.88/270.59
• Indoor Noise Level (H/M/L) dB:  39.5/36/32.5
• Outdoor Dimensions (WxDxH) (in.):  31.69x12.99x21.81
• Outdoor Noise Level dB:  54.5
• Outdoor Air flow  (Max) CFM:  1323.5
• Refrigerant Type:  R410A / 41.62 Oz
• Refrigerant Pre-charge:  25 Ft.
• Thermostat Type:  Remote Control
• Connection Wiring:  14*4 AWG
• Warranty:  10 Years Compressor / 5 Years Parts
• Application Area (8Ft Ceilings):  400Sqft.
• Warning: California Proposition 65

Cassette Sizing and Clearance:

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC Installation Manual

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC Cassette Installation Guide

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC Energy Guide

• 9000 BTU Capacity: Provides efficient cooling and heating for smaller to medium-sized rooms, offering year-round comfort with minimal energy consumption.
• Dual Function (Cooling & Heating): The integrated heat pump delivers both cooling and heating capabilities, ensuring optimal climate control in any season.
• Ceiling Cassette Design: The sleek, space-saving installation seamlessly integrates into your ceiling, freeing up floor space and maintaining a clean aesthetic.
• Energy-Efficient Operation: Designed to reduce power consumption while maintaining reliable performance, making it an eco-friendly choice for smaller rooms.
• Quiet Performance: Operates quietly, providing comfortable climate control without the disruptive noise of traditional systems.

Q: What is the Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC?
A: A compact, energy-efficient ceiling cassette air conditioner and heat pump unit designed for discreet, powerful heating and cooling in residential or commercial spaces.

Q: What are its key features?
A:

• 9,000 BTU Capacity: Ideal for small to medium-sized rooms.
• Heat Pump Functionality: Provides both cooling and heating for year-round climate control.
• Ceiling Cassette Design: Installs seamlessly into drop ceilings, saving wall and floor space.
• Energy Efficiency: Equipped with inverter technology for reduced energy consumption.
• Quiet Operation: Minimal noise levels for added comfort.
• Remote Control: Includes a user-friendly remote for convenient temperature adjustments.

Q: Why choose the Senville SENA/09HF/IC?
A: Perfect for those seeking an unobtrusive, efficient, and reliable solution for maintaining comfortable indoor temperatures in smaller spaces.

Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure proper setup and optimal performance.

Q: What are its applications?
A: Suitable for residential rooms, offices, or small commercial areas requiring efficient climate control.

• Filter Cleaning: Check and clean the air filters monthly. Remove the filters, wash them with warm soapy water, rinse thoroughly, and allow them to dry before reinstalling. This ensures optimal airflow and efficiency.
• Inspect Airflow: Ensure that the air intake and outlet are free of obstructions. Clear away any debris or dust buildup around the unit.
• Regular Coil Maintenance: Inspect the evaporator and condenser coils periodically. Clean them with a soft brush or coil cleaner to remove dust and prevent reduced cooling/heating performance.
• Check Drain Lines: Inspect the condensate drain lines to ensure they are not clogged. Flush them with a mixture of water and vinegar to prevent mold or algae buildup.
• Remote Control Maintenance: Keep the remote control clean and replace the batteries as needed for seamless operation.
• Inspect for Leaks: Periodically check for refrigerant leaks or unusual noises from the unit. Contact a certified technician if any issues arise.
• Seasonal Shut-Down: Before periods of extended inactivity (e.g., winter for cooling), clean the unit thoroughly and ensure all components are in good condition. Cover the outdoor unit to protect it from debris.
• Professional Servicing: Schedule professional maintenance annually to inspect the refrigerant levels, electrical connections, and overall system performance.
• Monitor Settings: Use energy-efficient settings for cooling and heating to reduce wear and tear on the system and improve its lifespan.
• Power Down for Cleaning: Always turn off the unit and disconnect it from the power supply before performing maintenance.
