Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/18HF/ID

Looking for the best concealed duct mini split air conditioner heat pump that will offer a versatile and affordable solution to cooling and heating your tiny home?  Look no further than the Senville AURA Series mini split air conditioners and heat pumps!

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 19.6 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud to offer one of the most advanced heating and cooling systems in the world. The AURA Series is equipped with Ultra-Inverter Technology, which allows their mini split systems to provide cooling and heating at up to -22F/-30C.  With up to 75% efficiency, you won't experience any additional cost overages on your energy as temperatures drop. Ultra-Inverter Technology drastically helps the ductless system reach such high SEER ratings. Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville Aura Series is fully certified by Energy Star for the highest levels of energy efficiency. With ultra energy efficient air conditioners, you can expect to save upwards of 40% on your energy costs annually. This model makes a great companion for anyone looking to cool and/or heat their home or business, while minimizing running costs in the long-term.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

Features

• 19.6 SEER (CEE Tier 2)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Built-In De-humidification Function
• Low Ambient Cooling (Up to -15C / 4F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System

 Included with your purchase

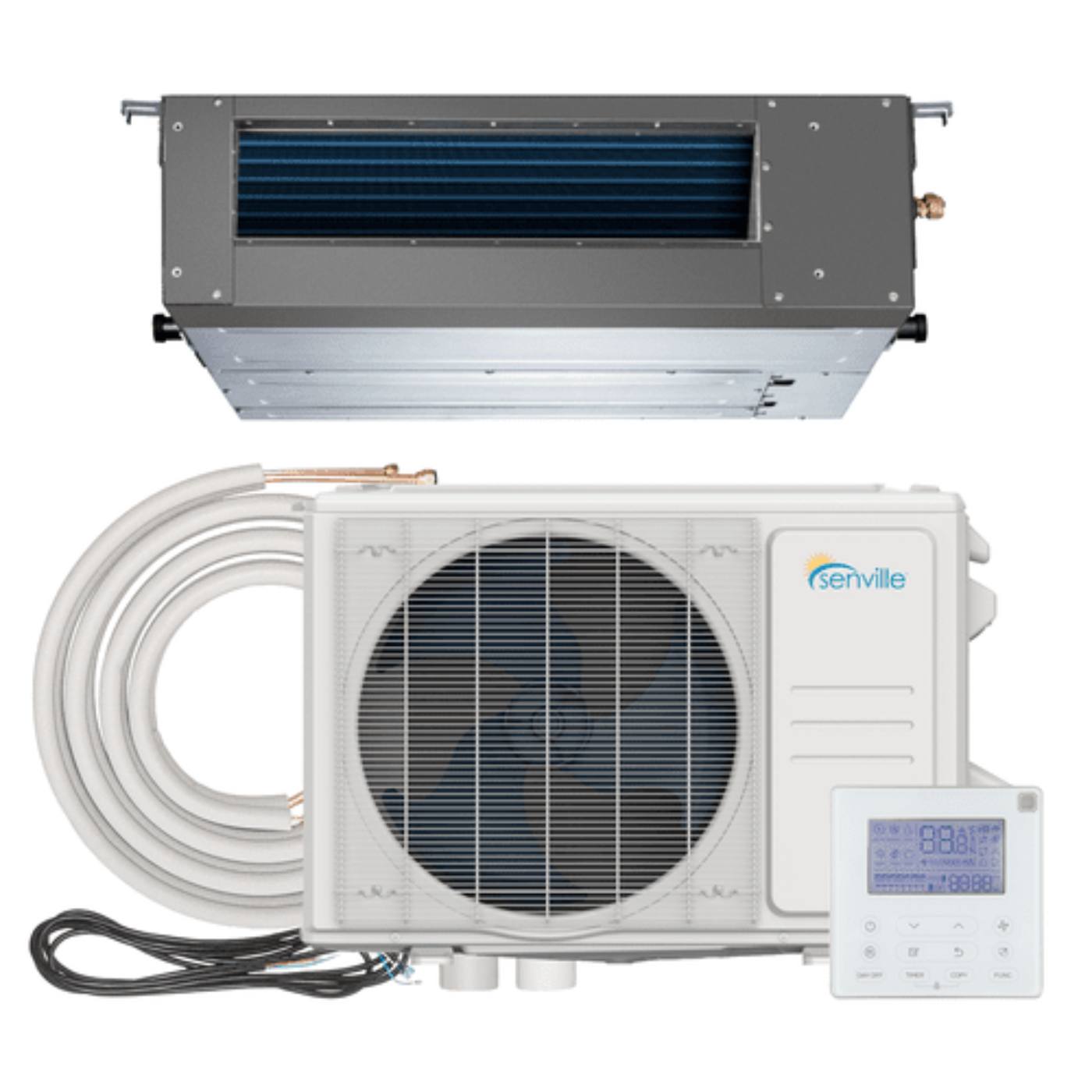

• Senville AURA Series 18,000 BTU Mini Split AC/Heat Pump
• Wired Remote Control Thermostat
• Installation Kit - 16ft, 25ft, or 50ft (wiring not included with the 50ft)
• Owner's Manual
• Installation Manual

Warranty

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

***Professional Installation Required: This unit must be installed by a state certified or licensed HVAC professional in order for the 10-year limited warranty to be valid.***

Specifications

• Model Number:  SENA-18HF-IDQ
• Style:  Concealed Ducted Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz):  208/230V, 1Ph, 60Hz
• Voltage Range:  187-253
• SEER:  19.6
• EER:  12.5
• Cooling (Range):  6500~18800
• Input (W):  1320
• Rated current   A:  8.5
• Heating (Range):  8900~22000
• Input (W): 1900
• Rated Current (A):  11.5
• HSPF4:  11
• HSPF5:  9
• COP W/W:  2.93
• Minimum Circuit Ampacity (A):  16
• Max. Fuse (A):  25
• Indoor Dimensions (WxDxH) (in.):  34.65x28.53x8.27
• Indoor Air Flow (H/M/L) CFM:  529.41/450.00/370.59
• Indoor Noise Level (H/M/L) dB:  40/37.5/35
• Outdoor Dimensions (WxDxH) (in.):  35.04x13.46x26.50
• Outdoor Noise Level dB:  59
• Outdoor Air flow  (Max) CFM:  1764.7
• Refrigerant Type:  R410A / 65.2 Oz
• Refrigerant Pre-charge:  25 Ft.
• Connection Wiring:  14*4 AWG
• Thermostat Type:  Wired Wall Remote Control
• Warranty:  10 Years Compressor / 5 Years Parts
• Application Area (8 Ft Ceilings):  1100 sq. ft.

Downloads

Senville AURA18000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/18HF/ID Installation Manual

Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/18HF/ID Concealed Duct Installation Guide

Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/18HF/ID Energy Guide

What Our Experts Think

• Concealed Duct Design: The Senville AURA 18,000 BTU Mini Split Concealed Duct system provides a discreet and sleek air distribution solution, ideal for maintaining aesthetics without compromising performance.
• Year-Round Comfort: Offers both heating and cooling, making it a versatile choice for maintaining a comfortable environment in any season.
• Energy Efficient: Advanced inverter technology ensures optimal energy usage, providing powerful performance while keeping electricity costs low.
• Quiet Operation: The concealed duct design contributes to quieter operation, ensuring that your space stays comfortable without the noise of traditional units.
• Flexible Installation: The system can be easily integrated into various spaces, providing a clean and modern look while ensuring efficient climate control.

Q&A

Q: What is the Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump (SENA/18HF/ID)?
A: A concealed duct mini split system offering 18000 BTUs of cooling and heating capacity, designed for discreet installation with efficient, space-saving climate control.

Q: Who is this system designed for?
A: Ideal for homeowners or businesses seeking a quiet, aesthetically pleasing air conditioning and heating solution without visible units or bulky installations.

Q: What are its key features?
A: 18000 BTU cooling and heating capacity, concealed duct design for hidden installation, energy-efficient inverter technology, quiet operation, and easy-to-maintain filters.

Q: Why choose the Senville AURA Concealed Duct Mini Split?
A: Provides efficient, reliable, and unobtrusive climate control, making it perfect for those looking for a seamless, quiet, and powerful solution for heating and cooling multiple spaces.

Maintenance Tips

• Clean the Air Filters: Check and clean the filters every 2-4 weeks. Wash or vacuum the filters to prevent dust buildup and ensure efficient airflow.
• Inspect the Ductwork: Regularly check the ductwork for any obstructions, dust, or damage. Clean or repair ducts to maintain optimal airflow and system efficiency.
• Clear the Condensate Drain: Ensure the condensate drain is clear to prevent water backup, mold, or mildew formation.
• Clean the Coils: Clean the evaporator and condenser coils once a year to maintain proper heat exchange and performance.
• Check Refrigerant Lines: Inspect refrigerant lines for leaks, damage, or wear. If you notice any issues, consult a professional for repairs.
• Check for Debris: Keep the area around the outdoor unit free of debris, leaves, or dirt to ensure proper airflow and system performance.
• Schedule Professional Service: Have the system professionally serviced once a year to check refrigerant levels, clean the coils, and ensure all components are in good working condition.
• Test the Controls: Ensure the thermostat and remote control are functioning properly and replace batteries as needed to avoid operational interruptions.
• Seasonal Protection: If the system will not be used for a while (e.g., during winter), cover the outdoor unit to protect it from the elements and prevent damage.
