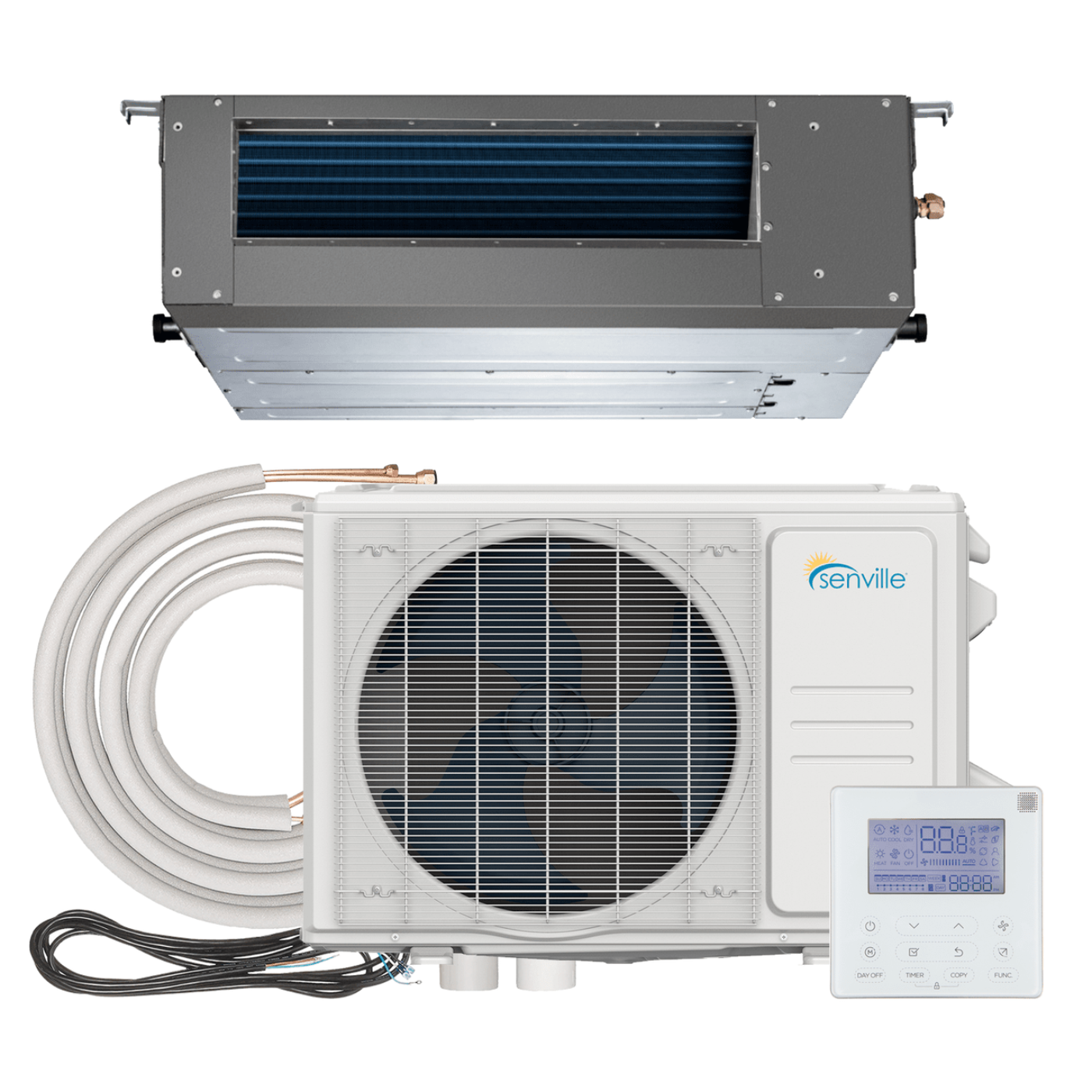

Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/09HF/ID

Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/09HF/ID

Looking for the best concealed duct mini split air conditioner heat pump that will offer a versatile and affordable solution to cooling and heating your tiny home?  Look no further than the Senville AURA Series mini split air conditioners and heat pumps!

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 23 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud to offer one of the most advanced heating and cooling systems in the world. The AURA Series is equipped with Ultra-Inverter Technology, which allows their mini split systems to provide cooling and heating at up to -22F/-30C.  With up to 75% efficiency, you won't experience any additional cost overages on your energy as temperatures drop. Ultra-Inverter Technology drastically helps the ductless system reach such high SEER ratings. Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville Aura Series is fully certified by Energy Star for the highest levels of energy efficiency. With ultra energy efficient air conditioners, you can expect to save upwards of 40% on your energy costs annually. This model makes a great companion for anyone looking to cool and/or heat their home or business, while minimizing running costs in the long-term.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

• 23 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Built-In De-humidification Function
• Low Ambient Cooling (Up to -15C / 4F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)
• Recommended for rooms sized 100-450 sq. ft.

• Senville AURA Series 9,000 BTU Mini Split AC/Heat Pump
• Wired Remote Control Thermostat
• Installation Kit - 16ft, 25ft, or 50ft (wiring not included with the 50ft)
• Owner's Manual
• Installation Manual

• Model Number: SENA-09HF-IDQ
• Style: Concealed Ducted Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253
• SEER: 23
• EER: 14
• Cooling (Range): 2400~12500
• Input (W): 643
• Rated current A: 2.94
• Heating (Range): 1700~15600
• Input (W): 810
• Rated Current (A): 3.71
• HSPF4: 12
• HSPF5: 10
• COP W/W: 3.62
• Minimum Circuit Ampacity (A): 15
• Max. Fuse (A): 15
• Indoor Dimensions (WxDxH) (in.): 27.56x19.92x7.87
• Indoor Air Flow (H/M/L) CFM: 352.94/282.35/176.47
• Indoor Noise Level (H/M/L) dB: 33/30.5/27
• Outdoor Dimensions (WxDxH) (in.): 31.69x12.99x21.81
• Outdoor Noise Level dB: 54.5
• Outdoor Air flow (Max) CFM: 1323.5
• Refrigerant Type: R410A / 41.62 Oz
• Refrigerant Pre-charge: 25 Ft.
• Connection Wiring: 14*4 AWG
• Thermostat Type: Wired Wall Remote Control
• Warranty: 10 Years Compressor / 5 Years Parts Application Area (8 Ft Ceilings): 400 sq. ft.

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/09HF/ID Installation Manual

Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/09HF/ID Concealed Duct Installation Guide

Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/09HF/ID Energy Guide

• Dual Functionality: Provides both cooling and heating, offering year-round comfort.
• 9000 BTU Capacity: Ideal for smaller rooms up to 400 square feet, delivering efficient performance without taking up space.

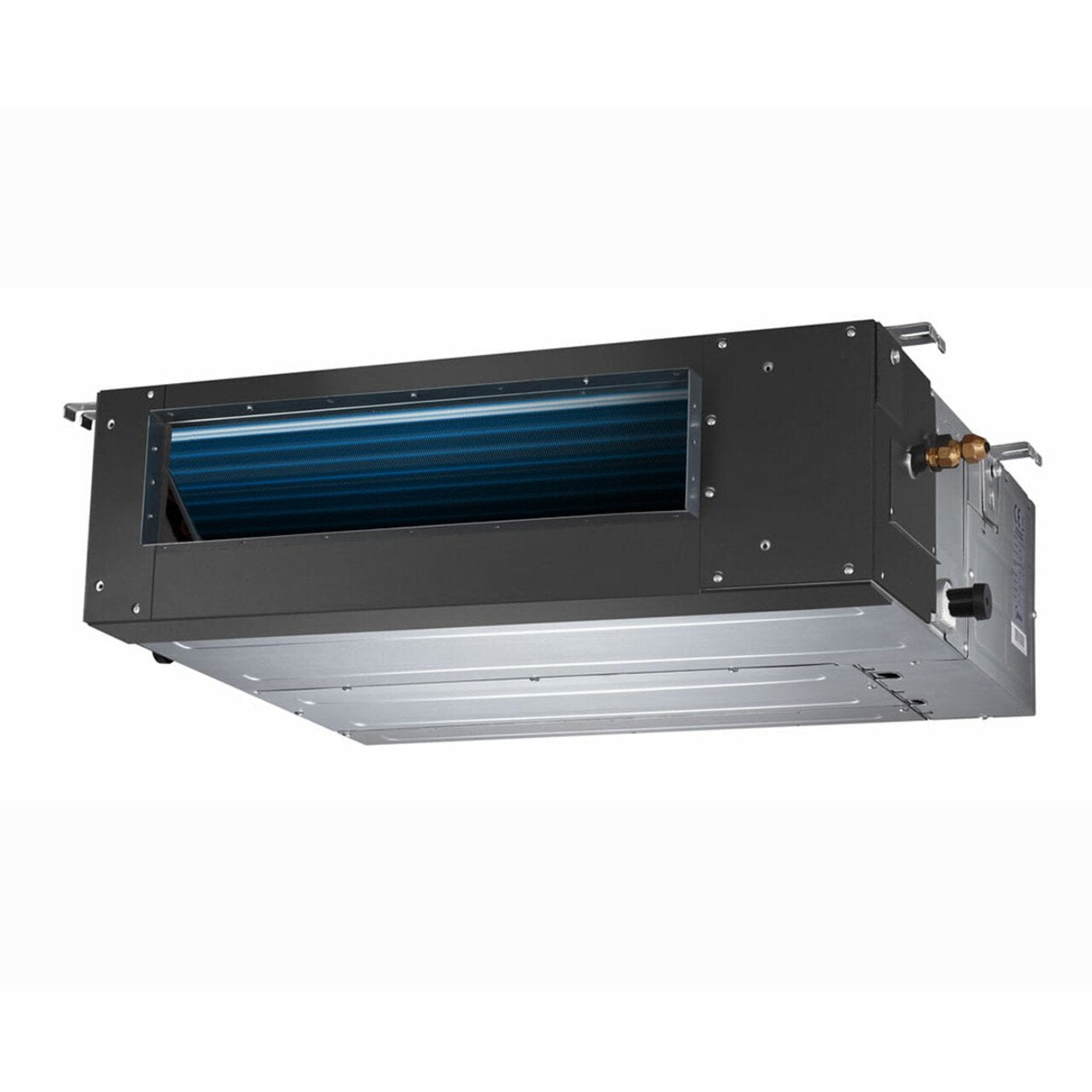

• Concealed Duct Design: Integrates seamlessly into your existing ductwork, providing unobtrusive, centralized climate control.
• Energy Efficient: Designed to minimize energy consumption, lowering your utility bills while maintaining optimal comfort.
• Quiet Operation: Runs quietly, ensuring minimal disruption in bedrooms, living rooms, or offices.
• Easy Installation: Simplifies installation with a straightforward process, ideal for both professional and DIY setups.

Q: What is the Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump?
A: The Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump (SENA/09HF/ID) is a discreet and efficient HVAC system designed for smaller spaces. It provides both cooling and heating and can be hidden within your ceiling or walls for a cleaner, more aesthetically pleasing installation.

Q: How does the concealed duct feature work?
A: The concealed duct feature allows the system’s components to be installed out of sight, with only the discreet vents visible. This setup offers efficient climate control while maintaining the aesthetic of the room.

Q: What size spaces can the Senville AURA 9000 BTU Concealed Duct system cover?
A: This 9000 BTU system is ideal for smaller rooms, typically covering up to 350-450 square feet, depending on factors like insulation and layout.

Q: How does the Senville AURA 9000 BTU Mini Split provide both cooling and heating?
A: This mini split works as both an air conditioner and a heat pump, offering cooling during the warmer months and heating in colder weather. It ensures year-round comfort in one compact system.

Q: Is the Senville AURA 9000 BTU Mini Split Concealed Duct energy-efficient?
A: Yes, this system is designed to provide efficient cooling and heating while minimizing energy consumption, helping to reduce your utility costs.

Q: How quiet is the Senville AURA 9000 BTU Concealed Duct system?
A: The system operates quietly, with most of the components hidden away, making it perfect for areas where noise reduction is important, such as bedrooms or living rooms.

Q: How is the Senville AURA 9000 BTU Concealed Duct system installed?
A: Professional installation is required for this concealed duct system. It should be installed by a licensed HVAC technician to ensure proper setup, especially since the components are integrated into the ceiling or wall.

Q: How do I maintain the Senville AURA 9000 BTU Concealed Duct system?
A: Regular maintenance includes cleaning the filters and ensuring the ductwork is clear of any obstructions. Check the user manual for detailed maintenance guidelines to keep the system running smoothly.

Q: Can this system be used in multi-zone setups?
A: While the 9000 BTU system is typically used for single-zone installations, Senville offers multi-zone mini split options if you need to cool or heat multiple rooms with independent temperature control

• Clean the filters regularly: Clean or replace the air filters every 1-2 months to ensure efficient airflow and better indoor air quality. You can either vacuum or wash the filters with water (make sure they are fully dry before reinstalling them).
• Inspect the coils: Check both the evaporator and condenser coils for dirt or debris buildup. Use a soft brush or coil cleaner to clean the coils and ensure smooth operation and energy efficiency.
• Clear the condensate drain lines: Regularly check the condensate drain lines to make sure they are free from clogs or blockages. Clean the lines to avoid water overflow and ensure proper drainage.
• Monitor refrigerant levels: Have a professional technician check the refrigerant levels to ensure they are within optimal range. Low refrigerant can affect cooling and heating performance.
• Inspect the ductwork: For concealed duct systems, make sure the ducts are clean and free from any leaks or obstructions. Seal any leaks and clean ducts to improve airflow and efficiency.
• Prevent ice build-up: If you notice ice forming on the coils or reduced performance, it could indicate airflow issues or low refrigerant. In this case, contact a technician for a thorough checkup.
• Test the remote control and thermostat: Regularly test the remote and thermostat settings to ensure they are functioning properly and maintaining the desired temperature settings.
• Schedule annual professional maintenance: Have a certified HVAC technician perform annual maintenance to inspect, clean, and service the system to ensure it operates at peak performance.
• Clean the outdoor unit: Keep the outdoor unit clear of debris such as leaves, dirt, and branches to allow for proper airflow. Clean the outdoor coils when necessary to prevent overheating.
