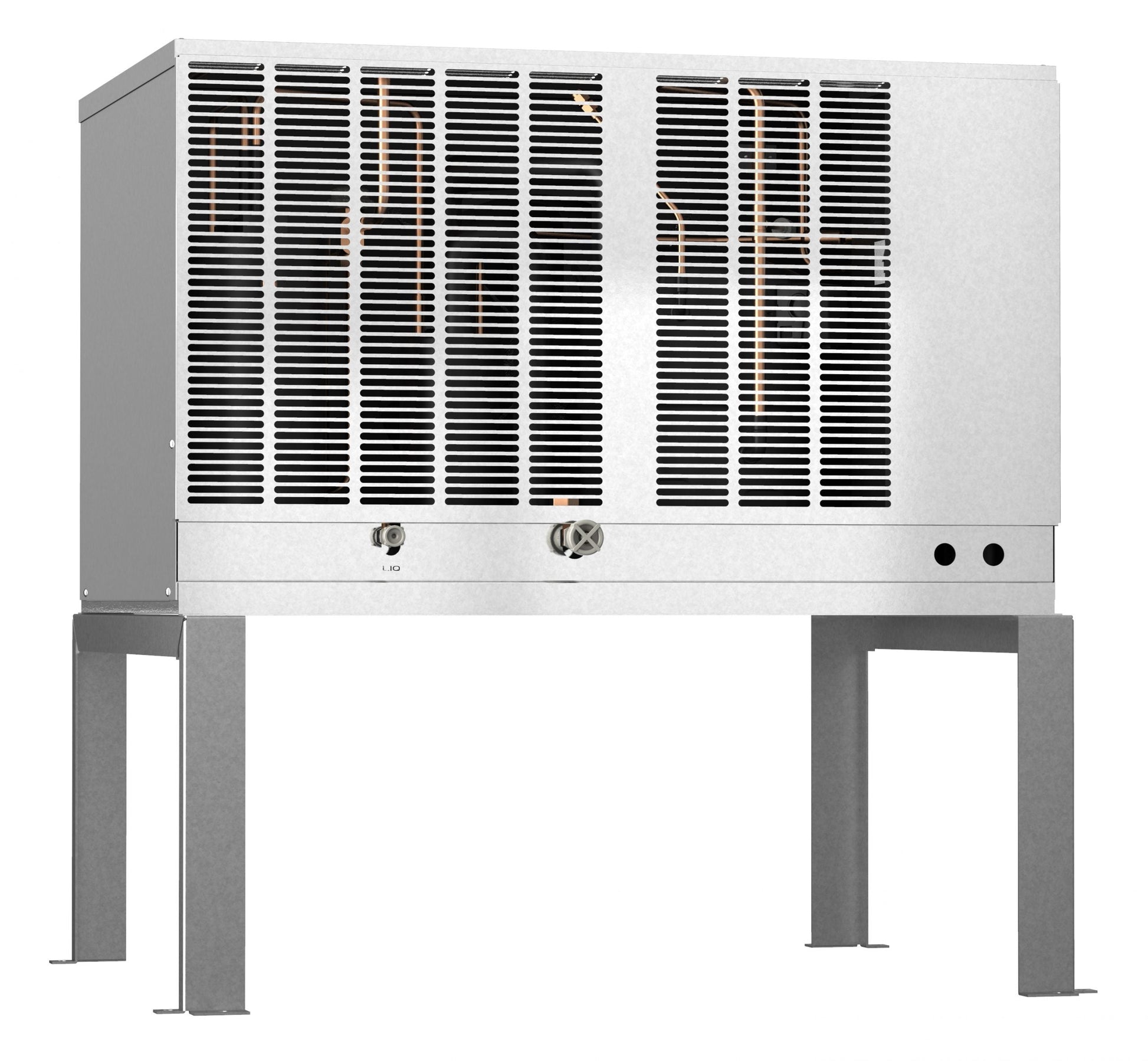

Hoshizaki SRK Series Remote Condenser - SRK-10J
The SRK-10J, SRK Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Brazing & Refrigerant Required (25′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRK-10J Remote Condenser operates on Single Phase, 208-230v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (13 lbs. 10.7 oz. / 6200 g). Compatible icemakers, sold separately: KMS-822MLJ, KMS-830MLJ. The unit is UL Listed and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Features
- Dimensions: 38″ W x 29″ D x 37″ H
- Remote condenser for KMS-822MLJ, KMS-830MLJ
- Quiet operation
- Weather resistant cabinet for longer life
- Must be hardwired at the site (4 wire, including ground)
- Allow 24″ clearance for best performance
- Single Phase, 208-230v/60/1, Must be hardwired at the site (4 wire, including ground)
- R-404a refrigerant (13 lbs. 10.7 oz. / 6200 g)
- Compatible icemakers, sold separately: KMS-822MLJ, KMS-830MLJ
- Three Years: Parts & Labor warranty on entire unit.
- Five Years: Parts warranty on air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
SRK-10J |
| Weight |
230 lbs |
| Width |
35.75" |
| Depth |
23.5" |
| Height |
37" |
| Voltage |
208/230 |
| Phase |
1 |
| Part & Accessory Type |
remote condenser unit |
What Our Experts Think
-
Efficient Cooling: Designed to optimize ice maker performance with consistent, reliable cooling.
-
Quiet Operation: Remote placement reduces noise, making it ideal for commercial environments.
-
Energy Saving: Enhances efficiency while lowering overall energy consumption.
-
Rugged Durability: Built with high-quality materials for long-lasting, dependable use.
-
Easy Maintenance: Accessible components simplify servicing and upkeep.
Q&A
Q: What is the Hoshizaki SRK-10J Remote Condenser used for?
A: It is designed to efficiently dissipate heat from compatible Hoshizaki ice machines, enhancing performance and reducing indoor noise.
Q: Which ice makers are compatible with this condenser?
A: The SRK-10J is compatible with select Hoshizaki ice machine models. Refer to the manufacturer’s specifications for exact compatibility.
Q: Can it be installed outdoors?
A: Yes, it is built for outdoor installation, freeing up indoor space while ensuring efficient operation.
Q: What are its key features?
A: It offers a weather-resistant design, quiet operation, and energy-efficient performance for optimal ice production.
Q: Does it improve energy efficiency?
A: Yes, by reducing the ice machine’s internal heat load, it enhances energy savings and prolongs equipment lifespan.
Q: What are the dimensions and power requirements?
A: Refer to the product manual for precise dimensions and electrical specifications based on installation needs.
Maintenance Tips
-
Clean Condenser Coils: Remove dust and debris monthly to ensure efficient heat dissipation.
-
Inspect Fan Blades & Motor: Keep them free from dirt and obstructions for proper airflow.
-
Check Refrigerant Levels: Ensure adequate levels to maintain optimal cooling performance.
-
Secure Electrical Connections: Tighten loose wiring to prevent malfunctions.
-
Monitor for Unusual Noises: Address vibrations or abnormal sounds to avoid potential damage.
