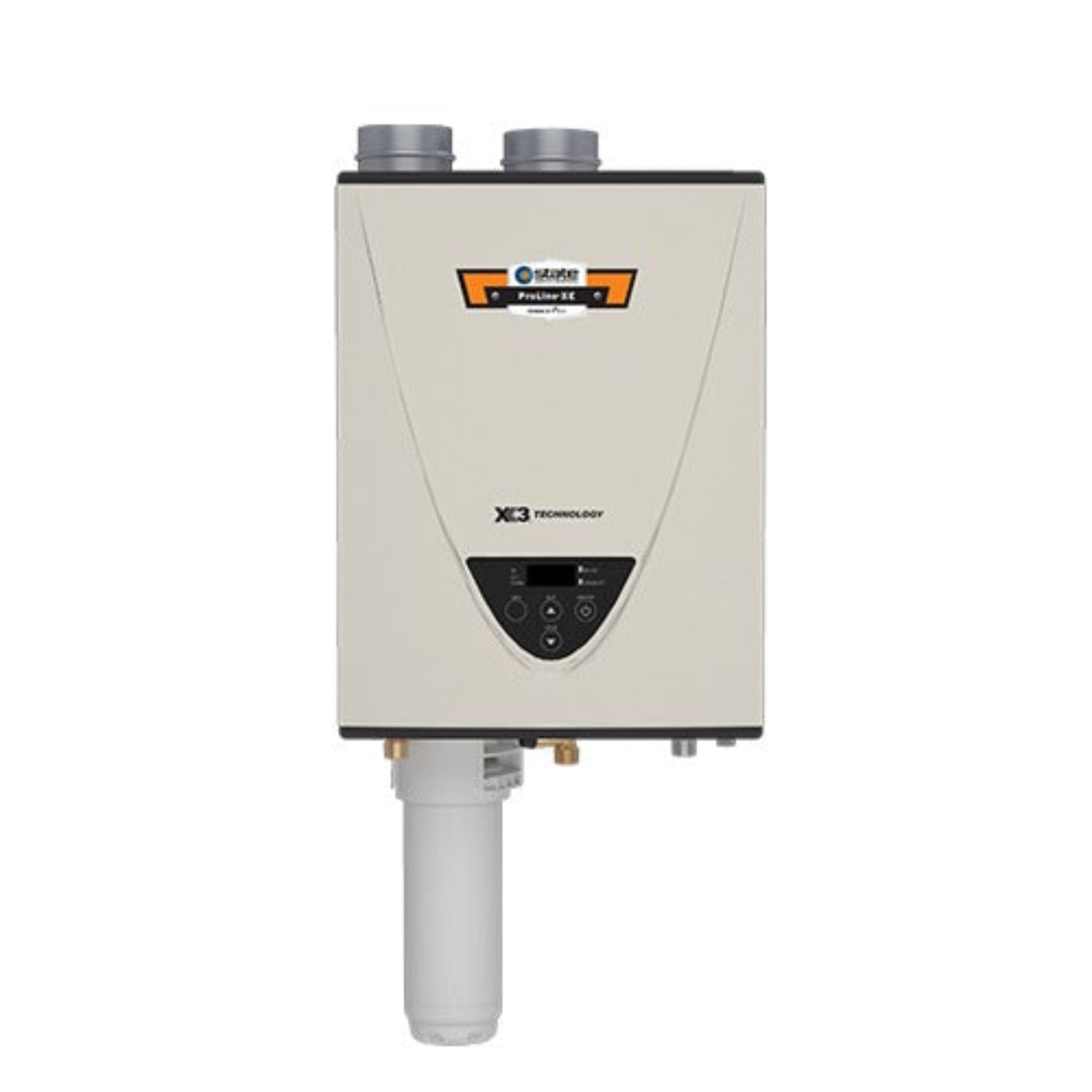

State Proline XE Series 160,000 BTU Condensing Gas Tankless Water Heater - SGTS240X3NIH

SKU SGTS240X3NIH
Save 6% Save 6%
Original price $1,295.00
Original price $1,295.00 - Original price $1,295.00
Original price $1,295.00
Current price $1,217.99
$1,217.99 - $1,217.99
Current price $1,217.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


State Proline XE Series 160,000 BTU Condensing Gas Tankless Water Heater - SGTS240X3NIH

The Proline XE Condensing Ultra-Low NOx series with X3 Scale Prevention Technology is well suited for residential applications. State has combined water heating and treatment in a product designed to revolutionize tankless water heating. Their new condensing gas tankless line features X3 Scale Prevention Technology to last three times longer than other tankless models without X3 Technology.

The GTS-240HX3-NIH tankless water heater uses up to 160,000 BTU/hr of natural gas to deliver an endless supply of hot water for a 2 bath home in northern climates and up to a 3 bath home in southern climates (one shower head per bath).

  • X3 Scale Prevention Technology

  • No annual descaling required

  • No scale buildup means the heater lasts 3 times longer than competiros and maintains like-new performance longer

  • Primary heat exchanger is constructed of a commercial-grade copper that is more resilient to corrorsion than other materials

  • Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion

  • Qualified as lead free under the Safe Drinking Water Act

  • Exhaust and water temperature safety controls

  • Overheat cut-off fuse

  • Air-fuel ratio (AFR) sensor

  • Internal freeze protection system

  • Tankless water heaters with X3 Technology are approved to work with an external recirculation pump and cross-over valve

  • Category III or IV venting can be used

This unit comes with a 15-year limited warranty on the heat exchanger when used in residential application. It also comes with a 5-year limited warranty on all parts. Additionally, this unit has no hardwater exclusions in the industry’s first “peace of mind” limited warranty.

Type Tankless Water Heater
Product Line Proline XE Tankless Series
Medium Hot Water
Fuel Type Natural Gas
Combustion Type Condensing
Vent Type Direct Vent
Storage Type Tankless
Mount Type Wall
Installation Location Indoors
Includes Recirculation Pump No
LP Kit No
Performance
Maximum Input Capacity 160,000 BTU/h
Minimum Input Capacity 15,000 BTU/h
Flow Rate at 40°F (Gallons) 6.6
Flow Rate at 45°F (Gallons) 6.6
Flow Rate at 50°F (Gallons) 6.1
Flow Rate at 60°F (Gallons) 5.1
Flow Rate at 70°F (Gallons) 4.3
Uniform Energy Factor 0.94
Minimum Flow Rate (Gallons) 0.4
Ultra Low NOx Compliant Yes
Electrical Details
Voltage 120 V
Phase 1
Frequency (Hz) 60
Dimensions
Gas Connection Size 3/4"
Cold Water Inlet 3/4"
Hot Water Inlet 3/4"
Product Height 23-5/8"
Product Width 17-3/4"
Product Depth 11-1/4"
Product Weight 72 lbs
Exhaust Diameter 3" or 4"
