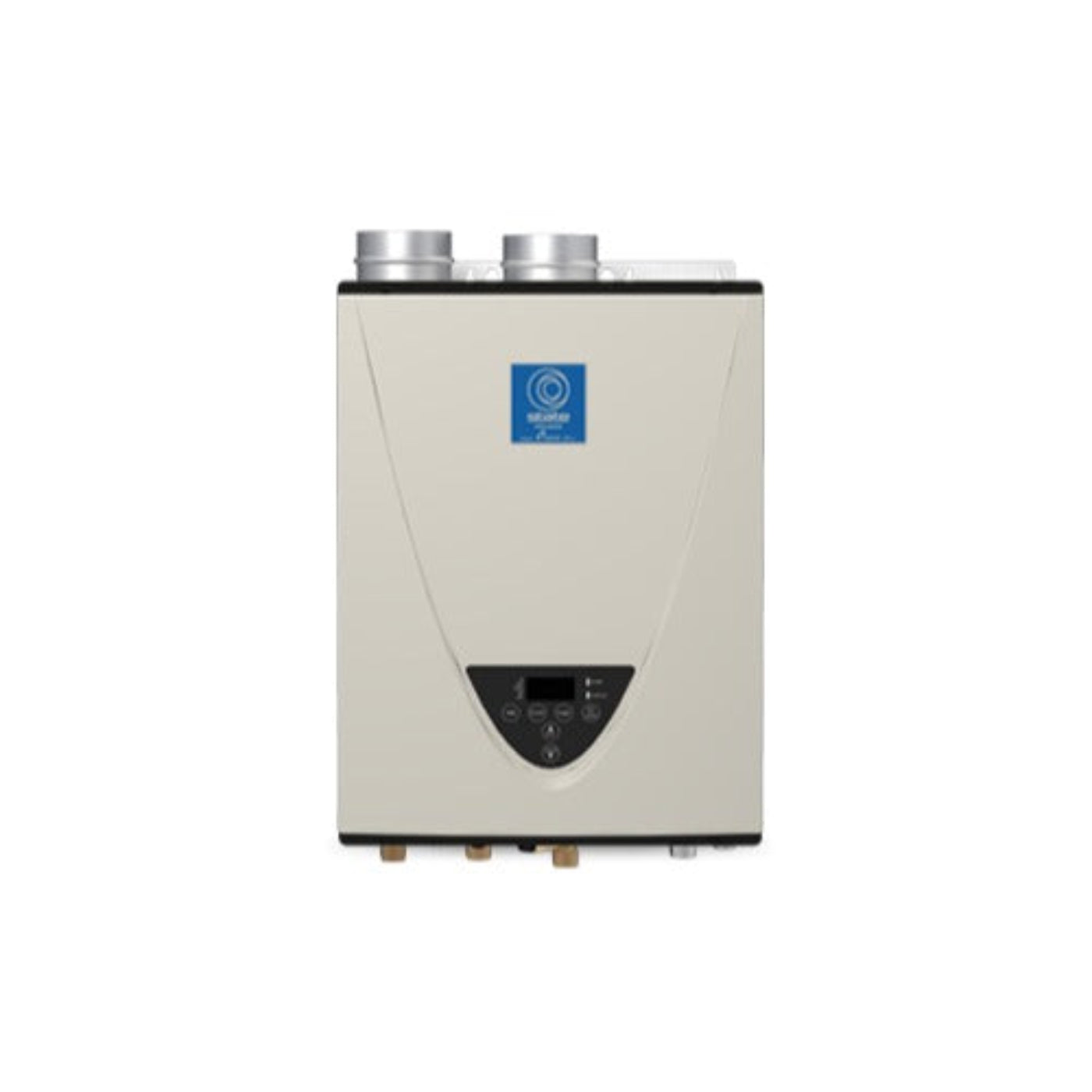

State Proline XE Series 199,000 BTU Condensing Gas Tankless Water Heater with Recirculation Pump - SGTS540PNIH
CLEARANCE SALE.
ITEMS LEFT.
PEOPLE are also watching that product.
CLEARANCE SALE.
ITEMS LEFT.
PEOPLE are also watching that product.
The 540P series integrates a recirculation pump to provide instant hot water in residential applications with dedicated recirculation lines. The pump is easily controlled with a simple user interface and multiple pump settings allow you to customize pump operation to meet your needs while maximizing heater efficiency.
The GTS-540P-NIH indoor tankless water heater uses up to 199,000 BTU/hr of natural gas to deliver an endless supply of hot water for a 3 bath home in northern climates and a 4 bath home in southern climates.
Integrated reciruclation pump
Complies with SCAQMD Rule 1146.2 and other air quality management districts with similar requirements for Ultra-Low NOx emissions requirements of 14 ng/J or 20 PPM
Includes integrated temperature and pump controls with advanced diagnostics that simplify installation and troubleshooting
Factory-installed power cord
Common vent compatible
Easy-link with up to three other units to increase flow rate
Exhaust and water temperature safety contro
Overheat cut-off fuse
Air-fuel ratio (AFR) sensor
Internal freeze protection system
This unit comes with a 15-year limited warranty on the heat exchanger when used in residential application. It also comes with a 5-year limited warranty on all parts.
Type | Tankless Water Heater |
---|---|
Product Line | Proline XE Tankless Series |
Medium | Hot Water |
Fuel Type | Natural Gas |
Combustion Type | Condensing |
Vent Type | Direct Vent |
Storage Type | Tankless |
Mount Type | Wall |
Installation Location | Indoors |
Includes Recirculation Pump | Yes |
LP Kit | No |
Performance | |
Maximum Input Capacity | 199,000 BTU/h |
Minimum Input Capacity | 15,000 BTU/h |
Flow Rate at 40°F | 9.5 Gallons |
Flow Rate at 45°F | 8.4 Gallons |
Flow Rate at 50°F | 7.6 Gallons |
Flow Rate at 60°F | 6.3 Gallons |
Flow Rate at 70°F | 5.4 Gallons |
Uniform Energy Factor | 0.93 |
Minimum Flow Rate | 0.5 Gallons |
Ultra Low NOx Compliant | Yes |
Electrical Details | |
Voltage | 120 V |
Phase | 1 |
Frequency | 60 Hz |
Dimensions | |
Gas Connection Size | 1/2" |
Cold Water Inlet | 3/4" |
Hot Water Inlet | 3/4" |
Product Height | 23-5/8" |
Product Width | 17-3/4" |
Product Depth | 11-1/4" |
Product Weight | 71 lbs |
Exhaust Diameter | 3" or 4" |
