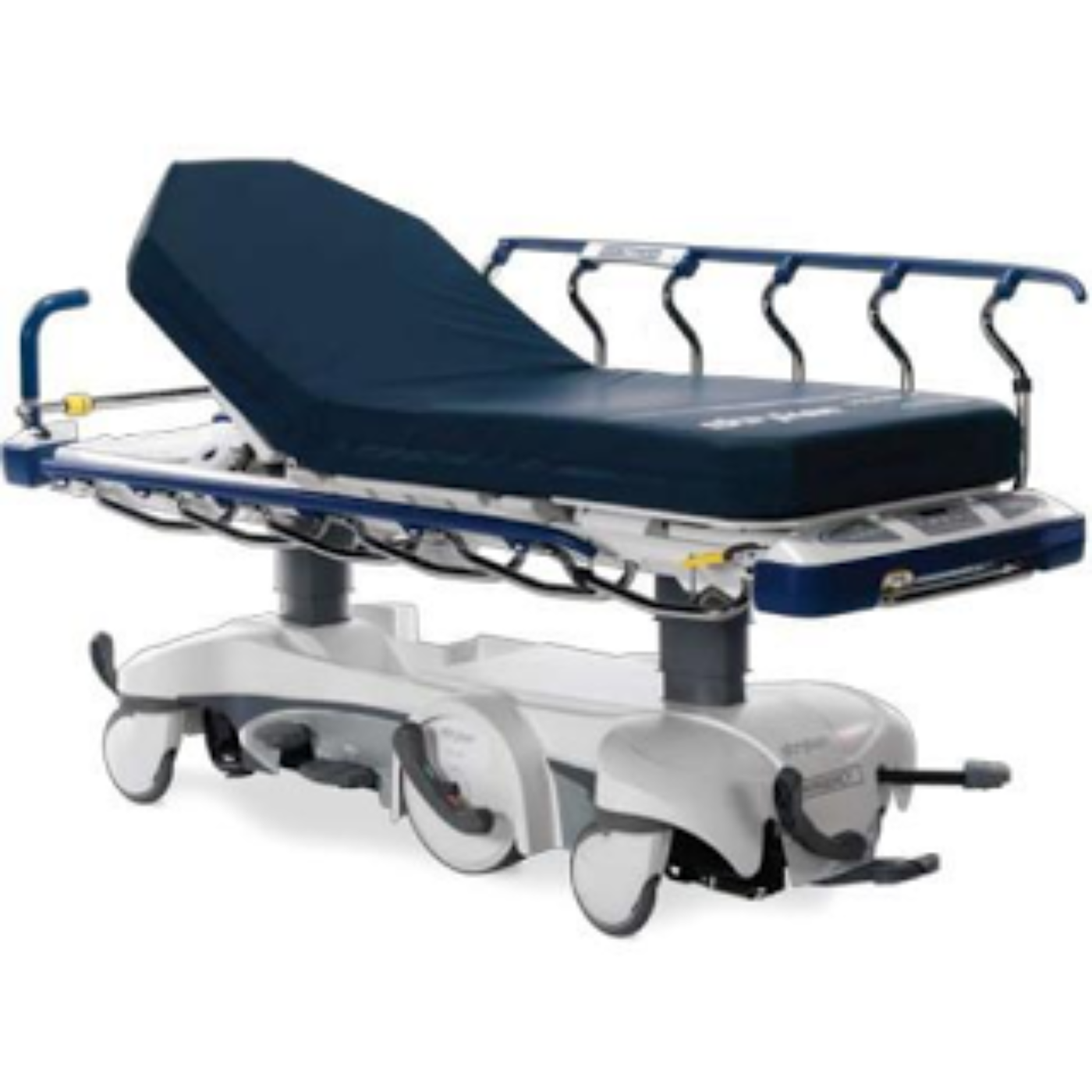

Stryker Prime Series Stretcher - MFI-SYK-1105-26

Stryker Prime Series Stretcher - MFI-SYK-1105-26

The Stryker Prime Series Stretcher is designed to reduce physical strain on clinicians while enhancing patient care and comfort. The Lift Assist Backrest uses a drop-seat design which uses the patient's weight to help raise the head of the bed while cradling the patient to help reduce boosting.

The Stryker Prime Series offers three models, each with its own advanced mobility option:

• #1105 - Retractable Fifth Wheel that makes for easy cornering in tight spaces.
• #1115 - Big Wheel Advanced Mobility that can reduce push force by 50% and steering effort by 60%. Allows for easy transportation of patients.
• #1125 - Zoom Motorized Drive System that virtually eliminates manual push force.

Features

Features

• Thermoformed ABS base with extra capacity storage tray.
• Integrated utility tray.
• Litter-mounted oxygen bottle holder.
• Integrated transfer board.
• Four-wheel center-locking brake system with dual end activators.
• Dual side-mounted foot control hydraulics with uni-lower pedal.
• Glideaway siderails.
• Four integrated IV receptacles.
• +/- Trendelenburg.
• 8" Omni Surface casters with integrated wheel covers.
• Pneumatic backrest/stationary foot.
• Constant descent hydraulics.
• Dual end brake/steer controls.
• Power-washable design (Models 1105 and 1115 only).
• Integrated Scale (optional): Provides accurate repeatable patient weights.

Specifications

Specifications

Stryker Prime Series Stretcher Models

Models

• #1105-26: 26" Patient Surface Width with Retractable Fifth Wheel Steering.
• #1105-26-SC: 26" Patient Surface Width with Retractable Fifth Wheel Steering and integrated scale.
• #1105-30: 30" Patient Surface Width with Retractable Fifth Wheel Steering.
• #1105-30-SC: 30" Patient Surface Width with Retractable Fifth Wheel Steering and integrated scale.
• #1115-26: 26" Patient Surface Width with Big Wheel Advanced Mobility.
• #1115-26-SC: 26" Patient Surface Width with Big Wheel Advanced Mobility and integrated scale.
• #1115-30: 30" Patient Surface Width with Big Wheel Advanced Mobility.
• #1115-30-SC: 30" Patient Surface Width with Big Wheel Advanced Mobility and integrated scale.
• #1125-26: 26" Patient Surface Width with Zoom Motorized Drive System.
• #1125-26-SC: 26" Patient Surface Width with Zoom Motorized Drive System and integrated scale.
• #1125-30: 30" Patient Surface Width with Zoom Motorized Drive System.
• #1125-30-SC: 30" Patient Surface Width with Zoom Motorized Drive System and integrated scale.

Literature

Literature

Stryker Prime Series 1115 Big Wheel Operations Manual

Stryker Prime Series Stretchers Spec Sheet

What our Experts Think

• Improved Mobility: The Stryker Prime Series Stretcher (Model 1105-26) is designed with a retractable fifth wheel, enhancing its maneuverability and making it easier to navigate through tight spaces in healthcare settings.

• Electric Lift Pedal: The stretcher features an electric-powered lift pedal, allowing quick and easy adjustments to the bed height without manual pumping, reducing the effort required for positioning patients.

• Heavy Duty Capacity: The stretcher can support up to 700 lbs (318 kg), making it suitable for a wide range of patients, ensuring reliable and secure transport.

• Customizable Options: With options for an IV pole, patient scale, and varying width, the stretcher can be customized to meet the specific needs of different care environments.

Q&A

Q: What is the Stryker Prime Series Stretcher (Model 1105-26)?
The Stryker Prime Series Stretcher (Model 1105-26) is a full-electric hospital stretcher designed to improve patient care and reduce physical strain on healthcare providers. It features advanced mobility options, ergonomic design, and patient-focused functionality.

Q: How does the Prime Series Stretcher enhance patient care?
The stretcher offers electric functionality for precise positioning, improving patient comfort and safety. Integrated features like oxygen holders and IV receptacles simplify patient care, while the ergonomic design reduces clinician fatigue, improving overall efficiency.

Maintenance Tips

• Regular Cleaning: Wipe down all surfaces, including the mattress platform and siderails, using a mild disinfectant to maintain hygiene.

• Hydraulic System Maintenance: Periodically check the hydraulic fluid levels. If the stretcher fails to raise or lower properly, air in the pump piston or low fluid levels may be the cause.

• Caster and Wheel Inspection: Examine all wheels and casters for smooth movement. Replace any that are damaged or show signs of wear.

• Brake Functionality Test: Ensure that the brake system engages and disengages smoothly. If the brakes are unresponsive, inspect for mechanical issues.

• Electrical Components Check: For electric models, verify that all electrical components, including controls and power connections, are functioning correctly.
