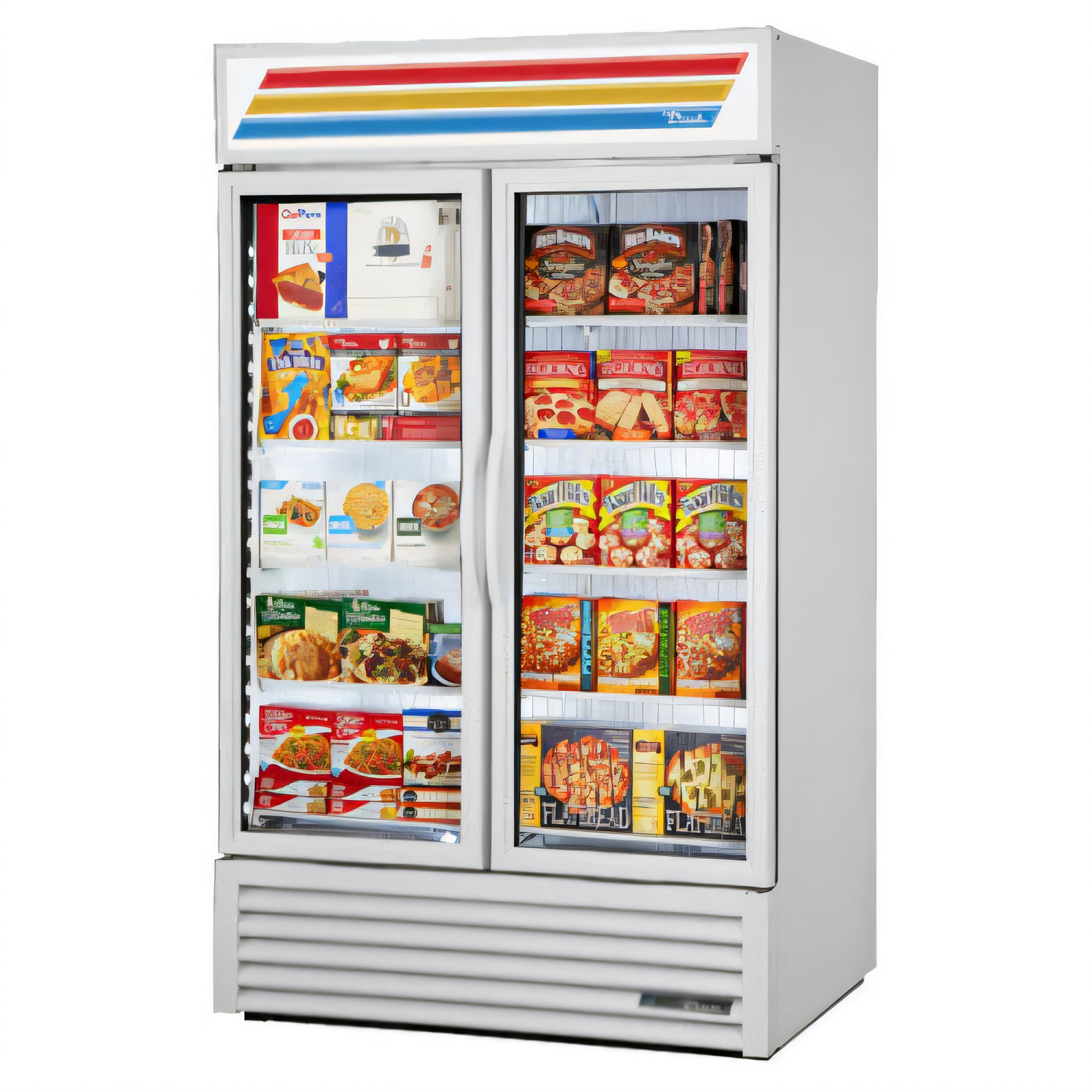

True Mfg. - General Foodservice GDM-49F-HC~TSL01 Glass Door Merchandisers
Freezer Merchandiser, two-section, True standard look version 01, -10°F, (8) shelves, (2) triple-pane thermal glass hinged door, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, All Units Manufactured Before April 4th, 2021 are pre-wired at the factory and is ready for final connection to a single 115/208-230/60Hz single phase, NEMA 14-20R dedicated outlet. All Units Manufactured After April 4th, 2021 are pre-wired at the factory and is ready for final connection to a single 115/60Hz single phase, NEMA 5-20R dedicated outlet. ***Please contact the factory to verify your unit’s electrical specifications***, cULus, UL EPH Classified, Made in USA, ENERGY STAR
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Certifications |
cULus, UL EPH Classified, Made in USA, ENERGY STAR® |
| Model Type |
Freezer Merchandiser, Two-Section |
| Temperature Range |
-10°F |
| Number of Sections |
2 |
| Capacity |
(8) shelves |
| Doors |
(2) Triple-pane thermal glass hinged doors |
| Lighting |
LED interior lights |
| Exterior Finish |
Powder-coated steel exterior, white |
| Interior Finish |
White interior with stainless steel floor |
| Refrigeration Type |
Self-contained, bottom mounted |
| Compressor HP |
3/4 HP |
| Energy Efficiency |
ENERGY STAR® |
| Electrical Requirements |
All units before April 4th, 2021: pre-wired for 115/208-230/60Hz, NEMA 14-20R outlet. |
| After April 4th, 2021: pre-wired for 115/60Hz, NEMA 5-20R outlet. |
|
| Height |
78.63 inches |
| Width |
54.13 inches |
| Depth |
29.88 inches |
| Shipping Weight |
600.0 lbs |
| Casters |
Not specified, but typically includes castors in similar units |
What our Experts Think
-
Optimal Temperature Control: Maintains a consistent -10°F (-23.3°C), suitable for frozen foods and ice cream.
-
Energy Efficient: Equipped with an ENERGY STAR® certified system, utilizing R290 hydrocarbon refrigerant for eco-friendly operation.
-
Enhanced Visibility: Features triple-pane thermal insulated glass doors and LED interior lighting for clear product display.
-
Durable Construction: Built with a white powder-coated steel exterior and NSF-approved white aluminum interior with stainless steel floor.
-
User-Friendly Design: Includes self-closing doors with positive seal, torsion-type closure system, and bottom-mounted compressor for easy maintenance.
Q&A
Q: What is the True GDM-49F-HC~TSL01 Glass Door Merchandiser?
A: It’s a two-section, commercial glass door freezer designed for efficient frozen product display in high-traffic foodservice environments.
Q: How much storage space does it offer?
A: Provides 49.5 cu. ft. of frozen storage with eight adjustable, heavy-duty wire shelves for organized display.
Q: Is it energy efficient?
A: Yes, it is ENERGY STAR® certified, designed to minimize energy usage while maintaining optimal refrigeration performance.
Q: Where is it best used?
A: Ideal for grocery stores, supermarkets, and convenience stores requiring reliable frozen storage with enhanced product visibility.
Maintenance Tips
-
Clean Condenser Coils Regularly: Use a soft brush or vacuum to remove dust and debris every 3–6 months to maintain optimal airflow and efficiency.
-
Inspect Door Seals: Check gaskets monthly for wear or damage. Replace if necessary to ensure a tight seal and energy efficiency.
-
Defrosting: Utilize the automatic defrost system. If manual defrosting is needed, follow the manufacturer's guidelines.
-
Maintain Temperature Settings: Ensure the unit operates within the optimal range of -10°F, and regularly monitor temperatures to ensure consistent performance.
-
LED Lighting Care: Check LED lights periodically and replace if they dim or burn out to maintain product visibility.
-
Regular Cleaning: Wipe down the interior and exterior with mild detergent and warm water to prevent buildup of dirt and grime.
-
Check Drainage: Ensure drainage lines are clear to prevent water buildup and leaks.
