Wine Guardian TTW04 Defender - Through the Wall Wine Cellar Cooling Unit - 50Hz - 1779454778482_132

Wine Guardian TTW04 Defender - Through the Wall Wine Cellar Cooling Unit - 50Hz - 1779454778482_132

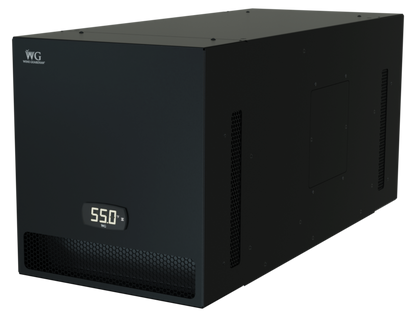

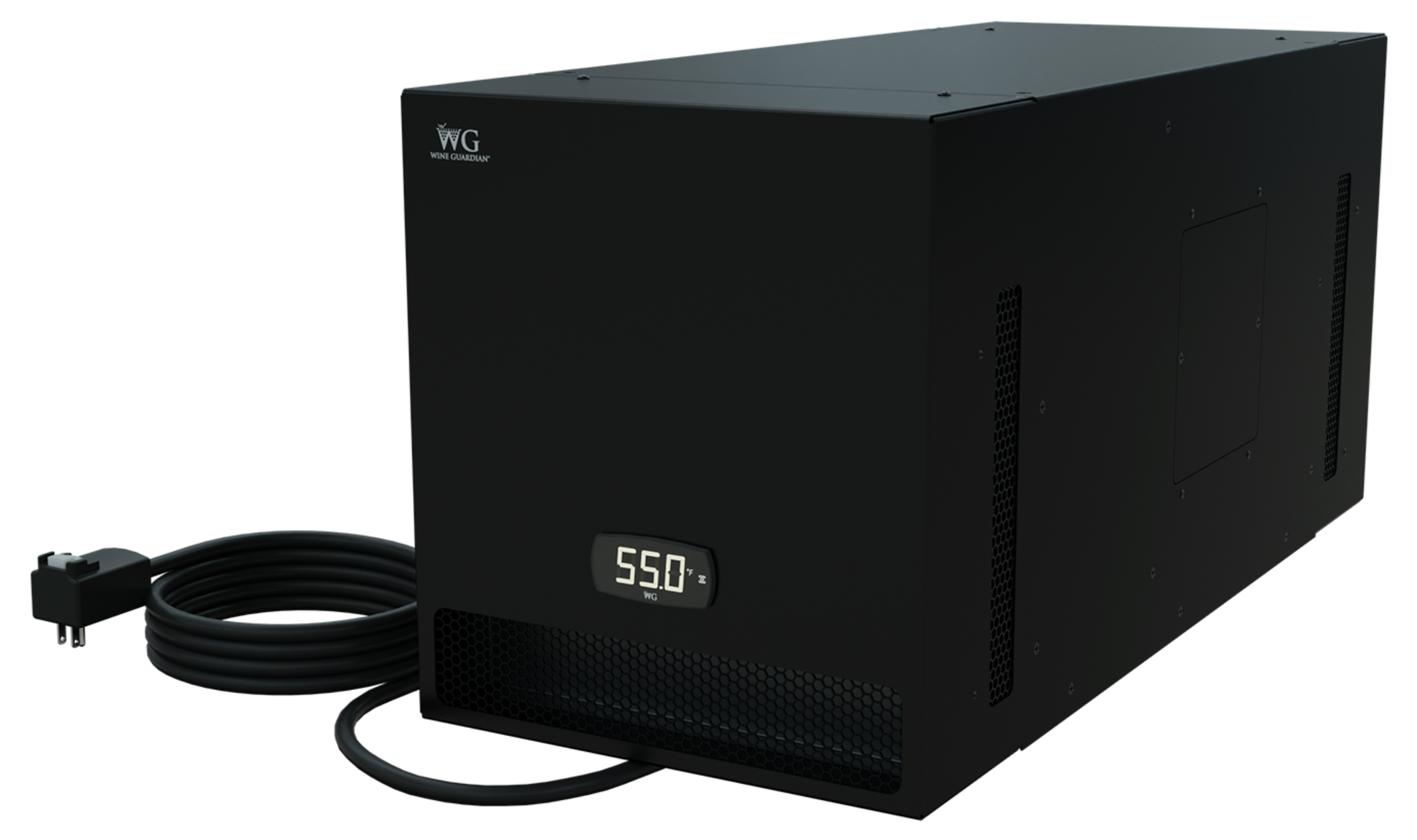

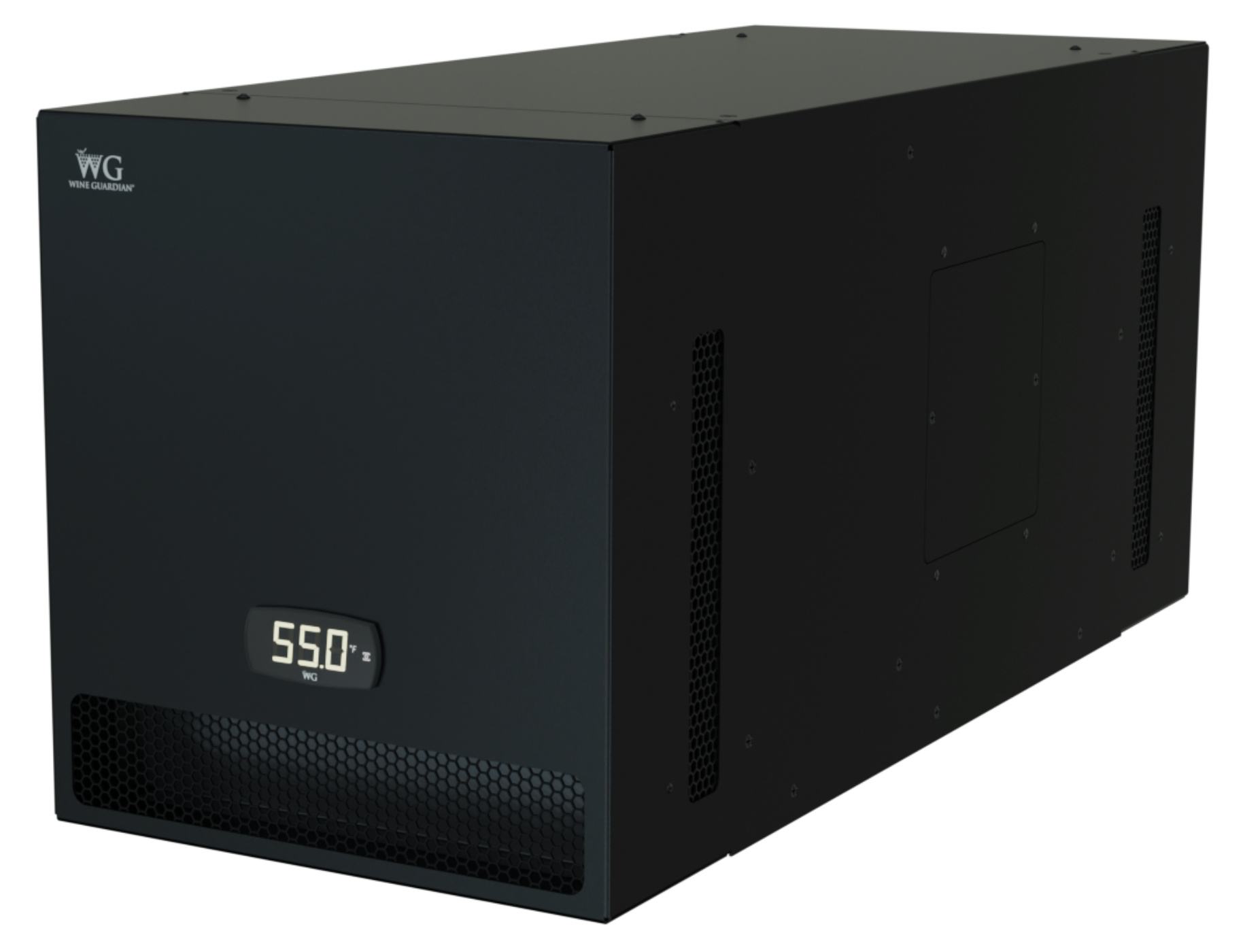

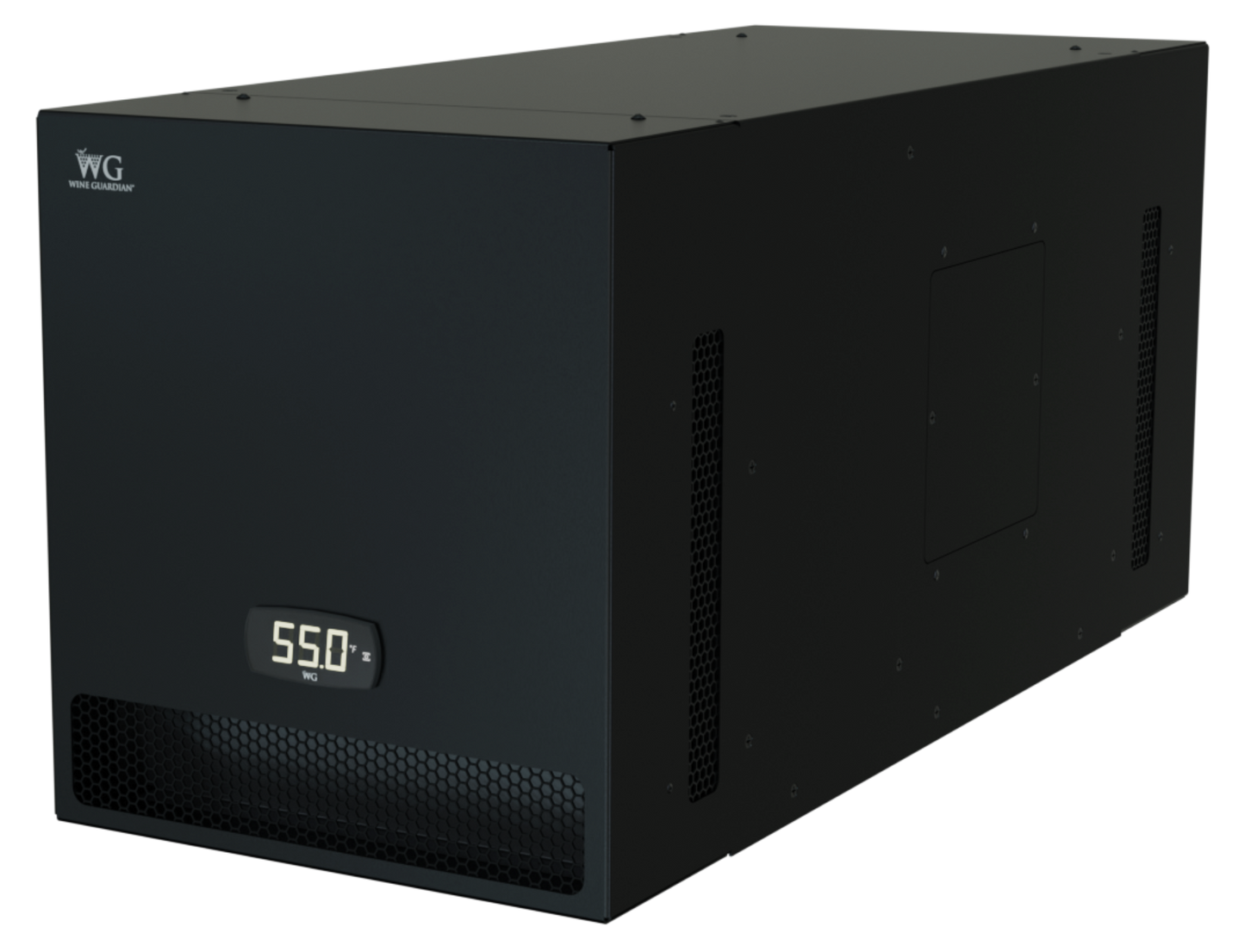

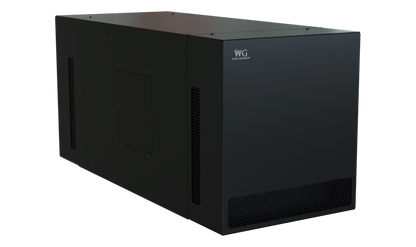

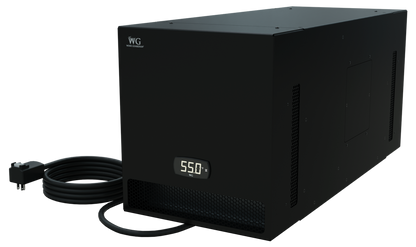

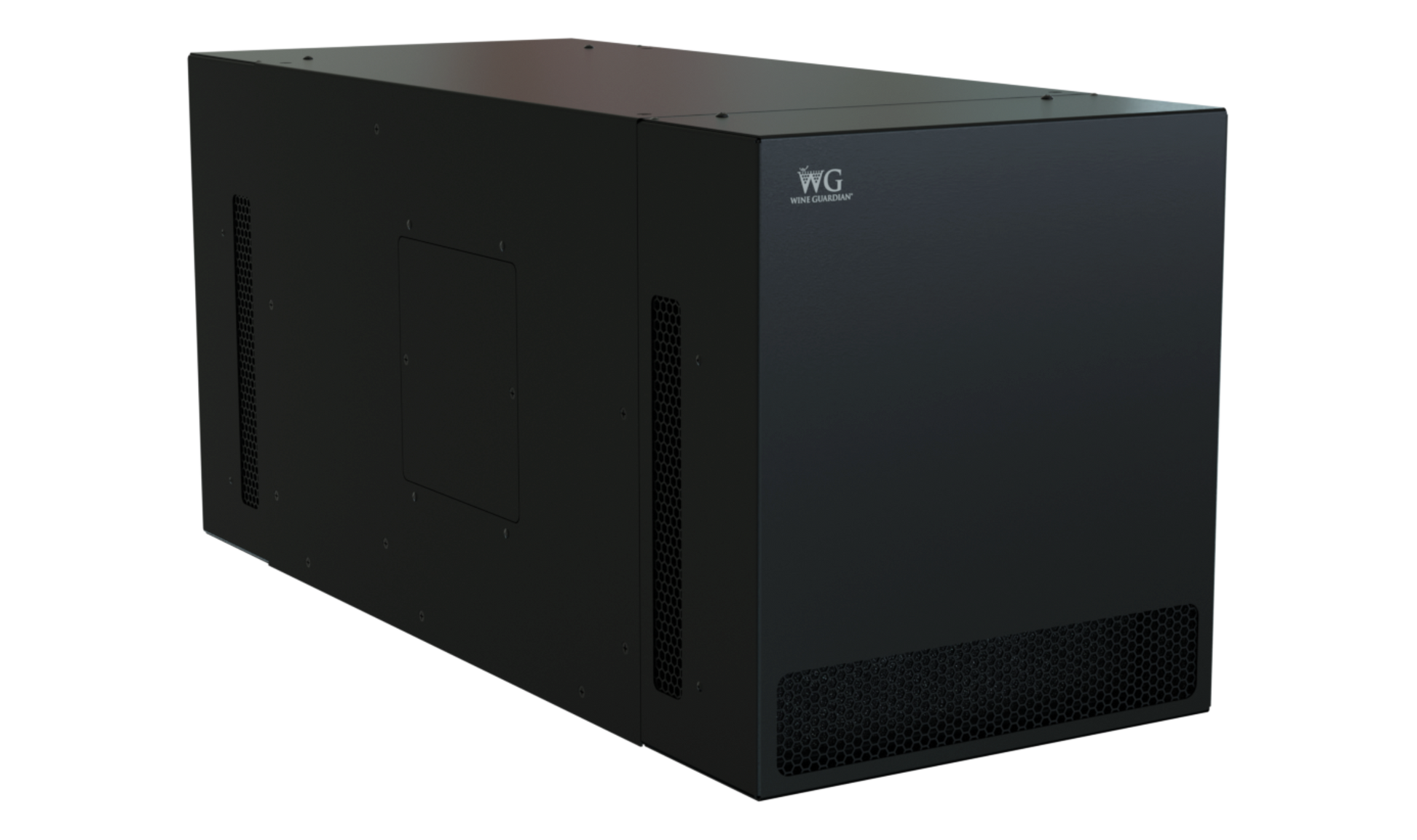

The Wine Guardian Defender Series is a through-the-wall wine cooling unit rated for exterior installations. Its sound-attenuated design delivers quiet, efficient cooling while protecting your wine collection in any environment.

What our Experts Think


Q&A

Q: What is the Wine Guardian TTW04 Defender Through-the-Wall Wine Cellar Cooling Unit (50Hz)?
A: It is a high-capacity, commercial-grade wine cellar cooling system designed for through-the-wall installation, built to maintain stable temperature and humidity control for small to mid-sized wine rooms with higher heat loads.

Q: What are the key specifications of this model?
A: The TTW04 Defender (50Hz) provides about 3,760 BTU/h cooling capacity, operates on 240V/50Hz power, and is designed for international regions such as Europe, Asia, Africa, and Australia.

Q: What makes the Defender series different from other Wine Guardian TTW units?
A: The Defender series is the most advanced TTW line, featuring exterior-wall installation capability, sound-reduction insulation, humidity sensing with humidifier compatibility, and enhanced durability for harsher environments.

Q: Can this unit be installed through an exterior wall?
A: Yes. Unlike Classic and Sentinel models, the Defender series is rated for exterior wall installation and can operate in ambient temperatures ranging from roughly 0°F to 125°F (-18°C to 52°C).

Q: Does it control humidity as well as temperature?
A: Yes. It includes a humidity sensor and supports connection to a freestanding humidifier to maintain optimal wine cellar humidity (typically 55–65%).

Q: Is this unit quiet during operation?
A: Yes. The Defender series uses additional sound-attenuation materials and is designed for very quiet operation compared to standard cooling systems.

Q: Who is this cooling unit best suited for?
A: It is ideal for serious wine collectors, restaurants, and commercial or residential cellar builds that require strong cooling performance, exterior installation flexibility, and long-term stability for wine storage.


Maintenance Tips

• Keep air intake and exhaust grilles clean and unobstructed to maintain efficient heat exchange and stable cellar temperatures
• Clean or replace air filters regularly to prevent dust buildup that reduces airflow and increases compressor load
• Ensure condensate drainage/evaporation system is clear to prevent leaks and humidity imbalance inside the cellar
• Wipe exterior housing and grille surfaces periodically to avoid dust accumulation that restricts airflow efficiency
• Maintain proper wall sleeve sealing to prevent warm air infiltration and reduce system cycling
• Do not block supply or return air openings inside the cellar to avoid poor cooling performance
• Keep adequate clearance on the condenser (exhaust) side to prevent overheating and high-pressure shutdowns
• Check electrical supply stability (50Hz operation) to avoid compressor stress or intermittent faults
• Inspect mounting and vibration isolation periodically to ensure quiet, stable long-term operation
• In colder climates, confirm heater/low-ambient protection (Defender feature) is functioning properly
• Verify temperature and humidity setpoints regularly to maintain optimal wine storage conditions (≈55–65% RH, 42–64°F range)
• Schedule periodic professional servicing to check refrigerant charge, sensors, and system efficiency
