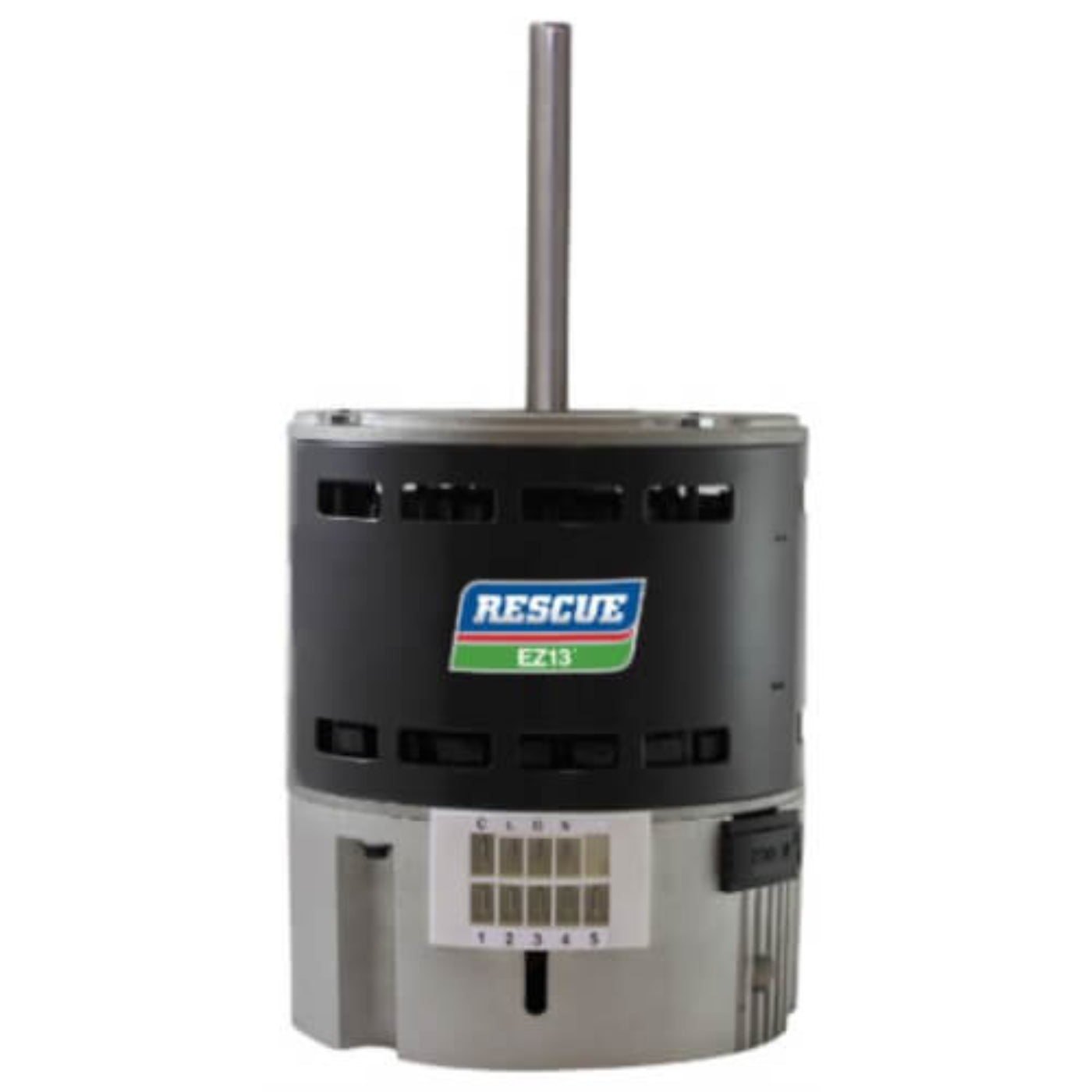

U.S. Motors 5634 | 119292241 RESCUE EZ13 OAO ECM Direct Drive 460V Blower Motor (1/2 HP, 1050 RPM) - 5634
The U.S. Motors 5634 is designed for high efficiency and reliability. This direct drive blower motor operates on 460 volts and is ideally suited for HVAC applications. It is a quick and easy replacement for existing ECM motors in furnaces and air handlers. This model does not require any programming, making it user-friendly for installers.
Product Highlights
This U.S. Motors blower motor offers a simple installation and dependable performance, making it a go-to choice for HVAC service professionals.
Features
- Built-in six thousand Volt surge protection.
- Industry-leading moisture protection for durability.
- Variable speeds with reversible rotation
Specifications
| Horsepower |
1/2 HP |
| RPM |
1050 RPM |
| Voltage |
460 V |
| Frame |
48 |
| Efficiency |
82% |
| Mount Type |
Belly Band |
| Frequency (Hertz) |
50/60 Hz |
| Amperage |
1.2 A |
| Brand |
U.S. Motors |
| Part Number (MPN) |
119292241 |
What our Experts Think
-
Efficient Performance: The U.S. Motors 5634 offers 1/2 HP at 1050 RPM with high efficiency, ensuring energy savings in HVAC systems.
-
Direct Drive Design: This ECM motor provides reliable direct drive operation, ideal for blowers in furnaces and air handlers.
-
Durable Construction: Built with enhanced moisture protection and surge protection, this motor is designed for long-term, dependable use.
-
Versatile Operation: Features variable speeds and reversible rotation, making it adaptable for various system configurations.
-
Easy Installation: The motor is designed for simple replacement, with a belly-band mount and standard NEMA 48 frame for quick integration into existing units.
Q&A
Q: What applications is the U.S. Motors 5634 motor suitable for?
A: This motor is ideal for HVAC systems, specifically as a replacement for furnaces and air handlers.
Q: What are the key specifications of this motor?
A: It delivers 1/2 horsepower at 1050 RPM, operates on 460V single-phase power, and features a 48Y frame with a Totally Enclosed Air Over (TEAO) enclosure.
Q: What are the electrical characteristics of this motor?
A: The motor operates at 1.2 amps and has a service factor of 1.0.
Q: What are the mounting and shaft details?
A: It includes a belly band mount and a shaft measuring 1/2" in diameter by 5" in length with a flat.
Q: What are its construction and protection features?
A: Built with a durable frame, the motor includes ball bearings and is designed for continuous duty in ambient temperatures up to 40°C.
Q: Why choose the 5634 model?
A: This motor offers reliable performance, robust construction, and is designed for demanding HVAC applications, ensuring longevity and efficiency.
Maintenance Tips
-
Regular Inspection: Check for unusual vibrations, overheating, or noise before each use.
-
Keep Clean: Ensure the motor is free from dust and debris to maintain proper ventilation.
-
Lubricate Bearings: Apply the recommended lubricant to the bearings as per the manufacturer's instructions.
-
Electrical Connections: Inspect all wiring and connections for signs of wear or corrosion.
-
Monitor Load & Voltage: Ensure the motor is not overloaded and that the voltage is within the specified range.
-
Proper Storage: If not in use, store the motor in a dry, clean, and well-ventilated area.
