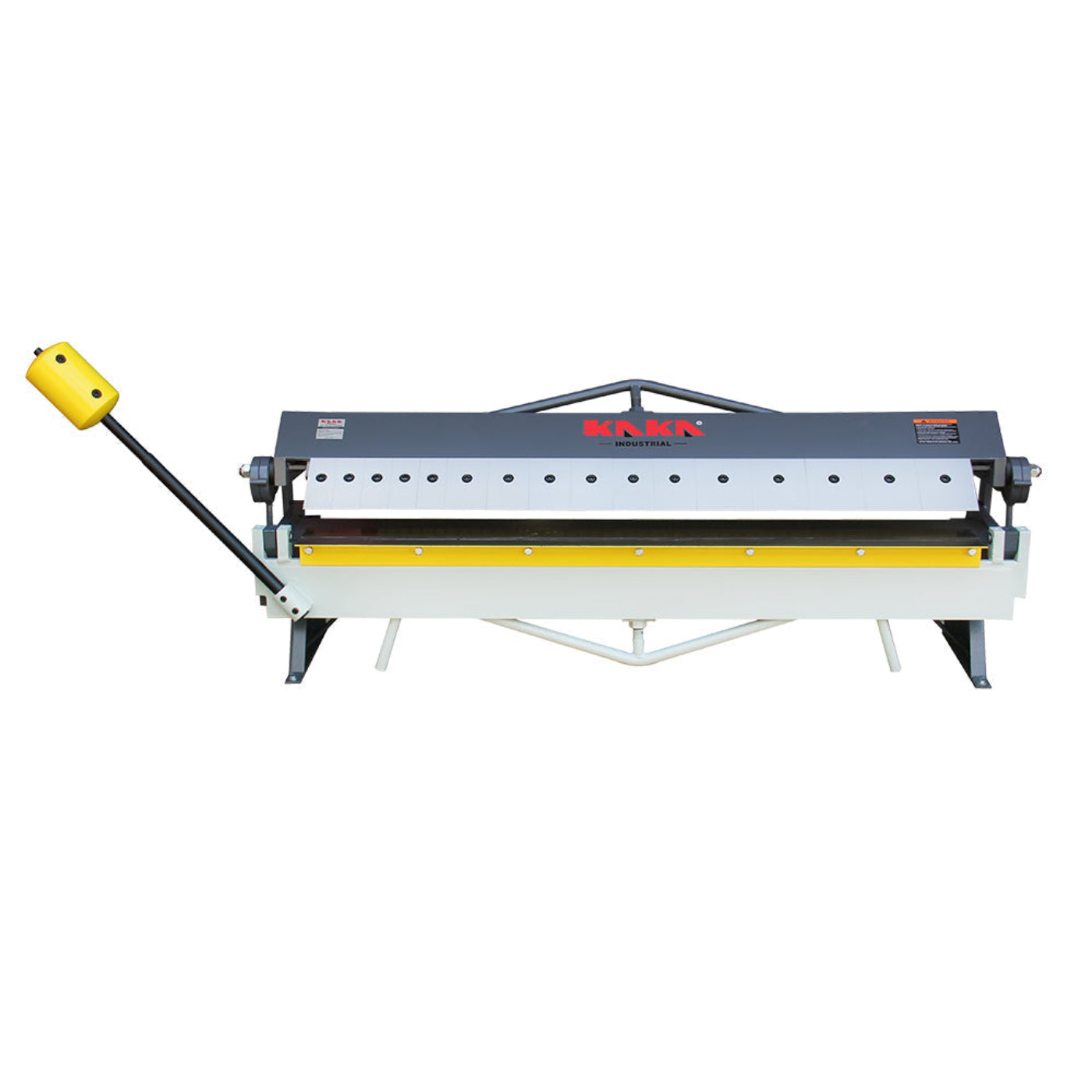

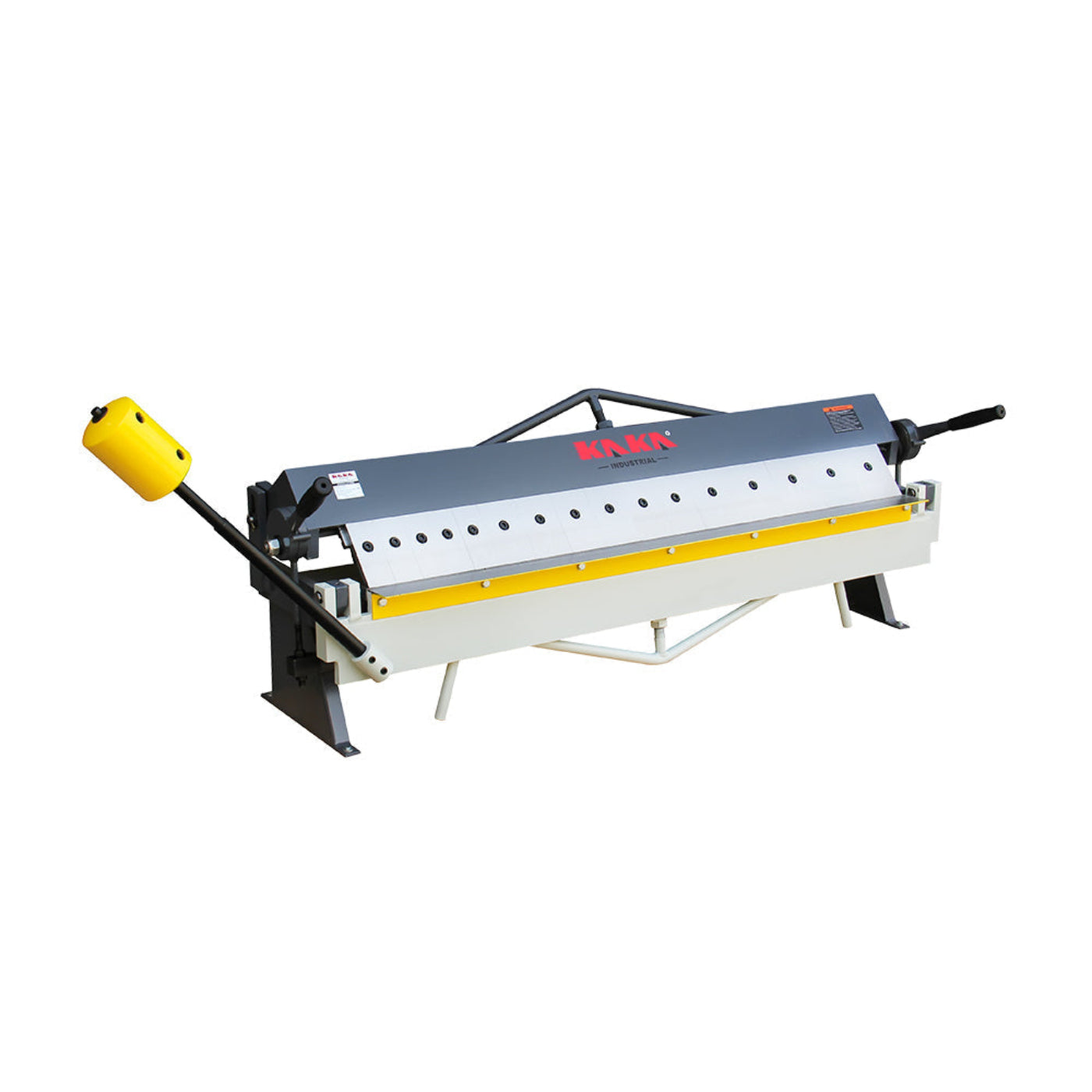

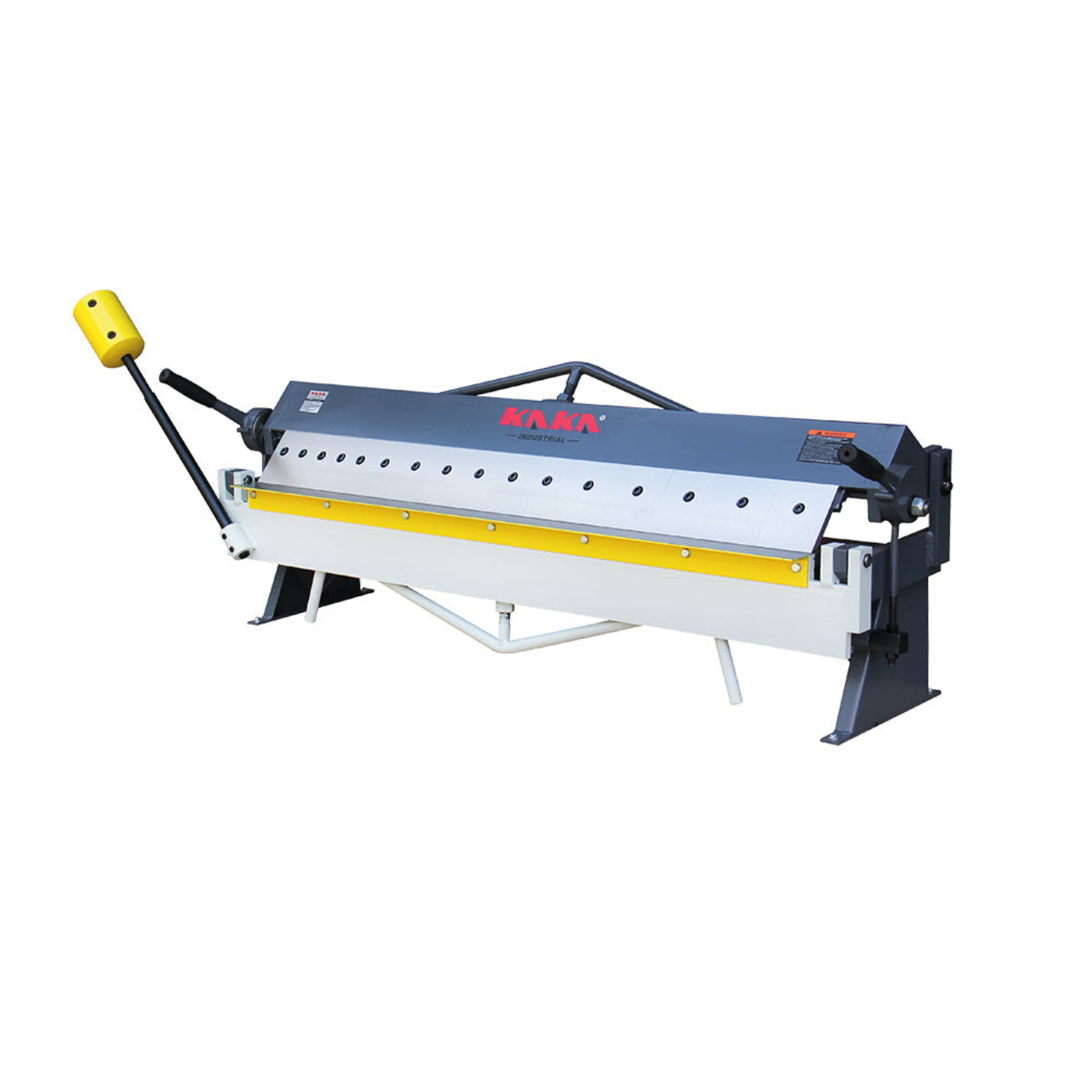

KAKA INDUSTRIAL Box and Pan Brake, 48-Inch Metal Brake, 16 Gauge Mild Steel Capacity Pan and Box Brake, Heavy-Duty Bending Brake with 16 Fingers, 1–135 Degree Adjustable W-4816Z - 173123

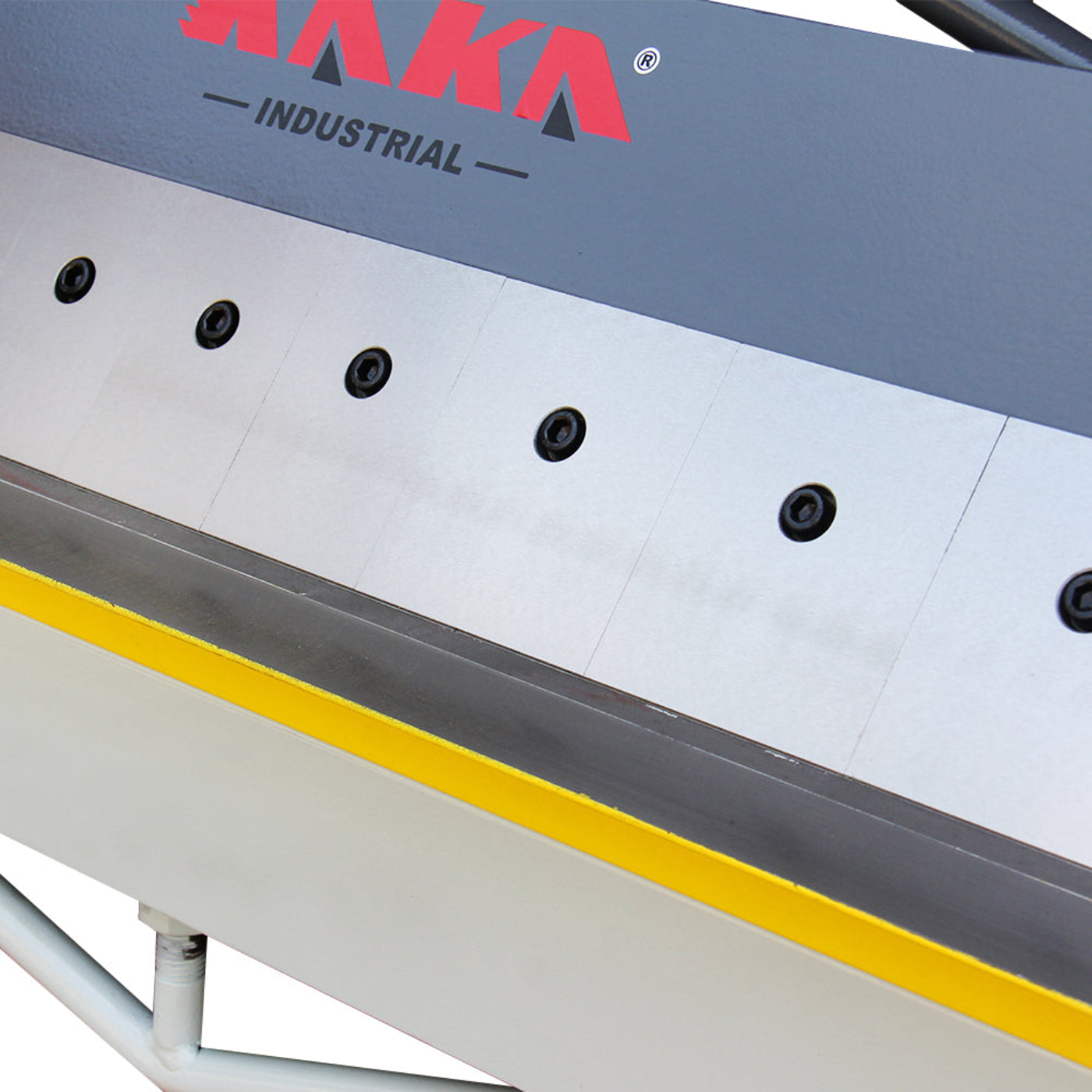

- Hardened steel box fingers

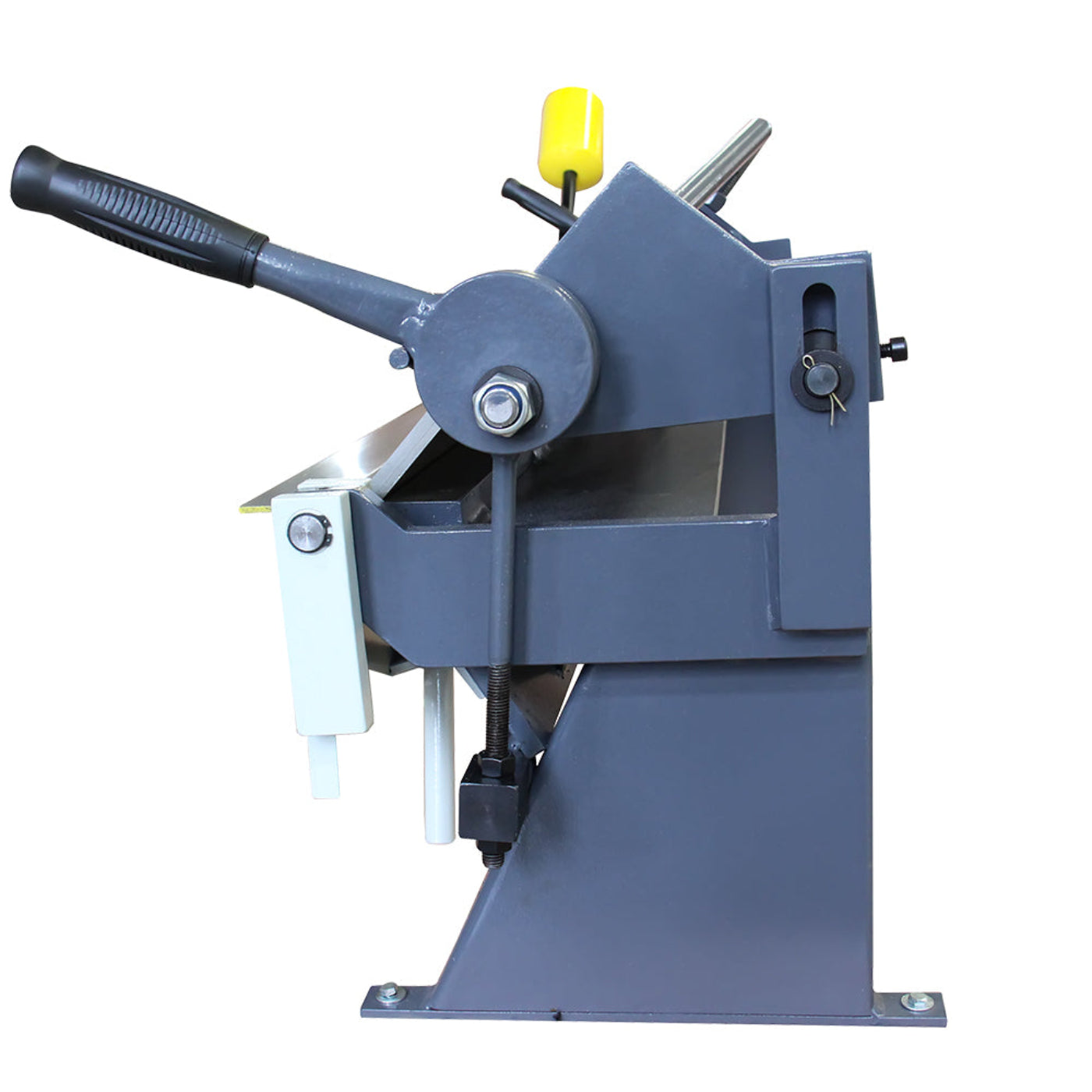

- Left & right beam control levers
- Brakes from 0° - 135°
- Finger segments size: 2" x 5pcs，3" x 6pcs，4" x 5pcs
- Fully trussed for strength & precision
Item No.: 173123
Model: W1.5x1220z / W-4816Z
Capacity(in.): Length: 48”
Thickness: 16Ga
Angle：0-135°
Max. box depth: 2 "
MAXIMUM LIFT OF BEAM: 1-1/2"
MINIMUM REVERSE BEND: 1/2"
MINIMUM FLANGE (MILD STEEL): 5/16”
Packing size(in.)：64x19x27
N.W./G.W.(lbs)： 423/462
What Our Experts Think
-
The KAKA Industrial W-4816Z Box and Pan Brake (173123) is a professional-grade 48-inch sheet metal brake designed for bending 16-gauge mild steel with precision and consistency.
-
Equipped with 16 removable fingers, it allows for versatile forming of boxes, pans, and custom parts.
-
The 1–135° adjustable bending range ensures smooth, accurate bends for a wide variety of metal fabrication tasks.
-
Built with a heavy-duty welded steel frame, offering exceptional stability, durability, and long service life.
Q&A
Q: What is the maximum bending capacity?
A: It can bend up to 16-gauge mild steel or lighter materials such as aluminum and copper.
Q: How many fingers are included?
A: The brake includes 16 precision-machined fingers in various sizes for custom box and pan forming.
Q: What is the maximum bending angle?
A: It offers an adjustable bending angle from 1° to 135° for flexible forming needs.
Q: Is it suitable for professional workshops?
A: Yes, it’s built for industrial and fabrication shop use, combining strength with precision.
Maintenance Tips
-
Clean and oil the fingers and hinges regularly to prevent rust and ensure smooth operation.
-
Lubricate moving parts as recommended to maintain bending accuracy.
-
Inspect bolts, clamps, and alignment before each use for consistent results.
-
Store in a dry, covered area to protect from corrosion and prolong the machine’s lifespan.
