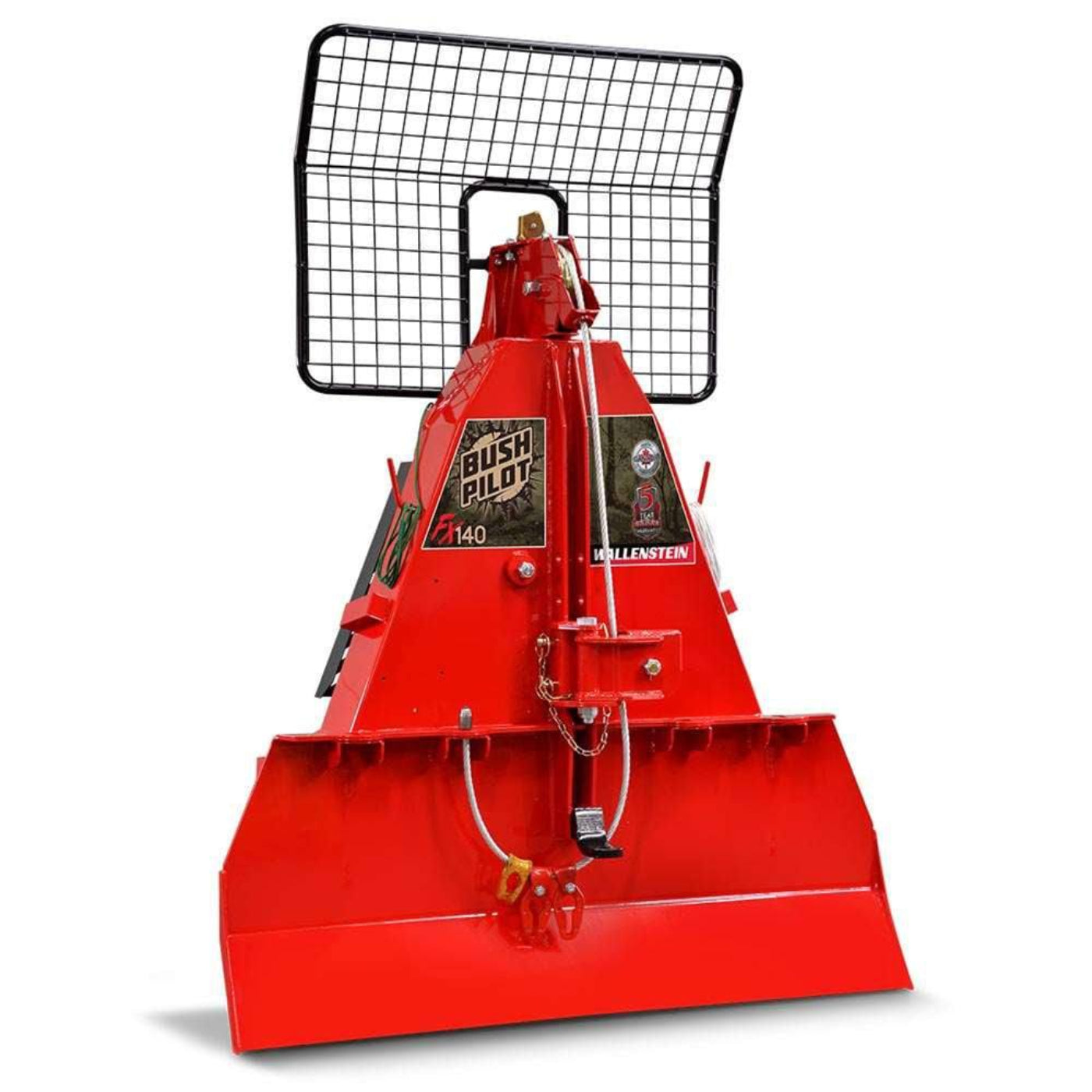

Wallenstein FX140R Winch 14,000 lbs Tractor Attachment - FX140R
This is the Wallenstein FX140R winch that is designed with a 14,000lbs capacity for large heavy items. When looking at the winch it offers a tow bar, trailer hitch and a removable clutch assembly for added utility.
- 2 Choker chains
- Tow bar
- Factory installed remote control winch kit
- Snatch block
What Our Experts Think
-
The Wallenstein FX140R Winch offers a 14,000 lb (6,350 kg) pulling capacity, ideal for heavy-duty skidding or logging tasks.
-
Designed for tractors in the 60‑140 HP range with a Cat II 3‑point hitch and PTO input at 540 RPM.
-
Features a ½″ steel cable (~165 ft / 50 m), line speed approximately 98‑246 ft/min, and a mechanical dry‑disc clutch for reliable performance.
-
Built for forestry or land-management use, with heavy-duty construction and optional remote-control compatibility.
Q&A
Q: What is the maximum pulling capacity?
A: Up to 14,000 lb (6,350 kg).
Q: What tractor power is required?
A: Recommended for 60‑140 HP tractors.
Q: What is the cable specification?
A: Steel cable, ½″ diameter, ~165 ft (50 m) length.
Q: What mounting and PTO requirements are needed?
A: Cat II 3‑point hitch with PTO input at 540 RPM.
Maintenance Tips
-
Inspect and lubricate the clutch, cable, and anchor points regularly.
-
Check the cable for fraying or damage before each use; replace if needed.
-
Ensure all mounting bolts and PTO driveline components are secure and properly aligned.
-
Clean debris and sap from the drum and rollers to maintain smooth operation.
