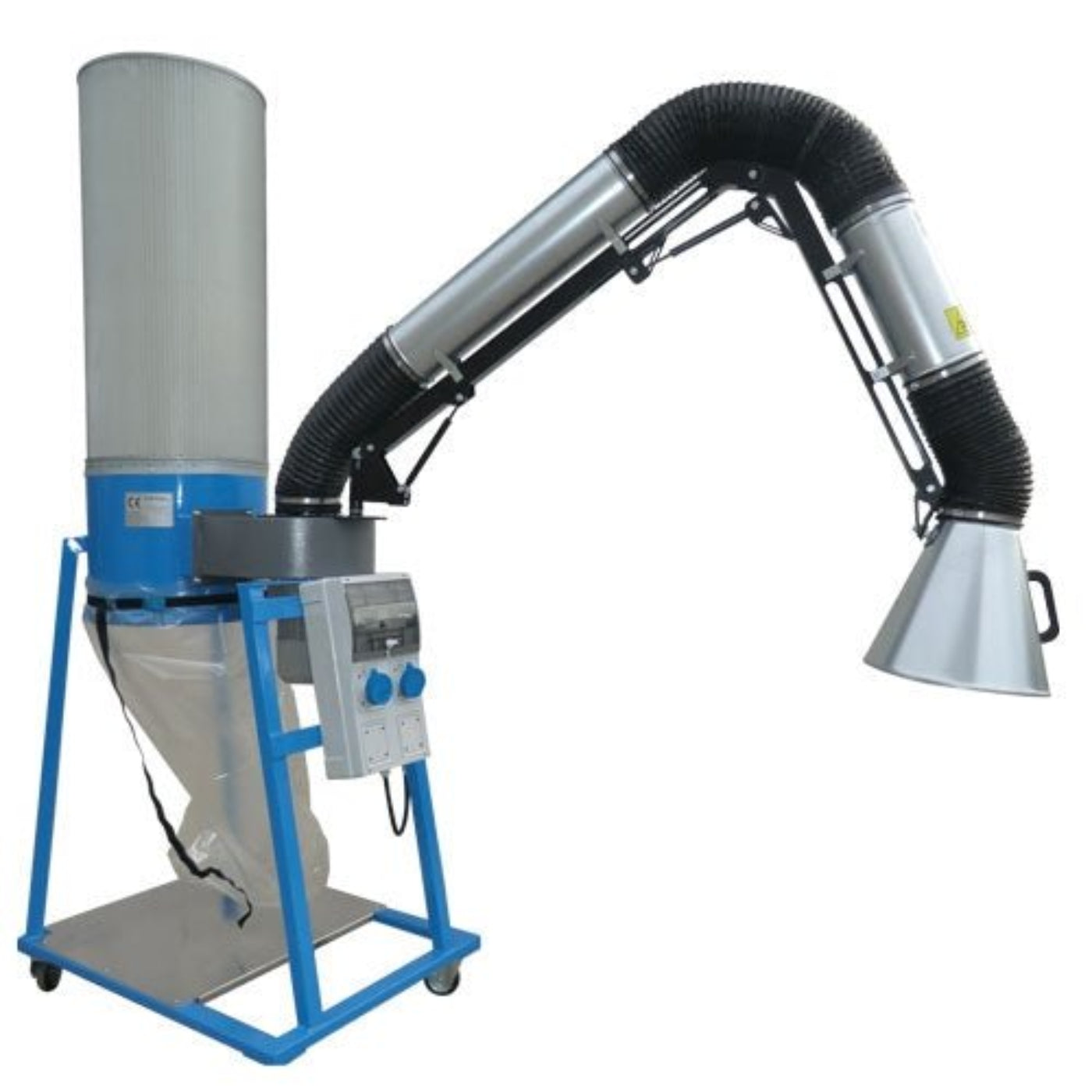

Weha Mobile Suction Arm Dry Dust Collector - TEC740

Weha Mobile Suction Arm Dry Dust Collector - TEC740

Length: 28"
Width: 40"
Height 88 1/2"
Weight 176 lbs.
Suction Power: 63,566 cf/h (1800m3/h
4 Swivel Wheels (2 with Locking Brakes)
Power: 220v 1 Phase. 11.5 amp
Power Outlet:3 110 volt on control panel
Mobile Arm Reach: Up to 102"

The Mobile Arm Dust Collector is a strong 220 single phase 2 HP motor that produces 63,566 cf/h (1800 m3/h) of suction.

This in shop portable Dust Collector captures 99.9% of dust that comes through its big 10" diameter mouth.

The suction and suppression system are equipped with a 2 HP centrifugal fan and a specially designed cartridge system that is 18" in diameter and 39" in length. This massive filter catches 99.9% of the dust that goes through it.

After the dust is caught by the filter itself cleans and drops the dust down into a throw away bag system. Any standard trash bag can be used by simply strapping it to the machine with the provided strap.

The heavy-duty suction arm is 6" in diameter and reaches out to 102" (8'6"). This flexible arm is perfect to capture dust over worktables, workstations, work benches, and anywhere that dust is created.

This fully independent movable Arm Dust Collector is on 4 swivel wheels (2 with locking brakes) for easy movement around the shop. Built on a solid metal frame system that is powder coated, the Filter Project Mobile Arm Dust Collector will last for years and years.

On the front of the Mobile Arm Dust Collector is a control panel that offers on/off functions as well as 3 110-volt power outlets to run grinder, saws, extension cords, etc.

The Filter Project Mobile Arm Dust Collector is one of the best built, most effective industrial grades, point of use dust collectors on the market.

What Our Experts Think

• Mobile dust collection system designed to capture airborne dust directly at the source during fabrication and finishing operations.
• Suction arm design allows precise positioning for effective dust extraction exactly where it is needed.
• Helps maintain a cleaner workspace by reducing dust buildup on equipment, materials, and surrounding areas.
• Supports improved workplace safety by minimizing airborne particles in fabrication environments.
• Mobile configuration allows easy movement between workstations for maximum flexibility.
• Designed for dry dust collection applications in stone fabrication, grinding, polishing, and finishing processes.
• Heavy-duty industrial construction provides durability for continuous professional use.
• Improves shop cleanliness and operational efficiency by reducing cleanup time and maintenance requirements.
• Ideal for fabrication shops, workshops, manufacturing facilities, and industrial processing environments.
• Expert Verdict: The Weha Mobile Suction Arm Dry Dust Collector is a practical and effective dust-management solution that enhances workplace cleanliness, operator safety, and productivity in professional fabrication environments.**

Q&A

Q: What is the Weha Mobile Suction Arm Dry Dust Collector used for?
A: The TEC740 is a portable industrial dust collection system designed to capture airborne dust generated during cutting, grinding, polishing, and fabrication of stone, quartz, porcelain, concrete, and other materials.

Q: What type of materials is it suitable for?
A: It is ideal for granite, marble, quartz, quartzite, engineered stone, porcelain, ceramic, concrete, and solid-surface fabrication applications.

Q: How powerful is the dust collector?
A: The unit features a 2 HP motor capable of producing up to 1,800 m³/h (63,566 cf/h) of suction airflow for effective dust capture.

Q: How efficient is the filtration system?
A: The cartridge filtration system captures up to 99.9% of airborne dust particles, helping maintain a cleaner and healthier workspace.

Q: How far can the suction arm reach?
A: The heavy-duty suction arm extends up to 102 inches (8.5 feet), allowing dust collection directly at the source.

Q: Does the filter require manual cleaning?
A: No. The system features a self-cleaning filter mechanism that automatically drops collected dust into a disposable collection bag.

Q: Is the unit portable?
A: Yes. It is mounted on 4 swivel casters, including 2 locking wheels, making it easy to move and position around the shop.

Q: Does it include power outlets for tools?
A: Yes. The front control panel includes three 110V power outlets for connecting grinders, saws, and other fabrication tools.

Q: What are the dimensions of the dust collector?
A: The unit measures approximately 28" L × 40" W × 88.5" H and weighs about 176 lbs.

Q: Why choose the Weha Mobile Suction Arm Dry Dust Collector (TEC740)?
A: Its 99.9% filtration efficiency, powerful 2 HP motor, 102-inch reach, self-cleaning filter system, integrated tool outlets, and mobile design make it an excellent solution for professional dust control in stone fabrication and industrial workshops.
